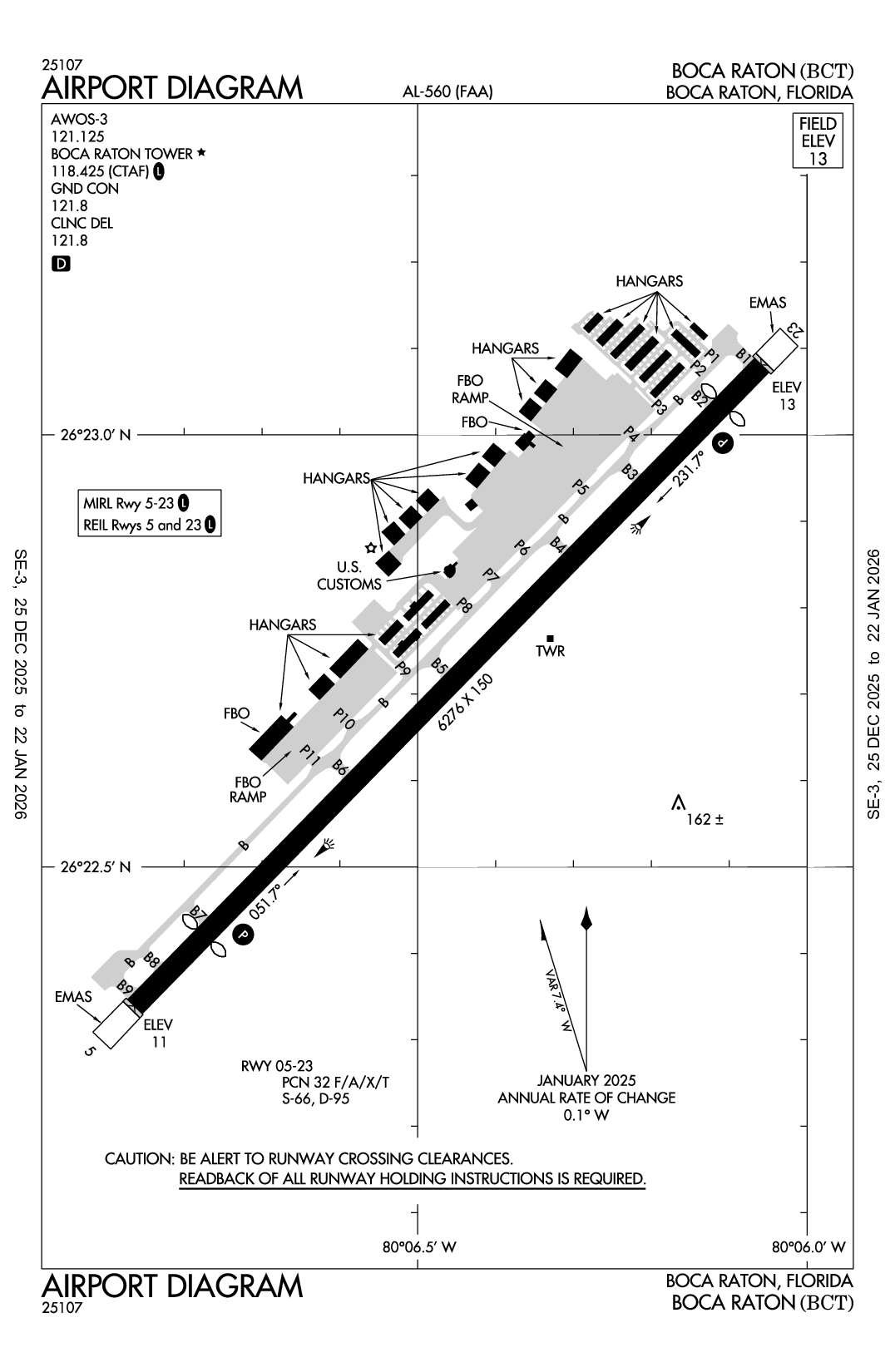

BOCA RATON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBCT
BOCA RATON
PublicPUB

2 miles NW of BOCA RATON, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 22' 43"N 80° 06' 28"W
13' MSL
1013' MSL
05W
Jet A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
5/19/22-6/16/22
KBCT MVFR
8:53 AM EDT
Broken 2,000'
8sm
82°F
77°F
30.21"Hg
140° 14kts
KBCT 221253Z 14014KT 8SM BKN020 28/25 A3021

KBCT FBOs, Flight Schools and Ground Support

Signature Flight Support
Freq: 130.9
Phone: (561) 955-9556
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/21
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.85 8.08
Atlantic Aviation
Freq: 131.95
Phone: (561) 368-1110
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/20
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.09 7.95

KBCT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBCT Hotels

No hotels are listed for this airport.

KBCT Restaurants

No restaurants are listed for this airport.

KBCT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.425

AWOS-3

AWOS-3
561-391-2696
121.125

Clearance Delivery

CD/P
121.8

Ground

GND/P
121.8

Tower

LCL/P
118.425

Terminal Area Forecast

KFXE (11nm)
Sun, 5/22 7:25 AM EDT
Sun, 5/22 8:00 AM EDT - Mon, 5/23 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Broken 25,000'
Scattered 2,000'
> 6sm
110° 10kts
MVFR
Temporary 10:00 AM EDT - 2:00 PM EDT
Broken 2,500'
N/A
Calm
VFR
10:00 AM EDT - 10:00 PM EDT
Broken 20,000'
Scattered 2,500'
> 6sm
120° 13kts
Gusts 20kts
VFR
10:00 PM EDT - 8:00 AM EDT
Broken 20,000'
Scattered 2,000'
> 6sm
110° 9kts
KFXE 221125Z 2212/2312 11010KT P6SM SCT020 BKN250
   FM221400 12013G20KT P6SM SCT025 BKN200
   TEMPO 2214/2218 BKN025
   FM230200 11009KT P6SM SCT020 BKN200
KBCT
Domestic
3/21/221030Z !MIA 03/266 BCT TWY P10 CHANGED TO TWY P11 2203211030-PERM
3/21/221030Z !MIA 03/264 BCT TWY P9 CHANGED TO TWY P10 2203211030-PERM
3/21/221030Z !MIA 03/263 BCT TWY P7 CHANGED TO TWY P8 2203211030-PERM
3/21/221030Z !MIA 03/262 BCT TWY P8 CHANGED TO TWY P9 2203211030-PERM
3/21/221030Z !MIA 03/261 BCT TWY C BTN TWY P AND ATLANTIC AVIATION APN CHANGED TO TWY P6 2203211030-PERM
3/21/221030Z !MIA 03/260 BCT TWY P6 CHANGED TO TWY P7 2203211030-PERM
2/17/221853Z !MIA 02/220 BCT OBST TOWER LGT (ASN 2021-ASO-19391-OE) 262219N0801022W (3.6NM W BCT) 443FT (425FT AGL) U/S 2202171853-2208172359
1/19/220501Z !MIA 01/129 BCT AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
10/16/211100Z !MIA 10/164 BCT OBST CRANE (ASN UNKNOWN) 262214N0800654W (0.2NM SSE APCH END RWY 05)
133FT (120FT AGL) FLAGGED DLY 1100-2200 2110161100-2206302200
9/13/211100Z !MIA 09/176 BCT OBST CRANE (ASN 2021-ASO-32143-OE) 262528N0800453W (3.1NM NNE BCT) 226FT (220FT AGL) FLAGGED AND LGTD 2109131100-2212312200
FDC
5/19/221711Z !FDC 2/6895 BCT IAP BOCA RATON, BOCA RATON, FL.
RNAV (GPS) RWY 5, AMDT 1...
CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.25/TCH 46).
LPV DA 283/HAT 271 ALL CATS. LNAV/VNAV ALL CATS VIS 1 3/8.
CIRCLING CAT A/B MDA 680/HAA 667.
PBN REQUIREMENTS NOTE: RNP APCH-GPS.
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV
NA BELOW -15C OR ABOVE 54C.
DELETE NOTE: DME/DME RNP-0.3 NA.
DELETE ASTERISK FROM MINIMUM ALTITUDE AT OMITE 1.6 NM TO RW05 560.
DELETE NOTE: *LNAV ONLY.
CHANGE NOTE TO READ: RWY 5 HELICOPTER VISIBILITY REDUCTION BELOW
3/4 SM NOT AUTHORIZED.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
PALM BEACH INTL ALTIMETER SETTING: INCREASE LPV DA TO 326 FEET;
INCREASE LNAV/VNAV DA TO 501 FEET; INCREASE ALL MDAS 60 FEET AND
VISIBILITY LNAV CATS C AND D 1/8 SM AND CIRCLING CATS C AND D 1/4
SM.
THIS IS RNAV (GPS) RWY 5, AMDT 1A. 2205191711-PERM
5/19/221148Z !FDC 2/6435 BCT CHART BOCA RATON, BOCA RATON, FL.
AIRPORT DIAGRAM ...
CORRECT AIRPORT DIAGRAM: INCORRECT DEPICTION OF AIRPORT LAYOUT AND
DOES NOT SHOW BUILDINGS. FOR CORRECTED COPY OF AIRPORT DIAGRAM SEE
22-04 TERM SAFETY ALERT AT
HTTPS://WWW.FAA.GOV/AIR_TRAFFIC/FLIGHT_INFO/AERONAV/SAFETY_ALERTS/.
2205191148-PERM
2/15/222004Z !FDC 2/4902 BCT ODP BOCA RATON, BOCA RATON, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS: RWY 23, 300-1, OR STANDARD WITH MINIMUM CLIMB OF 242 FEET PER NM TO 300.
TAKEOFF OBSTACLE NOTES: RWY 23, BRIDGE, 1881 FT FROM DER, 196 FT LEFT OF CENTERLINE, 40 AGL/80 MSL (2021-ASO-2880-OE PERMANENT).
ALL OTHER DATA REMAINS AS PUBLISHED. 2202152004-2402152004EST
Yes
ALL
BOCA RATON AIRPORT AUTHORITY
903 NW 35TH STREET
BOCA RATON, FL 33431
Phone: 561-391-2202
CLARA BENNETT
903 NW 35TH STREET
BOCA RATON, FL 33431
Phone: 561-391-2202
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
WHEN ATCT CLSD ACTV REIL RWY 05 & 23, PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
100
23
70
3
0
0
Major
Major
None
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

6276 ft. x 150 ft.
ASPH
Good
GRVD
MED
32 /F/A/X/T
66,000lbs
95,000lbs
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 26° 22' 20"N 26° 23' 05"N
Longitude 80° 06' 52"W 80° 06' 04"W
Elevation 11' 13'
Threshold Crossing Height 40 ft. AGL 22 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT INFO - AMGR. VOLUNTARY NOISE ABATEMENT PROC IN EFCT ALL TIMES & ACFT. VOLUNTARY CURFEW 2200-0700. USE NBAA STD NOISE ABATEMENT APCH & DEP PROC.
A110-10FOR CD, IF UNA VIA GCO CTC PALM BEACH APCH AT 561-684-9047 OR 561-275-1430.
A110-11WHEN ATCT CLSD, GCO AVBL ON FREQ 127.35 PALM BEACH CD.
A110-2BIRDS ON AND INVOF ARPT.
A110-4USE RECOMMENDED DEP: RWY 05 L TURN HDG 360 STAY W OF INTERSTATE TO 1500 FT; RWY 23 R TURN HDG 255 AS SOON AS PRACTICABLE AFT PASSING RWY END TO 1500 FT; AVOID RESIDENTIAL AREAS; OVERFLY MALL AREA.
A110-5TGL VOLUNTARILY RSTRD TO 0900-1700 MON-FRI; STOP & GO LNGS & INT DEP VOLUNTARY RSTRD.
A110-7MAINT RUNUP NA 0100-1300.
A110-8ACFT PRKG LTD DURG VIP TFR PDS. TRAN ACFT RQRD TO OBTAIN PPR FM CHOSEN FBO PRIOR TO DEP. PPR SHALL BE INCLD IN IFR FP RMKS FOR ALL TRAN ACFT.
A110-9US CUSTS USER FEE ARPT. US CUSTS AVBL THUR-MON 1030-1830 LCL - 561-292-9231. CLSD TO ARR OUTSIDE NML HR EXC O/R AND APVL BY US CUSTS; MNM ADDNL FEE. CTC US CUSTS 561-665-5842 FOR AFT HR APVL.
BOCA RATON (ICAO: KBCT, IATA: BCT) is a public airport located in BOCA RATON, FL.
