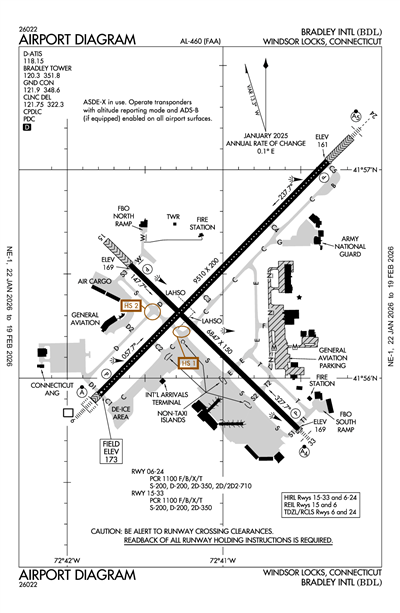

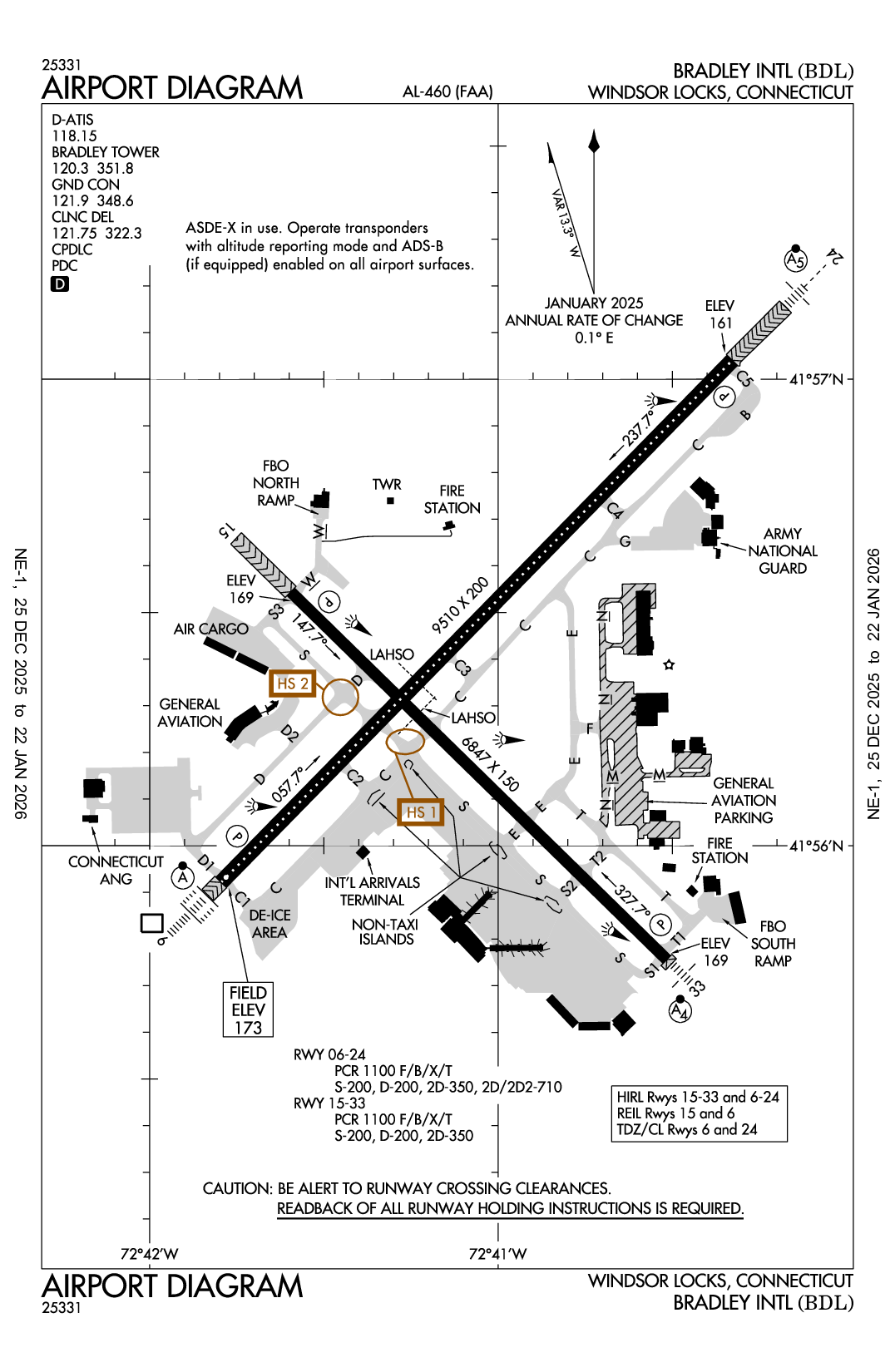

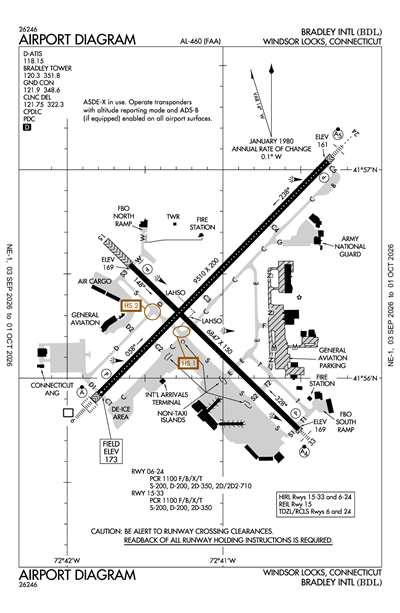

BRADLEY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBDL
ICAO KBDLIATA BDLLocal BDL
BRADLEY INTL
PublicPUB

3 miles W of WINDSOR LOCKS, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 56' 21"N 72° 41' 04"W
Elevation
173' MSL
Pattern Alt
1173' MSL
Mag Variation
13°W
Declination
14°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
10/29/26-11/26/26
KBDL VFR
6:51 AM EST
Light Rain
Overcast 7,500'
Broken 6,000'
Few 3,000'
10sm
43°F
38°F
29.75"Hg
350° 5kts
AO2 RAB26 SLP076 BINOVC P0000 60001 70002 T00610033 10078 20056 55003 $
METAR KBDL 121151Z 35005KT 10SM -RA FEW030 BKN060 OVC075 06/03 A2975 RMK AO2 RAB26 SLP076 BINOVC P0000 60001 70002 T00610033 10078 20056 55003 $
+ Add Your Business

KBDL FBOs

Promote Listing
Atlantic Aviation
UNICOM: 129.725
Phone: (860) 627-3300
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.55 10.85
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
ASRI: 131.875
Phone: (860) 623-4955
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 10.33 10.14
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 118.15
(860) 386-3570
ASOS 118.15
(860) 386-3480

Common

UNICOM 122.95

Clearance

Clearance Delivery 121.75

Ground

BRADLEY GROUND 121.9

Tower

BRADLEY TOWER 120.3

Arrival

DEER PARK STAR 123.95
061-240
DEER PARK STAR 125.35
241-060
STELA STAR 125.35

Approach

BRADLEY APPROACH 123.95
Initial Contact - 061-240
BRADLEY APPROACH 125.35
Initial Contact - 241-060
BRADLEY APPROACH 127.225

Departure

BRADLEY DEPARTURE 123.95
Initial Contact - 061-240
BRADLEY DEPARTURE 125.35
Initial Contact - 241-060

Emergency

Emergency 121.5

Military

ANG OPS 138.55
NG OPS 41.9
NG OPS 123.45

Other

CLASS C 123.95
061-240
CLASS C 125.35
241-060
CLASS C 127.225

Terminal Area Forecast

KBDL
Thu, 11/12 6:20 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 1:00 PM EST
VFR
7:00 AM EST - 11:00 AM EST
Light Rain
Overcast 3,500'
6sm
030° 5kts
MVFR
11:00 AM EST - 6:00 PM EST
Light Rain
Overcast 2,500'
6sm
040° 7kts
MVFR
6:00 PM EST - 9:00 PM EST
Light Rain
Overcast 1,500'
3sm
010° 11kts
IFR
9:00 PM EST - 2:00 AM EST
Light Rain
Overcast 1,200'
2sm
010° 10kts
Gusts 18kts
IFR
2:00 AM EST - 1:00 PM EST
Light Rain
Overcast 800'
2sm
020° 15kts
Gusts 19kts
TAF KBDL 121120Z 1212/1318 03005KT P6SM -RA OVC035
   FM121600 04007KT 6SM -RA OVC025
   FM122300 01011KT 3SM -RA OVC015
   FM130200 01010G18KT 2SM -RA OVC012
   FM130700 02015G19KT 2SM -RA OVC008
KBDL
EffectiveExpiresCategoryNOTAM
Domestic
11/12/26
2030Z
11/12/26
2130Z
!BDL 11/052 BDL TWY E BTN TWY S AND TWY T CLSD 2611122030-2611122130
11/12/26
2030Z
11/12/26
2130Z
Runway!BDL 11/051 BDL RWY 15/33 CLSD 2611122030-2611122130
11/12/26
1226Z
11/13/26
1226Z
!BDL 11/061 BDL APRON ALL FICON WET OBS AT 2611121226. 2611121226-2611131226
11/12/26
1226Z
11/13/26
1226Z
!BDL 11/060 BDL TWY ALL FICON WET OBS AT 2611121226. 2611121226-2611131226
11/12/26
1225Z
11/12/26
2029Z
Runway!BDL 11/059 BDL RWY 33 FICON 5/5/5 100 PCT WET OBS AT 2611121225. 2611121225-2611122029
11/12/26
1225Z
11/13/26
1225Z
Runway!BDL 11/058 BDL RWY 06 FICON 5/5/5 100 PCT WET OBS AT 2611121225. 2611121225-2611131225
10/31/26
1808Z
12/1/26
0500Z
!BDL 10/102 BDL APRON TERMINAL ALPHA RAMP WIP STEEL PLATES AT ENTRY POINT GATE 26 2610311808-2612010500
10/31/26
1808Z
12/1/26
0500Z
!BDL 10/101 BDL APRON UPS RAMP WIP STEEL PLATES AT ENTRY TO SPOT C3A 2610311808-2612010500
10/27/26
2213Z
11/30/26
2359Z
!BDL 10/099 BDL APRON SIGNATURE NORTH RAMP WIP CONST ADJ E EDGE LGTD AND BARRICADED 2610272213-2611302359
10/27/26
2213Z
11/30/26
2359Z
!BDL 10/098 BDL TWY W EDGE LGT BTN WHISKEY APN AND SIGNATURE NORTH RAMP NOT STD 2610272213-2611302359
10/10/26
1822Z
11/30/26
2359Z
!BDL 10/023 BDL TWY W BTN SIGNATURE NORTH RAMP AND WHISKEY APN CLSD TO ACFT WINGSPAN MORE THAN 79FT EXC TOWED ACFT 2610101822-2611302359
11/7/25
2358Z
Runway!BDL 11/030 BDL RWY 24 LAND AND HOLD SHORT OPS LGT DECOMMISSIONED 2511072358-PERM
8/10/25
0710Z
Runway!BDL 08/027 BDL RWY 33 LAND AND HOLD SHORT OPS LGT DECOMMISSIONED 2508100710-PERM
FDC
11/3/26
1504Z
!FDC 6/4916 BDL IAP BRADLEY INTL, WINDSOR LOCKS, CT.
RNAV (GPS) RWY 33, AMDT 4...
LPV DA 462/HAT 291 ALL CATS. LNAV/VNAV DA 518/HAT 347 ALL CATS. CIRCLING MDA CAT A/B 760/HAA 587. TEMPORARY CRANE 391FT MSL 2994FT WEST OF RWY 33 (2023-ANE-96-NRA).
2611031504-2706152355EST
8/31/26
1912Z
!FDC 6/9504 BDL IAP BRADLEY INTL, WINDSOR LOCKS, CT.
ILS OR LOC RWY 33, AMDT 11...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BAF VOR OUT OF SERVICE. 2608311912-2612091912EST
8/31/26
1912Z
!FDC 6/9499 BDL IAP BRADLEY INTL, WINDSOR LOCKS, CT.
ILS OR LOC RWY 6, AMDT 38B...
ILS RWY 6 (SA CAT I), AMDT 38B...
ILS RWY 6 (CAT II AND III), AMDT 38B...
MISSED APPROACH: CLIMB TO 4000 THEN RIGHT TURN DIRECT HFD VOR/DME AND HOLD,
BAF VOR OUT OF SERVICE. 2608311912-2612091912EST
8/31/26
1912Z
12/9/26
1912Z
!FDC 6/9498 BDL IAP BRADLEY INTL, WINDSOR LOCKS, CT.
ILS OR LOC RWY 24, AMDT 13B...
ILS RWY 24 (SA CAT I AND II), AMDT 13B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BAF VOR OUT OF SERVICE. 2608311912-2612091912EST
7/24/26
1630Z
!FDC 6/8428 BDL IAP BRADLEY INTL, WINDSOR LOCKS, CT.
ILS OR LOC RWY 24, AMDT 13B...
CHART IN PROFILE VIEW: I-MYQ DME ANTENNA.
2607241630-2807241630EST
Military
11/13/26
1230Z
11/16/26
1230Z
Apron!KBDL M0017/26 BDL APRON CONNECTICUT AIR NTL GUARD RAMP CLSD 2611131230-2611161230
11/10/26
2117Z
11/13/26
2130Z
CONNECTICUT AIR NTL GUARD RAMP W TAXILANE CSLD TO ALL ACFT TRAFFIC
11/10/26
2116Z
11/13/26
2116Z
M0015/26 NOTAMC M0014/26
Yes
ALL
CONNECTICUT AIRPORT AUTHORITY
AIRPORT ADMINISTRATION OFFICE TERMINAL A, 3RD FLOOR
WINDSOR LOCKS, CT 06096
Phone: 860-627-3001
MICHAEL W. SHEA, CPA
BRADLEY INTL AIRPORT
WINDSOR LOCKS, CT 06096
Phone: 860-292-2000
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDL
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Aircraft Sales

Runway 06/24

9510 ft. x 200 ft.
ASPH
Excellent
GRVD
HIGH
1100/F/B/X/T
200,000lbs
200,000lbs
350,000lbs
710,000lbs
  Runway 06 Runway 24
True Heading 44°224°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 55' 55"N 41° 57' 02"N
Longitude 72° 41' 48"W 72° 40' 20"W
Elevation 173' 161'
Threshold Crossing Height 71 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 15/33

6847 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
1100/F/B/X/T
200,000lbs
200,000lbs
350,000lbs
--
  Runway 15 Runway 33
True Heading 134°314°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 41° 56' 33"N 41° 55' 45"N
Longitude 72° 41' 36"W 72° 40' 31"W
Elevation 169' 168'
Threshold Crossing Height 61 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1NMRS BIRDS FQTLY ON OR INVOF ARPT.
A110-11(E117) CT ANG AND U.S. ARMY NG.
A110-17MILITARY: ANG: NSTD WINGTIP CLNC WHITE DASHED LINES SPANNING BHND FRONT AND BACK OF ACFT PRKG ROWS AND WHITE GND EQPT BOXES PAINTED ON ANG RAMP.
A110-18MILITARY: ANG - DSN 636-7519/7520. C860-292-4519/4520.
A110-19MILITARY: ANG: AFLD MGR DOES NOT ISSUE OR STORE COMSEC FOR TRAN CREWS.
A110-2OPS CTC AUTOVON 636-8385; COML 860-627-3001.
A110-20CAUTION: ANG RAMP MRK MAY NOT BE APPROPRIATE FOR LARGE ACFT: FLW MARSHALLERS INSTR.
A110-21PARL TWY OPS ON TWY C & TWY B RSTRD TO ACFT WITH WINGSPANS OF 171 FT OR LESS.
A110-22ACFT REQG US CUST SVCS MUST PARK ON THE CUST SPOT W/ THE NOSE OF THE ACFT FACING SW. CTC CUST AT 860-292-1314 WHEN PARKED.
A110-23MILITARY: RMK: BASH PHASE II INCRD BIRD ACTVTY SEP-OCT AND MAR-APR.
A110-24FUEL: A++ (MIL).
A110-26FIXED WING ACFT USE LOW IDLE FOR TAXI, NO ENGINE CHECKS OR POWER RUNS ALLOWED ON THE ARNG RAMP DUE TO POSSIBLE FOD HAZARD.
A110-27MILITARY: ANG: WHEN CKG ATIS, BIRDS IN VCY MAY INDC HEIGHTENED BIRD WATCH CONDITION (BWC). USAF ACFT CTC ANG AIRFIELD OPS ON UHF FOR CURRENT BWC & ANY ASSOCD RSTRNS.
A110-28TWY C BTN TWY B & TWY C4 ACFT TAX SPD RSTRN OF 8 KTS/10 MPH MAX FOR ACFT WITH WINGSPAN 214 FT OR GTR.
A110-29LGTD OBST ANT 36 FT AGL/205 FT MSL (RWY 24 ILS/GS ANT) 162 FT NW OF TWY C CNTRLN MARKING BTN TWY B & TWY C4.
A110-31MILITARY: ANG: OPR 1200-2030Z++ MON, TUE, FRI; 1200-0400++ WED, THU. 41.9 149.825 335.775 (HAVOC OPS).
A110-32RWY 6 DE-ICE PAD CLSD TO ACFT WITH WINGSPAN 171 FT OR GTR EXC WITH FOLLOW-ME ESCORT BY ARPT OPS.
A110-33NON-BASED DVRSN ACRS CTC ARPT OPS 860-627-3001 PRIOR TO DIVG & PRVD CO FLT OPS CTC INFO, ACFT TYPE, POB, INTL OR DOM FLT & GND OPS AGRMTS. ONLY 1 INTL ACR JETBRIDGE AVBL FOR PAX.
A110-34MILITARY: ANG: OG/CC WAIVER ON FILE FOR C-130H/J WITH OPR WT UP TO 155000 LB. ALL OTHER ACFT OVR ANG RAMP PCN RQR WAIVER FR OG/CC THRU AFLD MGMT.
A110-35TWY D CLSD BTN TWY S & TWY D1 TO ACFT WITH WINGSPAN IN EXCESS OF 170 FT.
A110-4MILITARY: ANG: OPR 1200-2030Z++ MON-FRI (SAT, SUN UNIT TRNG ASSEMBLY), CLSD HOL.
A110-5MILITARY: ANG: PPR V220-2356.
A110-6NO DE-ICING AVBL AT ANG.
A110-9NO TRNG FLTS, NO PLAS, NO TGLS BTN: 2300 - 0700 MON THRU SAT & 2300 - 1200 SUN.
A24LDG FEE FOR BUS/CORPORATE & REVENUE PRODUCING ACFT.
A31-06/24245 FT BY 200 FT BLAST PAD SW END.
A31-15/33100 FT BY 200 FT BLAST PAD SE END.
E111EXISTED PRIOR TO 1959.
E1471700 FT AGL HVY ACFT.
E80CUST BY PRIOR ARNGMT.
BRADLEY INTL (ICAO: KBDL, IATA: BDL) is a public airport located in WINDSOR LOCKS, CT, US.
