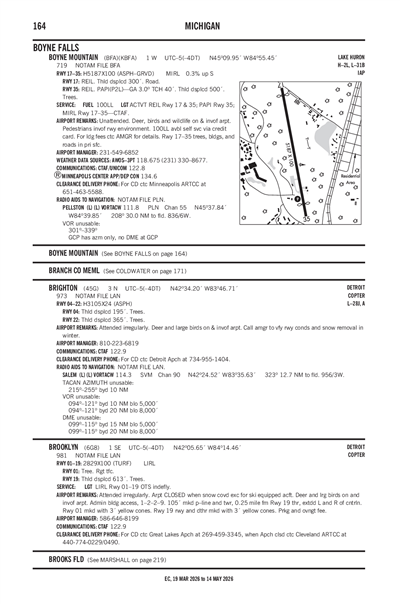

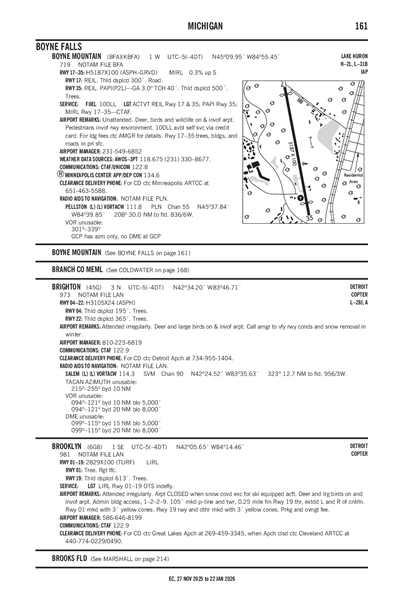

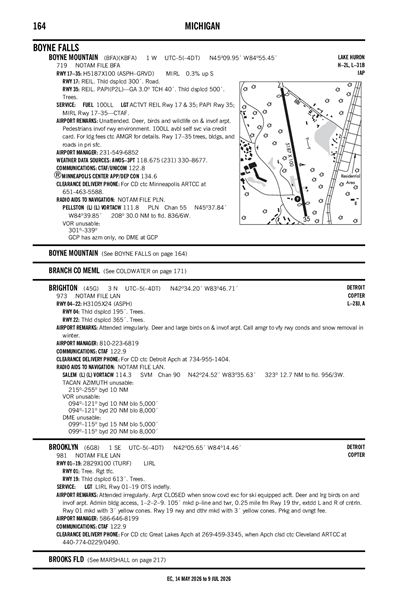

BOYNE MOUNTAIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBFA
ICAO KBFALocal BFA
BOYNE MOUNTAIN
PublicPUB

1 miles W of BOYNE FALLS, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 09' 57"N 84° 55' 27"W
Elevation
719' MSL
Pattern Alt
1719' MSL
Mag Variation
7°W
Declination
6°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
LAKE HURON
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KBFA VFR
1:15 AM EDT
Clear
10sm
52°F
50°F
30.15"Hg
140° 4kts
AO2
METAR KBFA 040515Z AUTO 14004KT 10SM CLR 11/10 A3015 RMK AO2
+ Add Your Business

KBFA FBOs

Promote Listing
Boyne Mountain Resort
UNICOM: 122.8
Phone: (231) 549-6000
Other: (231) 549-6852
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.20
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.675
(231) 330-8677

Common

CTAF 122.8
ACTVT REIL RWY 17 & 35; PAPI RWY 35; MIRL RWY 17/35 - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 134.6
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 134.6/354.05 (PELLSTON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPLN (25nm)
Thu, 6/4 1:21 AM EDT
Thu, 6/4 2:00 AM EDT - Fri, 6/5 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Scattered 25,000'
6sm
VRB° 3kts
VFR
6:00 AM EDT - 10:00 AM EDT
Scattered 25,000'
6sm
210° 6kts
VFR
10:00 AM EDT - 9:00 PM EDT
Scattered 20,000'
6sm
240° 10kts
Gusts 20kts
VFR
9:00 PM EDT - 2:00 AM EDT
Broken 10,000'
6sm
220° 5kts
TAF KPLN 040521Z 0406/0506 VRB03KT P6SM SCT250
   FM041000 21006KT P6SM SCT250
   FM041400 24010G20KT P6SM SCT200
   FM050100 22005KT P6SM BKN100
KBFA
EffectiveExpiresCategoryNOTAM
Domestic
5/4/26
1820Z
6/4/26
2359Z
!BFA 05/003 BFA OBST TOWER LGT (ASR 1000438) 451012.00N0844504.00W (7.3NM E BFA) 2167.3FT (633.2FT AGL) U/S 2605041820-2606042359
4/23/26
1149Z
Runway!BFA 04/006 BFA RWY 35 RWY END ID LGT U/S 2604231149-2610232111EST
4/23/26
1148Z
Runway!BFA 04/005 BFA RWY 17/35 REDL U/S 2604231148-2610232111EST
4/23/26
1146Z
Runway!BFA 04/004 BFA RWY 17 RWY END ID LGT U/S 2604231146-2610232111EST
3/5/26
1330Z
Runway!BFA 03/002 BFA RWY 35 PAPI UNUSABLE 2603051330-2609072111EST
No
UNATNDD
BOYNE USA INC
1 BOYNE MOUNTAIN RD
BOYNE FALLS, MI 49713
Phone: 231-549-6001
CHRIS ADAMS
BOYNE MOUNTAIN RESORT PO BOX 19
BOYNE FALLS, MI 49713
Phone: 231-549-6852
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
BFA
--
ACTVT REIL RWY 17 & 35; PAPI RWY 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
No
None
None
None
None
None

Runway 17/35

5187 ft. x 100 ft.
ASPH
Excellent
GRVD
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 169°349°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 10' 22"N 45° 09' 32"N
Longitude 84° 55' 34"W 84° 55' 20"W
Elevation 703' 719'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5RWY 17/35 TREES, BLDGS, & ROADS IN PRI SFC.
A110-6PEDESTRIANS INVOF RWY ENVIRONMENT - LODGING 200 FT WEST OF RWY 35 DESIGNATOR.
A24FOR LDG FEES CTC AMGR FOR DTLS.
A57-17APCH RATIO 20:1 TO DTHR OVR 15 FT ROAD, 300 FT DIST, 100 FT L.
A57-35APCH RATIO 11:1 TO DTHR OVR 44 FT TREES, 510 FT DIST, 166 FT R.
A58-17+15 FT ROAD, 0-199 FT DIST, 100 FT L TO 90 FT R.
A58-35+25 FT TREES, 200-500 FT DIST, 165 FT R.
A70-100LLAVBL H24 SELF SVC VIA CREDIT CARD.
A75-TROPES NOT PRVDD.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 35; MIRL RWY 17/35 - CTAF.
E111ESTABD BFR 1959.
BOYNE MOUNTAIN (ICAO: KBFA, IATA: BFA) is a public airport located in BOYNE FALLS, MI, US.
