KBHB
HANCOCK COUNTY/BAR HARBOR
PublicPUB

8 miles NW of BAR HARBOR, ME
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 26' 59"N 68° 21' 41"W
83' MSL
1083' MSL
19W
JET A, 100LL
BANGOR (BGR)
HALIFAX
BOSTON (ZBW)
11/27/25-12/25/25
KBHB VFR
8:56 PM EST
Broken 3,500'
10sm
32°F
25°F
30.03"Hg
210° 7kts
AO2 SLP173 T00001039 FZRANO $
METAR KBHB 170156Z AUTO 21007KT 10SM BKN035 00/M04 A3003 RMK AO2 SLP173 T00001039 FZRANO $
+ Add Your Business

KBHB FBOs

Modern Aviation
UNICOM: 131.4
Phone: (207) 667-5534
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.57 6.79 6.94
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
207-667-7364
 118.35

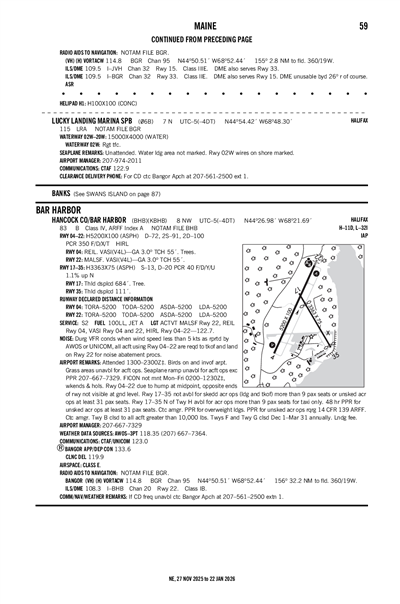

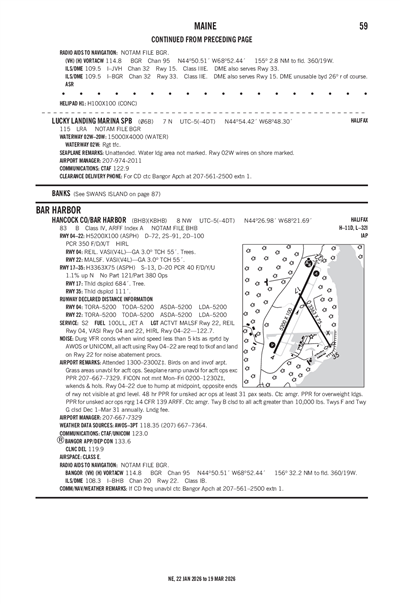

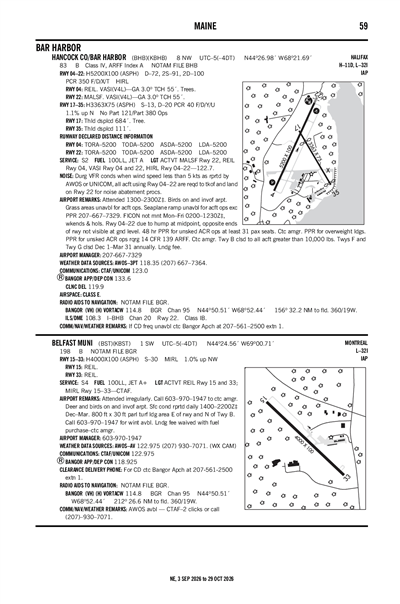

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBHB
Tue, 12/16 6:44 PM EST
Tue, 12/16 7:00 PM EST - Wed, 12/17 7:00 PM EST
VFR
7:00 PM EST - 12:00 AM EST
Few 25,000'
6sm
VRB° 4kts
VFR
12:00 AM EST - 9:00 AM EST
Broken 25,000'
6sm
210° 12kts
Gusts 21kts
VFR
9:00 AM EST - 4:00 PM EST
Broken 15,000'
6sm
210° 15kts
Gusts 26kts
VFR
4:00 PM EST - 7:00 PM EST
Broken 7,000'
6sm
230° 9kts
Gusts 18kts
TAF KBHB 162344Z 1700/1724 VRB04KT P6SM FEW250
   FM170500 21012G21KT P6SM BKN250
   FM171400 21015G26KT P6SM BKN150
   FM172100 23009G18KT P6SM BKN070
KBHB
EffectiveExpiresCategoryNOTAM
Domestic
12/16/25
0956Z
1/30/26
0955Z
!BHB 12/068 BHB OBST TOWER LGT (ASR 1021391) 442641.00N0680120.00W (14.3NM E BHB) 492.1FT (301.8FT AGL) U/S 2512160956-2601300955
11/17/25
0230Z
3/17/26
0230Z
!BHB 11/018 BHB OBST TOWER LGT (ASR 1223720) 443117.10N0682340.20W (4.6NM NNW BHB) 610.9FT (341.9FT AGL) U/S 2511170230-2603170230
FDC
12/16/25
1330Z
12/23/25
1521Z
!FDC 5/9214 BHB IAP HANCOCK COUNTY/BAR HARBOR, BAR HARBOR, ME.
ILS OR LOC RWY 22, AMDT 6F...
MISSED APPROACH: CLIMB TO 900 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 071.51 AND ON I-BHB NE COURSE TO BECRA INT/I-BHB 13.47 DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3000.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BGR VOR OUT OF SERVICE. 2512161330-2512231521EST
4/18/25
2113Z
!FDC 5/8440 BHB IAP HANCOCK COUNTY/BAR HARBOR, BAR HARBOR, ME.
ILS OR LOC RWY 22, AMDT 6F...
DISREGARD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 900 FEET MSL.
2504182113-2704192113EST
No
0800-1800
HANCOCK COUNTY
50 STATE ST, STE 7
ELLSWORTH, ME 04605
Phone: 207-667-9542
LEROY MUISE
115 CARUSO DR
TRENTON, ME 04605
Phone: 207-667-7329
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BHB
--
ACTVT MALSF RWY 22; REIL RWY 04; VASI RWY 04 & 22; HIRL RWY 04/22 - 122.7.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

5200 ft. x 100 ft.
ASPH
Good
NONE
HIGH

--
72,000lbs
100,000lbs
--
  Runway 04 Runway 22
True Heading 25°205°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 44° 26' 38"N 44° 27' 25"N
Longitude 68° 22' 02"W 68° 21' 32"W
Elevation 69' 69'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 17/35

3363 ft. x 75 ft.
ASPH
Good
NONE


13,000lbs
20,000lbs
--
--
  Runway 17 Runway 35
True Heading 150°330°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 44° 27' 10"N 44° 26' 41"N
Longitude 68° 21' 44"W 68° 21' 20"W
Elevation 79' 43'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10FICON NOT MNT MON-FRI 2100-0730, WKENDS & HOLS.
A110-11IF CD FREQ UNAVBL CTC BANGOR APCH AT 207-561-2500 EXTN 1.
A110-12GRASS AREAS UNAVBL FOR ACFT OPS.
A110-1348 HR PPR FOR UNSKED ACR OPS AT LEAST 31 PAX SEATS. CTC AMGR.
A110-3BIRDS ON & INVOF ARPT.
A110-4DURG VFR CONDS WHEN WIND SPEED LESS THAN 5 KTS AS RPRTD BY AWOS OR UNICOM, ALL ACFT USING RWY 04/22 ARE REQD TO TKOF & LAND ON RWY 22 FOR NOISE ABATEMENT PROCS.
A110-5TWY BRAVO CLSD TO ALL ACFT GTR THAN 10000 LBS.
A110-6PPR FOR OVERWEIGHT LDGS. PPR FOR UNSKED ACR OPS RQRG 14 CFR 139 ARFF. CTC AMGR.
A110-8TWYS F & G CLSD DEC 1- MAR 31 ANNUALLY.
A110-9SEAPLANE RAMP UNAVBL FOR ACFT OPS EXC PPR 207-667-7329.
HANCOCK COUNTY/BAR HARBOR (ICAO: KBHB, IATA: BHB) is a public airport located in BAR HARBOR, ME.
