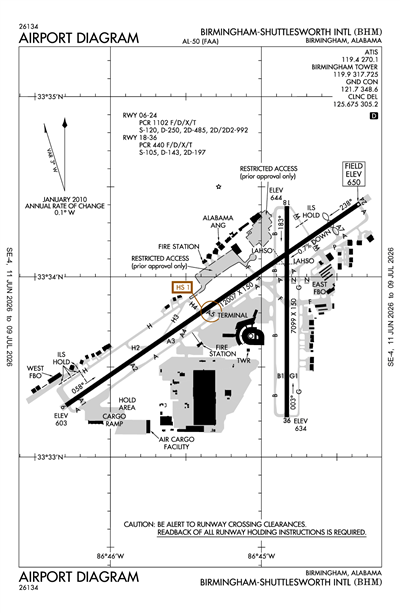

BIRMINGHAM-SHUTTLESWORTH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBHM
ICAO KBHMIATA BHMLocal BHM
BIRMINGHAM-SHUTTLESWORTH INTL
PublicPUB

4 miles NE of BIRMINGHAM, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 33' 50"N 86° 45' 08"W
Elevation
650' MSL
Pattern Alt
1650' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A, 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
10/1/26-10/29/26
KBHM VFR
6:53 PM CDT
Clear
10sm
60°F
41°F
30.30"Hg
Calm
AO2 SLP257 T01560050 10222 20156 56002
METAR KBHM 192353Z 00000KT 10SM CLR 16/05 A3030 RMK AO2 SLP257 T01560050 10222 20156 56002
+ Add Your Business

KBHM FBOs

Promote Listing
Million Air
UNICOM: 130.3
Phone: (659) 223-3660
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.71 10.49 10.64
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 131.975
Phone: (205) 849-5520
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.85 10.61
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.4
ASOS (205) 591-6172

Common

UNICOM 122.95

Clearance

BIRMINGHAM CLEARANCE DELIVERY 125.675

Ground

BIRMINGHAM GROUND 121.7

Tower

BIRMINGHAM TOWER 119.9
BIRMINGHAM TOWER 118.25
Secondary

Approach

BIRMINGHAM APPROACH 123.8
Initial Contact - 050-230
BIRMINGHAM APPROACH 127.675
231-049

Departure

BIRMINGHAM DEPARTURE 123.8
Initial Contact - 050-230
BIRMINGHAM DEPARTURE 127.675
231-049

Flight Service

Flight Service 122.2
(ANB)

Emergency

Emergency 121.5

Other

CLASS C 123.8
050-230
CLASS C 127.675
231-049

Terminal Area Forecast

KBHM
Mon, 10/19 6:20 PM CDT
Mon, 10/19 7:00 PM CDT - Tue, 10/20 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 PM CDT
Few 20,000'
6sm
VRB° 4kts
TAF KBHM 192320Z 2000/2024 VRB04KT P6SM FEW200
KBHM
EffectiveExpiresCategoryNOTAM
Domestic
10/23/26
1200Z
10/23/26
2000Z
!BHM 10/101 BHM SVC MBST/WS DETECTION SYSTEM NOT AVBL 2610231200-2610232000
10/22/26
1200Z
10/22/26
2000Z
!BHM 10/096 BHM SVC MBST/WS DETECTION SYSTEM NOT AVBL 2610221200-2610222000
10/22/26
1200Z
10/22/26
2000Z
!BHM 10/095 BHM SVC TAR U/S 2610221200-2610222000
10/21/26
1400Z
10/21/26
2000Z
!BHM 10/120 BHM AD AP RVR ALL U/S 2610211400-2610212000
10/20/26
1300Z
10/20/26
1930Z
!BHM 10/119 BHM NAV ILS RWY 06 CAT II NA 2610201300-2610201930
10/20/26
1300Z
10/20/26
1930Z
Runway!BHM 10/118 BHM RWY 06 ALS U/S 2610201300-2610201930
10/20/26
0230Z
10/20/26
0445Z
!BHM 10/123 BHM APRON TERMINAL RAMP SOUTHWEST ACCESS CLSD 2610200230-2610200445
10/20/26
0230Z
10/20/26
0445Z
!BHM 10/122 BHM TWY A3, A4, TWY A BTN TWY A5 AND TWY A2 CLSD 2610200230-2610200445
10/20/26
0030Z
10/20/26
0230Z
!BHM 10/121 BHM TWY A2, TWY A BTN TWY A2 AND TWY A3 CLSD 2610200030-2610200230
10/19/26
2351Z
11/25/26
2300Z
!BHM 10/143 BHM OBST RIG (ASN 2025-ASO-3988-NRA) 333329N0864616W (1.0NM WSW BHM) 620FT (15FT AGL) FLAGGED AND LGTD 2610192351-2611252300
10/19/26
2351Z
11/25/26
2300Z
!BHM 10/142 BHM OBST RIG (ASN 2025-ASO-3987-NRA) 333328N0864617W (1.0NM WSW BHM) 620FT (15FT AGL) FLAGGED AND LGTD 2610192351-2611252300
10/19/26
2350Z
11/25/26
2300Z
!BHM 10/140 BHM OBST RIG (ASN 2025-ASO-3985-NRA) 333316N0864642W (1.4NM WSW BHM) 615FT (15FT AGL) FLAGGED AND LGTD 2610192350-2611252300
10/19/26
2349Z
11/25/26
2300Z
!BHM 10/138 BHM OBST RIG (ASN 2025-ASO-3983-NRA) 333323N0864627W (1.2NM WSW BHM) 619FT (15FT AGL) FLAGGED AND LGTD 2610192349-2611252300
10/19/26
2348Z
11/25/26
2300Z
!BHM 10/136 BHM OBST RIG (ASN 2025-ASO-3981-NRA) 333319N0864634W (1.3NM WSW BHM) 621FT (15FT AGL) FLAGGED AND LGTD 2610192348-2611252300
10/19/26
2348Z
11/25/26
2300Z
!BHM 10/135 BHM OBST RIG (ASN 2025-ASO-3980-NRA) 333317N0864639W (1.4NM WSW BHM) 619FT (15FT AGL) FLAGGED AND LGTD 2610192348-2611252300
10/19/26
2347Z
11/25/26
2300Z
!BHM 10/134 BHM OBST RIG (ASN 2025-ASO-3979-NRA) 333316N0864639W (1.4NM WSW BHM) 619FT (15FT AGL) FLAGGED AND LGTD 2610192347-2611252300
10/19/26
2347Z
11/25/26
2300Z
!BHM 10/133 BHM OBST RIG (ASN 2025-ASO-3978-NRA) 333316N0864640W (1.4NM WSW BHM) 618FT (15FT AGL) FLAGGED AND LGTD 2610192347-2611252300
10/19/26
2347Z
11/25/26
2300Z
!BHM 10/132 BHM OBST RIG (ASN 2025-ASO-3977-NRA) 333316N0864632W (1.3NM WSW BHM) 609FT (15FT AGL) FLAGGED AND LGTD 2610192347-2611252300
10/19/26
2346Z
11/25/26
2300Z
!BHM 10/131 BHM OBST RIG (ASN 2025-ASO-3976-NRA) 333312N0864638W (1.4NM WSW BHM) 608FT (15FT AGL) FLAGGED AND LGTD 2610192346-2611252300
10/19/26
2346Z
11/25/26
2300Z
!BHM 10/130 BHM OBST RIG (ASN 2025-ASO-3975-NRA) 333315N0864633W (1.3NM WSW BHM) 608FT (15FT AGL) FLAGGED AND LGTD 2610192346-2611252300
10/19/26
2345Z
11/25/26
2300Z
!BHM 10/129 BHM OBST RIG (ASN 2025-ASO-3974-NRA) 333315N0864633W (1.3NM WSW BHM) 612FT (15FT AGL) FLAGGED AND LGTD 2610192345-2611252300
10/19/26
2337Z
11/25/26
2300Z
!BHM 10/128 BHM OBST RIG (ASN 2025-ASO-3973-NRA) 333314N0864641W (1.4NM WSW BHM) 610FT (15FT AGL) FLAGGED AND LGTD 2610192337-2611252300
10/19/26
2336Z
11/25/26
2300Z
!BHM 10/127 BHM OBST RIG (ASN 2025-ASO-3972-NRA) 333313N0864642W (1.4NM WSW BHM) 608FT (15FT AGL) FLAGGED AND LGTD 2610192336-2611252300
10/19/26
2331Z
11/25/26
2300Z
!BHM 10/126 BHM OBST RIG (ASN 2025-ASO-3971-NRA) 333313N0864643W (1.5NM WSW BHM) 605FT (15FT AGL) FLAGGED AND LGTD 2610192331-2611252300
10/19/26
2330Z
11/25/26
2300Z
!BHM 10/125 BHM OBST RIG (ASN 2025-ASO-3970-NRA) 333312N0864644W (1.5NM WSW BHM) 602FT (15FT AGL) FLAGGED AND LGTD 2610192330-2611252300
10/19/26
2329Z
11/25/26
2300Z
!BHM 10/124 BHM OBST RIG (ASN 2025-ASO-3969-NRA) 333317N0864644W (1.4NM WSW BHM) 615FT (15FT AGL) FLAGGED AND LGTD 2610192329-2611252300
10/19/26
0500Z
10/25/26
0900Z
Runway!BHM 10/117 BHM RWY 06/24 CLSD DLY 0500-0900 2610190500-2610250900
10/18/26
0500Z
10/25/26
0900Z
!BHM 10/111 BHM TWY A7, A4, A1, A3, A2, M, H2, H3, TWY A BTN APCH END RWY 24 AND HANGAR 25B APN, TWY A BTN APCH END RWY 06 AND CARGO RAMP, TWY H BTN APCH END RWY 06 AND WEST FIXED BASE OPR APN SOUTHWEST ACCESS CLSD DLY 0500-0900 2610180500-2610250900
10/17/26
2324Z
10/23/26
2300Z
!BHM 10/113 BHM TWY A1 ELEVATED RWY GUARD LGT AT RWY 06/24 NOT STD 2610172324-2610232300
10/17/26
2300Z
10/20/26
0445Z
!BHM 10/104 BHM APRON ALPHA HLDG PAD CLSD DLY 2300-0445 2610172300-2610200445
10/16/26
2203Z
10/30/26
2300Z
!BHM 10/106 BHM APRON HANGAR 4 APN CLSD 2610162203-2610302300
10/16/26
2158Z
10/30/26
2300Z
!BHM 10/105 BHM TWY G BTN TWY F AND TWY G1 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2610162158-2610302300
10/15/26
0950Z
Runway!BHM 10/094 BHM RWY 36 RWY END ID LGT U/S 2610150950-2610222359EST
10/13/26
1138Z
11/17/26
2359Z
Runway!BHM 10/073 BHM RWY 18 PAPI U/S 2610131138-2611172359
10/11/26
0549Z
11/10/26
2300Z
!BHM 10/069 BHM OBST TOWER LGT (ASR 1294524) 333600.50N0864322.00W (2.6NM NE BHM) 944.6FT (199.1FT AGL) U/S 2610110549-2611102300
10/10/26
0505Z
10/25/26
0405Z
!BHM 10/057 BHM OBST TOWER LGT (ASR 1040161) 334114.00N0864922.30W (8.1NM NNW BHM) 1081.7FT (447.8FT AGL) U/S 2610100505-2610250405
10/9/26
1428Z
2/6/27
1428Z
!BHM 10/052 BHM OBST TOWER LGT (ASR 1284122) 335137.30N0864501.30W (17.8NM NE BHM) 914.0FT (310.0FT AGL) U/S 2610091428-2702061428
10/7/26
2358Z
11/21/26
2358Z
!BHM 10/046 BHM OBST TOWER LGT (ASR 1036583) 333308.60N0865438.70W (8NM W BHM) 945FT (205FT AGL) U/S 2610072358-2611212358
10/4/26
2117Z
10/31/26
2300Z
!BHM 10/029 BHM TWY H CL MARKINGS BTN TWY H2 AND TWY H3 OBSC 2610042117-2610312300
10/4/26
2115Z
10/31/26
2300Z
!BHM 10/028 BHM TWY H EDGE MARKINGS BTN TWY H2 AND TWY H3 NOT STD 2610042115-2610312300
10/4/26
2109Z
10/31/26
2300Z
!BHM 10/027 BHM TWY H CL MARKINGS BTN AIR NTL GUARD APN AND TWY H4 REMOVED 2610042109-2610312300
10/4/26
2045Z
10/31/26
2300Z
!BHM 10/026 BHM TWY A2 HLDG PSN MARKINGS FOR RWY 06/24 OBSC 2610042045-2610312300
10/4/26
2042Z
10/31/26
2300Z
!BHM 10/025 BHM TWY A3 HLDG PSN MARKINGS FOR RWY 06/24 OBSC 2610042042-2610312300
10/4/26
2029Z
10/31/26
2300Z
!BHM 10/024 BHM TWY B CL MARKINGS BTN TWY A AND TERMINAL RAMP NORTHEAST ACCESS OBSC 2610042029-2610312300
10/4/26
2028Z
10/31/26
2300Z
!BHM 10/023 BHM TWY B CL MARKINGS BTN TWY F AND TERMINAL RAMP NORTHEAST ACCESS OBSC 2610042028-2610312300
10/4/26
2015Z
10/31/26
2300Z
!BHM 10/021 BHM TWY B CL MARKINGS FOR APCH END RWY 36 OBSC 2610042015-2610312300
10/2/26
0924Z
12/31/26
1024Z
!BHM 10/008 BHM OBST TOWER LGT (ASR 1000486) 333320.00N0863402.50W (9.3NM E BHM) 1056.1FT (265.1FT AGL) U/S 2610020924-2612311024
9/24/26
0123Z
10/24/26
2300Z
!BHM 09/118 BHM OBST TOWER LGT (ASN 2024-ASO-19988-OE) 333926N0863832W (7.9NM NE BHM) 1210FT (315FT AGL) U/S 2609240123-2610242300
9/23/26
1613Z
10/30/26
2359Z
!BHM 09/111 BHM NAV ILS RWY 06 GP U/S 2609231613-2610302359
9/12/26
2236Z
1/1/27
0001Z
!BHM 09/056 BHM APRON WEST FIXED BASE OPR APN NORTHEAST ACCESS CLSD 2609122236-2701010001
9/12/26
1135Z
12/11/26
1235Z
!BHM 09/046 BHM OBST TOWER LGT (ASR 1035619) 333220.30N0865127.80W (5.5NM WSW BHM) 991.8FT (293.0FT AGL) U/S 2609121135-2612111235
9/11/26
1358Z
12/10/26
1458Z
!BHM 09/036 BHM OBST TOWER LGT (ASR 1000476) 334558.00N0865044.00W (12.9NM NNW BHM) 779.9FT (315.0FT AGL) U/S 2609111358-2612101458
8/31/26
1429Z
11/29/26
1529Z
!BHM 08/220 BHM OBST TOWER LGT (ASR 1036728) 333343.50N0864206.50W (2.5NM E BHM) 1443.9FT (238.8FT AGL) U/S 2608311429-2611291529
8/21/26
0813Z
11/19/26
0913Z
!BHM 08/125 BHM OBST TOWER LGT (ASR 1204184) 334621.20N0863720.00W (14.2NM NNE BHM) 1329.7FT (258.9FT AGL) U/S 2608210813-2611190913
8/14/26
1106Z
11/13/26
0400Z
!BHM 08/065 BHM OBST TOWER LGT (ASR 1029506) 334123.40N0864820.90W (8.0NM NNW BHM) 981.0FT (310.0FT AGL) U/S 2608141106-2611130400
6/2/26
1017Z
!BHM 06/019 BHM NAV ILS RWY 06 OM U/S 2606021017-2612302359EST
6/2/26
1014Z
!BHM 06/018 BHM NAV ILS RWY 06 IM U/S 2606021014-2612302359EST
FDC
10/2/26
1609Z
!FDC 6/6871 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
ILS RWY 6 (CAT II), AMDT 43B ...
PROCEDURE NA. VUZ VOR OUT OF SERVICE. 2610021609-2701061609EST
10/2/26
1609Z
!FDC 6/6870 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
ILS OR LOC RWY 6, AMDT 43B...
MISSED APPROACH: CLIMB TO 3300 ON HEADING 058 AND GAD R-231 TO SPATT/GAD 28.80 DME AND HOLD. (DME REQUIRED),
VUZ VOR OUT OF SERVICE. 2610021609-2701061609EST
10/2/26
1609Z
!FDC 6/6868 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
LOC RWY 18, AMDT 2C...
MISSED APPROACH: CLIMB TO 1800 THEN CLIMBING LEFT TURN TO 3600 ON HEADING 025 AND ON GAD VOR/DME R-231 TO SPATT/GAD 28.80 DME AND HOLD (DME REQUIRED),
VUZ VOR OUT OF SERVICE. 2610021609-2701061609EST
10/2/26
1609Z
1/6/27
1609Z
!FDC 6/6864 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
ILS OR LOC RWY 24, AMDT 5...
ILS RWY 24 (SA CAT II), AMDT 5...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VUZ VOR OUT OF SERVICE. 2610021609-2701061609EST
9/24/26
1536Z
!FDC 6/5335 BHM ODP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
ADD TAKEOFF OBSTACLE NOTE: RWY 36, TEMPORARY EQUIPMENT 1438FT FROM DER, 687FT LEFT OF CENTERLINE, 21FT AGL/ 746FT MSL (2020-ASO-3334-NRA), TEMPORARY EQUIPMENT 1438FT FROM DER, 653FT LEFT OF CENTERLINE, 21FT AGL/ 746FT MSL (2020-ASO-3335-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2609241536-2705061536EST
9/22/26
1351Z
!FDC 6/4504 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
ILS RWY 6 (CAT II), AMDT 43B ...
S-ILS 6 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADIO ALTIMETER. I-BHM INNER MARKER OUT OF SERVICE. 2609221351-2705041351EST
7/10/26
1610Z
!FDC 6/4679 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
ILS RWY 6 (CAT II), AMDT 43B ...
S-ILS 6 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADIO ALTIMETER. I-BHM INNER MARKER OUT OF SERVICE. 2607101610-2702191609EST
7/10/26
1603Z
!FDC 6/4659 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
LOC RWY 18, AMDT 2C...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OKW VOR OUT OF SERVICE. 2607101603-2702191603EST
Yes
ALL
BIRMINGHAM AIRPORT AUTHORITY
5900 MESSER AIRPORT HWY
BIRMINGHAM, AL 35212
Phone: (205) 599-0505
RONALD MATHIEU
BIRMINGHAM AIRPORT AUTHORITY 5900 MESSER AIRPORT HWY
BIRMINGHAM, AL 35212
Phone: (205) 599-0505
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
BHM
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 06/24

12007 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
1102/F/D/X/T
120,000lbs
250,000lbs
485,000lbs
992,000lbs
  Runway 06 Runway 24
True Heading 55°235°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD FAIR
Latitude 33° 33' 17"N 33° 34' 25"N
Longitude 86° 46' 18"W 86° 44' 21"W
Elevation 603' 650'
Threshold Crossing Height 68 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18/36

7099 ft. x 150 ft.
ASPH
Good
GRVD
MED
440/F/D/X/T
105,000lbs
143,000lbs
197,000lbs
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 34' 24"N 33° 33' 13"N
Longitude 86° 44' 50"W 86° 44' 50"W
Elevation 644' 634'
Threshold Crossing Height 51 ft. AGL --
Visual Glide Path Angle 3.2° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-15TWY F BTN RWY 18/36 & TWY G RSTRD TO ACFT 100000 LBS OR LESS.
A110-16ANG: PPR RQR FOR ANG RAMP. NML OPR HRS 1300-2330Z++ TUE-FRI, CLSD WKNDS & HOL. NO SVC AVBL OUTSIDE THESE HRS WITHOUT PRIOR APVL. NO LCL OR ROUND-ROBIN FLT BY TRAN ACFT. CALL AIRFIELD OPS DSN 778-2555, C205-714-2555 FOR PPR 72 HR PRIOR (96 HRS FOR CARGO MSN). ALL INBD ACFT CTC ANG COMD POST "VULCN CONTROL" NO LATER THAN 15 MIN PRIOR TO LDG WITH PPR NR AND SUPPORT REQ. SPACE-A CAPABILITIES EXTREMELY LTD, PAX SVC LTD AVAILABILITY.
A110-17TWY H S OF TWY H4 RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT.
A110-18TWY A BTN TWY A HLDG BAY AND TWY A3 RSTRD TO ACFT WITH WINGSPAN LESS THAN 150 FT.
A110-19TWY H2 RSTRD TO ACFT WITH WINGSPAN LESS THAN 105 FT.
A110-2TWY G RSTRD TO ACFT 65000 LBS OR LESS.
A110-20TWY H3 RSTRD TO ACFT WITH WINGSPAN LESS THAN 105 FT.
A110-3TWY M N OF RWY 6/24 RSTRD TO ACFT 75000 LBS OR LESS.
A110-6TWY N RSTRD TO ACFT 204000 LBS OR LESS.
A110-7BIRD ACTV INVOF RWYS.
A49-24MALSR ATCT CTLD, OPS UMMONITORED.
A57-24APCH SLOPE 25:1 DUE TO 44 FT POLE, 4424 FT FROM DSPLCD THR.
A58-24NAVAID SHELTER 149 FT FM RWY END, 405 FT L, 1 FT ABV RWY END ELEV.
A70-AA++100 (MIL)
BIRMINGHAM-SHUTTLESWORTH INTL (ICAO: KBHM, IATA: BHM) is a public airport located in BIRMINGHAM, AL, US.
