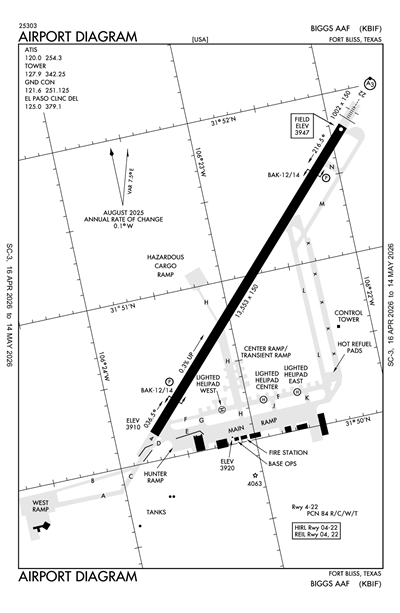

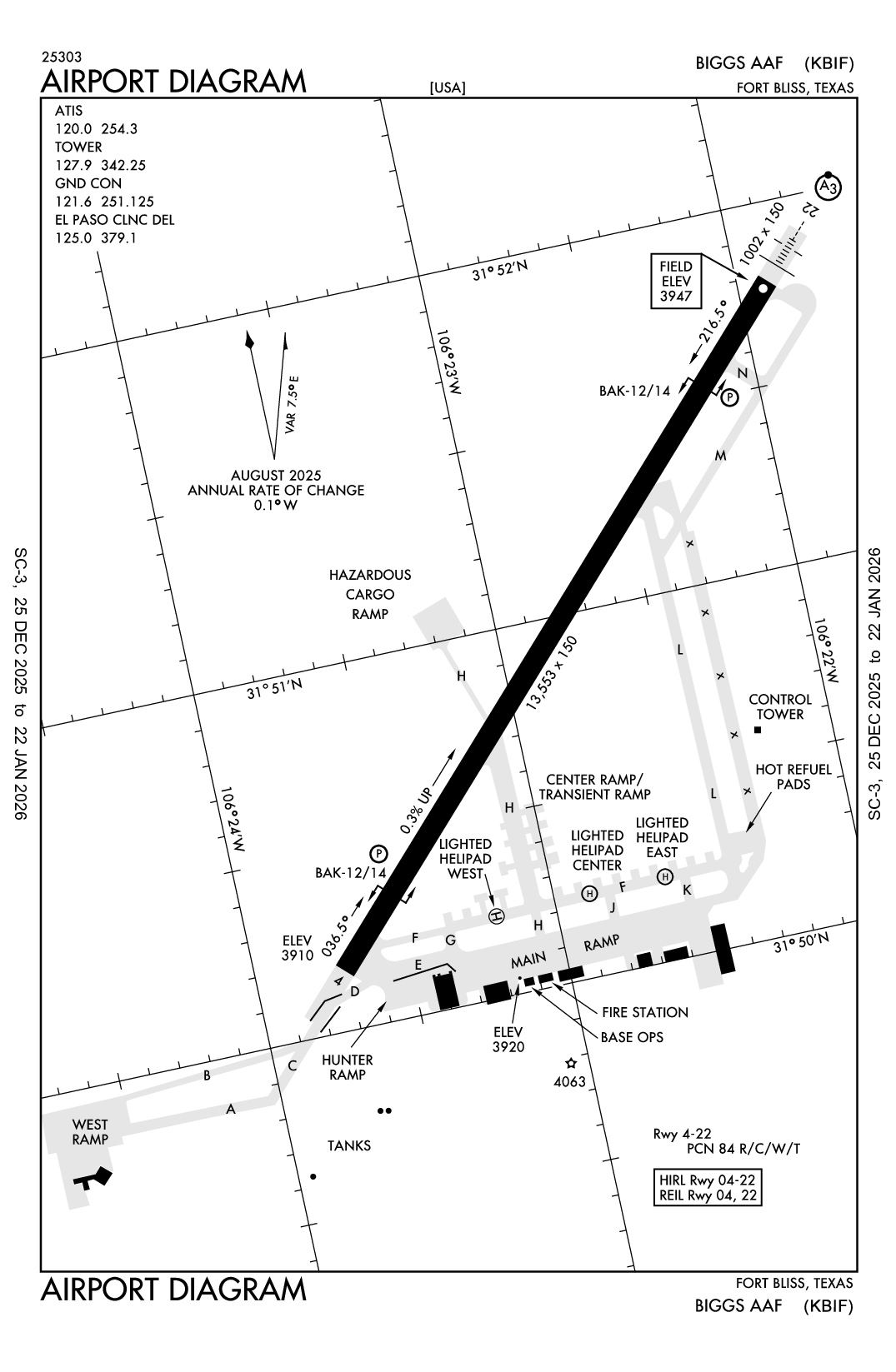

BIGGS AAF (FORT BLISS) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBIF
BIGGS AAF (FORT BLISS)
PrivatePVT

5 miles NE of FORT BLISS/EL PASO/, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 50' 58"N 106° 22' 48"W
3947' MSL
4947' MSL
08E
Jet A+, CILI
ALBUQUERQUE (ABQ)
EL PASO
ALBUQUERQUE (ZAB)
3/21/24-4/18/24
KBIF VFR
4:55 PM MDT
Few 22,000'
7sm
78°F
9°F
29.97"Hg
300° 6kts
Gusts 12kts
AO2A SLP071 ALSTG/SLP ESTMD WND DATA ESTMD T02541119 $
KBIF 162255Z 30006G12KT 7SM FEW220 26/M13 A2997 RMK AO2A SLP071 ALSTG/SLP ESTMD WND DATA ESTMD T02541119 $
List Your Business

KBIF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KBIF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBIF Hotels

No hotels are listed for this airport.

KBIF Restaurants

No restaurants are listed for this airport.

KBIF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Ground

GND/P
 121.6

Tower

LCL/P
 127.9

Other

OPS
BLISS RDO
 134.1
PTD
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBIF
Tue, 4/16 1:00 PM MDT
Tue, 4/16 1:00 PM MDT - Wed, 4/17 7:00 PM MDT
VFR
1:00 PM MDT - 7:00 PM MDT
Sky Clear
6sm
29.91"Hg
290° 9kts
TAF KBIF 161900Z 1619/1801 29009KT 9999 SKC QNH2992INS TX28/1621Z TN07/1709Z
KBIF
Military
4/18/241200Z !KBIF M0106/24 BIF RWY 04 BAK-14 ARST SYSTEM U/S 2404181200-2404181600
4/18/241200Z !KBIF M0105/24 BIF RWY 04/22 CLSD 2404181200-2404181600
4/15/241320Z !KBIF V0159/24 BIF AERODROME STANDARD INSTRUMENT DEPARTURE (SID) NOT AUTHORIZED TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4 ...PROCEDURE NA 2404151320-2504150500
4/15/241309Z !KBIF V0158/24 BIF AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED VOR OR TACAN RWY 22, AMDT 8A...PROCEDURE NA 2404151309-2504150500
4/15/241306Z !KBIF V0157/24 BIF AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED RNAV (GPS) RWY 22, AMDT 1 ILS OR LOC RWY 22, ORIG, RADAR-1, AMDT 7A... PROCEDURE NA 2404151306-2504150500
4/4/241818Z !KBIF M0100/24 BIF APRON MAIN RAMP WORK IN PROGRESS MAINT E SIDE ROW 18, PSNL AND EQPT 2404041818-2407030600
3/29/241539Z !KBIF M0090/24 BIF TWY H SIGNS LGT U/S 2403291539-2406270600
3/29/241538Z !KBIF M0089/24 BIF TWY D SIGNS LGT U/S 2403291538-2406270600
3/29/241537Z !KBIF M0088/24 BIF TWY C SIGNS LGT U/S 2403291537-2406270600
3/29/241536Z !KBIF M0087/24 BIF TWY B SIGNS LGT U/S 2403291536-2406270600
3/29/241536Z !KBIF M0086/24 BIF TWY A SIGNS LGT U/S 2403291536-2406270600
3/29/241534Z !KBIF M0085/24 BIF RWY 22 DIST REMAINING SIGN LGT U/S 2403291534-2406270600
3/29/241534Z !KBIF M0084/24 BIF RWY 04 DIST REMAINING SIGN LGT U/S 2403291534-2406270600
3/20/242056Z AERODROME ACFT REQ MORE THAN 100K LBS EXP DLA OF 1 HR DUE TO CONST ON PRI AFLD FUEL TANKS
3/19/242255Z AERODROME AERODROME ARFF CAPABILITY IS AT NFPA CATEGORY 8 (8,000 GAL),(FAA CATEGORY D), NFPA CATEGORY 9 AND 10 (FAA CATEGORY E) AIRCRAFT ARE PERMITTED TO LAND WITH RISK ACCEPTANCE AS FOLLOWS: FIREFIGHTING OPERATIONS ON CATEGORY 9 AND 10 AIRCRAFT IS LIMITED TO EXTERIOR FIREFIGHTING OPERATIONS ONLY.
3/4/241712Z AERODROME FMQ-23 ALL WEATHER SENSORS OTS. WINDS ARE ESTIMATED.
3/4/241711Z RWY 22 CONSTRUCTION FIRST 1,846 FT WITH TEMPORARY DISPLACED THRESHOLD VICINITY OF TWY N, 11,710FT REMAINING FOR USE. PSNL AND EQPT WITHIN OVERRUN RWY 04.
3/4/241710Z LIGHTED HELIPAD EAST WIND CONE U/S
3/1/241651Z TWY H SOUTH CLSD TO ROTARTY WING. 14 DEC 18:35 2023 UNTIL 13 MAR 07:00 2024. CREATED: 14 DEC 18:35 2023
3/1/241649Z RWY 22 DISPLACED THRESHOLD NOT AVAILABLE FOR ROLLOUT DEPARTURE, AIRCRAFT MAY TAXI ONLY FROM TAXIWAY N ONTO RWY 22 & MUST TAXI SOUTH OF DISPLACED THRESHOLD FOR DEPARTURE
2/24/240002Z !KBIF M0059/24 BIF NAV ILS RWY 22 UNUSABLE 2402240002-2405200659
2/15/242032Z BASE OPERATIONS AND TRANSIT ALERT HOURS OF OPERATION 1500Z-0700Z EXCLUDING HOLIDAYS.
2/6/242214Z AERODROME AIRCREWS USE CAUTION WHEN OPERATING DURING HOURS OF DARKNESS AT THE OASIS REFUEL POINT DUE TO THE LACK OF TAXIWAY EDGE LIGHTING
2/5/242110Z RWY 22 BAK 14 ON THE APPROACH END IS OUT OF SERVICE
Yes
MON-SUN 1500-0700Z++
EXCP HOL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
N/A
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
SERVICE-LGT: WHEN UNATNDD ACTVT REIL RWY 04; PAPI RWY 04 & 22; HIRL RWY 04/22 - 127.9.
N/A
N/A
No
No
None
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

13554 ft. x 150 ft.
CONC
Good
GRVD
HIGH
84 /R/C/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 50' 10"N 31° 51' 47"N
Longitude 106° 23' 43"W 106° 21' 54"W
Elevation 3,910' 3,947'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR
Centerline Lights
Runway End Identifier Lights Yes No
A110-1RSTD: PPR ALL ACFT 24 HR PN CTC AIRFIELD OPS DSN 621-8811/8330, C915-744-8811/8330. TWR AND SVCS AVBL FOR ALL ACFT WITH PPR. PPR TIME VALID +/-1 HR. ALL ACFT CTC AFLD OPNS VIA PTD 30 MIN PRIOR TO ARR. FLT OPS AND TRAN ALERT SVC UNAVBL BFR 1 HR PRIOR TO PPR SKED ARR.
A110-12JASU: 4(A/M32A-86) 2(A/M32-95).
A110-13SERVICE: FUEL - A+, TRUCK REFUEL ONLY (ATLANTIC AVN, 1500-0700Z++ MON-SUN, C915-779-2831, 1 HR PN, AFTER HR CALL OUT FEE $100).
A110-14FLUID: SP.
A110-16MISC: APVL RQR FOR ACCESS TO RAMP.
A110-18MISC: HGR SPACE EXTREMELY LTD FOR TRAN ACFT.
A110-19TRAN ALERT - 1300-0700Z++ MON-FRI, 1500-0700Z++ SAT & SUN, EXC HOL.
A110-2TFC PAT: F/W 5000', TURBO PROP 5500', R/W 4500', JET 6000'.
A110-20MISC: KBIF AUTO OBSN AND BAAF USAF WX AVBL 24/7, DSN 621-1215/1214, C915-744-1215/1214. OT 25TH OWS, DAVIS-MONTHAN AFB, DSN 228-6598-6599. CLASS D AIRSPACE EFF 1500-0700Z++ MON-SUN, EXC HOL. OT CLASS E INTL GARBAGE CAP LTD. MUST BE BAGGED PRIOR TO ARR.
A110-22MISC: INTL GARBAGE CAP LTD. EXP DELAYS UNLESS PLACED IN GARBAGE BAGS PRIOR TO ARRIVAL.
A110-26COMMUNICATIONS: PMSV 373.7.
A110-27TWY L SOUTH OF TWY F DSGND FOR ROTARY WING ACFT ONLY.
A110-28SERVICES: NO DE-ICE AVBL, NO OFF AFLD TRNSP AVBL FOR AIRCREW, 24 HR NOTICE FOR LAV AND WATER SVCS, 915-525-7087.
A110-29CLOSED CIRCUIT TV OPNS, TSNT ACFT CIV-MIL INBD CTC AFLD OPNS VIA PTD AT 60 NM PRIOR TO LDG.
A110-30ACFT SVC/TRANS ALERT WILL NOT SUPPORT LCL, ROUND ROBIN OR OUT AND BACK FOR TRANS ACFT.
A110-31NO TWY EDGE LTS AT HOT REFUEL AREA.
A110-6CAUTION: EL PASO INTL RWY 22, 2 NM SE CAN BE MISTAKEN FOR BIGGS AAF RWY 22. COYOTE HAZ.
A110-7NS ABTMT: VFR WEST ARR/DEP VIA MTN PASS 15 NM NW OF BIGGS AAF. AVOID VFR OVFT OF CITY. FLY 1500 FT AGL, 1500 FT HORIZONTAL DIST FM MTN DWELLINGS.
A110-8BEARING STRENGTH RWY 04/22: ST175 SBTT593 TRT585.
A110-9SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
BIGGS AAF (FORT BLISS) (ICAO: KBIF, IATA: BIF) is a private airport located in FORT BLISS/EL PASO/, TX.
