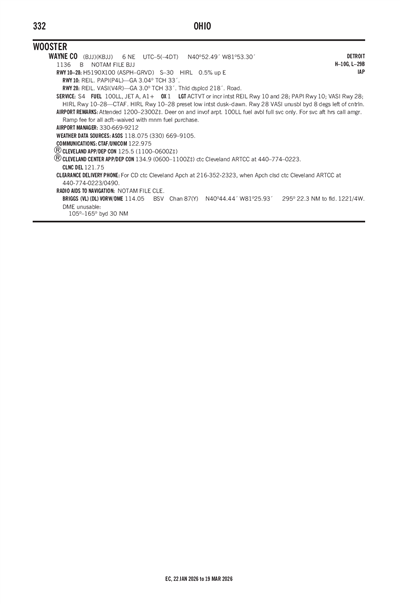

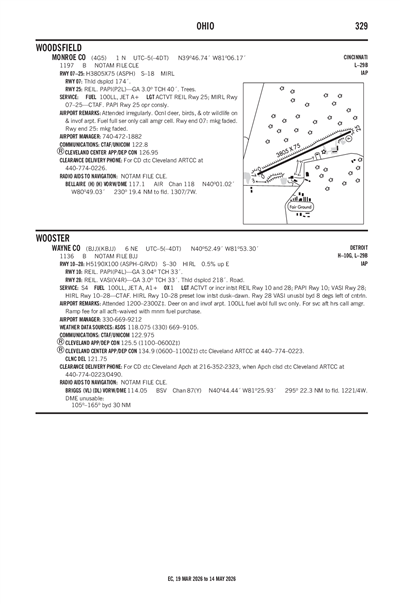

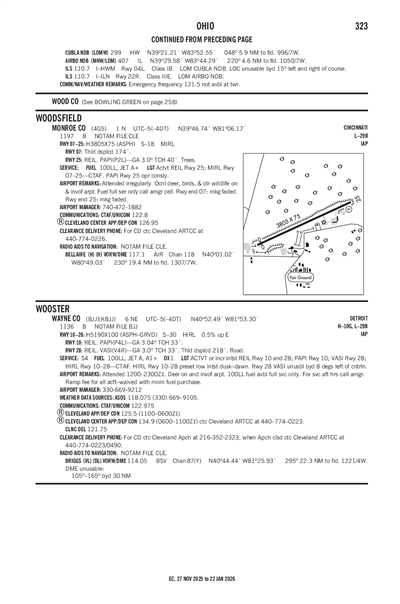

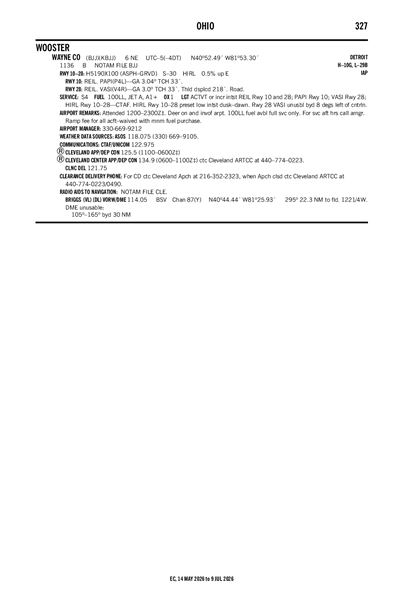

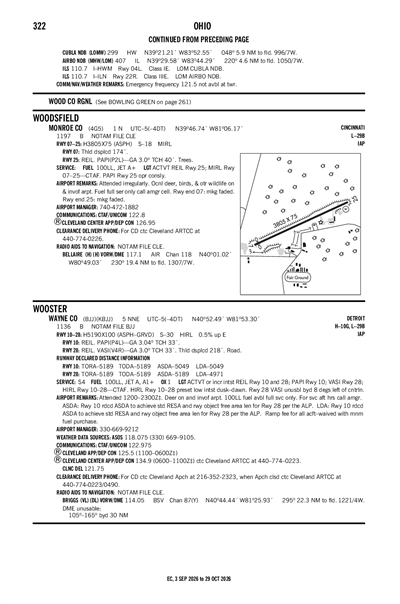

WAYNE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBJJ
ICAO KBJJIATA BJJLocal BJJ
WAYNE COUNTY
PublicPUB

5 miles NNE of WOOSTER, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 52' 29"N 81° 53' 18"W
Elevation
1136' MSL
Pattern Alt
2136' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, JET A-1+, 100LL
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
9/3/26-10/1/26
KBJJ VFR
2:56 PM EDT
Light Rain
Overcast 11,000'
Scattered 9,000'
10sm
72°F
69°F
29.94"Hg
190° 6kts
AO2 RAE26B43 SLP133 P0001 T02220206
METAR KBJJ 121856Z AUTO 19006KT 10SM -RA SCT090 OVC110 22/21 A2994 RMK AO2 RAE26B43 SLP133 P0001 T02220206
+ Add Your Business

KBJJ FBOs

Promote Listing
Wayne County Airport
UNICOM: 122.975
Phone: (330) 669-9212
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 8/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.97 6.77 6.77
Fuel Notes
Prices include tax
Prist (FSII) is available upon request.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.075
(330) 669-9105

Common

CTAF 122.975
ACTVT OR INCR INTST REIL RWY 10 & 28; PAPI RWY 10; VASI RWY 28; HIRL RWY 10/28 - CTAF. HIRL RWY 10/28 PRESET LOW INTST DUSK-DAWN.
UNICOM 122.975

Clearance

Clearance Delivery 121.75

Approach

CLEVELAND APPROACH 125.5

Departure

CLEVELAND DEPARTURE 125.5

Center

CLEVELAND CENTER 134.9
LOW, APCH/DEP SVC PRVDD BY CLEVELAND APCH (CLE) 0600-0100. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 134.9/269.475 (MANSFIELD RCAG) 0100-0600.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCAK (20nm)
Sat, 9/12 3:29 PM EDT
Sat, 9/12 3:00 PM EDT - Sun, 9/13 2:00 PM EDT
VFR
3:00 PM EDT - 8:00 PM EDT
Light Rain and Thunderstorm in vicinity
Broken 8,000'
Scattered 1,500'
6sm
170° 9kts
MVFR
8:00 PM EDT - 11:00 PM EDT
Mist and Showers in vicinity
Overcast 1,800'
5sm
VRB° 4kts
MVFR
11:00 PM EDT - 4:00 AM EDT
Broken 1,800'
6sm
VRB° 4kts
IFR
4:00 AM EDT - 10:00 AM EDT
Mist
Broken 900'
3sm
VRB° 4kts
MVFR
10:00 AM EDT - 1:00 PM EDT
Mist
Overcast 1,500'
6sm
260° 6kts
VFR
1:00 PM EDT - 2:00 PM EDT
Overcast 5,000'
6sm
260° 7kts
TAF KCAK 121929Z 1219/1318 17009KT 6SM -RA VCTS SCT015 BKN080CB
   FM130000 VRB04KT 5SM BR VCSH OVC018
   FM130300 VRB04KT P6SM BKN018
   FM130800 VRB04KT 3SM BR BKN009
   FM131400 26006KT 6SM BR OVC015
   FM131700 26007KT P6SM OVC050
KBJJ
EffectiveExpiresCategoryNOTAM
Domestic
9/8/26
0715Z
1/6/27
0715Z
!BJJ 09/006 BJJ OBST TOWER LGT (ASR 1218412) 404821.80N0814232.80W (9.1NM ESE BJJ) 1450.1FT (295.3FT AGL) U/S 2609080715-2701060715
9/1/26
2015Z
11/30/26
2115Z
!BJJ 09/002 BJJ OBST TOWER LGT (ASR 1048382) 404735.00N0820430.00W (9.8NM WSW BJJ) 1469.8FT (259.8FT AGL) U/S 2609012015-2611302115
9/1/26
2014Z
11/30/26
2114Z
!BJJ 09/001 BJJ OBST TOWER LGT (ASR 1204019) 404448.30N0815311.60W (7.7NM S BJJ) 1427.2FT (265.1FT AGL) U/S 2609012014-2611302114
8/22/26
0101Z
9/16/26
1700Z
!BJJ 08/011 BJJ OBST TOWER LGT (ASR 1226903) 404657.30N0820200.20W (8.6NM SW BJJ) 1404.9FT (269.0FT AGL) U/S 2608220101-2609161700
8/12/26
0800Z
11/10/26
0900Z
!BJJ 08/006 BJJ OBST TOWER LGT (ASR 1237859) 405445.50N0820001.10W (5.5NM WNW BJJ) 1357.0FT (256.9FT AGL) U/S 2608120800-2611100900
8/7/26
1132Z
11/5/26
1232Z
!BJJ 08/004 BJJ OBST TOWER LGT (ASR 1238480) 405312.80N0814405.90W (7.0NM E BJJ) 1357.9FT (255.9FT AGL) U/S 2608071132-2611051232
8/4/26
1116Z
11/2/26
1216Z
!BJJ 08/002 BJJ OBST TOWER LGT (ASR 1203931) 405456.80N0815555.30W (3.1NM NW BJJ) 1422.2FT (265.1FT AGL) U/S 2608041116-2611021216
4/14/26
1728Z
Runway!BJJ 04/007 BJJ RWY 28 RWY END ID LGT U/S 2604141728-2610142111EST
3/12/26
1225Z
Runway!BJJ 03/005 BJJ RWY 10 RWY END ID LGT U/S 2603121225-2609142111EST
No
0700-1800
WAYNE COUNTY
428 W LIBERTY ST
WOOSTER, OH 44691
Phone: 330-287-5400
MATTHEW LONG
6020 N HONEYTOWN RD
SMITHVILLE, OH 44677
Phone: 330-669-9212
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
BJJ
--
ACTVT OR INCR INTST REIL RWY 10 & 28; PAPI RWY 10; VASI RWY 28; HIRL RWY 10/28 - CTAF. HIRL RWY 10/28 PRESET LOW INTST DUSK-DAWN.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 10/28

5190 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 52' 29"N 40° 52' 29"N
Longitude 81° 53' 52"W 81° 52' 44"W
Elevation 1,112' 1,136'
Threshold Crossing Height 33 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3.04° 3°
Visual Slope Indicator P4L V4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-4FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223/0490.
A24RAMP FEE FOR ALL ACFT - WAIVED WITH MNM FUEL PURCHASE.
A43-28VASI UNUSBL BYD 8 DEGS LEFT OF CNTRLN.
A57-28APCH RATIO 20:1 TO DTHR.
A58-285 FT ROAD, 180-200 FT DIST.
A62-10RDCD ASDA TO ACHIEVE STD RESA & RWY OBJECT FREE AREA LEN FOR RWY 28 PER THE ALP.
A63-10RDCD LDA TO ACHIEVE STD RESA & RWY OBJECT FREE AREA LEN FOR RWY 28 PER THE ALP.
A70-100LLFUEL AVBL FULL SVC ONLY. FOR SVC AFT HRS CALL AMGR.
A81-APTACTVT OR INCR INTST REIL RWY 10 & 28; PAPI RWY 10; VASI RWY 28; HIRL RWY 10/28 - CTAF. HIRL RWY 10/28 PRESET LOW INTST DUSK-DAWN.
WAYNE COUNTY (ICAO: KBJJ, IATA: BJJ) is a public airport located in WOOSTER, OH, US.
