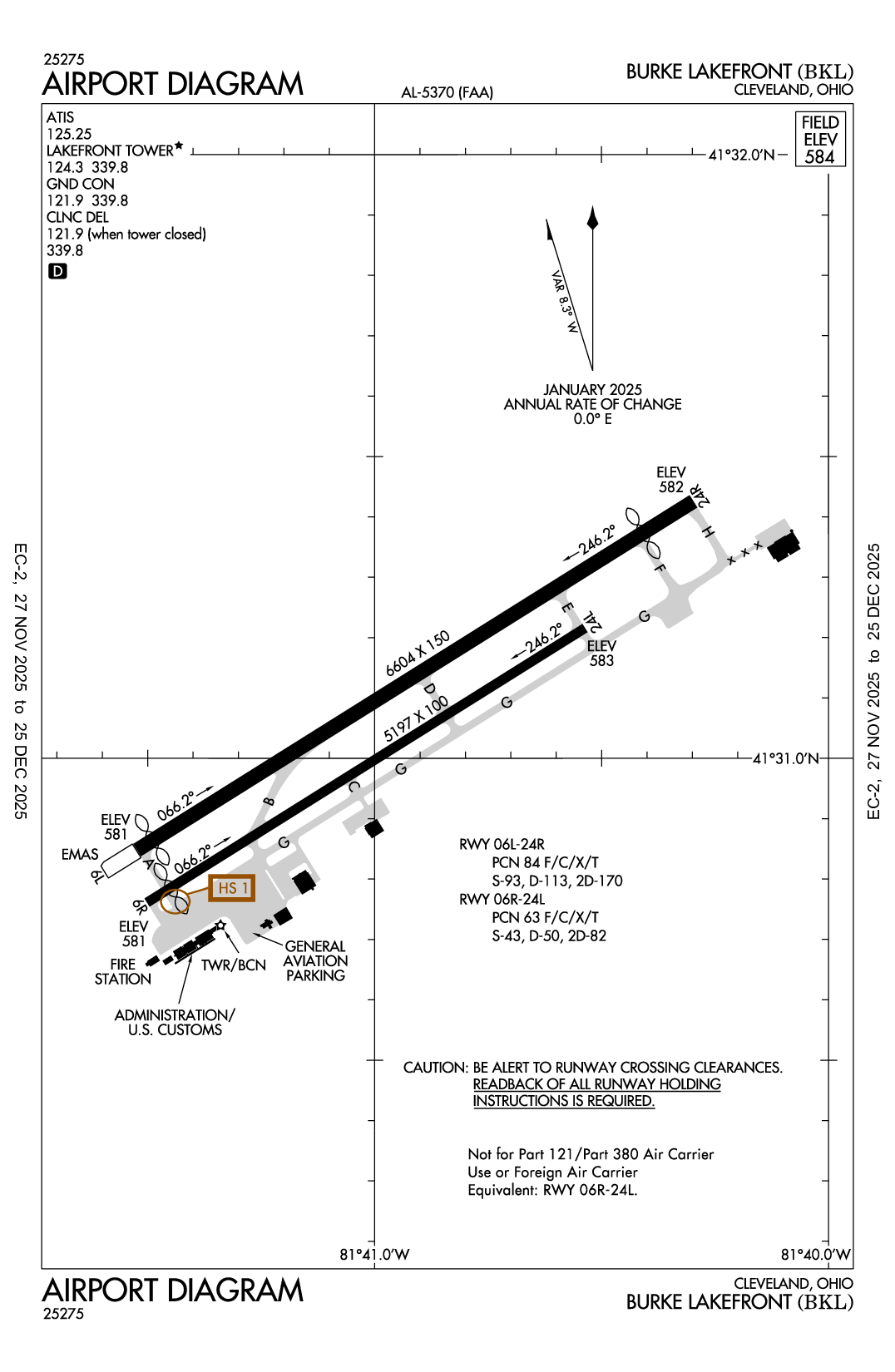

BURKE LAKEFRONT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBKL
ICAO KBKLIATA BKLLocal BKL
BURKE LAKEFRONT
PublicPUB

1 miles N of CLEVELAND, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 31' 04"N 81° 40' 57"W
Elevation
584' MSL
Pattern Alt
1584' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, 100LL
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
10/1/26-10/29/26
KBKL VFR
9:53 PM EDT
Scattered 3,800'
10sm
61°F
48°F
30.21"Hg
030° 14kts
Gusts 23kts
AO2 SLP230 T01610089 $
METAR KBKL 030153Z 03014G23KT 10SM SCT038 16/09 A3021 RMK AO2 SLP230 T01610089 $
+ Add Your Business

KBKL FBOs

Promote Listing
Signature Aviation
UNICOM: 129.7
Phone: (216) 861-2030
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.62 9.56
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.25
ASOS (216) 241-6904

Common

CTAF 124.3
WHEN ATCT CLSD ACTVT MALSF RWY 24R; REIL RWY 06L - CTAF. HIRL RWY 06L/24R PRESET MED INTST, TO INCR INTST RDO REQ ON UNICOM. PAPI RWY 06L & 24R OPR CONSLY.
UNICOM 122.95
WHEN ATCT CLSD ACTVT MALSF RWY 24R; REIL RWY 06L - CTAF. HIRL RWY 06L/24R PRESET MED INTST, TO INCR INTST RDO REQ ON UNICOM. PAPI RWY 06L & 24R OPR CONSLY.

Clearance

Clearance Delivery 121.9
WHEN TWR CLSD

Ground

LAKEFRONT GROUND 121.9
0700 MON TO 2300 FRI; 0700-2300 SAT; SUN 0800-0000

Tower

LAKEFRONT TOWER 124.3
0700 MON TO 2300 FRI; 0700-2300 SAT; SUN 0800-0000

Arrival

BRWNZ STAR 126.55
ROKNN STAR 126.55
ROLLN STAR 126.55
TRYBE STAR 126.55

Approach

CLEVELAND APPROACH 125.35

Departure

CLEVELAND DEPARTURE 125.35

Terminal Area Forecast

KCLE (10nm)
Fri, 10/2 10:39 PM EDT
Fri, 10/2 11:00 PM EDT - Sun, 10/4 2:00 AM EDT
VFR
11:00 PM EDT - 10:00 AM EDT
Sky Clear
6sm
030° 9kts
VFR
10:00 AM EDT - 2:00 AM EDT
Few 25,000'
6sm
060° 11kts
TAF KCLE 030239Z 0303/0406 03009KT P6SM SKC
   FM031400 06011KT P6SM FEW250
KBKL
EffectiveExpiresCategoryNOTAM
Domestic
10/7/26
1300Z
10/7/26
2100Z
!BKL 10/013 BKL AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF BKL SFC-3500FT AGL ACFT CS FLC79 2610071300-2610072100
10/6/26
1300Z
10/6/26
2100Z
!BKL 10/012 BKL AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF BKL SFC-3500FT AGL ACFT CS FLC79 2610061300-2610062100
10/1/26
2057Z
1/29/27
2057Z
!BKL 10/007 BKL OBST TOWER LGT (ASR 1219643) 412913.20N0814101.10W (1.9NM S BKL) 1083.0FT (500.0FT AGL) U/S 2610012057-2701292057
10/1/26
2000Z
10/2/26
0500Z
!BKL 10/004 BKL AIRSPACE UAS WI AN AREA DEFINED AS 0.7NM RADIUS OF 413000.40N0814144.60W (1.2NM SW BKL) SFC-400FT AGL 2610012000-2610020500
10/1/26
2000Z
10/2/26
0500Z
!BKL 10/003 BKL AIRSPACE UAS WI AN AREA DEFINED AS 0.7NM RADIUS OF 413000.40N0814144.60W (1.2NM SW BKL) SFC-400FT AGL 2610012000-2610020500
9/29/26
2300Z
11/1/26
0400Z
!BKL 09/097 BKL AIRSPACE NUMEROUS HIGH INTST BEAM SEARCH LGT WI AN AREA DEFINED AS .25NM RADIUS OF 412958N0814141W (2NM S BKL) SFC-1600FT 2609292300-2611010400
9/29/26
2150Z
12/28/26
2359Z
!BKL 09/098 BKL OBST TOWER LGT (ASR UNKNOWN) 412444.29N0813216.92W (10NM SE BKL) 1117.5FT (128.5FT AGL) U/S 2609292150-2612282359
9/23/26
1106Z
11/8/26
0124Z
!BKL 09/092 BKL OBST TOWER LGT (ASN 2022-AGL-25560-OE) 412743N0814049W (3.4NM S BKL) 868FT (270FT AGL) U/S 2609231106-2611080124
9/10/26
1632Z
12/9/26
2359Z
!BKL 09/040 BKL OBST TOWER LGT (ASN 2023-AGL-22290-OE) 412348N0813330W (9.1NM SE BKL) 1078FT (159FT AGL) U/S 2609101632-2612092359
9/10/26
1455Z
12/9/26
2359Z
!BKL 09/038 BKL OBST TOWER LGT (ASN 2021-AGL-26005-OE) 412349N0813330W (9.1NM SE BKL) 1110FT (190FT AGL) U/S 2609101455-2612092359
9/9/26
1413Z
12/8/26
2359Z
!BKL 09/033 BKL OBST TOWER LGT (ASR UNKNOWN) 412444.29N0813216.92W (9.1NM SE BKL) 1118FT (128FT AGL) U/S 2609091413-2612082359
9/3/26
2121Z
11/3/26
2359Z
!BKL 09/019 BKL OBST DIRT PILE (ASN UNKNOWN) 413234N0814006W (.5NM NE APCH END RWY 24R) 623FT (40FT AGL) NOT FLAGGED AND LGTD 2609032121-2611032359
8/14/26
1107Z
11/13/26
0400Z
!BKL 08/080 BKL OBST TOWER LGT (ASR 1011905) 412422.90N0813338.40W (8.6NM SE BKL) 1232.0FT (299.9FT AGL) U/S 2608141107-2611130400
FDC
3/19/26
1053Z
!FDC 6/0735 BKL IAP BURKE LAKEFRONT, CLEVELAND, OH.
ILS OR LOC RWY 24R, AMDT 2...
CIRCLING RWY 6R, 24L NA WHEN TOWER CLOSED.
2603191053-2701161053EST
11/27/25
1027Z
!FDC 5/2152 BKL SID BURKE LAKEFRONT, CLEVELAND, OH.
AHMET FIVE DEPARTURE (RNAV)...
CAVVS FIVE DEPARTURE (RNAV)...
GTLKE FIVE DEPARTURE (RNAV)...
MYCAR FIVE DEPARTURE (RNAV)...
ZAAPA SIX DEPARTURE (RNAV)...
RWY 6R, 24L TAKEOFF MINIMUMS NA WHEN TOWER IS CLOSED. ALL OTHER DATA REMAINS AS PUBLISHED. 2511271027-2711271027EST
11/27/25
1024Z
!FDC 5/2148 BKL SID BURKE LAKEFRONT, CLEVELAND, OH.
AHMET FIVE DEPARTURE (RNAV)...
CAVVS FIVE DEPARTURE (RNAV)...
GTLKE FIVE DEPARTURE (RNAV)...
MYCAR FIVE DEPARTURE (RNAV)...
ZAAPA SIX DEPARTURE (RNAV)...
DEPARTURE PROCEDURE NA.
2511271024-2711271024EST
Yes
ALL
CITY OF CLEVELAND
1501 N MARGINAL RD
CLEVELAND, OH 44114
Phone: 216-781-6411
JOEL WOODS
1501 N MARGINAL RD
CLEVELAND, OH 44114
Phone: 216-781-6411
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
BKL
--
WHEN ATCT CLSD ACTVT MALSF RWY 24R; REIL RWY 06L - CTAF. HIRL RWY 06L/24R PRESET MED INTST, TO INCR INTST RDO REQ ON UNICOM. PAPI RWY 06L & 24R OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 06L/24R

6604 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
426/F/C/X/T
93,000lbs
113,000lbs
170,000lbs
--
  Runway 06L Runway 24R
True Heading 58°238°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 30' 51"N 41° 31' 26"N
Longitude 81° 41' 31"W 81° 40' 18"W
Elevation 581' 582'
Threshold Crossing Height 45 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 06R/24L

5197 ft. x 100 ft.
ASPH
Good
GRVD
HIGH
63/F/C/X/T
43,000lbs
50,000lbs
82,000lbs
--
  Runway 06R Runway 24L
True Heading 58°238°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 30' 46"N 41° 31' 13"N
Longitude 81° 41' 30"W 81° 40' 32"W
Elevation 580' 582'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS AND WATERFOWL ON & INVOF ARPT.
A110-2FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL 24 HRS MON-FRI REQ FOR SERVICE ON SAT; SUN & HOLS MUST BE MADE PRIOR TO 1630 ON FRI; 2 HRS ADVANCE NOTICE REQUIRED CALL 216-267-3600. PRIVATE ACFT & GENERAL AVIATION ONLY.
A110-472 FT SHIP CRANE 1300 FT SW OF RWY 06R.
A110-9FOR CD WHEN ATCT CLSD CTC CLEVELAND APCH AT 216-352-2323.
A24FEE SKED BASED ON NR OF ENGINES AND GWT.
A26CLSD TO SKEDD ACR OPS GTR THAN 9 PAX SEATS. PPR FOR UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS CALL AMGR.
A30-06R/24LRWY 06R/24L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. CLSD WHEN ATCT CLSD.
A43-06LUNUSBL BYD 5 DEGS RIGHT OF CNTRLN.
A43-24RUNUSBL BYD 8 DEGS LEFT OF CRS.
A52-06LRWY 06L/24R & RWY 06R/24L APCH SFCS HAVE NAVIGABLE WATERWAYS CREATING POSSIBLE VESSEL OBSTRUCTION AREAS - CHECK LOCAL NOTAMS FOR CURRENT ACTIVITY; VESSEL HEIGHT; ETC.
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 24R; REIL RWY 06L - CTAF. HIRL RWY 06L/24R PRESET MED INTST, TO INCR INTST RDO REQ ON UNICOM. PAPI RWY 06L & 24R OPR CONSLY.
E111HEL ASP: PRIOR TO PART 157.
BURKE LAKEFRONT (ICAO: KBKL, IATA: BKL) is a public airport located in CLEVELAND, OH, US.
