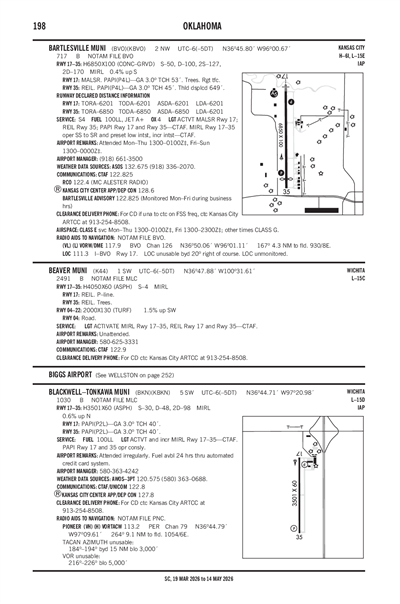

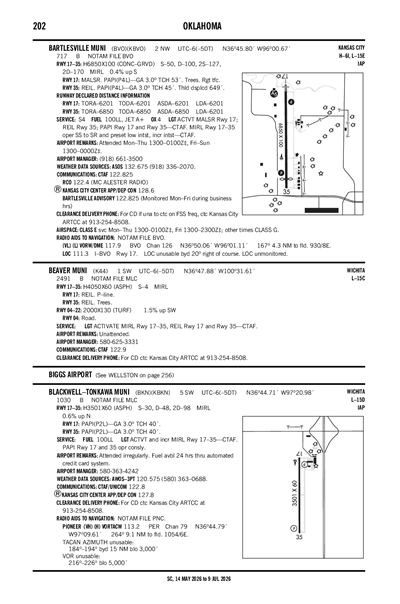

BLACKWELL-TONKAWA MUNI - Airport Diagram

KBKN

ICAO KBKNIATA BWLLocal BKN

BLACKWELL-TONKAWA MUNI

PublicPUB

5 miles SW of BLACKWELL, OK, US

View on Map

Status

Operational

Coordinates

36° 44' 42"N 97° 20' 58"W

Elevation

1030' MSL

Pattern Alt

2030' MSL

Mag Variation

3°E

Declination

6°E

Fuel

100LL

FSS

MC ALESTER (MLC)

Sectional

WICHITA

ARTCC

KANSAS CITY (ZKC)

Data Effective

2/19/26-3/19/26

KBKN VFR

8:55 AM CDT RAW

Clear

Viz

9sm

Temp

61°F

Dew

39°F

Pres

29.51"Hg

Wind

310° 28kts

Gusts 35kts

RMK

AO2

METAR KBKN 151355Z AUTO 31028G35KT 9SM CLR 16/04 A2951 RMK AO2

Add Your Business

KBKN FBOs

Promote Listing

Blackwell-Tonkawa Municipal Airport

UNICOM: 122.8

Phone: (580) 363-4242

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 3/13	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.90
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3PT	120.575
(580) 363-0688

Common

CTAF	122.8
ACTVT & INCR INTST MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
UNICOM	122.8

Center

KANSAS CITY CENTER	127.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.8/319.1 (PONCA CITY RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPNC (12nm)

RAW

Reported

Sun, 3/15 6:20 AM CDT

Valid

Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT

VFR

7:00 AM CDT - 9:00 AM CDT

Broken 15,000'

Viz

6sm

Wind

230° 16kts

Gusts 24kts

VFR

Temporary 9:00 AM CDT - 1:00 PM CDT

Scattered 2,000'

Viz

N/A

Wind

Calm

VFR

9:00 AM CDT - 1:00 PM CDT

Broken 15,000'

Viz

6sm

Wind

340° 24kts

Gusts 34kts

VFR

1:00 PM CDT - 8:00 PM CDT

Blowing Dust

Broken 10,000'

Viz

6sm

Wind

350° 28kts

Gusts 42kts

VFR

8:00 PM CDT - 2:00 AM CDT

Sky Clear

Viz

6sm

Wind

340° 22kts

Gusts 30kts

VFR

2:00 AM CDT - 7:00 AM CDT

Sky Clear

Viz

6sm

Wind

340° 15kts

Gusts 22kts

TAF KPNC 151120Z 1512/1612 23016G24KT P6SM BKN150
   FM151400 34024G34KT P6SM BKN150
   TEMPO 1514/1518 SCT020
   FM151800 35028G42KT 6SM BLDU BKN100
   FM160100 34022G30KT P6SM SKC
   FM160700 34015G22KT P6SM SKC

KBKN

No NOTAM Available

ATC Tower

Attendance

IRREG

Owner

CITIES OF BLACKWELL/TONKAWA
16705 W. HUBBARD ROAD
BLACKWELL, OK 74631
Phone: 580-363-4242

Manager

DENNIS PEARCE
16705 W. HUBBARD ROAD
BLACKWELL, OK 74631
Phone: 580-363-4242

FSS

MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF

NOTAM

MLC

Light Schedule

Lights

ACTVT & INCR INTST MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting

Runway 17/35

Dimensions

3501 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

48,000lbs

Double Tandem

98,000lbs

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	36° 44' 60"N	36° 44' 25"N
Longitude	97° 20' 59"W	97° 20' 58"W
Elevation	1,030'	1,009'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1	FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A3	ARPT LCTD 5 MILES SW BLACKWELL; 5 MILES NW TONKAWA.
A70-100LL	FUEL AVBL 24 HRS THRU AUTOMATED CREDIT CARD SYSTEM.
A81-APT	ACTVT & INCR INTST MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.

BLACKWELL-TONKAWA MUNI (ICAO: KBKN, IATA: BKN) is a public airport located in BLACKWELL, OK, US.
