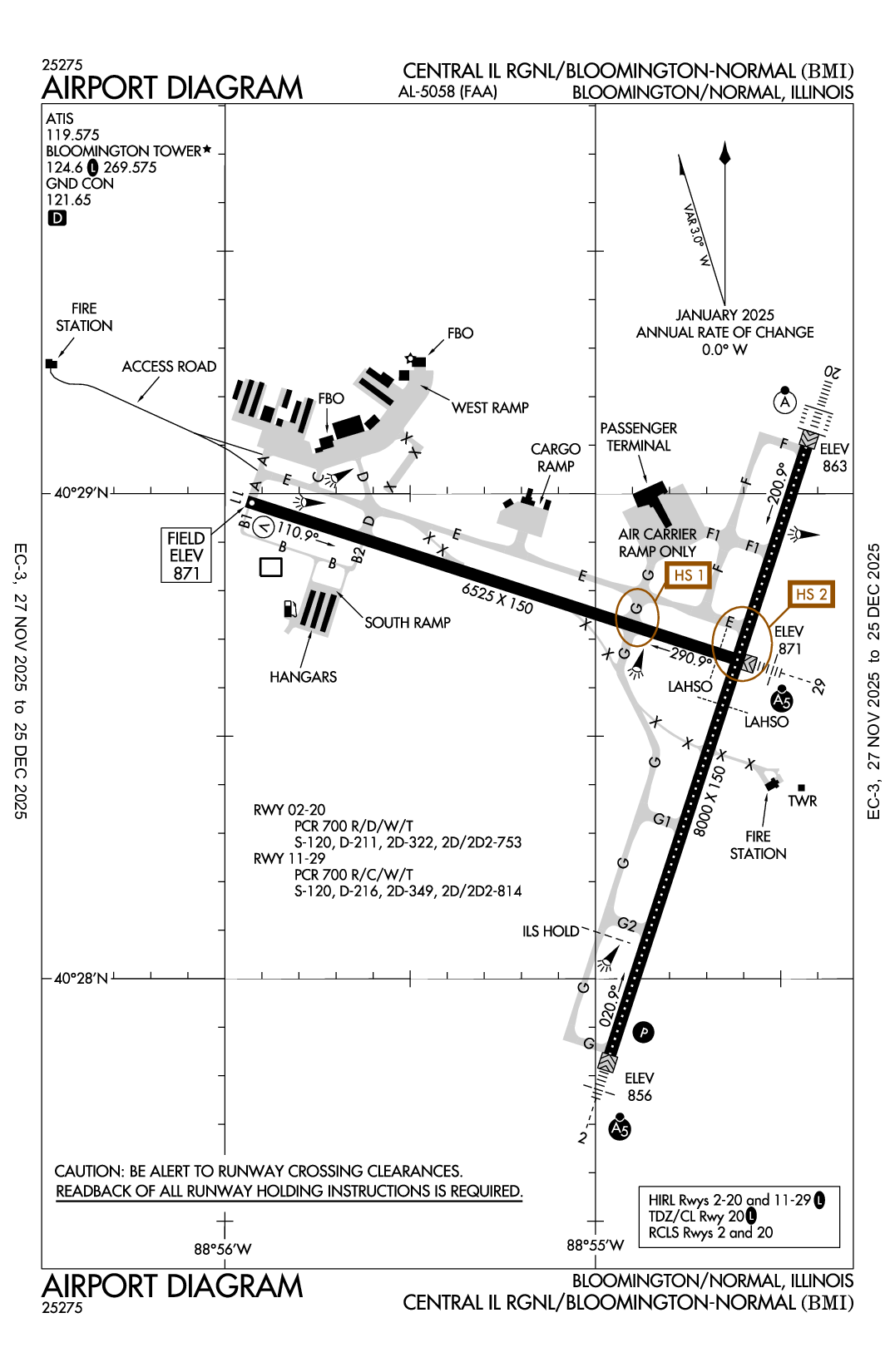

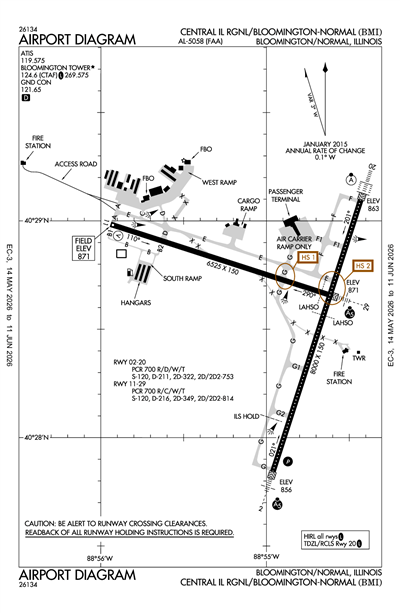

CENTRAL IL RGNL/BLOOMINGTON-NORMAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBMI
ICAO KBMIIATA BMILocal BMI
CENTRAL IL RGNL/BLOOMINGTON-NORMAL
PublicPUB

3 miles E of BLOOMINGTON/NORMAL, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 28' 38"N 88° 54' 57"W
Elevation
871' MSL
Pattern Alt
1871' MSL
Mag Variation
3°W
Declination
3°W
Fuel
JET A, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
10/1/26-10/29/26
KBMI VFR
10:56 PM CDT
Clear
10sm
56°F
46°F
30.27"Hg
090° 5kts
AO2 SLP245 T01330078
METAR KBMI 230356Z AUTO 09005KT 10SM CLR 13/08 A3027 RMK AO2 SLP245 T01330078
+ Add Your Business

KBMI FBOs

Promote Listing
Synergy Flight Center
UNICOM: 129.1
Phone: (309) 828-4448
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.56 8.79 8.89
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.575
AWOS-3PT 135.35
(309) 661-9478, (COMM_DECOMM_DATE) AWSS.

Common

CTAF 124.6
ACTVT MALSR RWY 02 & 29; TDZ RWY 20; CNTLN 02/20; PAPI RWY 02; HIRL RWY 02/20 & 11/29 - CTAF. ALSF AVBL WHEN ATCT OPEN.; SNOW REMOVAL OPS WINTER MONTHS; WHEN ATCT CLSD MNT CTAF.; WHEN ATCT CLSD LNDG/TKOF ANNOUNCE INTENTIONS ON CTAF.
UNICOM 122.95

Ground

BLOOMINGTON GROUND 121.65
0600-2200

Tower

BLOOMINGTON TOWER 124.6
0600-2200

Approach

SAINT LOUIS APPROACH 128.725

Departure

SAINT LOUIS DEPARTURE 128.725

Emergency

Emergency 121.5

Terminal Area Forecast

KBMI
Thu, 10/22 6:20 PM CDT
Thu, 10/22 7:00 PM CDT - Fri, 10/23 7:00 PM CDT
VFR
7:00 PM CDT - 11:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
11:00 AM CDT - 7:00 PM CDT
Few 25,000'
6sm
150° 7kts
TAF KBMI 222320Z 2300/2324 VRB03KT P6SM SKC
   FM231600 15007KT P6SM FEW250
KBMI
EffectiveExpiresCategoryNOTAM
Domestic
10/23/26
1500Z
10/23/26
1900Z
!BMI 10/097 BMI AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF BMI SFC-3500FT AGL ACFT CS FLC79 2610231500-2610231900
10/23/26
1130Z
10/23/26
2330Z
!BMI 10/107 BMI NAV ILS RWY 02 U/S 2610231130-2610232330
10/23/26
1130Z
10/23/26
2330Z
!BMI 10/106 BMI NAV ILS RWY 20 U/S 2610231130-2610232330
10/23/26
0500Z
10/23/26
1100Z
!BMI 10/118 BMI COM REMOTE TRANS/REC 128.725, 256.9 U/S 2610230500-2610231100
10/22/26
1009Z
10/23/26
1200Z
!BMI 10/117 BMI TWY E LOCATION SIGN SOUTH SIDE BTN RWY 02/20 AND TWY F LGT U/S 2610221009-2610231200
10/20/26
1212Z
10/30/26
2255Z
!BMI 10/109 BMI OBST CRANE (ASN 2026-AGL-8672-OE) 402727N0885552W (1.4NM SSW BMI) 928FT (80FT AGL) FLAGGED DLY SR-SS 2610201212-2610302255
10/10/26
2358Z
10/24/26
2300Z
!BMI 10/060 BMI TWY G HLDG PSN MARKINGS FOR RWY 11/29 SOUTH SIDE NOT STD 2610102358-2610242300
10/10/26
2354Z
10/24/26
2300Z
!BMI 10/059 BMI TWY G EDGE MARKINGS BTN RWY 11/29 AND TWY G1 NOT STD 2610102354-2610242300
10/10/26
2353Z
10/24/26
2300Z
!BMI 10/058 BMI TWY G CL MARKINGS BTN RWY 11/29 AND TWY G1 NOT STD 2610102353-2610242300
9/30/26
1453Z
12/29/26
1553Z
!BMI 09/097 BMI OBST TOWER LGT (ASR 1008831) 403215.00N0890115.00W (6.0NM NW BMI) 1122.0FT (291.0FT AGL) U/S 2609301453-2612291553
9/30/26
1109Z
!BMI 09/095 BMI NAV ILS RWY 20 GP U/S 2609301109-2611062000EST
9/10/26
0629Z
10/25/26
2359Z
!BMI 09/028 BMI OBST TOWER LGT (ASR 1211446) 403430.10N0885015.30W (6.9NM NNE BMI) 1127.3FT (357.3FT AGL) U/S 2609100629-2610252359
9/8/26
1129Z
10/26/26
0611Z
!BMI 09/017 BMI OBST WIND TURBINE LGT (ASN 2024-WTE-3203-OE) 403730N0883508W (17.5NM ENE BMI) 1143FT (380FT AGL) U/S 2609081129-2610260611
9/4/26
1117Z
11/23/26
0601Z
!BMI 09/005 BMI OBST WIND TURBINE LGT (ASN 2020-WTE-3440-OE) 404005N0884147W (15.3NM NE BMI) 1091FT (328FT AGL) U/S 2609041117-2611230601
6/24/26
0953Z
!BMI 06/116 BMI NAV ILS RWY 20 EGROW LOM U/S 2606240953-2610302000EST
6/11/26
1200Z
11/30/26
2200Z
!BMI 06/054 BMI NAV ILS RWY 29 U/S 2606111200-2611302200
6/11/26
1200Z
11/30/26
2330Z
Runway!BMI 06/053 BMI RWY 11/29 CLSD EXC XNG 2606111200-2611302330
5/6/26
1841Z
11/6/26
2359Z
!BMI 05/028 BMI OBST TOWER LGT (ASR 1010146) 403845.00N0891045.00W (15.7NM NW BMI) 1747.0FT (1006.9FT AGL) U/S 2605061841-2611062359
4/30/26
0846Z
!BMI 04/157 BMI NAV ILS RWY 20 IM/OM U/S 2604300846-2610302000EST
4/30/26
0839Z
!BMI 04/156 BMI NAV ILS RWY 29 OM U/S 2604300839-2610282000EST
3/5/19
1230Z
!BMI 03/028 BMI OBST TOWER (ASN UNKNOWN) 402434N0884602W (8.2NM ESE BMI) 1245FT (319FT AGL) NOT LGTD 1903051230-PERM
FDC
8/12/26
1907Z
!FDC 6/4451 BMI IAP CENTRAL IL RGNL/BLOOMINGTON-NORMAL, BLOOMINGTON/NORMAL, IL.
ILS OR LOC RWY 20, AMDT 4A...
S-LOC 20: DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHJ LOM OUT OF SERVICE. 2608121907-2703241907EST
7/10/26
1551Z
!FDC 6/4640 BMI IAP CENTRAL IL RGNL/BLOOMINGTON-NORMAL, BLOOMINGTON/NORMAL, IL.
ILS RWY 20 (CAT II), AMDT 4A ...
S-ILS 20 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADIO ALTIMETER. I-LHJ INNER MARKER OUT OF SERVICE 2607101551-2702191551EST
Yes
0400L-2400L
CENTRAL ILLINOIS REGIONAL ARPT AUTH
3201 CIRA DRIVE
BLOOMINGTON, IL 61704
Phone: 309-663-7383
CARL G. OLSON
3201 CIRA DRIVE
BLOOMINGTON, IL 61704
Phone: 309-663-7383
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
BMI
--
ACTVT MALSR RWY 02 & 29; TDZ RWY 20; CNTLN 02/20; PAPI RWY 02; HIRL RWY 02/20 & 11/29 - CTAF. ALSF AVBL WHEN ATCT OPEN.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

8000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
700/R/D/W/T
120,000lbs
211,000lbs
322,000lbs
753,000lbs
  Runway 02 Runway 20
True Heading 18°198°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 27' 51"N 40° 29' 06"N
Longitude 88° 54' 58"W 88° 54' 26"W
Elevation 856' 862'
Threshold Crossing Height 75 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 11/29

6525 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
700/R/C/W/T
120,000lbs
216,000lbs
349,000lbs
814,000lbs
  Runway 11 Runway 29
True Heading 107°287°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 28' 59"N 40° 28' 39"N
Longitude 88° 55' 56"W 88° 54' 36"W
Elevation 871' 871'
Threshold Crossing Height 43 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4R --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-2BIRDS ON & INVOF ARPT.
A110-3SNOW REMOVAL OPS WINTER MONTHS; WHEN ATCT CLSD MNT CTAF.
A110-4WHEN ATCT CLSD LNDG/TKOF ANNOUNCE INTENTIONS ON CTAF.
A110-5ARPT OPS H24 - 309-834-7396.
A2648 HR PPR FOR UNSKED ACR OPS MORE THAN 30 PAX SEATS - AMGR.
A31-11/29SE END 565 FT CONC; RMNG 5960 FT ASPH.
A49-20WHEN ATCT CLSD ALSF2 OPR AS SSALR.
A81-APTACTVT MALSR RWY 02 & 29; TDZ RWY 20; CNTLN 02/20; PAPI RWY 02; HIRL RWY 02/20 & 11/29 - CTAF. ALSF AVBL WHEN ATCT OPEN.
CENTRAL IL RGNL/BLOOMINGTON-NORMAL (ICAO: KBMI, IATA: BMI) is a public airport located in BLOOMINGTON/NORMAL, IL, US.
