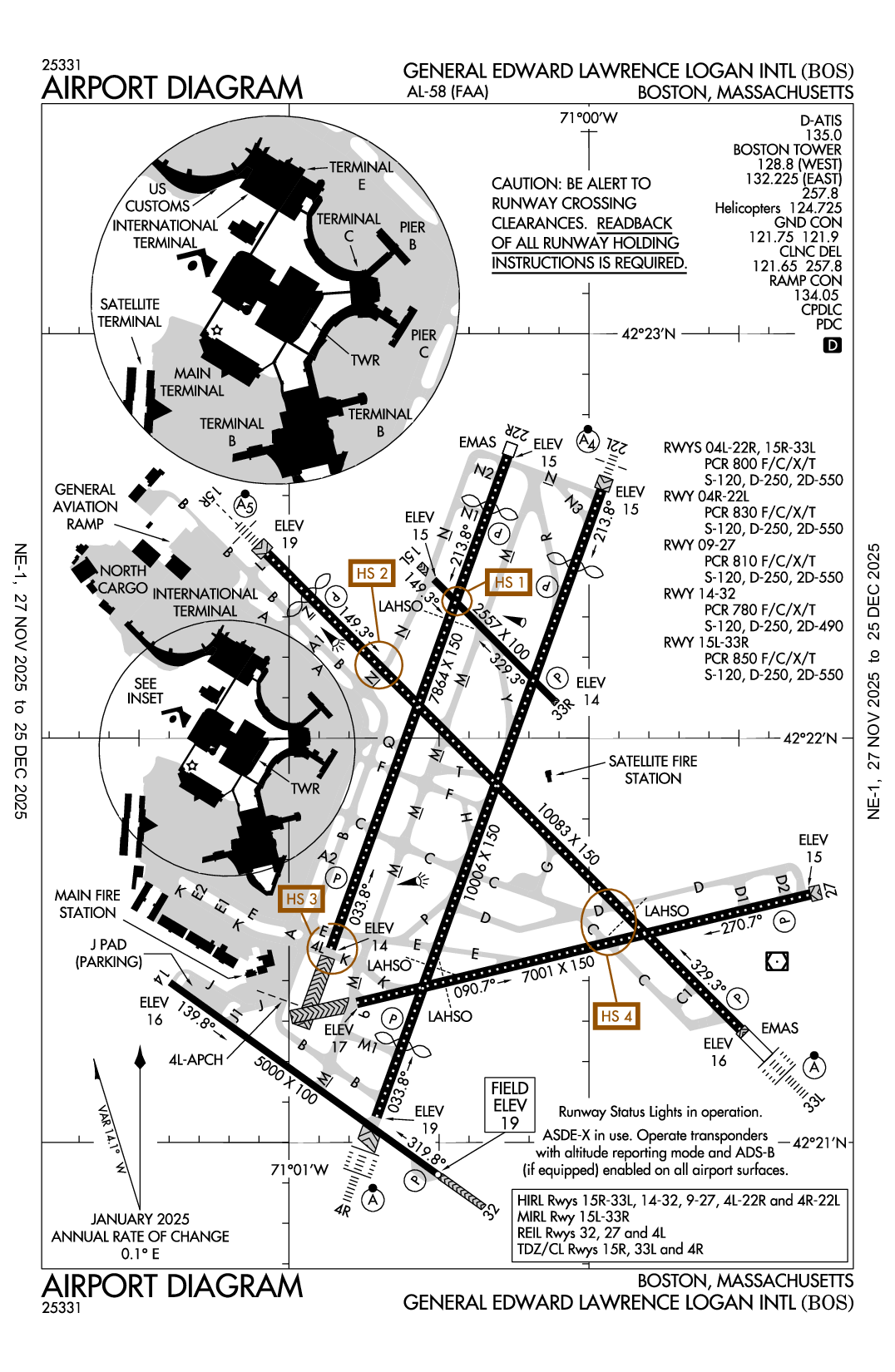

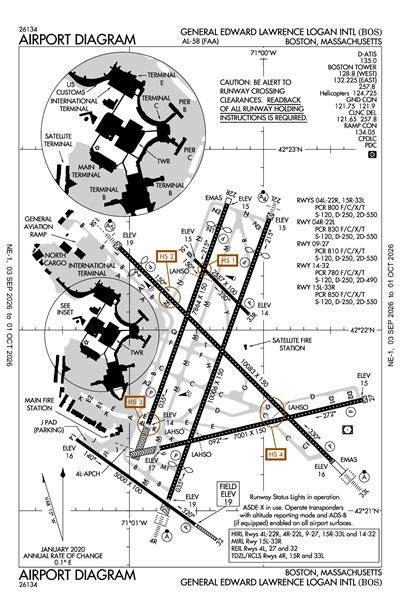

GENERAL EDWARD LAWRENCE LOGAN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBOS
ICAO KBOSIATA BOSLocal BOS
GENERAL EDWARD LAWRENCE LOGAN INTL
PublicPUB

1 miles E of BOSTON, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 21' 47"N 71° 00' 23"W
Elevation
19' MSL
Pattern Alt
1019' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
6/11/26-7/9/26
KBOS VFR
4:54 AM EDT
Scattered 25,000'
Few 8,000'
10sm
67°F
53°F
29.55"Hg
260° 13kts
Gusts 19kts
AO2 SLP004 T01940117 51010
METAR KBOS 190854Z 26013G19KT 10SM FEW080 SCT250 19/12 A2955 RMK AO2 SLP004 T01940117 51010
+ Add Your Business

KBOS FBOs

Promote Listing
Signature Aviation
UNICOM: 130.25
Phone: (617) 561-2500
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.69 11.28
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 135.0
ARR - (617) 455-3003
Digital ATIS 135.0
DEP - (617) 455-3003
ASOS 135.0
(339) 746-6855

Common

UNICOM 122.95

Clearance

BOSTON CLEARANCE DELIVERY 121.65

Ground

BOSTON GROUND 121.75
BOSTON GROUND 121.9
Ramp Control 134.05

Tower

BOSTON TOWER 124.725
HELICOPTERS
BOSTON TOWER 128.8
WEST
BOSTON TOWER 132.225
EAST

Arrival

WOONS STAR 120.6

Approach

BOSTON APPROACH 118.25
NORTH
BOSTON APPROACH 120.6
Initial Contact - WEST
BOSTON APPROACH 127.2
SOUTH

Departure

BOSTON DEPARTURE 133.0

Flight Service

Flight Service 122.4
(BDR)

Emergency

Emergency 121.5

Other

CLASS B 124.1
091-269
CLASS B 124.4
270-090

Terminal Area Forecast

KBOS
Fri, 6/19 1:29 AM EDT
Fri, 6/19 2:00 AM EDT - Sat, 6/20 8:00 AM EDT
VFR
2:00 AM EDT - 7:00 AM EDT
Few 9,000'
6sm
240° 12kts
VFR
7:00 AM EDT - 9:00 PM EDT
Few 25,000'
6sm
260° 12kts
Gusts 25kts
VFR
9:00 PM EDT - 8:00 AM EDT
Sky Clear
6sm
260° 11kts
Gusts 20kts
TAF KBOS 190529Z 1906/2012 24012KT P6SM FEW090
   FM191100 26012G25KT P6SM FEW250
   FM200100 26011G20KT P6SM SKC
KBOS
EffectiveExpiresCategoryNOTAM
Domestic
6/26/26
0500Z
6/26/26
1000Z
!BOS 06/420 BOS AD AP RWY STATUS LGT SYSTEM U/S 2606260500-2606261000
6/24/26
1100Z
6/24/26
1600Z
!BOS 06/375 BOS NAV VOR/DME U/S 2606241100-2606241600
6/22/26
1300Z
6/26/26
2100Z
!BOS 06/364 BOS AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 422240N0710656W (4.1NM W BOS) SFC-300FT AGL DLY 1300-2100 2606221300-2606262100
6/19/26
1000Z
6/19/26
1600Z
!BOS 06/410 BOS NAV ILS RWY 04R U/S 2606191000-2606191600
6/19/26
1000Z
6/19/26
1600Z
!BOS 06/409 BOS NAV ILS RWY 22L U/S 2606191000-2606191600
6/19/26
0139Z
6/25/26
1400Z
Runway!BOS 06/419 BOS RWY 14/32 CLSD 2606190139-2606251400
6/19/26
0137Z
6/19/26
1400Z
!BOS 06/418 BOS APRON J PAD PRKG RAMP CLSD EXC ACFT PARKING OVERNIGHT 2606190137-2606191400
6/18/26
0442Z
7/9/26
2359Z
!BOS 06/391 BOS TWY A TWY DIRECTION SIGN FOR TWY C LGT U/S 2606180442-2607092359
6/18/26
0442Z
7/2/26
2359Z
!BOS 06/390 BOS TWY B HLDG PSN SIGN FOR ILS LGT U/S 2606180442-2607022359
6/18/26
0129Z
7/18/26
1200Z
Runway!BOS 06/389 BOS RWY 27 LEAD OFF CL MARKINGS AT TWY E FADED 2606180129-2607181200
6/18/26
0058Z
6/25/26
1200Z
!BOS 06/387 BOS TWY N3 HLDG PSN SIGN FOR RWY 04R/22L LGT U/S 2606180058-2606251200
6/16/26
1704Z
6/23/26
2300Z
Runway!BOS 06/362 BOS RWY 15L/33R CLSD EXC TAX 2606161704-2606232300
6/15/26
1941Z
7/15/26
2300Z
Runway!BOS 06/347 BOS RWY 04R LEAD OFF CL MARKINGS AT TWY Y OBSC 2606151941-2607152300
6/15/26
1941Z
7/15/26
2300Z
Runway!BOS 06/346 BOS RWY 22L LEAD OFF CL MARKINGS AT TWY C OBSC 2606151941-2607152300
6/15/26
1940Z
7/15/26
2300Z
Runway!BOS 06/345 BOS RWY 04R LEAD OFF CL MARKINGS AT TWY H OBSC 2606151940-2607152300
6/15/26
1940Z
7/15/26
2300Z
Runway!BOS 06/344 BOS RWY 22L LEAD OFF CL MARKINGS AT TWY P OBSC 2606151940-2607152300
6/15/26
1134Z
6/21/26
1900Z
!BOS 06/332 BOS TWY B BTN APCH END RWY 04R AND TWY J WIP 2606151134-2606211900
6/15/26
1134Z
6/21/26
1900Z
!BOS 06/331 BOS TWY M BTN TWY M1 AND RWY 14/32 CLSD 2606151134-2606211900
6/15/26
1133Z
6/21/26
1900Z
!BOS 06/330 BOS TWY B BTN TWY J AND APCH END RWY 04R CLSD 2606151133-2606211900
6/15/26
1000Z
7/31/26
2300Z
Runway!BOS 06/176 BOS RWY 15R RAI LGT U/S 2606151000-2607312300
6/12/26
1023Z
6/30/27
1500Z
!BOS 06/281 BOS OBST CRANE (ASN 2024-ANE-3514-OE) 422349N0705942W (2.1NM NNE BOS) 244FT (225FT AGL) FLAGGED AND LGTD 2606121023-2706301500
6/11/26
1600Z
6/19/26
0400Z
!BOS 06/250 BOS AIRSPACE UAS WI AN AREA DEFINED AS .1NM RADIUS OF 422053N0710458W (3.2NM WSW BOS) SFC-1000FT AGL 2606111600-2606190400
6/11/26
1200Z
6/23/26
2059Z
!BOS 06/224 BOS AIRSPACE UAS WI AN AREA DEFINED AS 0.4NM RADIUS OF 421352.40N0710059.70W (7.4NM E OWD) SFC-400FT AGL 2606111200-2606232059
6/10/26
0113Z
7/1/26
1200Z
!BOS 06/234 BOS TWY B TWY DIRECTION SIGN FOR TWY K LGT U/S 2606100113-2607011200
6/8/26
2108Z
9/8/26
2359Z
!BOS 06/205 BOS OBST STACK (ASN UNKNOWN) 422326N0710354W (1.9NM W BOS) 550FT (500FT AGL) LGTD 2606082108-2609082359
6/2/26
0008Z
7/7/26
2359Z
Runway!BOS 06/027 BOS RWY 09/27 CL MARKINGS OBSC 2606020008-2607072359
5/19/26
0106Z
6/30/26
2359Z
!BOS 05/478 BOS TWY C TWY DIRECTION SIGN FOR TWY B LGT U/S 2605190106-2606302359
5/18/26
0033Z
6/24/26
1900Z
!BOS 05/421 BOS TWY B TWY DIRECTION SIGN FOR TWY C LGT U/S 2605180033-2606241900
4/28/26
0924Z
7/4/26
2359Z
Runway!BOS 04/544 BOS RWY 15R/33L CL MARKINGS OBSC 2604280924-2607042359
4/28/26
0923Z
7/4/26
2359Z
Runway!BOS 04/543 BOS RWY 04R/22L CL MARKINGS OBSC 2604280923-2607042359
4/21/26
0401Z
10/30/26
0359Z
!BOS 04/303 BOS AD AP CLSD TO NON-SKED TRANSIENT GA ACFT EXC 24HR
PPR 617-561-2500 2604210401-2610300359
3/12/26
1246Z
10/15/26
2359Z
!BOS 03/244 BOS OBST TOWER LGT (ASR 1261031) 421421.80N0705752.60W (7.7NM SSE BOS) 365.8FT (358.9FT AGL) U/S 2603121246-2610152359
2/4/26
1245Z
12/31/26
2359Z
!BOS 02/183 BOS OBST CRANE (ASN 2025-ANE-1558-NRA) 422208N0710112W (0.7NM WNW BOS) 183FT (170FT AGL) FLAGGED AND LGTD 2602041245-2612312359
1/19/26
0001Z
7/31/26
2359Z
!BOS 01/502 BOS AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 421722N0712148W (9.5NM NW OWD) SFC-400FT AGL 2601190001-2607312359
FDC
6/14/26
0100Z
!FDC 6/8102 BOS IAP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
RNAV (GPS) Y RWY 22L, ORIG-B...
LNAV/VNAV DA 500/HAT 484.
TEMPORARY CRANE 244FT MSL 225FT AGL 7294FT N OF APCH END RWY 22L.
2024-ANE-3514-OE.
2606140100-2611142135EST
6/14/26
0100Z
!FDC 6/8101 BOS IAP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
RNAV (GPS) X RWY 22L, AMDT 1F...
LNAV/VNAV DA 540/HAT 524.
TEMPORARY CRANE 244FT MSL 225FT AGL 7294FT N OF APCH END RWY 22L.
2024-ANE-3514-OE.
2606140100-2611142135EST
6/14/26
0100Z
!FDC 6/8099 BOS ODP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 15...
TAKE-OFF MINIMUMS: RWY 04L, INCREASE CEILING AND VISIBILITY TO 300-1 1/2 OR STD WITH MINIMUM CLIMB GRADIENT OF 369 FT PER NM TO 400.
TAKE-OFF MINIMUMS: RWY 04R, 300 - 1 1/2 OR STD WITH MINIMUM CLIMB GRADIENT OF 252 FT PER NM TO 400.
TAKEOFF OBSTACLES: RWY 04L TEMPORARY CRANE 7294 FT FROM DER 47FT RIGHT OF CENTERLINE, 225FT AGL/244FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED 2024-ANE-3514-OE. 2606140100-2611142135EST
11/13/25
1914Z
!FDC 5/5927 BOS SID GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
LOGAN FOUR DEPARTURE...
TAKEOFF MINIMUMS: RWY 33L: CHANGE TO READ: STANDARD WITH MINIMUM CLIMB OF 300 FT/NM TO 1200. ALL OTHER DATA REMAINS AS PUBLISHED.. 2511131914-2711131914EST
10/30/25
1500Z
!FDC 5/6022 BOS STAR GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
OOSHN FIVE ARRIVAL...
RIFLE ROUTE INCREASE MOCA FROM CUTOX TO CUJKE 1200 TO 1900,
WINDMILL AT 873 OBS (25-077159)

2510301500-PERM
10/24/25
1400Z
!FDC 5/6065 BOS STAR GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
ROBUC THREE ARRIVAL...
MERIT ROUTE INCREASE MOCA FROM ALWIN TO ROBUC 1900 TO 2100,
WINDMILL AT 1002 OBS

2510241400-PERM
10/24/25
1400Z
!FDC 5/6061 BOS STAR GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
ROBUC THREE ARRIVAL...
KENNEDY ROUTE INCREASE MOCA FROM ALWIN TO ROBUC 1900 TO 2100,
WINDMILL AT 1002 OBS

2510241400-PERM
10/24/25
1400Z
!FDC 5/6053 BOS STAR GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
ROBUC THREE ARRIVAL...
RUIZE ROUTE INCREASE MOCA FROM ALWIN TO ROBUC 1900 TO 2100,
WINDMILL AT 1002 OBS

2510241400-PERM
10/8/25
1405Z
!FDC 5/7941 BOS ODP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 15...
NOTE: RWY 04L IN ADDITION TO EXISTING TAKEOFF OBSTACLE NOTES, ADD: TREE 3930 FT FROM DER, 1367 FT LEFT OF CENTERLINE, 172 FT MSL. TREES, SMOKESTACKS, POLES, BUILDINGS, TRAVERSE WAY BEGINNING 3972 FT FROM DER, 476 FT LEFT OF CENTERLINE, UP TO 74 FT AGL/198 FT MSL. TREES, POLE BEGINNING 4344 FT FROM DER, 1034 FT LEFT OF CENTERLINE, UP TO 202 FT MSL. TREES, POLE, BUILDING BEGINNING 4386 FT FROM DER, 755 FT LEFT OF CENTERLINE, UP TO 183 FT MSL.
2510081405-2710081405EST
3/5/25
2158Z
!FDC 5/9664 BOS ODP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
DIVERSE VECTOR AREA (RADAR VECTORS), ORIG ...
RWY 22R, REQUIRES MINIMUM CLIMB OF 406 FT PER NM TO 1000. ALL OTHER DATA REMAINS AS PUBLISHED 2503052158-2703052158EST
Yes
ALL
MASS PORT AUTHORITY
ONE HARBORSIDE DR STE 200S
BOSTON, MA 02128
Phone: 617-428-2800
EDWARD FRENI
LOGAN INTERNATIONAL AIRPORT HARBORSIDE DR STE 200S
EAST BOSTON, MA 02128
Phone: 617-567-5400
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BOS
--
--
N/A
Yes - Lighted
No
Yes
None
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service

Runway 04L/22R

7864 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 04L Runway 22R
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 29"N 42° 22' 42"N
Longitude 71° 00' 52"W 71° 00' 16"W
Elevation 14' 15'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No

Runway 04R/22L

10006 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 04R Runway 22L
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 04"N 42° 22' 37"N
Longitude 71° 00' 42"W 70° 59' 57"W
Elevation 19' 14'
Threshold Crossing Height 67 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 09/27

7001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 09 Runway 27
True Heading 77°257°
Traffic Pattern Left Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 21"N 42° 21' 37"N
Longitude 71° 00' 46"W 70° 59' 16"W
Elevation 17' 15'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 14/32

5000 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
490,000lbs
--
  Runway 14 Runway 32
True Heading 125°305°
Traffic Pattern
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 24"N 42° 20' 55"N
Longitude 71° 01' 24"W 71° 00' 30"W
Elevation 16' 19'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 15L/33R

2557 ft. x 100 ft.
ASPH
Good
NONE
MED

120,000lbs
250,000lbs
550,000lbs
--
  Runway 15L Runway 33R
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 22' 24"N 42° 22' 06"N
Longitude 71° 00' 31"W 71° 00' 07"W
Elevation 15' 14'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 15R/33L

10083 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 15R Runway 33L
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 22' 27"N 42° 21' 17"N
Longitude 71° 01' 04"W 70° 59' 30"W
Elevation 19' 16'
Threshold Crossing Height 71 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-10NMRS CRANES ON AND INVOF ARPT.
A110-11RWY 14/32 UNIDIRECTIONAL; NO LDGS RWY 14; NO TKOFS RWY 32.
A110-13PILOTS SHOULD COMPLETE ALL CALCULATIONS PRIOR TO PUSHBACK FROM GATE.
A110-14RWY STATUS LGTS IN OPN.
A110-16FOR NOISE ABATEMENT, RWY 15R IS PREFERRED FOR TKOF, RWY 33L IS PREFERRED FOR LDG. FOR MORE INFO ON NOISE ABATEMENT PROCS CALL 617-561-3333.
A110-17THE USE OF THE RNAV SIDS AT BOSTON LOGAN ARE CRITICAL TO RDCG NOISE AND ACHIEVING OUR FLY QUIET GOALS. MASSPORT AND THE FAA ENCOURAGE PILOTS TO USE PUBLD RNAV FLIGHT PROCS AT BOSTON LOGAN ARPT WHENEVER POSS. ALL ACFT THAT HAVE REQD ALTS ABV 10,000 FT SHOULD BE FILING RNAV SIDS WITH FAA ATC. CTC MASSPORT'S NOISE ABATEMENT OFC AT 617-561-3333 WITH ANY QNS.
A110-7NO RON PARKING FOR NON-TENANT CHARTER AIRCRAFT WITHOUT PRIOR MASSPORT PERMISSION.
A110-8TERMINAL E; NORTH & SOUTH CARGO ARRIVALS CTC MASSPORT GATE CONTROL ON FREQ 131.1 BEFORE ENTERING/DEPARTING RAMP AREA.
A39-04L/22RPCR VALUE: 800/F/C/X/T
A39-04R/22LPCR VALUE: 830/F/C/X/T
A39-09/27PCR VALUE: 810/F/C/X/T
A39-14/32PCR VALUE: 780/F/C/X/T
A39-15L/33RPCR VALUE: 850/F/C/X/T
A39-15R/33LPCR VALUE: 800/F/C/X/T
A42-14_MARKAVBL FOR DEPARTURE ONLY.
A43-22LUNUSBL BYD 7 DEGS LEFT OF CNTRLN.
A57-04RAPCH RATIO 17:1 FROM DSPLCD THR; 43:1 WHEN CHANNEL IS CLEAR.
A57-14APPROACHES TO RWY 14 NOT AUTHORIZED.
A57-15RAPCH RATIO 50:1 FROM DSPLCD THR.
A57-22LAPCH RATIO 38:1 FROM DSPLCD THR.
A57-22RAPCH RATIO 33:1 FROM DSPLCD THR; 50:1 TO THR WHEN CHANNEL IS CLEAR.
E111PRVDD THE DESIGNATION OF A MOVEMENT AREA ASSOCIATED WITH THE RELCTN IS COORDINATED WITH & DESIGNATED BY BOSTON ATCT; APPROPRIATE HOLD LINES ESTABLISHED & MARKED FOR SERVICE VEHICLE MOVEMENT & TAXILANES; RELCTN MARKED IN ACCORDANCE WITH FAA ADVISORY CIRCULAR/5930-2.
E60-04L_EMASENGINEERING MATERIALS ARRESTING SYSTEM (EMAS) 190 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT DER 04L.
E60-15R_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 158 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT DER 15R.
GENERAL EDWARD LAWRENCE LOGAN INTL (ICAO: KBOS, IATA: BOS) is a public airport located in BOSTON, MA, US.
