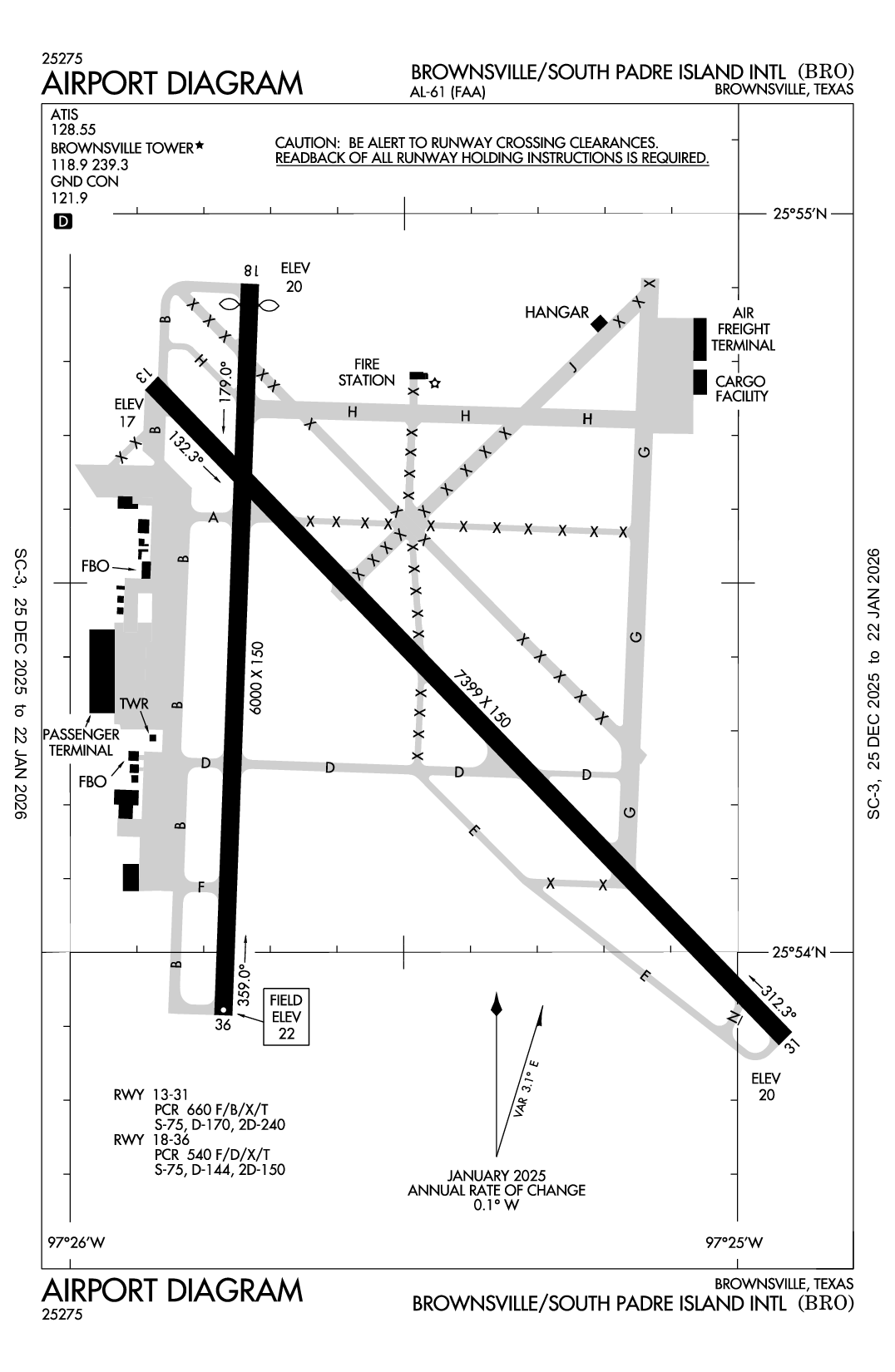

BROWNSVILLE/SOUTH PADRE ISLAND INTL - Airport Diagram

KBRO

ICAO KBROIATA BROLocal BRO

BROWNSVILLE/SOUTH PADRE ISLAND INTL

PublicPUB

4 miles E of BROWNSVILLE, TX, US

View on Map

Status

Operational

Coordinates

25° 54' 22"N 97° 25' 34"W

Elevation

22' MSL

Pattern Alt

1022' MSL

Mag Variation

3°E

Declination

3°E

Fuel

JET A, 100LL

FSS

SAN ANGELO (SJT)

Sectional

BROWNSVILLE

ARTCC

HOUSTON (ZHU)

Data Effective

2/19/26-3/19/26

KBRO MVFR

6:53 AM CDT RAW

Overcast 2,100'

Viz

10sm

Temp

75°F

Dew

67°F

Pres

29.72"Hg

Wind

170° 17kts

Gusts 26kts

RMK

AO2 PK WND 16027/1134 SLP062 T02390194 10239 20222 55009

METAR KBRO 151153Z 17017G26KT 10SM OVC021 24/19 A2972 RMK AO2 PK WND 16027/1134 SLP062 T02390194 10239 20222 55009

Add Your Business

KBRO FBOs

Promote Listing

Hunt Pan Am Aviation

UNICOM: 122.95

Phone: (956) 542-9111

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 2/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.59	4.94	5.00

Fuel Notes

Prices include tax

Promote Listing

Southmost Aviation

UNICOM: 122.95

Phone: (956) 542-5852

0 Reviews (Read | Sign In To Write)

Avfuel

As of 2/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.29		4.99

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	128.55
ASOS	128.55
(956) 299-5871

Common

CTAF	118.9
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.
UNICOM	122.95

Ground

BROWNSVILLE GROUND	121.9
0600-0000

Tower

BROWNSVILLE TOWER	118.9
0600-0000

Approach

VALLEY APPROACH

119.5

Departure

VALLEY DEPARTURE

119.5

Flight Service

Flight Service	122.3
(SJT)

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBRO

RAW

Reported

Sun, 3/15 6:28 AM CDT

Valid

Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT

MVFR

Temporary 7:00 AM CDT - 9:00 AM CDT

Broken 2,200'

Viz

N/A

Wind

Calm

VFR

7:00 AM CDT - 11:00 AM CDT

Scattered 2,200'

Viz

6sm

Wind

170° 15kts

Gusts 22kts

VFR

11:00 AM CDT - 7:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

180° 24kts

Gusts 30kts

VFR

7:00 PM CDT - 11:00 PM CDT

Broken 25,000'

Viz

6sm

Wind

160° 14kts

MVFR

11:00 PM CDT - 1:00 AM CDT

Overcast 1,500'

Viz

6sm

Wind

180° 9kts

MVFR

1:00 AM CDT - 6:00 AM CDT

Overcast 1,500'

Viz

6sm

Wind

350° 18kts

Gusts 25kts

VFR

6:00 AM CDT - 7:00 AM CDT

Broken 4,500'

Viz

6sm

Wind

010° 23kts

Gusts 35kts

TAF KBRO 151128Z 1512/1612 17015G22KT P6SM SCT022
   TEMPO 1512/1514 BKN022
   FM151600 18024G30KT P6SM SCT250
   FM160000 16014KT P6SM BKN250
   FM160400 18009KT P6SM OVC015
   FM160600 35018G25KT P6SM OVC015
   FM161100 01023G35KT P6SM BKN045

KBRO

Effective	Expires	Category	NOTAM
Domestic
3/16/26 1400Z	3/16/26 2100Z		!BRO 03/036 BRO NAV ILS RWY 13 U/S 2603161400-2603162100
3/15/26 0720Z	7/13/26 0720Z		!BRO 03/043 BRO OBST TOWER LGT (ASR 1050198) 255751.20N0973110.20W (6.2NM NW BRO) 517.1FT (493.1FT AGL) U/S 2603150720-2607130720
3/14/26 0332Z		Runway	!BRO 03/042 BRO RWY 31 PAPI U/S 2603140332-2603272000EST
3/12/26 1720Z	3/19/26 2100Z	Runway	!BRO 03/035 BRO RWY 13/31 DIST REMAINING SIGN NOT LGTD 2603121720-2603192100
3/12/26 1658Z	3/19/26 2100Z		!BRO 03/034 BRO TWY N APCH AREA HLDG PSN SIGN FOR RWY 13/31 LGT U/S 2603121658-2603192100
3/12/26 1657Z	3/19/26 2100Z		!BRO 03/033 BRO TWY G APCH AREA HLDG PSN SIGN FOR RWY 13/31 LGT U/S 2603121657-2603192100
3/12/26 1657Z	3/19/26 2100Z		!BRO 03/032 BRO TWY D APCH AREA HLDG PSN SIGN FOR RWY 13/31 LGT U/S 2603121657-2603192100
3/12/26 1656Z	3/19/26 2100Z		!BRO 03/031 BRO TWY B APCH AREA HLDG PSN SIGN FOR APCH END RWY 13 LGT U/S 2603121656-2603192100
3/12/26 1655Z	3/19/26 2100Z		!BRO 03/030 BRO TWY E APCH AREA HLDG PSN SIGN FOR APCH END RWY 31 LGT U/S 2603121655-2603192100
3/2/26 0411Z			!BRO 03/002 BRO NAV ILS RWY 13 OM U/S 2603020411-2605042111EST
2/28/26 0118Z	6/1/26 2359Z		!BRO 02/087 BRO AIRSPACE UAS WI AN AREA DEFINED AS 255623N0972001W (5.3NM NE BRO) TO 255748N0972043W (5.7NM NE BRO) TO 260219N0970919W (16.8NM NE BRO) TO 255758N0970844W (16NM ENE BRO) TO 255703N0971133W (5.7NM NE BRO) TO 255731N0971231W (12.4NM ENE BRO) TO 255721N0971352W (11.5NM ENE BRO) TO 255545N0971709W (7.6NM ENE BRO) TO 255601N0971847W (7.1NM ENE BRO) TO 255458N0972016W (5NM ESE BRO) TO POINT OF ORIGIN SFC-400FT AGL 2602280118-2606012359
2/28/26 0118Z	6/1/26 2359Z		!BRO 02/086 BRO AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF 260127N0972943W (7.3NM NW BRO) SFC-400FT AGL 2602280118-2606012359
2/28/26 0117Z	6/1/26 2359Z		!BRO 02/085 BRO AIRSPACE UAS WI AN AREA DEFINED AS 260204N0973512W (11.4NM NW BRO) TO 255702N0972938W (4NM NW BRO) TO 255612N0973002W (4.3NM WNW BRO) TO 255516N0973012W (4.1NM WNW BRO) TO 255340N0973006W (4.2NM WSW BRO) TO 255315N0973117W (4.1NM WSW BRO) TO 255423N0973212W (5.8 NM W BRO) TO 255528N0973213W (5.7NM WNW BRO) TO 255551N0973320W (6.7NM WNW BRO) TO 255548N0973511W (8.4 NM WNW BRO) TO 255623N0973411W (7.8NM WNW BRO) TO 255657N0973423W (7.8NM WNW BRO) TO 255647N0973458W (7.8NM WNW BRO) TO 255733N0973522W (9NM WNW BRO) TO 255715N0973615W (9.7NM WNW BRO) TO 255816N0973648W (10.1NM WNW BRO) TO 255838N0973718W (11NM WNW BRO) TO POINT OF ORIGIN SFC-400FT AGL 2602280117-2606012359
2/27/26 1900Z	5/28/26 0500Z		!BRO 02/083 BRO OBST TOWER LGT (ASR 1001880) 255855.30N0972013.90W (6.6NM NE BRO) 269.0FT (264.1FT AGL) U/S 2602271900-2605280500
2/20/26 0340Z			!BRO 02/067 BRO NAV VORTAC NOT MNT 2602200340-2603202000EST
2/17/26 1613Z	10/30/26 2200Z	Runway	!BRO 02/058 BRO RWY 36 VASI U/S 2602171613-2610302200
2/17/26 1612Z	10/30/26 2200Z	Runway	!BRO 02/057 BRO RWY 18 PAPI U/S 2602171612-2610302200
2/17/26 1548Z	5/31/26 2100Z		!BRO 02/056 BRO TWY D BTN TWY E AND TWY B CLSD 2602171548-2605312100
2/17/26 1508Z	10/31/26 2100Z		!BRO 02/055 BRO AD AP WINDCONE FOR RWY 18 NOT STD 2602171508-2610312100
2/17/26 1501Z	5/31/26 2100Z		!BRO 02/053 BRO TWY F CLSD 2602171501-2605312100
2/17/26 1458Z	5/31/26 2100Z		!BRO 02/052 BRO TWY B BTN APCH END RWY 13 AND APCH END RWY 18 CLSD 2602171458-2605312100
2/17/26 1455Z	5/31/26 2100Z		!BRO 02/050 BRO TWY B BTN TWY F AND APCH END RWY 36 CLSD 2602171455-2605312100
2/17/26 1300Z	10/30/26 2200Z	Runway	!BRO 02/045 BRO RWY 18/36 CLSD 2602171300-2610302200
2/13/26 2334Z	3/30/26 2333Z		!BRO 02/041 BRO OBST TOWER LGT (ASR 1048960) 255341.00N0973029.00W (4.5NM W BRO) 445.2FT (411.1FT AGL) U/S 2602132334-2603302333
8/25/22 1402Z			!BRO 08/056 BRO TWY G LOCATION MARKINGS NOT STD 2208251402-PERM
FDC
2/28/26 2009Z	6/4/26 2009Z		!FDC 6/1746 BRO IAP BROWNSVILLE/SOUTH PADRE ISLAND INTL, BROWNSVILLE, TX. ILS OR LOC RWY 13, ORIG-B... ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, HRL VOR/DME UNMONITORED. 2602282009-2606042009EST

ATC Tower

Yes

Attendance

ALL
FOR ACFT SVC CALL 956-542-5852 OR 956-542-9111.

Owner

CITY OF BROWNSVILLE
BOX 911
BROWNSVILLE, TX 78520
Phone: 956-542-4373

Manager

FAISAL KHALIFA- INTERIM AIRPORT DIR
700 AMELIA EARHART
BROWNSVILLE, TX 78521
Phone: 956-459-1811

FSS

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF

NOTAM

BRO

Light Schedule

Lights

DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

Dimensions

7399 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

75,000lbs

Double Wheel

170,000lbs

Double Tandem

240,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	135°	315°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	25° 54' 46"N	25° 53' 54"N
Longitude	97° 25' 53"W	97° 24' 56"W
Elevation	17'	20'
Threshold Crossing Height	--	68 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

6000 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

75,000lbs

Double Wheel

144,000lbs

Double Tandem

150,000lbs

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	182°	2°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	25° 54' 54"N	25° 53' 55"N
Longitude	97° 25' 44"W	97° 25' 46"W
Elevation	20'	22'
Threshold Crossing Height	50 ft. AGL	51 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE.
A110-10	LGTD OIL DERRICKS LCTN APRXLY 5 NM NE MAX 500 FT AGL.
A110-11	BIRDS ON & INVOF ARPT.
A110-19	FOR CD WHEN ATCT IS CLSD CTC CRP APCH AT 361-299-4230.
A110-20	TXY J NORTH OF TXY H OPEN TO TFC UNDER 12500 LBS.
A110-21	FOR CUST AND BDR PROTECTION SVCS CTC: 956-547-5760 DLY 0800-2400; KBRO.GAP@CBP.DHS.GOV. AFT HRS: 956-983-5704, 956-982-3653; BROWNSVILLEOPSCENTER@CBP.DHS.GOV.
A14	INTERIM DIRECTOR OF AVIATION.
A17-M1	FOR ACFT SVC CALL 956-542-5852 OR 956-542-9111.
A26	WHEN ATCT CLSD REQ ARFF ASSISTANCE THRU HOUSTON ARTCC OR FLT SVC. PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 956-542-4373.
A39-13/31	PCR VALUE: 660/F/B/X/T
A39-18/36	PCR VALUE: 540/F/D/X/T
A81-APT	DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.

BROWNSVILLE/SOUTH PADRE ISLAND INTL (ICAO: KBRO, IATA: BRO) is a public airport located in BROWNSVILLE, TX, US.
