BATTLE CREEK EXEC AT KELLOGG FLD - Airport Diagram

KBTL

ICAO KBTLIATA BTLLocal BTL

BATTLE CREEK EXEC AT KELLOGG FLD

PublicPUB

3 miles W of BATTLE CREEK, MI, US

View on Map

Status

Operational

Coordinates

42° 18' 23"N 85° 15' 00"W

Elevation

952' MSL

Pattern Alt

1952' MSL

Mag Variation

6°W

Declination

4°W

Fuel

JET A (FSII), 100LL

FSS

LANSING (LAN)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

9/3/26-10/1/26

KBTL VFR

3:53 PM EDT RAW

Few 6,000'
Few 4,700'

Viz

10sm

Temp

84°F

Dew

65°F

Pres

29.87"Hg

Wind

260° 11kts

RMK

AO2 SLP109 T02890183

METAR KBTL 121953Z COR 26011KT 10SM FEW047 FEW060 29/18 A2987 RMK AO2 SLP109 T02890183

Add Your Business

KBTL FBOs

Promote Listing

Duncan Aviation

UNICOM: 122.95

Phone: (269) 969-8400

Fax: (269) 969-8432

0 Reviews (Read | Sign In To Write)

Avfuel

As of 8/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.87	8.56	8.63

Fuel Notes

Prices include tax

Promote Listing

Centennial Aircraft Services

UNICOM: 122.95

Phone: (269) 565-3200

Other: (269) 565-1000

0 Reviews (Read | Sign In To Write)

World Fuel

As of 8/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.15
Full Serve	6.45	6.34	6.44

Fuel Notes

Prices include tax
Full service hours are 0800-1600.

Fuel Hours

Self-service pump available 24 hours. Full service available Monday-Friday 0800-1600

Volume Discounts

Ramp fee waived with fuel purchase, call FBO for more details

Your Information

Business

Weather and Advisory

ATIS	128.325
ASOS	(269) 964-0283, ASOS FONE OTS INDEFLY.

Common

CTAF	126.825
WHEN ATCT CLSD ACTVT MALSR RWY 23R; REIL RWY 05L, 05R, 23L, 13, & 31; PAPI RWY 05L, 23R, 05R, 23L, 13, & 31; HIRL RWY 05L/23R; MIRL RWY 05R/23L & 13/31 - CTAF.; SNOW REMOVAL OPS INPR DRG WINTER MONTHS; EQPT OPRS MNT CTAF WHEN ATCT CLSD.
UNICOM	122.95

Ground

BATTLE CREEK GROUND	121.7
0700-2300

Tower

BATTLE CREEK TOWER	126.825
0700-2300

Approach

GREAT LAKES APPROACH

121.2

Departure

GREAT LAKES DEPARTURE

121.2

Center

GREAT LAKES CENTER	127.55
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON 127.55/307.175 (GOSHEN RCAG) WHEN GREAT LAKES APCH CTL CLSD.

Military

ANG OPS

46.85

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

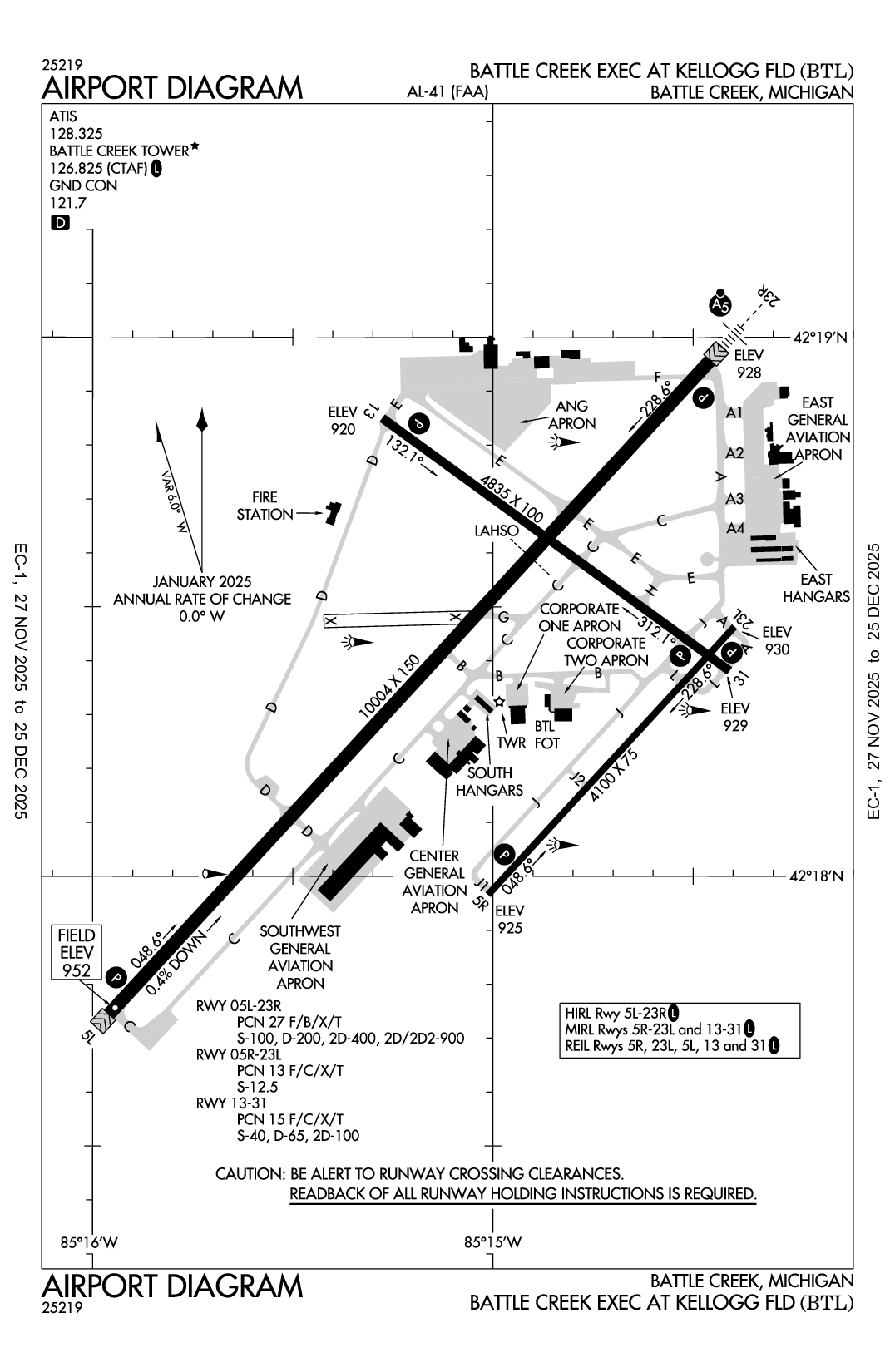

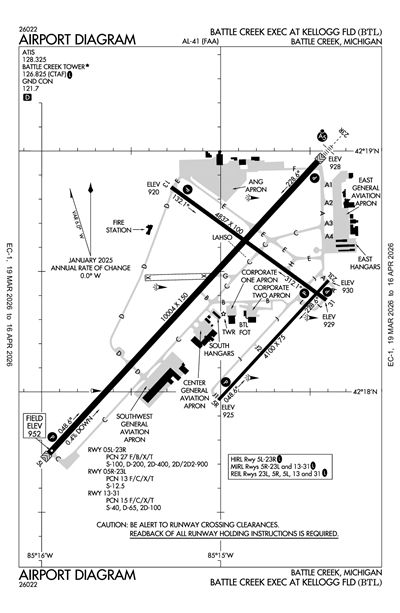

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBTL

RAW

Reported

Sat, 9/12 1:35 PM EDT

Valid

Sat, 9/12 2:00 PM EDT - Sun, 9/13 2:00 PM EDT

VFR

2:00 PM EDT - 6:00 PM EDT

Scattered 4,000'

Viz

6sm

Wind

240° 9kts

VFR

6:00 PM EDT - 2:00 AM EDT

Few 4,500'

Viz

6sm

Wind

270° 6kts

VFR

2:00 AM EDT - 10:00 AM EDT

Few 25,000'

Viz

6sm

Wind

330° 4kts

VFR

10:00 AM EDT - 2:00 PM EDT

Few 12,000'

Viz

6sm

Wind

300° 7kts

TAF KBTL 121735Z 1218/1318 24009KT P6SM SCT040
   FM122200 27006KT P6SM FEW045
   FM130600 33004KT P6SM FEW250
   FM131400 30007KT P6SM FEW120

KBTL

Effective	Expires	Category	NOTAM
Domestic
9/10/26 0004Z	12/9/26 0104Z		!BTL 09/013 BTL OBST TOWER LGT (ASR 1005422) 422226.20N0852558.00W (9.0NM WNW BTL) 1345.8FT (417.0FT AGL) U/S 2609100004-2612090104
9/5/26 0517Z	9/20/26 0417Z		!BTL 09/012 BTL OBST TOWER LGT (ASR 1000126) 421554.10N0852228.10W (6.1NM WSW BTL) 1229.7FT (262.8FT AGL) U/S 2609050517-2609200417
9/1/26 1144Z	12/31/26 1600Z		!BTL 09/011 BTL TWY J LGT BTN TWY A AND RWY 13/31 NOT STD 2609011144-2612311600
9/1/26 1143Z	12/31/26 1600Z		!BTL 09/010 BTL TWY A LGT NOT STD 2609011143-2612311600
9/1/26 1140Z	9/30/26 1930Z		!BTL 09/009 BTL TWY E HLDG PSN SIGN BTN RWY 05L/23R AND APCH END RWY 13 LGT U/S 2609011140-2609301930
9/1/26 1038Z	9/30/26 1930Z		!BTL 09/008 BTL TWY D EDGE LGT NOT STD 2609011038-2609301930
9/1/26 1037Z	9/30/26 1930Z		!BTL 09/007 BTL TWY J HLDG PSN SIGN BTN RWY 13/31 AND TWY A LGT U/S 2609011037-2609301930
9/1/26 1035Z	9/30/26 1930Z	Runway	!BTL 09/006 BTL RWY 23L HLDG PSN SIGN LEFT SIDE LGT U/S 2609011035-2609301930
9/1/26 1034Z	9/30/26 1930Z		!BTL 09/005 BTL TWY J HLDG PSN SIGN BTN RWY 13/31 AND TWY L LGT U/S 2609011034-2609301930
9/1/26 1032Z	9/30/26 1930Z		!BTL 09/004 BTL TWY L HLDG PSN SIGN BTN RWY 05R/23L AND TWY J LGT U/S 2609011032-2609301930
9/1/26 1031Z	9/30/26 1930Z		!BTL 09/003 BTL TWY J2 HLDG PSN SIGN BTN RWY 05R/23L AND TWY J LGT U/S 2609011031-2609301930
9/1/26 1030Z	9/30/26 1930Z		!BTL 09/002 BTL TWY C HLDG PSN SIGN BTN RWY 13/31 AND TWY G LGT U/S 2609011030-2609301930
9/1/26 1027Z	9/30/26 1930Z	Runway	!BTL 09/001 BTL RWY 05L/23R REDL NOT STD 2609011027-2609301930
8/31/26 0613Z	10/15/26 0613Z		!BTL 08/014 BTL OBST TOWER LGT (ASR 1002564) 422120.00N0852028.00W (5.0NM NW BTL) 1440.0FT (511.2FT AGL) U/S 2608310613-2610150613
8/22/26 1100Z	10/4/26 2100Z	Runway	!BTL 08/009 BTL RWY 05R/23L SFC MARKINGS NOT STD 2608221100-2610042100
8/18/26 0113Z	12/16/26 0113Z		!BTL 08/008 BTL OBST TOWER LGT (ASR 1001010) 421724.80N0850626.50W (6.4NM E BTL) 1159.8FT (262.8FT AGL) U/S 2608180113-2612160113
8/10/26 0824Z	9/24/26 0824Z		!BTL 08/002 BTL OBST TOWER LGT (ASR 1206838) 421716.70N0850954.30W (3.9NM ESE BTL) 1204.7FT (315.0FT AGL) U/S 2608100824-2609240824
9/29/25 0901Z			!BTL 09/060 BTL NAV ILS RWY 23R OM U/S 2509290901-2609252111EST
5/1/17 0100Z			!BTL 04/043 BTL AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 4.4NM RADIUS OF BTL 3500FT-7000FT AVOIDANCE ADVISED SR-SS 1705010100-PERM
FDC
5/20/26 1748Z			!FDC 6/2013 BTL IAP BATTLE CREEK EXEC AT KELLOGG FLD, BATTLE CREEK, MI. RNAV (GPS) RWY 31, AMDT 1A... LNAV MDA 1380/HAT 450 ALL CATS. VIS CATS C/D 1 3/8. WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GERALD R FORD INTL ALTIMETER SETTING AND INCREASE LNAV CATS C/D VISIBILITY 1/4 SM AND CIRCLING CAT C VISIBILITY 1/2 SM AND CAT D 1/4 SM. TEMPORARY CRANES, 1073 MSL, BEGINNING 2661FT WEST OF RWY 31 (2024-AGL-14742 THRU 14747-NRA). 2605201748-2612301747EST
4/9/26 1642Z			!FDC 6/0319 BTL IAP BATTLE CREEK EXEC AT KELLOGG FLD, BATTLE CREEK, MI. ILS OR LOC RWY 23R, AMDT 20... S-ILS-23R DA 1179 /HAT 250 ALL CATS. 2604091642-2804101642EST
7/16/25 1419Z			!FDC 5/9426 BTL ODP BATTLE CREEK EXEC AT KELLOGG FLD, BATTLE CREEK, MI. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A... TAKEOFF OBSTACLE NOTES: NOTE: RWY 13, TOWER BEGINNING 4908 FT FROM DER, 938 FT RIGHT OF CENTERLINE, 135 AGL/1062 MSL (2025-AGL-8796-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2507161419-2707161419EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF BATTLE CREEK
15551 SOUTH AIRPORT RD
BATTLE CREEK, MI 49015
Phone: 269-966-3470

Manager

PHILIP KROLL
15551 SOUTH AIRPORT RD
BATTLE CREEK, MI 49015
Phone: 269-966-3470

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

BTL

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 23R; REIL RWY 05L, 05R, 23L, 13, & 31; PAPI RWY 05L, 23R, 05R, 23L, 13, & 31; HIRL RWY 05L/23R; MIRL RWY 05R/23L & 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

None

Other Services

Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05L/23R

Dimensions

10004 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

27/F/B/X/T

Single Wheel

100,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

900,000lbs

	Runway 05L	Runway 23R
True Heading	43°	223°
Traffic Pattern	Left	Left
Markings	NPI	PIR
Markings Condition	FAIR	FAIR
Latitude	42° 17' 45"N	42° 18' 57"N
Longitude	85° 15' 58"W	85° 14' 27"W
Elevation	952'	928'
Threshold Crossing Height	48 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 05R/23L

Dimensions

4100 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Poor

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

13/F/C/X/T

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05R	Runway 23L
True Heading	43°	223°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 17' 58"N	42° 18' 28"N
Longitude	85° 15' 01"W	85° 14' 24"W
Elevation	925'	930'
Threshold Crossing Height	25 ft. AGL	30 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 13/31

Dimensions

4837 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

15/F/C/X/T

Single Wheel

40,000lbs

Double Wheel

65,000lbs

Double Tandem

100,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	126°	306°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 18' 51"N	42° 18' 23"N
Longitude	85° 15' 17"W	85° 14' 25"W
Elevation	920'	929'
Threshold Crossing Height	42 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	DEER & LRG BIRDS ON & INVOF ARPT.
A110-14	MILITARY: ANG: BASH LEVELS AS DEFINED IN AFI 91-202.
A110-15	MILITARY: ANG: APN/TWY USBL ONLY O/R, OTRW CLSD - COORD WITH 110TH WING SAFETY AT C269-969-3438.
A110-17	EXTSV PILOT TRG WI 25 NM OF ARPT.
A110-18	ARPT FICON MNTD WKDAYS 0700-1530; NOT MNTD ALL OTR TIMES.
A110-19	SNOW REMOVAL OPS INPR DRG WINTER MONTHS; EQPT OPRS MNT CTAF WHEN ATCT CLSD.
A110-2	24 HRS PN FOR CUST, CALL 269-965-3349.
A110-20	MOWING OPS INPR MAR-OCT.
A110-21	FOR CD WHEN ATCT CLSD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-22	VOLUNTARY NOISE ABATEMENT PROCS IN EFCT. SEE FLY QUIET PROGRAM AT WWW.FLYBTL.COM.
A110-8	TWY F RSTRD TO DOD/MIL USE ONLY.
A23-05R	RIGHT TFC WHEN TWR CLSD.
A23-23R	RIGHT TFC WHEN TWR CLSD.
A33-05R/23L_COND	EXTSV CRACKING & VEGETATION.
A81-APT	WHEN ATCT CLSD ACTVT MALSR RWY 23R; REIL RWY 05L, 05R, 23L, 13, & 31; PAPI RWY 05L, 23R, 05R, 23L, 13, & 31; HIRL RWY 05L/23R; MIRL RWY 05R/23L & 13/31 - CTAF.

BATTLE CREEK EXEC AT KELLOGG FLD (ICAO: KBTL, IATA: BTL) is a public airport located in BATTLE CREEK, MI, US.
