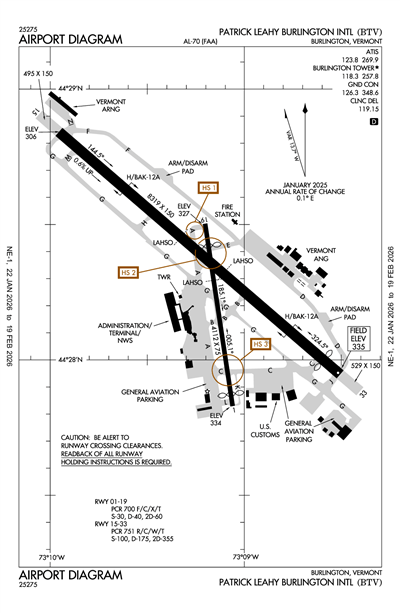

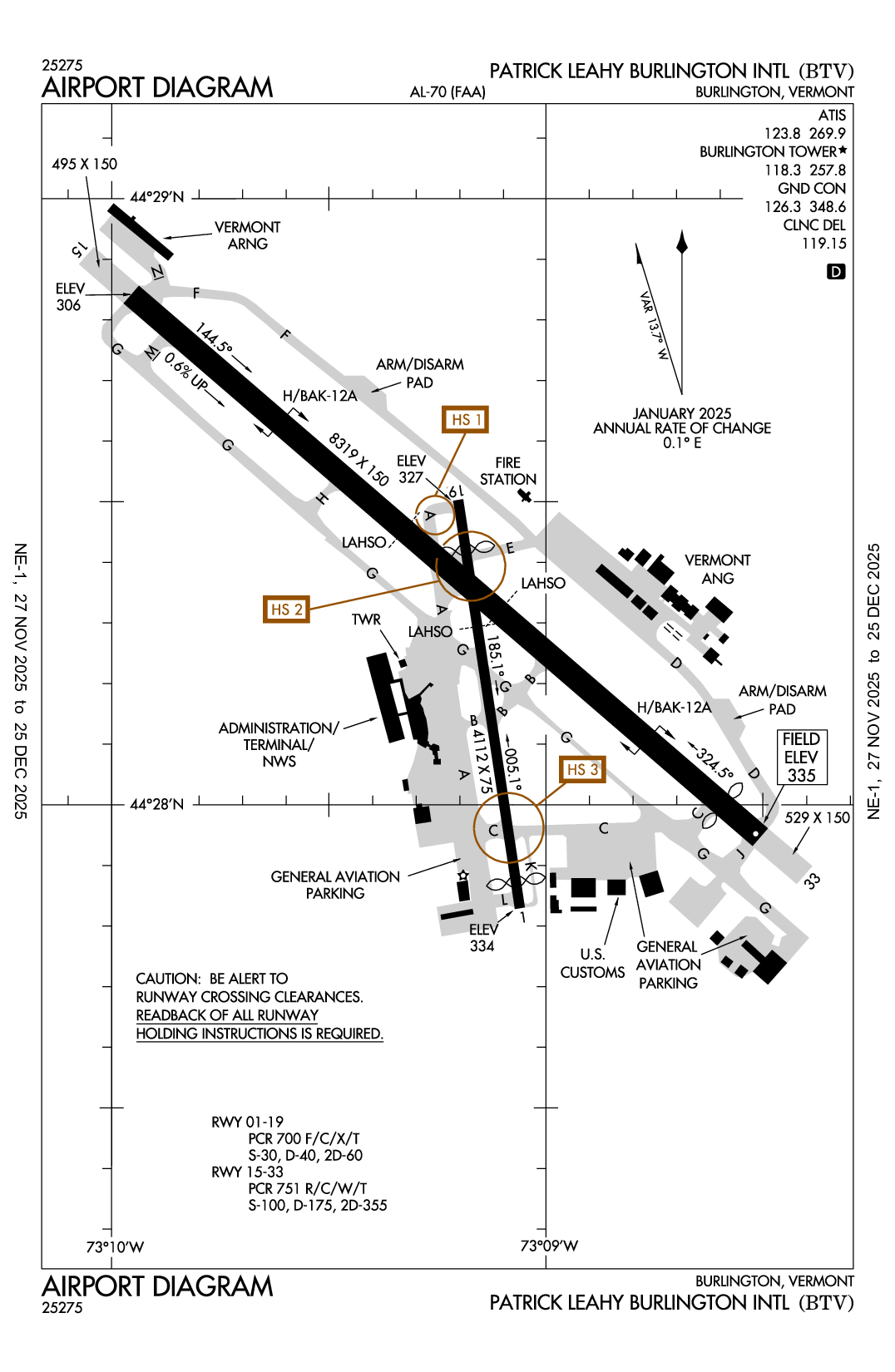

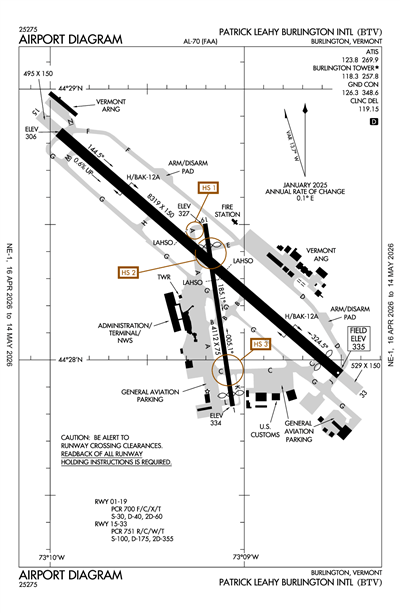

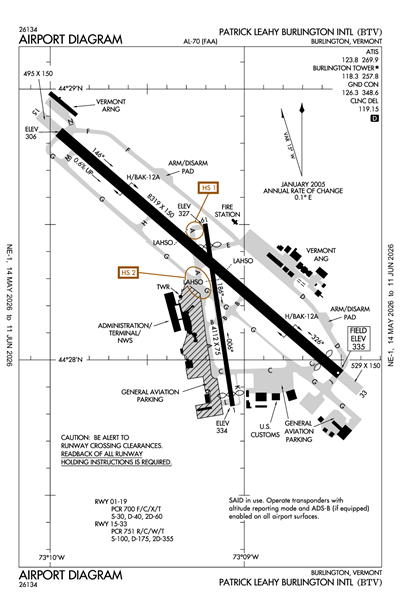

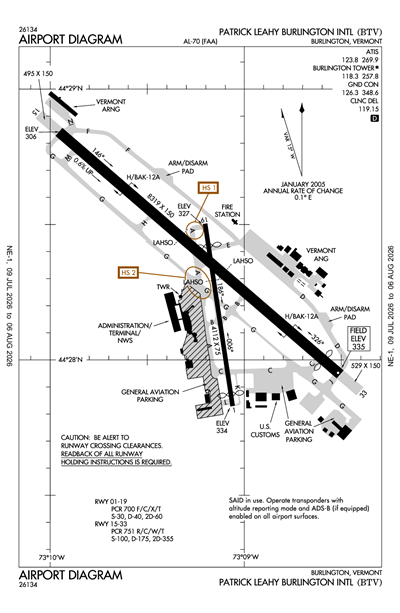

PATRICK LEAHY BURLINGTON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBTV
PATRICK LEAHY BURLINGTON INTL
PublicPUB

3 miles E of BURLINGTON, VT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 28' 19"N 73° 09' 12"W
335' MSL
1335' MSL
15W
Jet A, 100LL
BURLINGTON (BTV)
MONTREAL
BOSTON (ZBW)
3/21/24-4/18/24
KBTV VFR
12:54 PM EDT
Scattered 7,000'
10sm
57°F
32°F
30.10"Hg
360° 14kts
Gusts 18kts
AO2 SLP194 T01390000
KBTV 161654Z 36014G18KT 10SM SCT070 14/00 A3010 RMK AO2 SLP194 T01390000
List Your Business

KBTV FBOs, Flight Schools and Ground Support

Mansfield Aviation
Freq: 122.95
Phone: (802) 893-1003
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Heritage Aviation
Freq: 129.925
Phone: (802) 264-6100
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/11
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.00 6.15 6.15

KBTV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBTV Hotels

No hotels are listed for this airport.

KBTV Restaurants

No restaurants are listed for this airport.

KBTV Other Airport-Related Businesses

Promote Listing
Green Mountain Flight Academy
Freq: 122.95
Phone: (802) 893-1003
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
802-657-4424
 123.8

ASOS

ASOS
802-657-4490
 123.8

Approach/Departure

APCH/P DEP/P
 121.1

Clearance Delivery

CD/P
 119.15

Emergency

EMERG
 121.5

Ground

GND/P
 126.3

Tower

LCL/P
 118.3

Other

ARNG OPS
 41.2
ARNG OPS
 123.3
ARNG OPS
 134.1
CLASS C
 121.1

Terminal Area Forecast

KBTV
Tue, 4/16 1:25 PM EDT
Tue, 4/16 2:00 PM EDT - Wed, 4/17 2:00 PM EDT
VFR
2:00 PM EDT - 10:00 PM EDT
Few 6,000'
6sm
340° 11kts
Gusts 17kts
VFR
10:00 PM EDT - 2:00 PM EDT
Sky Clear
6sm
340° 7kts
KBTV 161725Z 1618/1718 34011G17KT P6SM FEW060
   FM170200 34007KT P6SM SKC
KBTV
Domestic
4/17/240400Z !BTV 04/224 BTV RWY 15/33 CLSD EXC 15MIN PPR 118.30/802-316-6014 2404170400-2404170900
4/14/241633Z !BTV 04/213 BTV APRON HERITAGE RAMP WIP CONST BARRICADED 2404141633-2404162300
4/12/242335Z !BTV 04/211 BTV NAV LOC RWY 33 U/S 2404122335-2404262000EST
4/8/241210Z !BTV 04/172 BTV RWY 33 ALS U/S 2404081210-2406142000EST
4/1/240914Z !BTV 04/003 BTV OBST TOWER LGT (ASR 1057823) 443220.00N0730534.00W (4.8NM NNE BTV) 1079.7FT (299.9FT AGL) U/S 2404010914-2405010001
3/24/240939Z !BTV 03/330 BTV TWY B HLDG PSN SIGN SOUTH SIDE FOR RWY 01/19 LGT U/S 2403240939-2404302359
2/20/241730Z !BTV 02/267 BTV OBST CRANE (ASN 2023-ANE-1612-NRA) 442826N0730849W (0.3NM ENE BTV) 426FT (100FT AGL) FLAGGED 2402201730-2404302359
12/28/230522Z !BTV 12/352 BTV OBST TOWER (ASN UNKNOWN) 442806N0730859W (0.26NM S BTV)
363.4FT (28.4FT AGL) NOT LGTD 2312280522-2404300400
10/19/230647Z !BTV 10/146 BTV OBST BLDG (ASN UNKNOWN) 442821N0730850W (0.25NM NE BTV)
375FT (47FT AGL) NOT LGTD 2310190647-2408311400
FDC
3/22/241217Z !FDC 4/0322 BTV IAP PATRICK LEAHY BURLINGTON INTL, BURLINGTON, VT.
RNAV (GPS) Y RWY 33, ORIG-C...
LNAV MDA 760/HAT 426 ALL CATS. TEMPORARY CRANE 460FT MSL 1232FT SOUTH OF RWY 33 (2021-ANE-1266-NRA).
2403221217-2411011217EST
3/22/241216Z !FDC 4/0320 BTV IAP PATRICK LEAHY BURLINGTON INTL, BURLINGTON, VT.
ILS OR LOC/DME RWY 33, AMDT 1D...
S-ILS 33 DA 673/HAT 339 ALL CATS. TEMPORARY CRANE 460FT MSL 1232FT SOUTH OF RWY 33 (2021-ANE-1266-NRA).
2403221216-2411011216EST
12/1/231508Z !FDC 3/9618 BTV IAP PATRICK LEAHY BURLINGTON INTL, BURLINGTON, VT.
VOR RWY 1, ORIG-A...
DISREGARD: VDA 3.00/TCH 40. VISUAL SEGMENT - OBSTACLES.
2312011508-2512011508EST
11/3/231621Z !FDC 3/6650 BTV IAP PATRICK LEAHY BURLINGTON INTL, BURLINGTON, VT.
RNAV (GPS) Z RWY 33, ORIG-C...
LPV DA 609/HAT 275 ALL CATS, LNAV/VNAV DA 1927/HAT 1593, VIS 6 ALL CATS, LNAV MDA 2040/HAT 1706 ALL CATS.
2311031621-2511031621EST
7/13/221216Z !FDC 2/1440 BTV IAP U.S. DOD BURLINGTON INTL, BURLINGTON, VT.
HI - LOC RWY 33, ORIG...
S-LOC 33 MDA 1020/HAT 686 ALL CATS. VISIBILITY ALL CATS 1 3/4 SM. CIRCLING CAT C MDA 1220/HAA 885 VISIBILITY 2 3/4 SM.
2207131216-2407131216EST
5/23/221601Z !FDC 2/8201 BTV IAP BURLINGTON INTL, BURLINGTON, VT.
RNAV (GPS) Y RWY 33, ORIG-C...
VOR RWY 1, ORIG-A...
CIRCLING CAT C MDA 1220/HAA 885 VISIBILITY 2 3/4 SM.
2205231601-2405231601EST
Yes
ALL
CITY OF BURLINGTON
CITY HALL
BURLINGTON, VT 05401
Phone: 802-865-7272
NICOLAS LONGO
1200 ARPT DR NO 1
SOUTH BURLINGTON, VT 05403
Phone: 802-863-2874
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
BTV
--
DUSK-DAWN. ACTVT MALSR RWY 15; MALSF RWY 33; PAPI RWY 01 & 15; MIRL RWY 01/19; HIRL RWY 15/33; ALL TWYS - CTAF. PAPI RWY 19 & 33 OPR CONSLY.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
71
10
11
5
32
1
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

4112 ft. x 75 ft.
ASPH
Good
NONE
MED
23 /F/A/X/T
30,000lbs
40,000lbs
60,000lbs
--
  Runway 01 Runway 19
True Heading 351°171°
Traffic Pattern
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 44° 27' 50"N 44° 28' 30"N
Longitude 73° 09' 04"W 73° 09' 12"W
Elevation 334' 327'
Threshold Crossing Height 27 ft. AGL 47 ft. AGL
Visual Glide Path Angle 4° 3.5°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

8319 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
39 /F/A/X/T
100,000lbs
175,000lbs
355,000lbs
--
  Runway 15 Runway 33
True Heading 131°311°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 28' 50"N 44° 27' 57"N
Longitude 73° 09' 57"W 73° 08' 30"W
Elevation 306' 335'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4R P4R
Approach Lights MALSR MALSF
Centerline Lights
Runway End Identifier Lights No
A110-1CTN: GENERATING PLANT 2 NM FROM AER 15 PRODUCES STEAM WHICH MAY OBSC VSBTY ON FNA.
A110-10TWY L CLSD TO ACFT OVR 60000 LBS.
A110-12ANG: NON-STD TWY LGTS ON TWY E.
A110-14TWYS D, E, F, N CLSD TO CIVILIAN OPS.
A110-15SERVICE-A-GEAR: TYPE H/BAK-12A(B) AER 33 LCTD 1000 FT FM DTHR. TYPE H/BAK 12A(B) CABLE RAISED BY TWR ON PILOT REQ ONLY. RWY 15 & RWY 33 A-G HOUSINGS ARE NON-FRANGIBLE (26 IN ABV GRD LEVEL) LCTD 250 FT FM RWY CNTLN.
A110-2ACR RAMP NOT AVBL FOR PVT & CHTR ACFT.
A110-20ANG: OPR 1030-2100Z++ WKDAYS, EXC HOL, CLSD SAT-MON. PPR FOR FUEL/PRKG, CTC ANG OPS DSN 220-5213/5920/5267 C802-660-5213. ALL TSNT ACFT ENR ETHAN ALLEN TRNG SITE AND R-6501A MUST STOP AT AASF FOR RQRD SAFETY BRIEF.
A110-21TWY M AVBL FOR SEASONAL USE, CLSD DRG WINTER MONTHS.
A110-23FIGHTER ACFT: NO LOW APCHS. ALL OTHER MIL ACFT LTD TO TWO PRACTICE APCHS. DO NOT FLY OVER HOSPITAL APRXLY 1.5 NM WEST OF RWY 15 APCH END.
A110-25TWY A BTN TWY G & TWY C CLSD TO ACFT WINGSPAN MORE THAN 118 FT EXC 1 HR PPR 802-316-6014 DLY.
A110-26FBO CLSD 0200-0900 DLY, EXC 1 HR PPR 802-863-3626.
A110-29COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -10C.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-30ARFF AVBL 24 HRS.
A110-33CAUTION: PHASE II WILDLIFE ACTVY DURG MIGRATION, MAR-MAY & AUG15-NOV15.
A110-34FOR CD IF TWR CLSD & UNA TO CTC FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859.
A110-35BETA HELIPAD PVT USE ONLY.
A110-36TWY G BTWN J & VALLEY RAMP CLSD TO ACFT WINGSPAN GTR THAN 156 FT.
A110-37TWY K CLSD TO ACFT WINGSPAN MORE THAN 49 FT AND ACFT MORE THAN 12500 LB.
A110-5TWYS D, E, F, N, ANG & RNG RAMPS HAVE UNCONTROLLED VEHICLES & ACFT.
A110-9FIGHTER ACFT RSTRD TO TKOF WINDOW OF 0830-2230 MON-SAT; 1200-2230 SUN.
PATRICK LEAHY BURLINGTON INTL (ICAO: KBTV, IATA: BTV) is a public airport located in BURLINGTON, VT.
