iFlightPlanner



...
BEATTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBTY
ICAO KBTYIATA BTYLocal BTY
BEATTY
PublicPUB

3 miles SW of BEATTY, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 51' 40"N 116° 47' 11"W
Elevation
3169' MSL
Pattern Alt
4169' MSL
Mag Variation
12°E
Declination
12°E
Fuel
100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
5/14/26-6/11/26
KDRA (39nm) VFR
12:53 PM PDT
Clear
10sm
96°F
26°F
29.91"Hg
210° 10kts
Gusts 23kts
AO2 SLP076 T03561033
METAR KDRA 041953Z AUTO 21010G23KT 190V250 10SM CLR 36/M03 A2991 RMK AO2 SLP076 T03561033
+ Add Your Business

KBTY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-2 119.275
(775) 553-2741

Common

CTAF 122.9
ACTVT MIRL RWY 17/35 - CTAF.

Flight Service

Flight Service 122.1
(RNO), COMMUNICATIONS PRVDD BY RENO RADIO ON FREQS 122.1R/114.7T (BEATTY RCO).

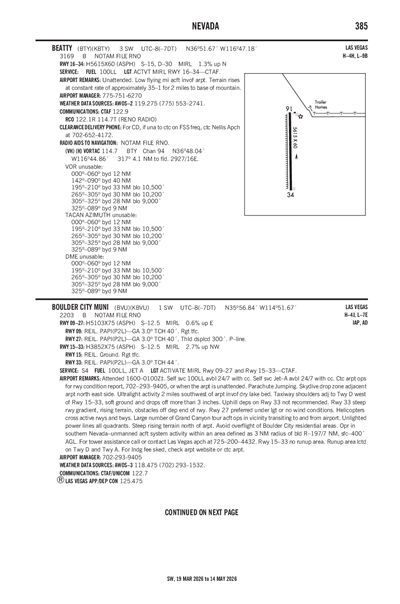

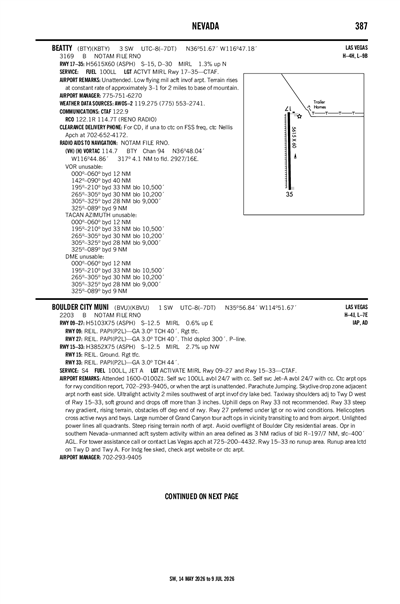

FAA A/FD Pages

Terminal Area Forecast

KINS (55nm)
Thu, 6/4 5:55 AM PDT
Thu, 6/4 6:00 AM PDT - Fri, 6/5 12:00 PM PDT
VFR
6:00 AM PDT - 11:00 AM PDT
Sky Clear
6sm
29.88"Hg
VRB° 6kts
VFR
Becoming 11:00 AM PDT - 1:00 PM PDT
Sky Clear
6sm
29.82"Hg
150° 9kts
VFR
Becoming 1:00 PM PDT - 6:00 PM PDT
Sky Clear
6sm
29.79"Hg
210° 10kts
Gusts 18kts
VFR
Temporary 3:00 PM PDT - 5:00 PM PDT
No Clouds
N/A
230° 12kts
Gusts 21kts
Light Turbulence: up to 9,000'
VFR
Becoming 6:00 PM PDT - 9:00 PM PDT
Sky Clear
6sm
29.79"Hg
220° 10kts
Gusts 15kts
VFR
Becoming 9:00 PM PDT - 12:00 PM PDT
Sky Clear
6sm
29.82"Hg
VRB° 6kts
TAF KINS 041255Z 0413/0519 VRB06KT 9999 SKC QNH2989INS
   BECMG 0418/0419 15009KT 9999 SKC QNH2983INS
   BECMG 0420/0421 21010G18KT 9999 SKC QNH2979INS
   TEMPO 0422/0424 23012G21KT 510009
   BECMG 0501/0502 22010G15KT 9999 SKC QNH2980INS
   BECMG 0504/0505 VRB06KT 9999 SKC QNH2983INS TX38/0422Z TN18/0413Z
KBTY
EffectiveExpiresCategoryNOTAM
Domestic
6/3/26
2307Z
9/3/26
2359Z
!RNO 06/038 BTY OBST TOWER LGT (ASN 2025-AWP-5868-OE) 364021N1163221W (16.6NM SE BTY) 2663FT (137FT AGL) U/S 2606032307-2609032359
6/3/26
0125Z
9/3/26
2359Z
!RNO 06/030 BTY OBST TOWER LGT (ASN 2025-AWP-5867-OE) 364026N1163232W (16.4NM SE BTY) 2682FT (147FT AGL) U/S 2606030125-2609032359
6/3/26
0124Z
9/3/26
2359Z
!RNO 06/029 BTY OBST TOWER LGT (ASN 2025-AWP-5866-OE) 364033N1163247W (16.2NM SE BTY) 2695FT (147FT AGL) U/S 2606030124-2609032359
6/2/26
0026Z
9/1/26
2359Z
!RNO 06/020 BTY OBST TOWER LGT (ASN 2025-AWP-5865-OE) 364040N1163302W (15.9NM SE BTY) 2697FT (137FT AGL) U/S 2606020026-2609012359
6/2/26
0025Z
9/1/26
2359Z
!RNO 06/019 BTY OBST TOWER LGT (ASN 2025-AWP-5864-OE) 364047N1163316W (15.7NM SE BTY) 2712FT (142FT AGL) U/S 2606020025-2609012359
6/2/26
0024Z
9/1/26
2359Z
!RNO 06/018 BTY OBST TOWER LGT (ASN 2025-AWP-5863-OE) 364054N1163331W (15.5NM SE BTY) 2713FT (137FT AGL) U/S 2606020024-2609012359
5/30/26
2235Z
8/30/26
2359Z
!RNO 05/258 BTY OBST TOWER LGT (ASN 2025-AWP-5862-OE) 364101N1163345W (15.3NM SE BTY) 2717FT (138FT AGL) U/S 2605302235-2608302359
5/30/26
2234Z
8/30/26
2359Z
!RNO 05/257 BTY OBST TOWER LGT (ASN 2025-AWP-5861-OE) 364108N1163360W (15.1NM SE BTY) 2722FT (142FT AGL) U/S 2605302234-2608302359
5/29/26
2324Z
8/31/26
2359Z
!RNO 05/251 BTY OBST TOWER LGT (ASN 2025-AWP-5860-OE) 364115N1163415W (14.8NM SE BTY) 2719FT (142FT AGL) U/S 2605292324-2608312359
5/29/26
2320Z
8/31/26
2359Z
!RNO 05/250 BTY OBST TOWER LGT (ASN 2025-AWP-5859-OE) 364122N1163429W (14.6NM SE BTY) 2716FT (142FT AGL) U/S 2605292320-2608312359
5/29/26
0042Z
8/29/26
2359Z
!RNO 05/241 BTY OBST TOWER LGT (ASN 2025-AWP-5857-OE) 364137N1163457W (14.2NM SE BTY) 2689FT (132FT AGL) U/S 2605290042-2608292359
5/29/26
0041Z
8/29/26
2359Z
!RNO 05/240 BTY OBST TOWER LGT (ASN 2025-AWP-5856-OE) 364144N1163509W (14.0NM SE BTY) 2671FT (127FT AGL) U/S 2605290041-2608292359
5/27/26
2315Z
8/27/26
2359Z
!RNO 05/225 BTY OBST POWER LINE LGT (ASN 2025-AWP-5855-OE) 364152N1163522W (13.8NM SE BTY) 2681FT (137FT AGL) U/S 2605272315-2608272359
5/27/26
2314Z
8/27/26
2359Z
!RNO 05/224 BTY OBST POWER LINE LGT (ASN 2025-AWP-5854-OE) 364160N1163535W (13.5NM SE BTY) 2688FT (137FT AGL) U/S 2605272314-2608272359
5/21/26
2251Z
8/21/26
2359Z
!RNO 05/187 BTY OBST TOWER LGT (ASN 2025-AWP-5853-OE) 364208N1163548W (13.3NM SE BTY) 2698FT (142FT AGL) U/S 2605212251-2608212359
5/21/26
2250Z
8/21/26
2359Z
!RNO 05/186 BTY OBST TOWER LGT (ASN 2025-AWP-5852-OE) 364216N1163601W (13.1NM SE BTY) 2689FT (127FT AGL) U/S 2605212250-2608212359
5/20/26
2254Z
8/20/26
2359Z
!RNO 05/175 BTY OBST TOWER LGT (ASN 2025-AWP-5851-OE) 364221N1163611W (12.9NM SE BTY) 2679FT (112FT AGL) U/S 2605202254-2608202359
5/20/26
2253Z
8/20/26
2359Z
!RNO 05/174 BTY OBST TOWER LGT (ASN 2025-AWP-5849-OE) 364222N1163628W (12.8NM SE BTY) 2679FT (107FT AGL) U/S 2605202253-2608202359
5/16/26
0022Z
8/15/26
2359Z
!RNO 05/132 BTY OBST TOWER LGT (ASN 2025-AWP-5858-OE) 364129N1163444W (14.4NM SE BTY) 2692FT (127FT AGL) U/S 2605160022-2608152359
5/14/26
0153Z
8/14/26
2359Z
!RNO 05/104 BTY OBST TOWER LGT (ASN 2025-AWP-5850-OE) 364227N1163621W (12.8NM SE BTY) 2676FT (102FT AGL) U/S 2605140153-2608142359
5/13/26
1619Z
8/13/26
2359Z
!RNO 05/101 BTY OBST TOWER LGT (ASN 2025-AWP-5848-OE) 364217N1163634W (12.8NM SE BTY) 2686FT (112FT AGL) U/S 2605131619-2608132359
No
UNATNDD
NYE COUNTY
P O BOX 1031
TONOPAH, NV 89049
Phone: (775) 209-4174
THOMAS BOLLING
2041 E. CALVADA BLVD. N. SUITE #3
PAHRUMP, NV 89048
Phone: 775-751-6270
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT MIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance
Glider Service

Runway 17/35

5615 ft. x 60 ft.
ASPH
Good
NONE
MED

15,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 36° 52' 08"N 36° 51' 12"N
Longitude 116° 47' 11"W 116° 47' 11"W
Elevation 3,169' 3,099'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1LOW FLYING MIL ACFT INVOF ARPT.
A110-2FOR CD, IF UNA TO CTC ON FSS FREQ, CTC NELLIS APCH AT 702-652-4172.
A57-17TRRN RISES 3:1 FOR 2 MI TO BASE OF MTN.
A81-APTACTVT MIRL RWY 17/35 - CTAF.
E111ESTABD PRIOR TO 15 MAY 1959.
BEATTY (ICAO: KBTY, IATA: BTY) is a public airport located in BEATTY, NV, US.
