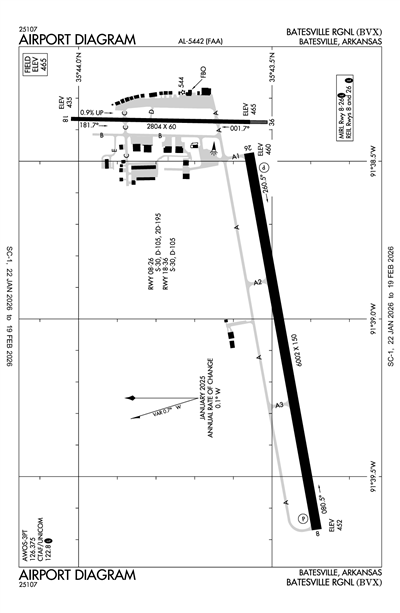

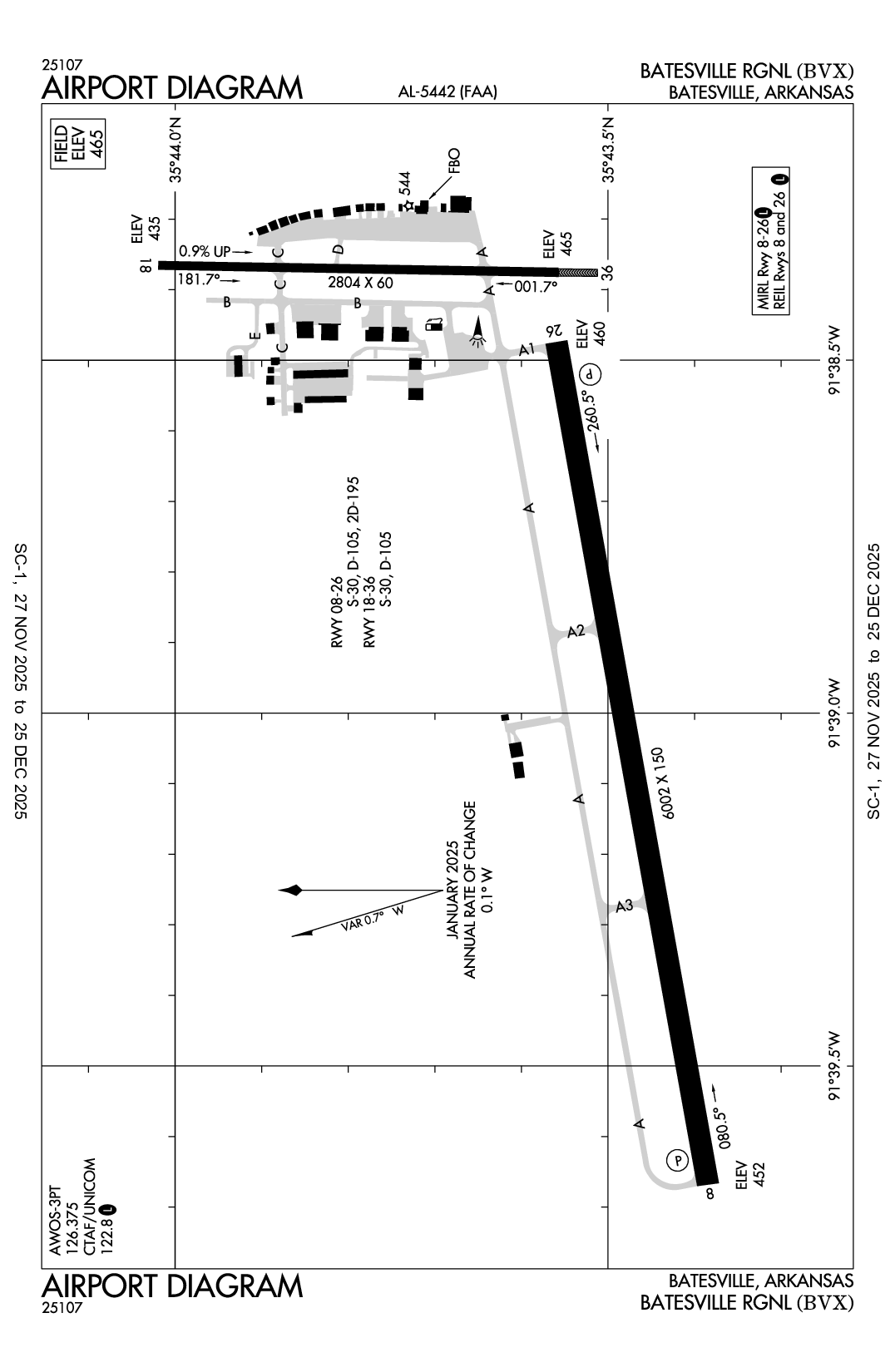

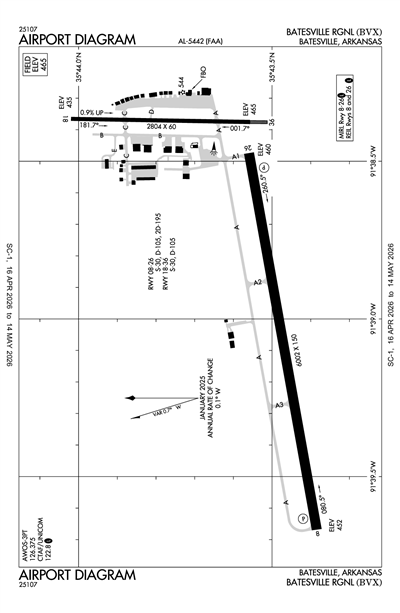

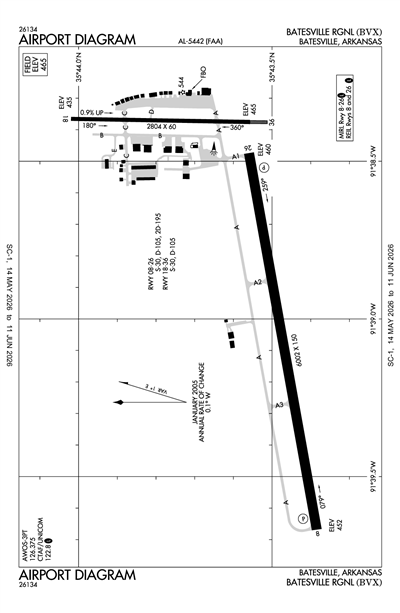

BATESVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBVX
ICAO KBVXIATA BVXLocal BVX
BATESVILLE RGNL
PublicPUB

3 miles S of BATESVILLE, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 43' 34"N 91° 38' 51"W
Elevation
465' MSL
Pattern Alt
1250' MSL
Mag Variation
1°W
Declination
1°E
Fuel
JET A (FSII), 100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
5/14/26-6/11/26
KBVX VFR
11:56 AM CDT
Scattered 3,200'
10sm
81°F
68°F
30.15"Hg
160° 9kts
AO2 SLP207 T02720200 $
METAR KBVX 041656Z AUTO 16009KT 130V200 10SM SCT032 27/20 A3015 RMK AO2 SLP207 T02720200 $
+ Add Your Business

KBVX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 126.375
(870) 251-1369, AWOS-3 CEILING UNRELIABLE.

Common

CTAF 122.8
ACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
UNICOM 122.8

Center

MEMPHIS CENTER 126.85
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.85/281.55 (BRINKLEY RCAG).

Flight Service

Flight Service 122.3
(JBR)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KJBR (49nm)
Thu, 6/4 6:20 AM CDT
Thu, 6/4 7:00 AM CDT - Fri, 6/5 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Broken 25,000'
6sm
120° 3kts
VFR
10:00 AM CDT - 8:00 PM CDT
Scattered 25,000'
Few 5,000'
6sm
170° 10kts
VFR
8:00 PM CDT - 7:00 AM CDT
Scattered 20,000'
6sm
140° 4kts
TAF KJBR 041120Z 0412/0512 12003KT P6SM BKN250
   FM041500 17010KT P6SM FEW050 SCT250
   FM050100 14004KT P6SM SCT200 AMD NOT SKED
KBVX
EffectiveExpiresCategoryNOTAM
Domestic
6/1/26
1931Z
9/29/26
1931Z
!BVX 06/001 BVX OBST TOWER LGT (ASR 1055356) 353835.00N0915008.00W (10.5NM WSW BVX) 1420.9FT (342.8FT AGL) U/S 2606011931-2609291931
5/31/26
0537Z
7/15/26
0604Z
!BVX 05/010 BVX OBST TOWER LGT (ASR 1055605) 354327.80N0912635.00W (10.0NM E BVX) 870.7FT (459.0FT AGL) U/S 2605310537-2607150604
5/16/26
1051Z
6/30/26
1051Z
!BVX 05/007 BVX OBST TOWER LGT (ASN 2018-ASW-2423-OE) 354604N0914713W (7.2NM WNW BVX) 758FT (210FT AGL) U/S 2605161051-2606301051
5/13/26
1943Z
6/27/26
1941Z
!BVX 05/005 BVX OBST TOWER LGT (ASN 2024-ASW-16415-OE) 353900N0915023W (10.5NM WSW BVX) 1413FT (420FT AGL) U/S 2605131943-2606271941
4/3/26
1425Z
7/3/26
2359Z
Runway!BVX 04/003 BVX RWY 26 PAPI BEYOND 7DEG LEFT AND RIGHT OF RCL UNUSABLE 2604031425-2607032359
FDC
5/28/26
1206Z
1/7/27
1206Z
!FDC 6/3628 BVX IAP BATESVILLE RGNL, BATESVILLE, AR.
RNAV (GPS) RWY 8, AMDT 2...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SRC ALTIMETER SETTING AND INCREASE LPV DA TO 763 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM. BARO-VNAV AND VDP NA WHEN USING SRC MUNI ALTIMETER SETTING.
2605281206-2701071206EST
5/28/26
1206Z
1/7/27
1206Z
!FDC 6/3627 BVX IAP BATESVILLE RGNL, BATESVILLE, AR.
LOC RWY 8, AMDT 2...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SRC ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET AND S-LOC 08 VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM. VDP NA WHEN USING SRC ALTIMETER SETTING.
2605281206-2701071206EST
5/28/26
1206Z
!FDC 6/3626 BVX IAP BATESVILLE RGNL, BATESVILLE, AR.
RNAV (GPS) RWY 26, AMDT 1D...
NOTE: WHEN LOCAL ALTIMETER NOT RECEIVED, USE SEARCY ALTIMETER SETTING AND INCREASE ALL MDA 100 FEET, INCREASE LNAV AND CIRCLING CAT C/D VISIBILITY 1/4 MILE. VDP NA WHEN USING SEARCY ALTIMETER.
2605281206-2701071206EST
5/21/25
2010Z
!FDC 5/4073 BVX ODP BATESVILLE RGNL, BATESVILLE, AR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3B...
TAKE-OFF MINIMUMS RWY 26: STANDARD WITH MINIMUM CLIMB OF 275 FT PER NM TO 2000, OR 1100-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505212010-2705212359EST
No
0730-1730
1730-0730
CALL OUT FEE APPLIES
CITY OF BATESVILLE
500 EAST MAIN ST.
BATESVILLE, AR 72501
Phone: 870-698-2400
JUSTIN THOMPSON
1126 BATESVILLE BLVD
BATESVILLE, AR 72501
Phone: 870-251-1244
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
BVX
--
ACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 08/26

6002 ft. x 150 ft.
ASPH
Fair
NONE
MED

30,000lbs
105,000lbs
195,000lbs
--
  Runway 08 Runway 26
True Heading 80°260°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 43' 23"N 35° 43' 34"N
Longitude 91° 39' 40"W 91° 38' 28"W
Elevation 452' 465'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

2804 ft. x 60 ft.
ASPH
Good
NONE


30,000lbs
105,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 44' 01"N 35° 43' 33"N
Longitude 91° 38' 22"W 91° 38' 22"W
Elevation 435' 460'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A17-H2CALL OUT FEE APPLIES
A35-08/26(S) TAXIWAYS LIMITED TO 31K - APRONS LIMITED TO 29K
A35-18/36(S) TAXIWAYS LIMITED TO 31K - APRONS LIMITED TO 29K
A36-08/26(D) TAXIWAYS LIMITED TO 77K - APRONS LIMITED TO 67K
A36-18/36(D) TAXIWAYS LIMITED TO 77K - APRONS LIMITED TO 67K
A37-08/26(2D) TAXIWAYS LIMITED TO 204K - APRONS LIMITED TO 184K
A43-26UNUSBL BYD 7 DEGS LEFT AND 7 DEGS RIGHT OF RWY CNTRLN.
A70-100LL100LL SELF SVC AVBL WITH CREDIT CARD. FOR SVC AFTER HRS CALL 870-251-1244, FEE CHRGD.
A70-A+JET A+ SELF SERVE UNAVAILABLE
A81-APTACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
BATESVILLE RGNL (ICAO: KBVX, IATA: BVX) is a public airport located in BATESVILLE, AR, US.
