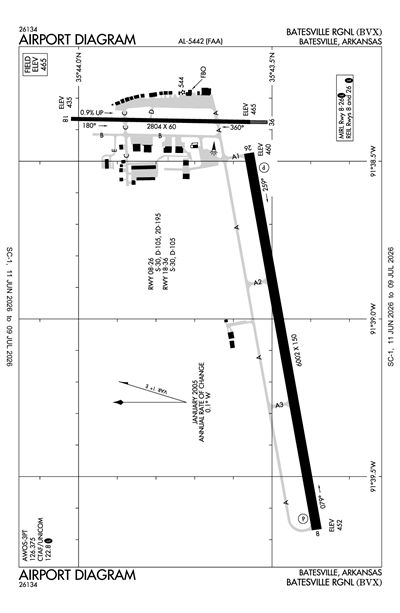

BATESVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBVX
ICAO KBVXIATA BVXLocal BVX
BATESVILLE RGNL
PublicPUB

3 miles S of BATESVILLE, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 43' 34"N 91° 38' 51"W
Elevation
465' MSL
Pattern Alt
1250' MSL
Mag Variation
1°W
Declination
1°E
Fuel
JET A (FSII), 100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
10/1/26-10/29/26
KBVX VFR
6:56 PM CDT
Clear
10sm
64°F
43°F
30.30"Hg
080° 3kts
AO2 SLP260 T01780061 10239 20172 55004 $
METAR KBVX 192356Z AUTO 08003KT 10SM CLR 18/06 A3030 RMK AO2 SLP260 T01780061 10239 20172 55004 $
+ Add Your Business

KBVX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 126.375
(870) 251-1369, AWOS-3 CEILING UNRELIABLE.

Common

CTAF 122.8
ACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
UNICOM 122.8

Center

MEMPHIS CENTER 126.85
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.85/281.55 (BRINKLEY RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KJBR (49nm)
Mon, 10/19 6:27 PM CDT
Mon, 10/19 7:00 PM CDT - Tue, 10/20 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 AM CDT
Scattered 15,000'
6sm
060° 3kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 15,000'
6sm
060° 5kts
TAF KJBR 192327Z 2000/2024 06003KT P6SM SCT150
   FM201500 06005KT P6SM SCT150
KBVX
EffectiveExpiresCategoryNOTAM
Domestic
10/19/26
2137Z
10/24/26
0459Z
Runway!BVX 10/021 BVX RWY 18/36 SAFETY AREA WIP N END 2610192137-2610240459
10/19/26
1939Z
!BVX 10/020 BVX OBST TOWER LGT (ASR 1295533) 353553.10N0913651.60W (7.8NM SSE BVX) 915.7FT (309.7FT AGL) U/S 2610191939-2611181700EST
10/8/26
1059Z
11/22/26
1057Z
!BVX 10/017 BVX OBST TOWER LGT (ASR 1055605) 354327.80N0912635.00W (10NM E BVX) 871FT (459FT AGL) U/S 2610081059-2611221057
10/7/26
1150Z
11/21/26
1150Z
!BVX 10/016 BVX OBST TOWER LGT (ASR 1305564) 355103.80N0914425.10W (8.7NM NW BVX) 805FT (260FT AGL) U/S 2610071150-2611211150
10/5/26
1737Z
10/31/26
0459Z
!BVX 10/014 BVX TWY A BTN TWY A1 AND APCH END RWY 08 WIP RESURFACING 2610051737-2610310459
10/5/26
1735Z
10/31/26
0459Z
Runway!BVX 10/013 BVX RWY 08/26 WIP RESURFACING 2610051735-2610310459
10/5/26
1732Z
10/31/26
0459Z
!BVX 10/012 BVX TWY ALL EDGE LGT U/S 2610051732-2610310459
10/5/26
1730Z
10/31/26
0459Z
Runway!BVX 10/010 BVX RWY 26 PAPI U/S 2610051730-2610310459
10/5/26
1730Z
10/31/26
0459Z
Runway!BVX 10/009 BVX RWY 08 PAPI U/S 2610051730-2610310459
10/5/26
1728Z
10/31/26
0459Z
Runway!BVX 10/008 BVX RWY 08/26 REDL U/S 2610051728-2610310459
10/5/26
1726Z
10/31/26
0459Z
!BVX 10/007 BVX TWY A BTN TWY A1 AND APCH END RWY 08 CLSD 2610051726-2610310459
10/5/26
1200Z
10/31/26
0459Z
Runway!BVX 09/028 BVX RWY 08/26 CLSD 2610051200-2610310459
10/5/26
1200Z
10/30/26
0459Z
!BVX 09/026 BVX NAV ILS RWY 08 U/S 2610051200-2610300459
9/16/26
1504Z
10/28/26
0100Z
!BVX 09/011 BVX TWY B WIP CONST NORTH END BARRICADED 2609161504-2610280100
9/16/26
1455Z
10/28/26
0100Z
!BVX 09/010 BVX AD AP ALL SFC WIP CONST 2609161455-2610280100
FDC
5/21/25
2010Z
!FDC 5/4073 BVX ODP BATESVILLE RGNL, BATESVILLE, AR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3B...
TAKE-OFF MINIMUMS RWY 26: STANDARD WITH MINIMUM CLIMB OF 275 FT PER NM TO 2000, OR 1100-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505212010-2705212359EST
No
0730-1730
1730-0730
CALL OUT FEE APPLIES
CITY OF BATESVILLE
500 EAST MAIN ST.
BATESVILLE, AR 72501
Phone: 870-698-2400
JUSTIN THOMPSON
1126 BATESVILLE BLVD
BATESVILLE, AR 72501
Phone: 870-251-1244
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
BVX
--
ACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 08/26

6002 ft. x 150 ft.
ASPH
Fair
NONE
MED

30,000lbs
105,000lbs
195,000lbs
--
  Runway 08 Runway 26
True Heading 80°260°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 43' 23"N 35° 43' 34"N
Longitude 91° 39' 40"W 91° 38' 28"W
Elevation 452' 465'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

2804 ft. x 60 ft.
ASPH
Good
NONE


30,000lbs
105,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 44' 01"N 35° 43' 33"N
Longitude 91° 38' 22"W 91° 38' 22"W
Elevation 435' 460'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A17-H2CALL OUT FEE APPLIES
A35-08/26(S) TAXIWAYS LIMITED TO 31K - APRONS LIMITED TO 29K
A35-18/36(S) TAXIWAYS LIMITED TO 31K - APRONS LIMITED TO 29K
A36-08/26(D) TAXIWAYS LIMITED TO 77K - APRONS LIMITED TO 67K
A36-18/36(D) TAXIWAYS LIMITED TO 77K - APRONS LIMITED TO 67K
A37-08/26(2D) TAXIWAYS LIMITED TO 204K - APRONS LIMITED TO 184K
A43-26UNUSBL BYD 7 DEGS LEFT AND 7 DEGS RIGHT OF RWY CNTRLN.
A70-100LL100LL SELF SVC AVBL WITH CREDIT CARD. FOR SVC AFTER HRS CALL 870-251-1244, FEE CHRGD.
A70-A+JET A+ SELF SERVE UNAVAILABLE
A81-APTACTVT REIL RWYS 08, 26; MIRL RWY 08/26 - CTAF.
BATESVILLE RGNL (ICAO: KBVX, IATA: BVX) is a public airport located in BATESVILLE, AR, US.
