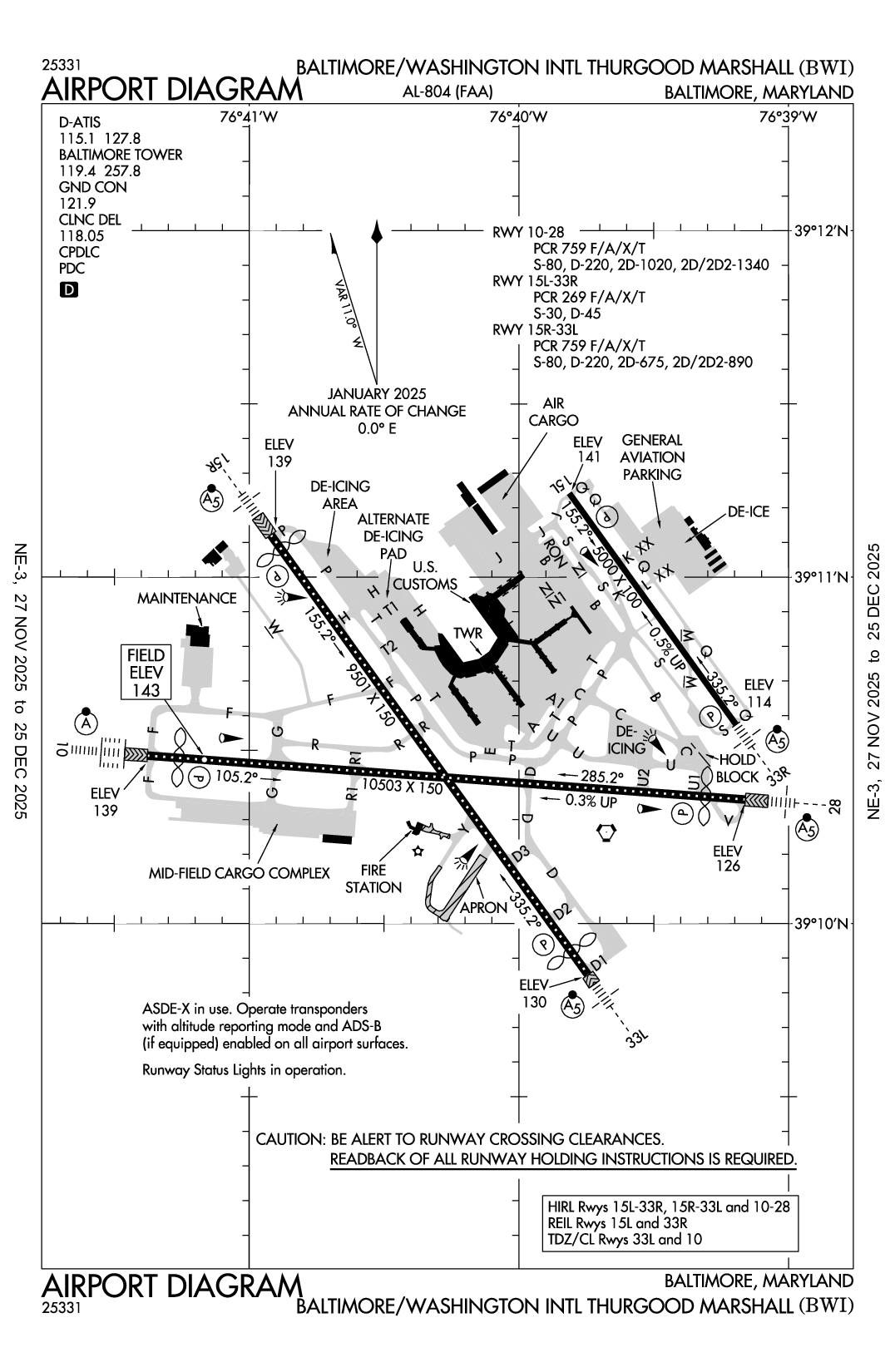

BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL - Airport Diagram

KBWI

ICAO KBWIIATA BWILocal BWI

BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL

PublicPUB

9 miles S of BALTIMORE, MD, US

View on Map

Status

Operational

Coordinates

39° 10' 33"N 76° 40' 08"W

Elevation

143' MSL

Pattern Alt

1143' MSL

Mag Variation

11°W

Declination

11°W

Fuel

JET A, 100LL

FSS

LEESBURG (DCA)

Sectional

WASHINGTON

ARTCC

WASHINGTON (ZDC)

Data Effective

7/9/26-8/6/26

KBWI MVFR

3:54 PM EDT RAW

Heavy Thunderstorm and Rain

Broken 10,000'
Broken 3,500'
Broken 2,900'

Viz

4sm

Temp

80°F

Dew

73°F

Pres

29.82"Hg

Wind

130° 6kts

RMK

AO2 RAB41 TSB33 SLP098 OCNL LTGICCG NE-OHD-W TS NE-OHD-W MOV E P0006 T02670228

METAR KBWI 091954Z 13006KT 4SM +TSRA BKN029CB BKN035 BKN100 27/23 A2982 RMK AO2 RAB41 TSB33 SLP098 OCNL LTGICCG NE-OHD-W TS NE-OHD-W MOV E P0006 T02670228

Add Your Business

KBWI FBOs

Promote Listing

Signature Aviation

UNICOM: 129.0

Phone: (410) 859-8393

0 Reviews (Read | Sign In To Write)

Other

As of 7/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	9.00	10.21

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

Digital ATIS	115.1
Digital ATIS	127.8
ASOS	(227) 217-0474

Common

UNICOM	119.4
DURING ATC ZERO EVENTS, UNICOM 119.4.
UNICOM	119.4
UNICOM 119.4.

Clearance

Clearance Delivery

118.05

Ground

BALTIMORE GROUND

121.9

Tower

BALTIMORE TOWER

119.4

Arrival

ANTHM STAR	133.85
MIIDY STAR	133.75
RAVNN STAR	128.35
TRISH STAR	125.525
WESTMINSTER STAR	126.825
10000 FT & BLW
WESTMINSTER STAR	133.85
11000 FT & ABV

Approach

POTOMAC APPROACH	119.0
020-100
POTOMAC APPROACH	119.7
131-180
POTOMAC APPROACH	124.55
101-130
POTOMAC APPROACH	128.7
181-019
POTOMAC APPROACH	119.0
Secondary - 131-180
POTOMAC APPROACH	119.7
Secondary - 020-130
POTOMAC APPROACH	125.525
Secondary - 181-019

Departure

CONLE DP	124.55
DUKPN DP	124.55
FIXET DP	124.55
FOXHL DP	128.7
LINSE DP	128.7
PALEO DP	124.55
POTOMAC DEPARTURE	124.55
EAST
POTOMAC DEPARTURE	128.7
WEST
SWANN DP	124.55
TERPZ DP	128.7

Emergency

121.5

Other

CLASS B	119.0
020-100
CLASS B	119.7
131-180
CLASS B	124.55
101-130
CLASS B	128.7
181-019
CLASS B/S	119.0
Secondary - 131-180
CLASS B/S	119.7
Secondary - 020-130
CLASS B/S	125.525
Secondary - 181-019

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

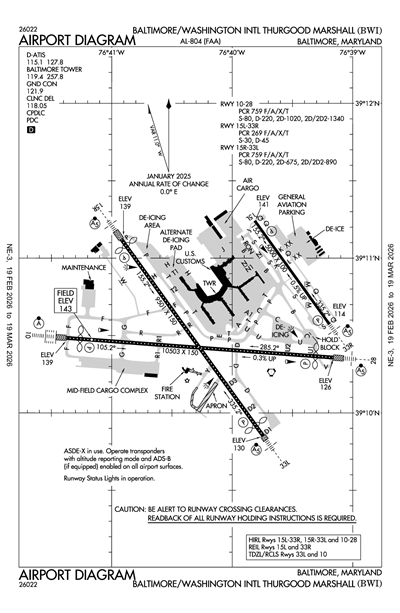

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBWI

RAW

Reported

Thu, 7/9 3:37 PM EDT

Valid

Thu, 7/9 4:00 PM EDT - Fri, 7/10 8:00 PM EDT

MVFR

4:00 PM EDT - 6:00 PM EDT

Light Thunderstorm and Rain

Broken 2,500'

Viz

4sm

Wind

140° 8kts

VFR

6:00 PM EDT - 5:00 AM EDT

Showers in vicinity

Broken 7,000'

Viz

6sm

Wind

Calm

VFR

5:00 AM EDT - 3:00 PM EDT

Few 14,000'

Viz

6sm

Wind

260° 4kts

VFR

3:00 PM EDT - 8:00 PM EDT

Broken 15,000'

Viz

6sm

Wind

280° 7kts

MVFR

3:00 PM EDT - 8:00 PM EDT

Light Thunderstorm and Rain

Overcast 2,500'

Viz

4sm

Wind

Calm

TAF KBWI 091937Z 0920/1024 14008KT 4SM -TSRA BKN025CB
   FM092200 00000KT P6SM VCSH BKN070
   FM100900 26004KT P6SM FEW140
   FM101900 28007KT P6SM BKN150
   PROB30 1019/1024 4SM -TSRA OVC025CB

KBWI

Effective	Expires	Category	NOTAM
Domestic
7/16/26 1300Z	7/16/26 2000Z		!BWI 07/084 BWI NAV ILS RWY 33L U/S 2607161300-2607162000
7/16/26 0600Z	7/16/26 0830Z	Runway	!BWI 07/086 BWI RWY 15R/33L CLSD 2607160600-2607160830
7/16/26 0230Z	7/16/26 1030Z	Runway	!BWI 07/085 BWI RWY 10/28 CLSD 2607160230-2607161030
7/15/26 1930Z	7/15/26 2130Z		!BWI 07/089 BWI AD AP RWY STATUS LGT SYSTEM U/S 2607151930-2607152130
7/15/26 1930Z	7/15/26 2130Z		!BWI 07/088 BWI SVC SMR U/S 2607151930-2607152130
7/15/26 1300Z	7/15/26 2000Z		!BWI 07/075 BWI NAV ILS RWY 33R U/S 2607151300-2607152000
7/14/26 1200Z	7/14/26 2000Z		!BWI 07/066 BWI NAV ILS RWY 10 U/S 2607141200-2607142000
7/10/26 1900Z	7/10/26 2200Z		!BWI 07/091 BWI SVC MBST/WS DETECTION SYSTEM NOT AVBL 2607101900-2607102200
7/10/26 1200Z	7/10/26 2000Z		!BWI 07/079 BWI NAV ILS RWY 10 U/S 2607101200-2607102000
7/10/26 1100Z	7/10/26 2300Z		!BWI 07/077 BAL AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 391944N0763716W (9.2NM WNW W48) SFC-400FT AGL 2607101100-2607102300
7/10/26 1000Z	7/10/26 1400Z		!BWI 07/090 BAL AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 391255N0761124W (12.1NM SE W48) SFC-200FT AGL 2607101000-2607101400
7/9/26 1941Z	7/10/26 1941Z	Runway	!BWI 07/097 BWI RWY 10 FICON 5/5/5 100 PCT WET OBS AT 2607091941. 2607091941-2607101941
7/9/26 1941Z	7/10/26 1941Z	Runway	!BWI 07/096 BWI RWY 15L FICON 5/5/5 100 PCT WET OBS AT 2607091941. 2607091941-2607101941
7/9/26 1940Z	7/10/26 1940Z	Runway	!BWI 07/095 BWI RWY 15R FICON 5/5/5 100 PCT WET OBS AT 2607091940. 2607091940-2607101940
7/9/26 1939Z	7/9/26 2045Z		!BWI 07/094 BWI SVC TFC MANAGEMENT PROGRAM ALERT SEE ATCSCC MSG 2607091939-2607092045
7/9/26 1833Z	7/9/26 2200Z		!BWI 07/092 BWI NAV ILS RWY 15R LOC/GP U/S 2607091833-2607092200
7/7/26 1440Z	7/27/26 2359Z		!BWI 07/065 BWI NAV ILS RWY 15R U/S 2607071440-2607272359
7/2/26 1100Z	7/31/26 2100Z		!BWI 07/019 BWI APRON SOUTH APN CLSD 2607021100-2607312100
7/2/26 1100Z	7/31/26 2100Z		!BWI 07/018 BWI TWY Y CLSD 2607021100-2607312100
6/26/26 1041Z	8/1/26 2100Z		!BWI 06/212 BWI AD AP WINDCONE FOR RWY 33L LGT U/S 2606261041-2608012100
6/24/26 1041Z	8/24/26 2359Z		!BWI 06/196 BWI OBST POLE (ASN UNKNOWN) 391113N0764056W (0.16NM NE APCH END RWY 15R) 152.8FT (37FT AGL) NOT LGTD 2606241041-2608242359
6/7/26 0304Z	9/6/26 0300Z	Runway	!BWI 06/078 BWI RWY 15R/33L CL MARKINGS S SIDE OBSC 2606070304-2609060300
4/5/26 1430Z	9/15/26 1600Z	Runway	!BWI 04/043 BWI RWY 10/28 AT RWY15R/33L 8FT WID X 22FT LEN NOT GROOVED 2604051430-2609151600
4/5/26 1421Z	9/15/26 1600Z	Runway	!BWI 04/042 BWI RWY 15R/33L AT INT RWY 10/28 8FT WID X 22FT LEN NOT GROOVED 2604051421-2609151600
9/4/25 1621Z			!BWI 09/033 BWI AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041621-PERM
8/27/25 1027Z	8/25/26 1200Z		!BWI 08/137 BWI OBST TREE (ASN UNKNOWN) 391144N0764012W (0.68NM N APCH END RWY 15L) UNKNOWN (60FT AGL) NOT LGTD 2508271027-2608251200
9/4/24 1830Z			!BWI 09/020 BWI AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041830-PERM
FDC
6/25/26 1244Z	4/15/28 1244Z		!FDC 6/0658 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. ILS OR LOC RWY 10, AMDT 22... ILS OR LOC RWY 15L, AMDT 4A... ILS OR LOC RWY 15R, AMDT 17... ILS OR LOC RWY 33L, AMDT 13... ILS OR LOC RWY 33R, AMDT 3... RNAV (GPS) RWY 15L, AMDT 4A... RNAV (GPS) RWY 33R, AMDT 4B... RNAV (GPS) Y RWY 10, AMDT 4... RNAV (GPS) Y RWY 15R, AMDT 3... RNAV (GPS) Y RWY 33L, AMDT 5... CIRCLING MDA 660/HAA 517 CAT A. 2606251244-2804151244EST
6/25/26 1244Z			!FDC 6/0657 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. ILS OR LOC RWY 10, AMDT 22... ILS OR LOC RWY 15L, AMDT 4A... ILS OR LOC RWY 15R, AMDT 17... ILS OR LOC RWY 33L, AMDT 13... ILS OR LOC RWY 33R, AMDT 3... RNAV (GPS) RWY 15L, AMDT 4A... RNAV (GPS) RWY 33R, AMDT 4B... RNAV (GPS) Y RWY 10, AMDT 4... RNAV (GPS) Y RWY 15R, AMDT 3... RNAV (GPS) Y RWY 33L, AMDT 5... CIRCLING MDA 660/HAA 517 CAT A. 2606251244-2804151244EST
6/8/26 2156Z			!FDC 6/6549 BWI ODP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10A... TAKEOFF OBSTACLE NOTES: RWY 33L, TEMPORARY CRANE 475FT FROM DER, 292FT RIGHT OF CENTERLINE, 37FT AGL/154FT MSL (2025-AEA-3841-NRA). 2606082156-2701182156EST
3/17/26 1758Z			!FDC 6/9384 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. RNAV (RNP) Z RWY 33L, AMDT 4... CHART NOTE: SIMULTANEOUS APPROACH AUTHORIZED. THIS IS RNAV (RNP) Z RWY 33L, AMDT 4A. 2603171758-PERM
3/17/26 1755Z			!FDC 6/9382 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. RNAV (GPS) Y RWY 33L, AMDT 5... CHART NOTE: SIMULTANEOUS APPROACH AUTHORIZED. CHART NOTE: USE OF FD OR AP REQUIRED DURING SIMULTANEOUS OPERATIONS. CHART NOTE: LNAV PROCEDURE NA DURING SIMULTANEOUS OPERATIONS. THIS IS RNAV (GPS) Y RWY 33L, AMDT 5A. 2603171755-PERM
3/17/26 1752Z			!FDC 6/9377 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. RNAV (RNP) X RWY 33L, ORIG... CHART NOTE: SIMULTANEOUS APPROACH AUTHORIZED. THIS IS RNAV (RNP) X RWY 33L, ORIG-A. 2603171752-PERM
3/17/26 1736Z			!FDC 6/9375 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. ILS OR LOC RWY 33L, AMDT 13... ILS RWY 33L (SA CAT I & II), AMDT 13 ... CHART NOTE: SIMULTANEOUS APPROACH AUTHORIZED. DELETE NOTE: SIMULTANEOUS APPROACH AUTHORIZED WITH ILS OR LOC RWY 33R. THIS IS ILS OR LOC RWY 33L, AMDT 13A... ILS RWY 33L (SA CAT I & II) AMDT 13A... 2603171736-PERM
12/16/25 1415Z			!FDC 5/9707 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. RNAV (RNP) Z RWY 10, AMDT 3... RNP 0.11 DA 468/HAT 325 ALL CATS. VISIBILITY ALL CATS RVR 2600. TEMPORARY CRANES 300FT MSL 1950FT NORTH OF RWY 10 (2021-AEA-2472 THRU 2476-NRA). 2512161415-2607281414EST
8/9/24 1656Z			!FDC 4/5982 BWI SID BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD. TERPZ EIGHT DEPARTURE (RNAV)... DO NOT FILE CLTCH TRANSITION, ATC ASSIGNED ONLY. 2408091656-2608091656EST

ATC Tower

Yes

Attendance

ALL

Owner

STATE OF MARYLAND
PO BOX 8766
BWI AIRPORT, MD 21240
Phone: 410-859-7100

Manager

GREGORY SOLEK
AIRPORT OPERATIONS PO BOX 8766
BWI AIRPORT, MD 21240
Phone: 410-859-7018

FSS

LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF

NOTAM

BWI

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10/28

Dimensions

10503 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

80,000lbs

Double Wheel

220,000lbs

Double Tandem

1,020,000lbs

Dual Dbl Tand

1,340,000lbs

	Runway 10	Runway 28
True Heading	94°	274°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 10' 29"N	39° 10' 21"N
Longitude	76° 41' 23"W	76° 39' 10"W
Elevation	139'	126'
Threshold Crossing Height	71 ft. AGL	75 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 15L/33R

Dimensions

5000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 15L	Runway 33R
True Heading	144°	324°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 11' 15"N	39° 10' 34"N
Longitude	76° 39' 49"W	76° 39' 12"W
Elevation	141'	114'
Threshold Crossing Height	47 ft. AGL	47 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 15R/33L

Dimensions

9501 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

80,000lbs

Double Wheel

220,000lbs

Double Tandem

675,000lbs

Dual Dbl Tand

890,000lbs

	Runway 15R	Runway 33L
True Heading	144°	324°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 11' 07"N	39° 09' 51"N
Longitude	76° 40' 55"W	76° 39' 45"W
Elevation	139'	130'
Threshold Crossing Height	73 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-10	NOISE ABATEMENT PROCEDURES IN EFFECT - RSTRN FOR RWY 15L/33R EXCEPT FOR EMERG OR MERCY FLIGHTS CTC AMGR FOR INFO.
A110-11	MAJOR CONSTR ON ARPT DLY; ACFT MOV & PRKG AREAS SUBJECT TO SHORT NOTICE CHANGE/CLOSURE. FOR CURRENT INFO PHONE BWI OPNS CNTR 410-859-7018.
A110-14	ACFT ON VISUAL APCHS EXPECT TO MAINTAIN 3000 FT UNTIL 10 DME FM BAL VORTAC; DEP ACFT SHOULD EXPECT TURNS BASED ON BALTIMORE DME.
A110-15	TAXIING PROHIBITED BTN CONCOURSE C & ADJ BLDG STRUCTURE SW OF CONCOURSE C. ACCESS TO GATE C12 MUST BE VIA TWY A.
A110-17	TWY "S", SOUTH OF TWY "P", RSTRD TO ACFT 60000 LBS & LESS.
A110-19	GA ACFT CTC 129.0 PRIOR TO ARR AT GA RAMP FOR SCTY PURPOSES.
A110-2	PRACTICE LNDG & APCH BY TURBO-PWRD ACFT PROHIBITED 2200-0600; PRACTICE LNDG & TKOF BY B-747 ACFT PROHIBITED RWY 15R/33L.
A110-24	TAXILANES 'T-1' & "H" RSTRD TO GROUP III ACFT WITH MAX WINGSPAN OF 118 FEET.
A110-28	CONCOURSE A ALT DEICING AREA IS RSTRD TO B737-800 SIZE ACFT WITH WINGLETS OR SMLR ON SPOTS 6, 7 AND 8.
A110-29	RWY 28 DE-ICE PAD LANE 1 RSTRD TO ACFT WITH WINGSPAN 171 FT OR LESS, LANE 2 RSTRD TO ACFT WITH WINGSPAN 135 FT OR LESS, LANE 3 IS USED BY LARGE ACFT MAX WINGSPAN 215 FT AND WHEN IN USE- LANES 2 AND 4 ARE UNAVBL. LANES 4, 5 & 6 ARE RSTRD TO ACFT WINGSPAN 135 FT OR LESS.
A110-3	CONT MOWING OPERATIONS ADJ ALL RWYS & TWYS - APR THRU NOV.
A110-30	TWY T BTN TWY H AND TWY E RSTD TO GROUP IV ACFT WITH WINGSPAN LESS THAN 171 FT. TWY T BTN TWY E AND TWY B RSTRD TO GROUP V ACFT WITH WINGSPAN LESS THAN 214 FT; WHEN GROUP V ACFT ARE ON TWY T, TWY A IS RSTRD TO MAX WINGSPANS OF 110 FT.
A110-34	DUAL PARALLEL TAXILANES HAVE BEEN ADDED TO THE 'D'/'E' ALLEYWAY; TAXILANE 'N' AND TAXILANE 'N1'. TAXILANE 'N' IS DESIGNATED A "GROUP V" TAXILANE WITH MAX WINGSPAN OF 213 FT. TAXILANE 'N1' IS DESIGNATED A "GROUP IV" TAXILANE WITH MAX WINGSPAN OF 170 FT.
A110-35	TWY 'A' IS RSTRD TO GROUP IV ACFT WINGSPAN 171 FT OR LESS.
A110-36	RWY LEN AVBL FOR RWY 28 DEPS FM TWY U1 IS 9802 FT.
A110-37	RWY STATUS LGTS IN OPN.
A110-38	ACFT DEPARTING RWY 28 EXP DEP FM TWY U1.
A110-39	DURING ATC ZERO EVENTS, UNICOM 119.4.
A110-4	NO APRON PARKING FOR UNSKED ACR.
A110-40	UNICOM 119.4.
A110-41	RWY 15R DEICE PAD PSNS 1 THRU 5 RSTRD TO ACFT WITH WINGSPAN 117 FT 6 INS OR LESS.
A110-7	DEER & BIRDS OCNLLY ON & INVOF ARPT.
A110-8	DISTRACTING LGTS (GOLF DRIVING RANGE) RIGHT SIDE EXTDD CNTRLN RWY 33L FM AER TO 1/4 MI FINAL.
A19A	SURVEYED.
A39-10/28	PCR VALUE: 759/F/A/X/T
A39-15L/33R	PCR VALUE: 269/F/A/X/T
A39-15R/33L	PCR VALUE: 759/F/A/X/T
A47-10	MIDFIELD RVR SENSOR SHARED BY RWY 10/28 & RWY 15R/33L.
A57-10	APCH RATIO 50:1 TO DSPLCD THR.
A57-28	APCH RATIO 50:1 TO DSPLCD THR.
A58-33L	RWY 33L +2 FT ROAD 170 FT FROM RWY END 500 FT LEFT.

BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL (ICAO: KBWI, IATA: BWI) is a public airport located in BALTIMORE, MD, US.
