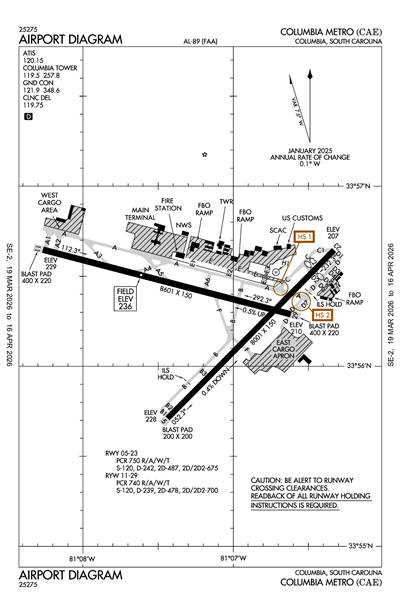

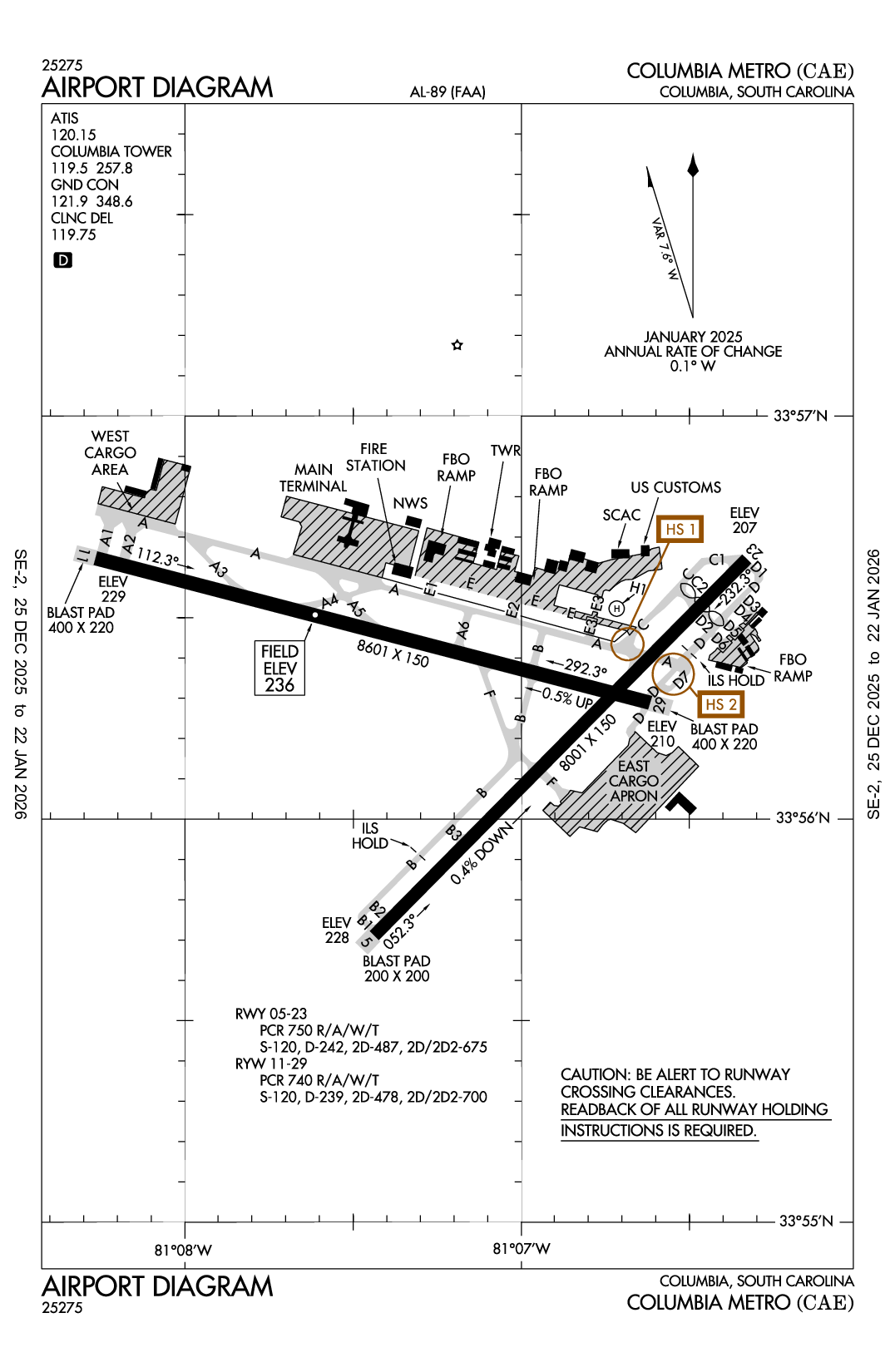

COLUMBIA METRO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCAE
COLUMBIA METRO
PublicPUB

5 miles SW of COLUMBIA, SC
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 56' 20"N 81° 07' 10"W
236' MSL
1236' MSL
07W
Jet A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
7/15/21-8/12/21
KCAE VFR
3:56 AM EDT
Few 3,000'
10sm
76°F
73°F
29.98"Hg
Calm
AO2 SLP148 T02440228
KCAE 290756Z 00000KT 10SM FEW030 24/23 A2998 RMK AO2 SLP148 T02440228

KCAE FBOs, Flight Schools and Ground Support

Columbia Aviation
Freq: 130.4
Phone: (803) 822-8332
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/6
  100LL Jet A Jet A+ Mogas UL94
SS
FS 5.55 4.24 4.34
Eagle Aviation
Freq: 122.95
Phone: (803) 822-5569
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/20
  100LL Jet A Jet A+ Mogas UL94
SS
FS 6.09 4.77

KCAE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCAE Hotels

No hotels are listed for this airport.

KCAE Restaurants

No restaurants are listed for this airport.

KCAE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
120.15

ASOS

ASOS
803-822-4168
120.15

Approach/Departure

APCH/P DEP/P IC
110-289
124.15
APCH/P DEP/P IC
290-109
133.4

Clearance Delivery

CD/P
119.75

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
119.5

Other

CLASS C
110-289
124.15
CLASS C
290-109
133.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Terminal Area Forecast

KCAE
Thu, 7/29 1:26 AM EDT
Thu, 7/29 2:00 AM EDT - Fri, 7/30 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Few 15,000'
> 6sm
Calm
MVFR
Temporary 6:00 AM EDT - 9:00 AM EDT
Mist
Scattered 800'
3sm
Calm
VFR
11:00 AM EDT - 9:00 PM EDT
Scattered 4,000'
> 6sm
230° 5kts
VFR
9:00 PM EDT - 2:00 AM EDT
Few 5,000'
> 6sm
VRB° 3kts
KCAE 290526Z 2906/3006 00000KT P6SM FEW150
   TEMPO 2910/2913 3SM BR SCT008
   FM291500 23005KT P6SM SCT040
   FM300100 VRB03KT P6SM FEW050
KCAE
Domestic
7/30/211430Z !CAE 07/077 CAE AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF CAE187015 SFC-14000FT 2107301430-2107301630
7/30/210215Z !CAE 07/076 CAE AIRSPACE AIRDROP WI AN AREA DEFINED AS 4NM RADIUS OF CAE187015 SFC-3000FT 2107300215-2107300415
7/29/210330Z !CAE 07/074 CAE AIRSPACE AIRDROP WI AN AREA DEFINED AS 4NM RADIUS OF CAE187015 SFC-3000FT 2107290330-2107290500
7/27/212000Z !CAE 07/075 CAE OBST TOWER LGT (ASR 1022832) 340543.70N0810951.30W (9.6NM NNW CAE) 617.8FT (293.0FT AGL) U/S 2107272000-2108110400
7/21/210556Z !CAE 07/053 CAE OBST TOWER LGT (ASR 1240610) 334532.80N0805934.80W (12.4NM SSE CAE) 689.6FT (310.0FT AGL) U/S 2107210556-2108050456
7/19/210936Z !CAE 07/046 CAE OBST TOWER LGT (ASR 1048051) 335700.20N0810458.00W (2.0NM ENE CAE) 389.8FT (206.0FT AGL) U/S 2107190936-2108180936
7/18/210741Z !CAE 07/045 CAE TWY A1 VOR REC CK MARKING REMOVED 2107180741-2107312100
7/17/211725Z !CAE 07/044 CAE OBST TOWER LGT (ASR 1047898) 335135.00N0810234.00W (6.0NM SE CAE) 608.6FT (269.7FT AGL) U/S 2107171725-2110150400
7/15/212106Z !CAE 07/039 CAE OBST TOWER LGT (ASR 1296566) 335101.80N0810825.40W (5.4NM S CAE) 686.0FT (253.9FT AGL) U/S 2107152106-2108142106
6/10/211454Z !CAE 06/039 CAE OBST TOWER LGT (ASR 1059160) 340408.00N0811027.00W (8.2NM NNW CAE) 560.7FT (260.8FT AGL) U/S 2106101454-2206102112
6/10/211454Z !CAE 06/038 CAE OBST TOWER LGT (ASR 1059164) 335833.00N0811811.00W (9.3NM WNW CAE) 917.7FT (406.8FT AGL) U/S 2106101454-2206102359
6/7/210355Z !CAE 06/021 CAE OBST TOWER LGT (ASR 1028162) 340040.50N0811449.00W (7.6NM NW CAE) 698.2FT (242.1FT AGL) U/S 2106070355-2109040400
12/11/201219Z !CAE 12/010 CAE NAV ILS RWY 11 MM U/S 2012111219-2201312000EST
FDC
7/29/211300Z !FDC 1/7338 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 29, AMDT 3I...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CAE VORTAC OUT OF SERVICE. 2107291300-2108052111EST
7/29/211300Z !FDC 1/7335 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 5, AMDT 1E...
MISSED APPROACH: CLIMB TO 2500 ON HEADING 050 FOR RADAR VECTORS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
S-LOC 5: ADF REQUIRED, EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
IKUPY FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CAE VORTAC OUT OF SERVICE. 2107291300-2108052111EST
7/29/211300Z !FDC 1/7334 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 11, AMDT 15A...
ILS RWY 11 (CAT II AND III), AMDT 15A...
MISSED APPROACH: CLIMB TO 1100 THEN CLIMBING RIGHT TURN TO 2200 DIRECT MURRY LOM AND HOLD. ( ADF REQUIRED),
CAE VORTAC OUT OF SERVICE. 2107291300-2108052111EST
6/5/201347Z !FDC 0/6795 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
VOR-A, AMDT 16A...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6793 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
RNAV (GPS) RWY 5, AMDT 2C...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6792 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
RNAV (GPS) RWY 29, AMDT 1C...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6791 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
RNAV (GPS) RWY 23, AMDT 2B...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6790 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
RNAV (GPS) RWY 11, AMDT 1C...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6789 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
ILS OR LOC RWY 11, AMDT 15A...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6788 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
ILS OR LOC RWY 29, AMDT 3I...
CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/5/201347Z !FDC 0/6787 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
ILS OR LOC RWY 5, AMDT 1E...
IKUPY FIX MINIMUMS CIRCLING CAT B MDA 860/HAA 624, CAT C/D MDA 1040/HAA 804, CAT C VIS 2 1/4, CAT D VIS 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 900-2 1/4, CAT D 900-2 1/2.
2006051347-2206051347EST
6/2/201451Z !FDC 0/5189 CAE IAP COLUMBIA METROPOLITAN, COLUMBIA, SC.
RNAV (GPS) RWY 23, AMDT 2B...
LNAV/VNAV DA 709/HAT 496 ALL CATS..
2006021451-2206011445EST
Yes
ALL
RICHLAND LEXINGTON
3250 AIRPORT BLVD, SUITE 10
WEST COLUMBIA, SC 29170
Phone: 803-822-5050
MICHEAL GULA
3250 AIRPORT BLVD, SUITE 10
WEST COLUMBIA, SC 29170
Phone: (803) 822-5017
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
CAE
Sunset to Sunrise
--
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
49
10
17
3
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

8001 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH
87 /R/B/W/T
100,000lbs
200,000lbs
355,000lbs
675,000lbs
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 55' 43"N 33° 56' 39"N
Longitude 81° 07' 26"W 81° 06' 20"W
Elevation 227.5 ft. 206.8 ft.
Threshold Crossing Height 73 ft. AGL 69 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 11/29

8601 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
90 /R/B/W/T
72,000lbs
225,000lbs
409,000lbs
700,000lbs
  Runway 11 Runway 29
True Heading 105°285°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 56' 39"N 33° 56' 17"N
Longitude 81° 08' 16"W 81° 06' 37"W
Elevation 228.7 ft. 210 ft.
Threshold Crossing Height 59 ft. AGL 57 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
CONC
Fair

PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition FAIR
Latitude 33° 56' 31"N N/A
Longitude 81° 06' 42"W N/A
Elevation 236 ft. 0 ft.
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FEE FOR COMMERCIAL ACFT OVER 15000 LBS.
A110-12HELIPAD H1 LOCATED NORTH OF TAXILANE E, EAST OF TWY E3.
A110-13DUE TO PROXIMITY AND RY ALIGNMENT AIRCREWS HAVE MISTAKEN CUB (RY 13/31) FOR CAE (RY 11/29) WHICH IS 6 MILES NE.
A110-2OPERATION OF ULTRALIGHT VEHICLES PROHIBITED.
A110-5SPORTS COMPLEX WITH NUMEROUS FLOOD LGTS APRXLY 6500 FT FROM APCH END RY 11.
A110-6NOISE ABATEMENT PROCEDURE: NO TURNS BLO 1000 FT FOR TURBINE ENGINE ACFT UNLESS DIRECTED BY ATC.
A110-9ACFT LNDG WITH EXPLOSIVES OBTAIN PPR FM ARPT OPS 803-822-5050.

View hangar and property listings at KCAE, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

COLUMBIA METRO (ICAO: KCAE, IATA: CAE) is a public airport located in COLUMBIA, SC.
