iFlightPlanner



...

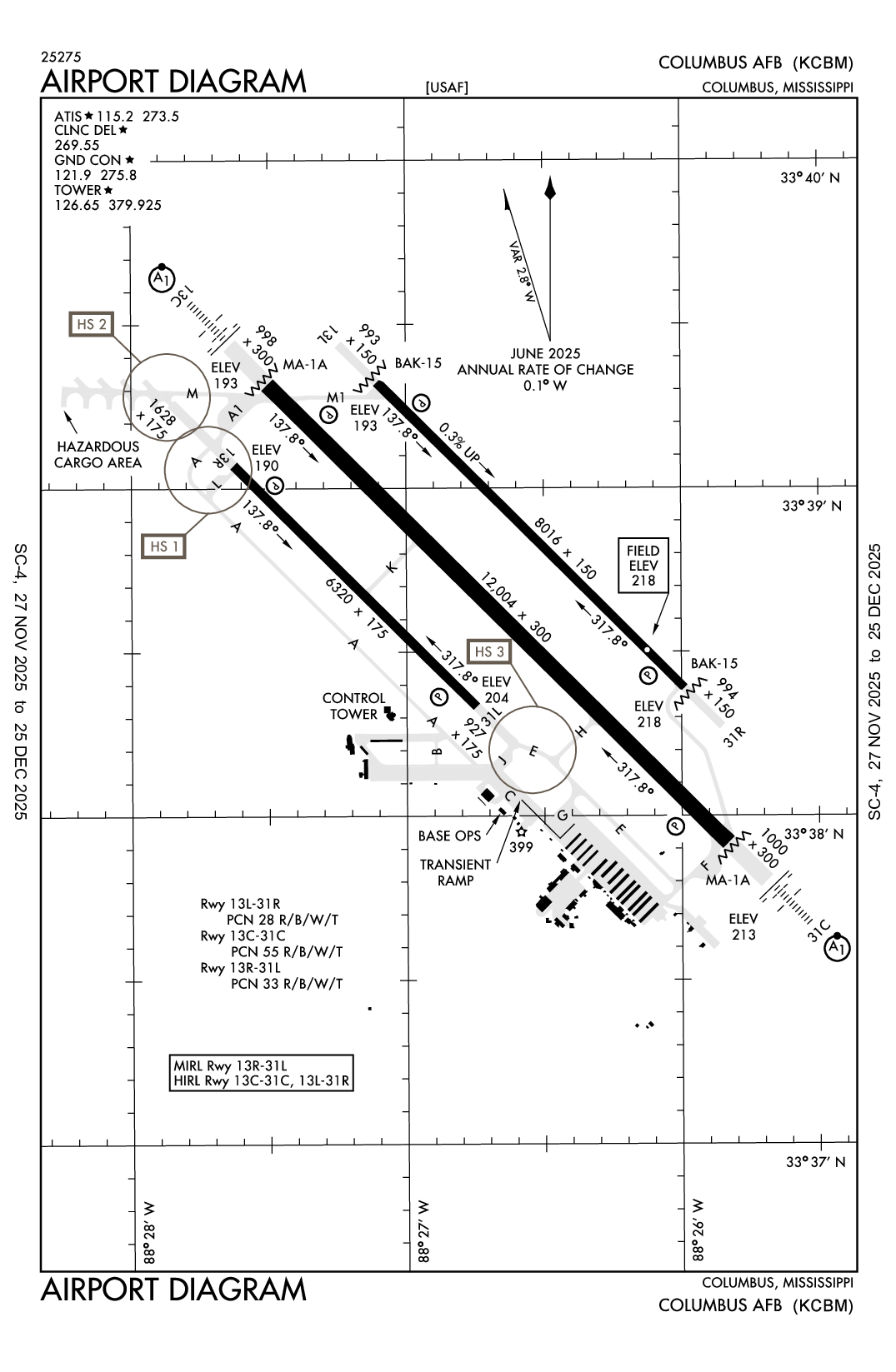

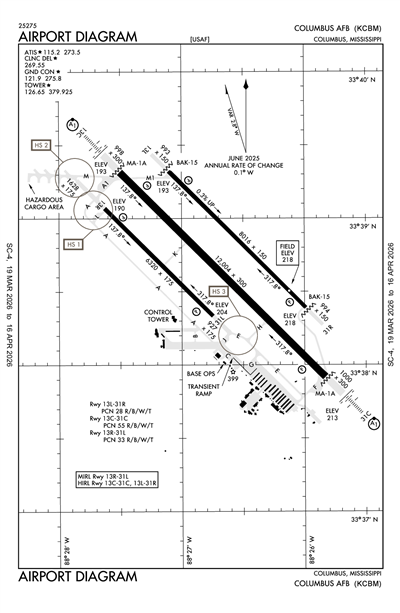

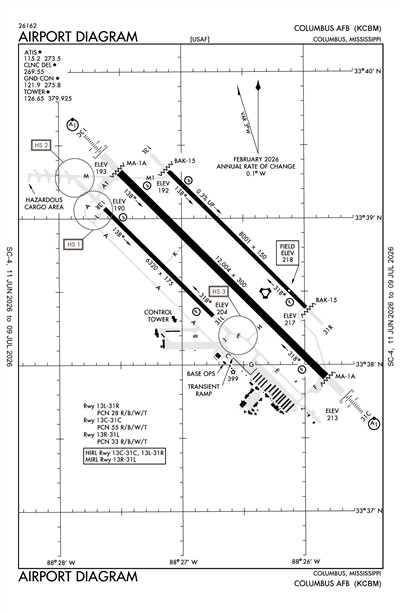

COLUMBUS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCBM
COLUMBUS AFB
PrivatePVT

9 miles N of COLUMBUS, MS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 38' 43"N 88° 26' 45"W
218' MSL
1218' MSL
00E
Jet A+, CILI
GREENWOOD (GWO)
MEMPHIS
MEMPHIS (ZME)
4/18/24-5/16/24
KCBM VFR
3:55 AM CDT
Clear
10sm
56°F
54°F
30.09"Hg
050° 3kts
AO2 SLP191 T01310120 50002 $
KCBM 250855Z AUTO 05003KT 10SM CLR 13/12 A3009 RMK AO2 SLP191 T01310120 50002 $
List Your Business

KCBM FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KCBM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCBM Hotels

No hotels are listed for this airport.

KCBM Restaurants

No restaurants are listed for this airport.

KCBM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: SAME AS ATCT
 115.2

Approach

APCH/P
310-090
 126.075
APCH/P
090-165
 132.025
APCH/P
 133.25
APCH/P
090-165
 134.55
APCH/P
165-310
 135.6
APCH/S
 121.075

Departure

DEP/P
 132.025
DEP/P
 134.55
DEP/S
 135.6

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 126.65

Other

CLASS C
310-090
 126.075
CLASS C
090-165
 132.025
CLASS C
090-165
 134.55
CLASS C
165-310
 135.6
CLASS C/S
 121.075

Terminal Area Forecast

KCBM
Thu, 4/25 4:00 AM CDT
Thu, 4/25 4:00 AM CDT - Fri, 4/26 10:00 AM CDT
VFR
4:00 AM CDT - 8:00 AM CDT
Few 25,000'
6sm
30.09"Hg
VRB° 5kts
VFR
Becoming 8:00 AM CDT - 11:00 AM CDT
Scattered 25,000'
Few 7,500'
6sm
30.09"Hg
080° 6kts
VFR
Becoming 11:00 AM CDT - 7:00 PM CDT
Broken 5,000'
6sm
30.03"Hg
090° 6kts
VFR
Becoming 7:00 PM CDT - 10:00 AM CDT
Broken 5,000'
6sm
29.97"Hg
VRB° 6kts
TAF KCBM 250900Z 2509/2615 VRB05KT 9999 FEW250 QNH3009INS
   BECMG 2513/2514 08006KT 9999 FEW075 SCT250 QNH3010INS
   BECMG 2516/2517 09006KT 9999 BKN050 QNH3002INS
   BECMG 2600/2601 VRB06KT 9999 BKN050 QNH2996INS TX27/2519Z TN12/2509Z
KCBM
Military
4/26/241200Z AERODROME CLASS C AIRSPACE ACTIVE. TRANSIENT SERVICE UNAVAILABLE OUTSIDE PUBLISHED HOURS.
4/24/241200Z AERODROME CLASS C AIRSPACE ACTIVE. TRANSIENT SERVICE UNAVAILABLE OUTSIDE PUBLISHED HOURS.
Yes
MON-FRI 1300-0100Z++
SUN 1800-2300Z++
CLSD SAT AND HOLS; ADNL DATES / TIMES INTMT BY NOTAM.
USAF
HQ 14TH FTW ATC,COLUMBUS AFB
COLUMBUS, MS 39701
AIRFIELD MANAGER
HQ 14TH FTW ATC,COLUMBUS AFB
COLUMBUS, MS 39701-5000
Phone: 662-434-2993
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
CBM
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Cargo Handling

Runway 13C/31C

12004 ft. x 300 ft.
ASPH
CONC
NONE
HIGH
55 /R/B/W/T
--
--
--
--
  Runway 13C Runway 31C
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 39' 19"N 33° 37' 55"N
Longitude 88° 27' 30"W 88° 25' 50"W
Elevation 193' 213'
Threshold Crossing Height 47 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13L/31R

8001 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
28 /R/B/W/T
--
--
--
--
  Runway 13L Runway 31R
True Heading 135°315°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 33° 39' 19"N 33° 38' 23"N
Longitude 88° 27' 06"W 88° 25' 59"W
Elevation 192' 216'
Threshold Crossing Height 40 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 13R/31L

6320 ft. x 175 ft.

CONC
NONE
MED
33 /R/B/W/T
--
--
--
--
  Runway 13R Runway 31L
True Heading 135°315°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 33° 39' 04"N 33° 38' 20"N
Longitude 88° 27' 38"W 88° 26' 45"W
Elevation 190' 204'
Threshold Crossing Height 39 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1EXP 30 MIN LDG DELAY DUR STU FLYING PERIODS.
A110-10CAUTION: DO NOT MISTAKE PARL TWY TO RWY 13R/31L FOR RWY. 13R/31L ADDN MKGS FOR BASE ASGN T-38 EMERG LNDG ONLY. RWY 13R OVERRUN 1000 FT FULL STRENGTH PAVEMENT, RY 31L OVERRUN 1635 FT FULL STRENGTH PAVEMENT. EXER CAUTION WHEN BRAKING WET; PONDING COND EXISTS ON ASPHALT PORTIONS OF ALL RWYS.
A110-12A-GEAR: MA-1A CONT RAISED POSN ON DEP END OF CNTR RWY, DOWN AND DISCONNECTED ON APCH END. BAK-15 RWY 13L-31R UNCERTIFIED/UNSVC. SUN ONLY.
A110-16ALL ACFT NOT DEPARTING ON AN ESTABLISHED DP, EXPECT TO FLY RWY HEADING UNTIL 10 DME OR 4000 FT MSL.
A110-2ALL FIXED WING ACFT PLAN TO ARR, TERMINATE & DEP IAW IFR UNLESS PPR FOR VFR FLT PLAN.
A110-21JASU: 1(MD-3) 2(A/M32A-86) 3(AM32-95).
A110-23FLUID: LPOX LOX.
A110-24OIL: O-148-156; SOAP-RESULTS AVBL MON-FRI.
A110-27CAUTION: ACFT WITHIN RWY SUPERVISORY UNIT (RSU) PRACTICE AREA ARE NOT CLASS C PARTICIPANTS. RSU PRACTICE AREAS ARE DEFINED IN FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-28MISC: WINDS ARE EST DUE TO FMQ-13 WIND SENSORS BEING ACCURATE TO WITHIN ONLY +/-4 KT. ATC WX WILL NOT INCL/RELAY WIND CORR INTO FCST/PHRASEOLOGY. THEREFORE, AIRCREWS WILL INCORPORTATION A +/-4 KT ACCURACY INTO THEIR DECISION MAKING PROCESS FOR FLYING OPS.
A110-3EXP PRECISION FULL STOP LDG TO RWY 13C-31C.
A110-30MISC: AUGMENTED WX OBSN VIEW LTD, RSTD FR 140-320 DEG BY FLIGHTLINE FAC AND TREES.
A110-31RSTD: PPR; ONLY 4 ACFT PER HR DUR STU TRNG. OVERHEAD APCH NOT AUTH DUR STU TRNG OPR. RWY 13R/31L FOR LCL USE ONLY DUR STU TRNG. ALL TSNT AIRCREWS CK IN WITH BASE OPS. EXP RADAR VECTOR FOR FULL STOP LDG DUR STU TRNG. ALT RSTD FOR VMC DEP ACFT.
A110-33MISC: STD USAF RSRS APPLIED. ATC PERS IAW THE COOPERATIVE WX WATCH (CCW) WILL ALERT PERS ON ANY UNREPORTED WX COND THAT COULD AFCT FLT SAFETY.
A110-34MISC: AUTO AN/FMQ-19 ASOS IN USE H24 LCTD NEAR GS RWY 13C-31C. AUGMENTED/BACKED UP AN/FMQ-19 ASOS IN USE WHEN REQ DUR OPR HR AND FOR RESOURCE PROTECTION. OPR HR MAY VARY WITH LCL FLYING SCHED.
A110-36MISC: AFLD OPS DOES NOT HAVE ABILITY TO STORE COMSEC. CTC COMD POST; DSN 742-7020, C662-434-7020 FOR COMSEC STORAGE.
A110-37CAUTION: BOTH APN EDGES INSIDE REQUIRE 25 FT FROM TWY CNTRLN. T-1 RAMP E OF CTL TWR IS LCTD IN RWY 31L CLEAR ZONE. ALL 50 FT SHOULDERS NOT MARKED WITH DECEPTIVE SHOULDER MARKINGS. NUMEROUS SIGNS ON AIRFIELD ARE OUTSIDE DIST AND SITING CRITERIA. ACFT WITHIN RWY SUPERVISORY UNIT (RSU) PRACTICE AREA ARE NOT CLASS C PARTICIPANTS. POTENTIAL TRANSIT/DIVERT UAS OPS WITHIN TRML AREA.
A110-38COMD POST - 251.25.
A110-39CAUTION: BASH-PHASE II BIRD ACT FOR MIGRATORY SEASON SEP-APR. PEAK ACT OCCURS WITHIN 1 HR OF SR AND SS, SEE AP/1 CHAP 3 FOR MORE INFO. OBTAIN CURRENT BIRD WATCH CONDITIONS ON ATIS.
A110-4NO PRKG FOR ACFT EXCEEDING 100000 LBS GWT EXC AIREVAC.
A110-40CAUTION: BA LESS THAN EXP, REDUCED RWY SKID RESISTANCE AND HI POTENTIAL FOR HYDROPLANING ALL RWY WHEN WET. RWY CC NOT RPTD. USE CAUTION AT INT TWY G AND C, AND J AND C.
A110-41CAUTION: RWY 13R RWY HOLD SIGN AT TWY A NOT COLLOCATED WITH PAVEMENT MRK.
A110-42PMSV METRO WX OPR H24 EXC HOL, OT BY NOTAM. CTC 662-434-2992/DSN 742-2992.
A110-46SERVICE-TRAN ALERT: TRAN OPR 1300-2300Z++ WKD; NO TRAN SVC SUN WO PRIOR CDN; CLSD SAT & HOL. OT BY NOTAM.
A110-5MISC: LTD HGR SPACE AVBL APR-DEC. FIRST 1000 FT RWY 13L-31R IS CONCRETE, MID 6000 FT IS ASPHALT. RWY 13R-31L IS GROOVED CONCRETE.
A110-6CAUTION: UNCTL VEH TFC ON TWY AND RAMPS.
A110-7SIMULATED FLAME OUTS NOT AUTHORIZED.
A110-8NS ABTMT: QUIET HRS DLY 0400-1200Z++.
COLUMBUS AFB (ICAO: KCBM, IATA: CBM) is a private airport located in COLUMBUS, MS.
