iFlightPlanner



...

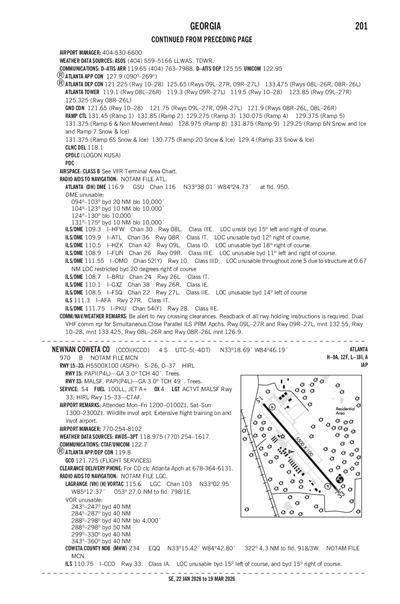

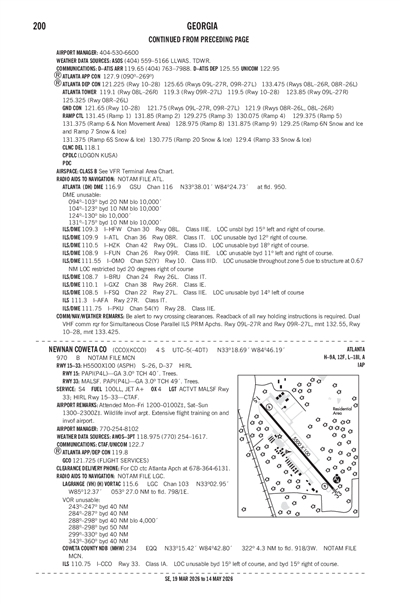

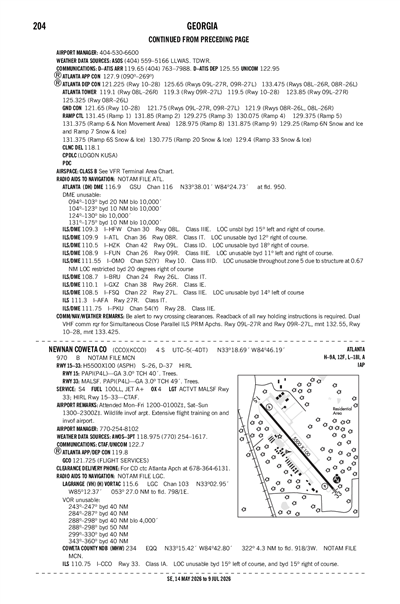

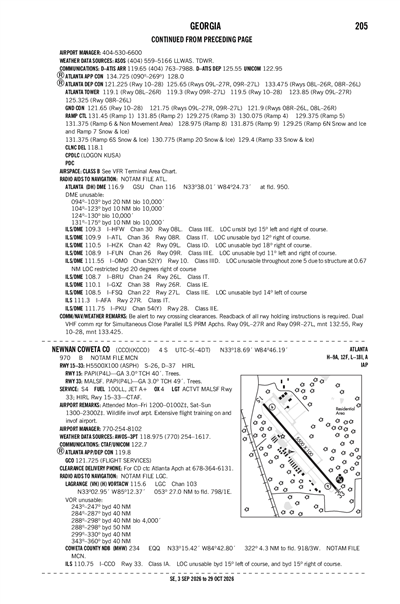

NEWNAN COWETA COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCCO
ICAO KCCOLocal CCO
NEWNAN COWETA COUNTY
PublicPUB

4 miles S of ATLANTA, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 18' 42"N 84° 46' 11"W
Elevation
970' MSL
Pattern Alt
1970' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
10/1/26-10/29/26
KCCO VFR
11:15 PM EDT
Broken 12,000'
Broken 9,000'
Scattered 6,000'
10sm
75°F
71°F
30.13"Hg
Calm
AO2 T02400216
METAR KCCO 030315Z AUTO 00000KT 10SM SCT060 BKN090 BKN120 24/22 A3013 RMK AO2 T02400216
+ Add Your Business

KCCO FBOs

Promote Listing
CCO Airport Services
UNICOM: 122.7
Phone: (770) 254-8102
Other: (770) 252-6410
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.91
Full Serve 6.71 6.50 6.65
Fuel Notes
Prices include tax

KCCO Aircraft Service & Maintenance

Promote Listing
Oasis Aviation Maintenance Inc.
Phone: (678) 870-3085
Fax: (866) 870-0804
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.975
(770) 254-1617

Common

CTAF 122.7
ACTVT MALSF RWY 33; HIRL RWY 15/33 - CTAF.
UNICOM 122.7

Approach

ATLANTA APPROACH 119.8

Departure

ATLANTA DEPARTURE 119.8

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU FLT SVCS.

Terminal Area Forecast

KATL (25nm)
Fri, 10/2 10:02 PM EDT
Fri, 10/2 10:00 PM EDT - Sun, 10/4 2:00 AM EDT
VFR
10:00 PM EDT - 3:00 AM EDT
Broken 10,000'
Scattered 7,000'
6sm
170° 3kts
MVFR
3:00 AM EDT - 6:00 AM EDT
Broken 2,500'
Broken 1,200'
6sm
VRB° 3kts
IFR
6:00 AM EDT - 11:00 AM EDT
Mist
Overcast 1,200'
Broken 600'
5sm
VRB° 2kts
MVFR
11:00 AM EDT - 1:00 PM EDT
Showers in vicinity
Broken 7,000'
Broken 2,500'
6sm
VRB° 3kts
VFR
1:00 PM EDT - 1:00 AM EDT
Showers in vicinity
Broken 3,500'
Scattered 1,500'
6sm
170° 4kts
MVFR
Temporary 3:00 PM EDT - 7:00 PM EDT
Light Thunderstorm and Rain and Mist
Broken 2,500'
4sm
Calm
MVFR
1:00 AM EDT - 2:00 AM EDT
Broken 7,000'
Broken 3,000'
6sm
120° 3kts
TAF KATL 030202Z 0302/0406 17003KT P6SM SCT070 BKN100
   FM030700 VRB03KT P6SM BKN012 BKN025
   FM031000 VRB02KT 5SM BR BKN006 OVC012
   FM031500 VRB03KT P6SM VCSH BKN025 BKN070
   FM031700 17004KT P6SM VCSH SCT015 BKN035
   TEMPO 0319/0323 4SM -TSRA BR BKN025CB
   FM040500 12003KT P6SM BKN030 BKN070
KCCO
EffectiveExpiresCategoryNOTAM
Domestic
10/2/26
0615Z
1/30/27
0615Z
!MCN 10/041 CCO OBST TOWER LGT (ASR 1019840) 331413.00N0844839.00W (5.0NM SSW CCO) 1159.8FT (299.9FT AGL) U/S 2610020615-2701300615
10/1/26
2052Z
1/29/27
2052Z
!MCN 10/031 CCO OBST TOWER LGT (ASR 1020107) 332617.60N0844239.40W (8.2NM NNE CCO) 1442.9FT (521.0FT AGL) U/S 2610012052-2701292052
9/30/26
1011Z
1/14/27
2359Z
!MCN 09/877 CCO NAV EQQ NDB U/S 2609301011-2701142359
9/29/26
1118Z
12/28/26
1218Z
!MCN 09/848 CCO OBST TOWER LGT (ASR 1019829) 331133.60N0845058.90W (8.3NM SSW CCO) 1130.2FT (265.1FT AGL) U/S 2609291118-2612281218
9/22/26
0557Z
1/20/27
0557Z
!MCN 09/668 CCO OBST TOWER LGT (ASR 1018926) 332346.00N0844708.10W (5.1NM N CCO) 1372.0FT (448.2FT AGL) U/S 2609220557-2701200557
8/18/26
0404Z
11/16/26
0504Z
!MCN 08/663 CCO OBST TOWER LGT (ASR 1213602) 332517.70N0845136.60W (7.9NM NW CCO) 1084.0FT (261.2FT AGL) U/S 2608180404-2611160504
8/12/26
1430Z
11/10/26
1530Z
!MCN 08/447 CCO OBST TOWER LGT (ASR 1018031) 331152.40N0845505.80W (10.2NM SW CCO) 1197.2FT (415.0FT AGL) U/S 2608121430-2611101530
7/10/26
1152Z
10/11/26
0400Z
!MCN 07/308 CCO OBST TOWER LGT (ASR 1044337) 332607.50N0844438.90W (7.6NM NE CCO) 1369.1FT (392.1FT AGL) U/S 2607101152-2610110400
FDC
7/1/26
1326Z
!FDC 6/2363 CCO IAP NEWNAN COWETA COUNTY, ATLANTA, GA. ILS OR LOC RWY 33, AMDT 1... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, EQQ NDB OUT OF SERVICE. 2607011326-2702101326EST
No
M-F 0700-2000
S-S 0800-1800
NEWNAN & COWETA CO ARPT AUTH
115 AIRPORT ROAD, BOX 2
NEWNAN, GA 30263
Phone: 770-254-8102
CALVIN WALKER
115 AIRPORT ROAD, BOX 2
NEWNAN, GA 30263
Phone: 770-254-8102
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MALSF RWY 33; HIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Avionics
Pilot Instruction
Aircraft Rental

Runway 15/33

5500 ft. x 100 ft.
ASPH
Fair
NONE
HIGH

26,000lbs
37,000lbs
--
--
  Runway 15 Runway 33
True Heading 139°319°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 02"N 33° 18' 21"N
Longitude 84° 46' 32"W 84° 45' 50"W
Elevation 970' 929'
Threshold Crossing Height 40 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights
A110-1GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-2WILDLIFE INVOF ARPT.
A110-3EXTENSIVE FLIGHT TRAINING ON AND INVOF AIRPORT
A110-4FOR CD CTC ATLANTA APCH AT 678-364-6131.
A58-1515 FT POWER POLES, 139 FT FROM EOR, 355 FT RIGHT OF CNTRLN.
A58-3330 FT TREES, 264 FT RIGHT OF CNTRLN AT RWY END OUT TO 200 FT FM RWY END.
A81-APTACTVT MALSF RWY 33; HIRL RWY 15/33 - CTAF.
NEWNAN COWETA COUNTY (ICAO: KCCO, IATA: CCO) is a public airport located in ATLANTA, GA, US.
