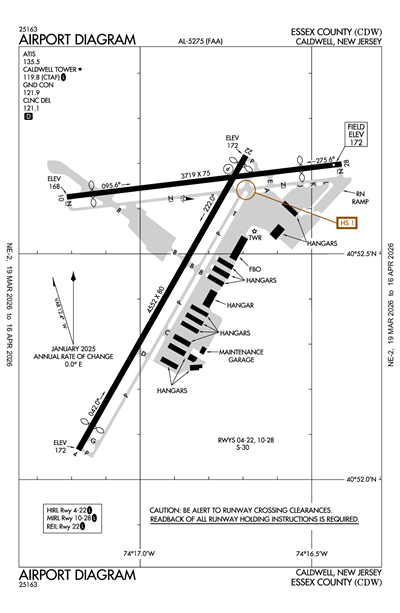

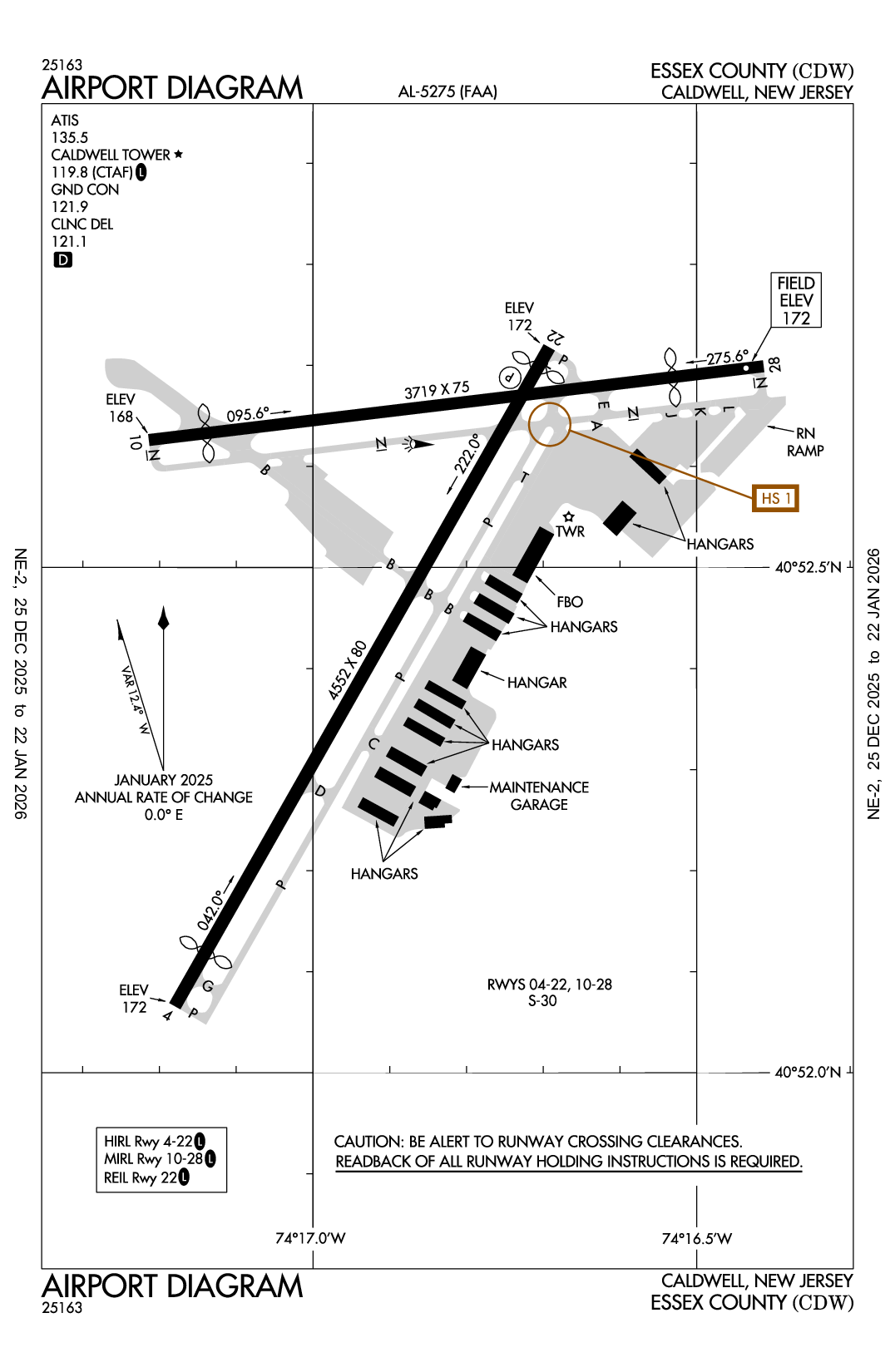

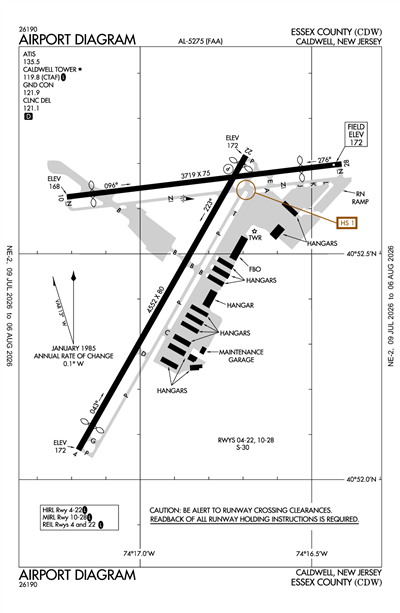

ESSEX COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCDW
ICAO KCDWIATA CDWLocal CDW
ESSEX COUNTY
PublicPUB

2 miles N of CALDWELL, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 52' 31"N 74° 16' 53"W
Elevation
172' MSL
Pattern Alt
1172' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KCDW IFR
2:27 PM EST
Light Snow and Mist
Overcast 1,100'
1.75sm
33°F
29°F
29.97"Hg
090° 12kts
Gusts 19kts
AO2 P0000 T00061017
SPECI KCDW 221927Z 09012G19KT 1 3/4SM -SN BR OVC011 01/M02 A2997 RMK AO2 P0000 T00061017
+ Add Your Business

KCDW FBOs

Promote Listing
Air Bound Aviation
UNICOM: 122.95
Phone: (973) 575-1833
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 2/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.41 6.12 6.16
Fuel Notes
Prices include tax

KCDW Flight Schools & Aircraft Rental

X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.5
(631) 594-4523
ASOS 135.5
(631) 594-4523

Common

CTAF 119.8
WHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.1

Ground

CALDWELL GROUND 121.9
0700-2300

Tower

CALDWELL TOWER 119.8
0700-2300

Arrival

JAIKE STAR 132.8
WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 127.6

Departure

NEWARK DEPARTURE 119.2

Terminal Area Forecast

KTEB (10nm)
Sun, 2/22 12:32 PM EST
Sun, 2/22 1:00 PM EST - Mon, 2/23 7:00 PM EST
IFR
1:00 PM EST - 4:00 PM EST
Light Snow
Overcast 800'
2sm
070° 11kts
IFR
4:00 PM EST - 6:00 PM EST
Light Snow
Overcast 600'
1sm
050° 13kts
Gusts 20kts
LIFR
6:00 PM EST - 8:00 PM EST
Snow
Overcast 500'
0.5sm
030° 17kts
Gusts 26kts
LIFR
8:00 PM EST - 2:00 AM EST
Heavy Snow and Blowing Snow
Obscured
0.25sm
020° 20kts
Gusts 30kts
LIFR
2:00 AM EST - 10:00 AM EST
Heavy Snow and Blowing Snow
Obscured
0.25sm
350° 23kts
Gusts 35kts
LIFR
10:00 AM EST - 2:00 PM EST
Snow and Blowing Snow
Overcast 600'
0.5sm
340° 20kts
Gusts 32kts
IFR
2:00 PM EST - 4:00 PM EST
Light Snow and Blowing Snow
Overcast 1,500'
Scattered 600'
2sm
330° 17kts
Gusts 26kts
MVFR
4:00 PM EST - 7:00 PM EST
Blowing Snow
Overcast 4,000'
Scattered 1,500'
5sm
320° 15kts
Gusts 24kts
TAF KTEB 221732Z 2218/2324 07011KT 2SM -SN OVC008
   FM222100 05013G20KT 1SM -SN OVC006
   FM222300 03017G26KT 1/2SM SN OVC005
   FM230100 02020G30KT 1/4SM +SN BLSN VV004 WS020/04050KT
   FM230700 35023G35KT 1/4SM +SN BLSN VV002 WS020/02050KT
   FM231500 34020G32KT 1/2SM SN BLSN OVC006
   FM231900 33017G26KT 2SM -SN BLSN SCT006 OVC015
   FM232100 32015G24KT 5SM BLSN SCT015 OVC040
KCDW
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1100Z
2/23/26
1900Z
!CDW 02/057 CDW OBST CRANE (ASN UNKNOWN) 405115N0741747W (.92NM SSW APCH END RWY 04)
251FT (67FT AGL) FLAGGED 2602231100-2602231900
2/22/26
1217Z
2/23/26
1217Z
Runway!CDW 02/061 CDW RWY 28 FICON 5/5/5 100 PCT WET OBS AT 2602221217. 2602221217-2602231217
2/22/26
1215Z
2/23/26
1215Z
Runway!CDW 02/060 CDW RWY 22 FICON 5/5/5 100 PCT WET OBS AT 2602221215. 2602221215-2602231215
2/22/26
1214Z
2/23/26
1214Z
!CDW 02/059 CDW APRON ALL FICON WET OBS AT 2602221214. 2602221214-2602231214
2/16/26
1423Z
4/16/26
2359Z
!CDW 02/049 CDW OBST TOWER LGT (ASR 1241949) 405058.80N0741101.00W (4.6NM ESE CDW) 553.8FT (355.0FT AGL) U/S 2602161423-2604162359
1/28/26
1648Z
4/28/26
0500Z
!CDW 01/105 CDW OBST TOWER LGT (ASR 1251166) 405420.20N0741541.90W (2.1NM NNE CDW) 293.0FT (108.9FT AGL) U/S 2601281648-2604280500
1/14/26
1946Z
3/14/26
2359Z
!CDW 01/027 CDW OBST TOWER LGT (ASR 1241951) 405101.20N0741057.70W (4.7NM ESE CDW) 553.8FT (355.0FT AGL) U/S 2601141946-2603142359
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/087 CDW TWY N SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 28 NOT STD 2512261313-2603312200
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/086 CDW TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261313-2603312200
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/085 CDW TWY E SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261313-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/084 CDW TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 04/22 NOT STD 2512261312-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/083 CDW TWY N SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 10 NOT STD 2512261312-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/082 CDW TWY P SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261312-2603312200
10/7/25
1046Z
10/31/26
2359Z
!CDW 10/024 CDW AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 405317N0741815W (1NM NW CDW) SFC-200FT AGL 2510071046-2610312359
FDC
6/12/25
1825Z
!FDC 5/3528 CDW IAP ESSEX COUNTY, CALDWELL, NJ.
LOC RWY 22, AMDT 4C ...
CHART NOTE: CIRCLING NA E OF RWY 4-22 2506121825-2706151824EST
Yes
0700-2300
ESSEX COUNTY IMPROVEMENT AUTHORITY
27 WRIGHT WAY
FAIRFIELD, NJ 07004
Phone: 973-575-0952
JOE CALI
27 WRIGHT WAY
FAIRFIELD, NJ 07004
Phone: 973-227-4567
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
CDW
--
WHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
N/A
AIRPORT BEACON LOCATED ON TOP OF CONTROL TOWER
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4552 ft. x 80 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 30°210°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 52' 04"N 40° 52' 43"N
Longitude 74° 17' 11"W 74° 16' 42"W
Elevation 172' 172'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 10/28

3719 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 83°263°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 52' 38"N 40° 52' 42"N
Longitude 74° 17' 13"W 74° 16' 25"W
Elevation 168' 172'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10DEER & BIRDS ON & INVOF ARPT.
A110-11NON-STANDARD TRAFFIC PATTERNS FOR RWY 04 PROHIBITED DUE TO NOISE SENSITIVE AREA SOUTHWEST OF THE AIRPORT.
A110-12FOR CD WHEN ATCT IS CLSD CTC NEWARK APCH AT 800-645-3206.
A110-13ROTOCRAFT: IF PSBL, CROSS THE ARPT BDRY AT OR ABV 700 FT MSL.
A110-14ENG RUN-UPS ON TWY N AT AER 28 SHD BE CONDUCTED TO LMT EFCT TO ACFT PARKED ON RN RAMP.
A110-2LCL OPNS SUSPENDED FROM 2300-0700 MON THRU SAT 2300 SAT UNTIL 1000 SUN.
A110-3FIXED WING VFR ACFT DEP: RWY 4 - FLY RWY HDG FOR 1 MI, THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL REACHING TFC PAT ALT.
A110-4FIXED WING VFR ACFT DEP: RWY 10 - FLY HDG 080 DEG AT RWY DEP END. UPON REACHING 900 FT MSL, TURN CROSSWIND IF REMAINING IN THE TFC PAT; IF DEPARTING THE TFC PAT, CONT ON HDG 080 DEG TIL REACHING TFC PAT ALT.
A110-5FIXED WING VFR ACFT DEP: RWY 22 - FLY RWY HDG TIL REACHING 900 FT MSL, THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL REACHING TFC PAT ALT.
A110-6FIXED WING VFR ACFT DEP: RWY 28 - FLY RWY HDG FOR 1 MI THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL READHING TFC PAT ALT.
A110-8PILOTS BE ALERT -- THE MORRISTOWN ILS & GPS RWY 23 APPROACHES TRANSIT ESSEX CO ARPT CLASS D ASP. TFC PASSES TWO MI WEST OF THE ARPT DESCENDING THRU 2000 FT MSL.
A43-22RY 22 PAPI UNUSABLE BYD 5 DEGREES RIGHT OF CENTERLINE DUE TO OBSTRUCTION.
A57-04APCH RATIO 13:1 TO DSPLCD THLD.
A57-10RY 10 APCH SLOPE 11:1 TO DSPLCD THLD.
A57-22APCH RATIO 6:1 TO DSPLCD THLD.
A57-28RY 28 APCH RATIO 28:1 TO DSPLCD THLD.
A58-226 FT FENCE, 200 FT FM RY END, ACROSS CNTRLN.
A58-286 FT FENCE, 195 FT FM RY END, 120 FT LT OF CNTRLN.
A75-HLANDING FEE FOR ALL TRANSIENT AIRCRAFT
A80AIRPORT BEACON LOCATED ON TOP OF CONTROL TOWER
A81-APTWHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
E147TPA FOR LARGE & TURBOJET ACFT 1527 FT AGL; TPA FOR LIGHT ACFT 1027 FT AGL.
ESSEX COUNTY (ICAO: KCDW, IATA: CDW) is a public airport located in CALDWELL, NJ, US.
