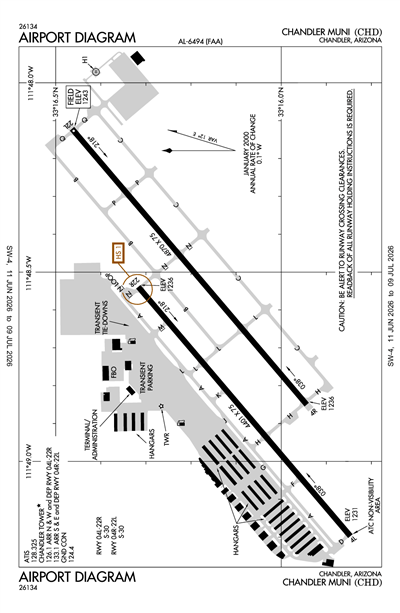

CHANDLER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCHD
ICAO KCHDIATA CHDLocal CHD
CHANDLER MUNI
PublicPUB

3 miles SE of CHANDLER, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 16' 09"N 111° 48' 40"W
Elevation
1243' MSL
Pattern Alt
2300' MSL
Mag Variation
10°E
Declination
12°E
Fuel
JET A (FSII), 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
6/11/26-7/9/26
KCHD VFR
5:47 AM MST
Clear
10sm
88°F
57°F
29.79"Hg
150° 10kts
METAR KCHD 171247Z 15010KT 10SM CLR 31/14 A2979
+ Add Your Business

KCHD FBOs

Promote Listing
Chandler Municipal Airport
UNICOM: 122.95
Phone: (480) 782-3540
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
GateOne (fka, Chandler Air Service)
UNICOM: 122.95
Phone: (480) 963-6420
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 666.21
Full Serve 7.49 7.14 7.19
Fuel Notes
Prices include tax
Some fuel purchases may qualify you for one night of free parking here at Chandler Air Service!
Our overnight fees vary based on aircraft:
Piston Single-Engine: $18.00 a night, 10 gallons of fuel qualifies you for a free night.
Piston Twin-Engine: $24.00 a night, 40 gallons of fuel qualifies you for a free night.
Turboprop Single-Engine: $39.00 a night, 50 gallons of fuel qualifies you for a free night.
Turboprop Twin-Engine OR Small/Medium Jets: $49.00 a night, 100 gallons of fuel qualifies you
Fuel Hours
Self Service available 24 hours

KCHD Aircraft Service & Maintenance

Promote Listing
Chandler Avionics
Phone: (480) 309-9683
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.325
AWOS-3PT (480) 814-9952

Common

CTAF 126.1
WHEN ATCT CLSD ACTVT PAPI RWY 04L, 04R, 22L & 22R; MIRL RWY 04R/22L & 04L/22R - CTAF. REIL RWY 4R & 22L ON CONSLY.
UNICOM 122.95

Ground

CHANDLER GROUND 124.4
0600-2100

Tower

CHANDLER TOWER 126.1
0600-2100 - ARR N &W
CHANDLER TOWER 126.1
0600-2100 - DEP RWY 04L/22R
CHANDLER TOWER 133.1
0600-2100 - ARR S & E
CHANDLER TOWER 133.1
0600-2100 - DEP RWY 04R/22L

Arrival

ARLIN STAR 124.1
BLYTHE STAR 124.1
DSERT STAR 120.7
HUUTY STAR 124.9
SUNSS STAR 124.1

Approach

PHOENIX APPROACH 123.7

Departure

PHOENIX DEPARTURE 123.7

Terminal Area Forecast

KIWA (9nm)
Wed, 6/17 4:20 AM MST
Wed, 6/17 5:00 AM MST - Thu, 6/18 5:00 AM MST
VFR
5:00 AM MST - 9:00 AM MST
Few 15,000'
6sm
130° 4kts
VFR
9:00 AM MST - 12:00 PM MST
Sky Clear
6sm
250° 8kts
VFR
12:00 PM MST - 9:00 PM MST
Few 25,000'
Few 12,000'
6sm
270° 14kts
Gusts 24kts
VFR
9:00 PM MST - 1:00 AM MST
Sky Clear
6sm
230° 9kts
VFR
1:00 AM MST - 5:00 AM MST
Sky Clear
6sm
120° 6kts
TAF KIWA 171120Z 1712/1812 13004KT P6SM FEW150
   FM171600 25008KT P6SM SKC
   FM171900 27014G24KT P6SM FEW120 FEW250
   FM180400 23009KT P6SM SKC
   FM180800 12006KT P6SM SKC
KCHD
EffectiveExpiresCategoryNOTAM
Domestic
6/19/26
1230Z
6/19/26
1500Z
!CHD 06/053 CHD OBST CRANE (ASN 2024-AWP-3660-OE) 331606N1114730W (1.0NM E CHD) 1427FT (177FT AGL) FLAGGED AND LGTD 2606191230-2606191500
6/17/26
1200Z
6/30/26
0100Z
!CHD 06/054 CHD OBST CRANE (ASN 2026-AWP-6130-OE) 331638N1114836W (0.5NM NE CHD) 1413FT (177FT AGL) FLAGGED AND LGTD DLY 1200-0100 2606171200-2606300100
6/17/26
1151Z
6/17/26
1500Z
Runway!CHD 06/060 CHD RWY 04R/22L WIP INSPECTION 2606171151-2606171500
6/17/26
1150Z
6/17/26
1500Z
Runway!CHD 06/059 CHD RWY 04L/22R WIP INSPECTION 2606171150-2606171500
6/17/26
1150Z
6/17/26
1500Z
!CHD 06/058 CHD AD AP ALL SFC WIP INSPECTION 2606171150-2606171500
5/25/26
0800Z
8/8/26
2000Z
!CHD 05/078 CHD OBST CRANE (ASN UNKNOWN) 331700N1115001W (1.5NM NW CHD) 1343FT (120FT AGL) FLAGGED AND LGTD MON-SAT 0800-2000 2605250800-2608082000
5/25/26
0800Z
8/8/26
2000Z
!CHD 05/077 CHD OBST CRANE (ASN UNKNOWN) 331656N1114904W (1.0NM NW CHD) 1347FT (120FT AGL) FLAGGED AND LGTD MON-SAT 0800-2000 2605250800-2608082000
5/25/26
0800Z
8/8/26
2000Z
!CHD 05/076 CHD OBST CRANE (ASN UNKNOWN) 331700N1115001W (1.5NM NW CHD) 1343FT (120FT AGL) FLAGGED AND LGTD MON-SAT 0800-2000 2605250800-2608082000
5/21/26
2004Z
7/31/26
2359Z
!CHD 05/075 CHD TWY A BTN TWY D AND TWY H CLSD TO ENG RUN-UPS 2605212004-2607312359
4/28/26
1300Z
6/30/26
2200Z
!CHD 04/082 CHD OBST CRANE (ASN 2026-AWP-3917-OE) 331645N1114854W (0.54NM N CHD) 1353FT (120FT AGL) FLAGGED, NOT LGTD TUE 1300-2200 2604281300-2606302200
1/2/26
0000Z
12/31/26
2359Z
!CHD 01/005 CHD AIRSPACE SEE PXR 01/005 UAS DLY 0000-2359
2601020000-2612312359
FDC
6/19/26
1200Z
1/26/27
1627Z
!FDC 6/8673 CHD IAP CHANDLER MUNI, CHANDLER, AZ.
RNAV (GPS) RWY 4R, AMDT 1...
CIRCLING CAT A/B/C MDA 1780/HAA 537. TEMPORARY CRANE 1427 MSL 5958FT E OF CHD AIRPORT (2024-AWP-3660-OE).
2606191200-2701261627EST
6/19/26
1200Z
1/26/27
1627Z
!FDC 6/8672 CHD IAP CHANDLER MUNI, CHANDLER, AZ.
VOR RWY 4R, ORIG-B...
CIRCLING CAT A/B/C MDA 1780/HAA 537. TEMPORARY CRANE 1427 MSL 5958FT E OF CHD AIRPORT (2024-AWP-3660-OE).
2606191200-2701261627EST
6/16/26
1600Z
!FDC 6/8512 CHD ODP CHANDLER MUNI, CHANDLER, AZ. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1... DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, TFD VOR OUT OF SERVICE. 2606161600-2606232201EST
6/8/26
2116Z
!FDC 6/6543 CHD IAP CHANDLER MUNI, CHANDLER, AZ.
VOR RWY 4R, ORIG-B...
CIRCLING CAT A MDA 1760/HAA 517. TEMPORARY CRANE 1403FT MSL 5273FT N OF KCHD AIRPORT (2024-AWP-13953-OE).
2606082116-2608282115EST
6/8/26
2113Z
!FDC 6/6537 CHD IAP CHANDLER MUNI, CHANDLER, AZ.
RNAV (GPS) RWY 4R, AMDT 1...
CIRCLING CAT A MDA 1760/HAA 517.
TEMPORARY CRANE 1403FT MSL 5273FT N OF KCHD AIRPORT (2024-AWP-13953-OE),.
2606082113-2608292113EST
6/8/26
2103Z
!FDC 6/6535 CHD ODP CHANDLER MUNI, CHANDLER, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 22R,
TEMPORARY CRANE 2419FT FROM DER, 603FT RIGHT OF CENTERLINE, 70FT AGL/1296FT MSL (2024-AWP-11171-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2606082103-2608282103EST
Yes
MON-FRI 0500-1700
SAT-SUN 0500-1530
CITY OF CHANDLER
175 S. ARIZONA AVE
CHANDLER, AZ 85225
Phone: 480-782-2200
RYAN REEVES
CHANDLER MUNICIPAL AIRPORT MS 802, PO BOX 4008
CHANDLER, AZ 85244
Phone: 480-782-3540
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
CHD
--
WHEN ATCT CLSD ACTVT PAPI RWY 04L, 04R, 22L & 22R; MIRL RWY 04R/22L & 04L/22R - CTAF. REIL RWY 4R & 22L ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04L/22R

4401 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 04L Runway 22R
True Heading 50°230°
Traffic Pattern Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 15' 51"N 33° 16' 19"N
Longitude 111° 49' 12"W 111° 48' 32"W
Elevation 1,231' 1,236'
Threshold Crossing Height 48 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 04R/22L

4870 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 04R Runway 22L
True Heading 50°230°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 33° 15' 57"N 33° 16' 28"N
Longitude 111° 48' 51"W 111° 48' 07"W
Elevation 1,236' 1,243'
Threshold Crossing Height 39 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

100 ft. x 100 ft.
CONC
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 33° 16' 25"N N/A
Longitude 111° 47' 58"W N/A
Elevation 1,236' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10135 FT LGTD PWR POLES & LINES N-S 1.5 MI W.
A110-11135 FT UNLGTD PWR POLES & LINES E-W 1 MI S.
A110-13TWY A BTN TWY D & F NOT VIS FM ATCT.
A110-15TSNT HELI PRKG & PAX PUP N SIDE BY TWY N.
A110-17HOPS ON TWY C; CHARLIE PAT FOR HEL TRNG.
A110-18WHEN ATCT CLSD, FOR CD CTC PHOENIX APCH - 602-306-2565.
A110-19GA TSNT FIXED WING PRKG BOXES IN FRONT OF TRML.
A110-2BIRDS & WILDLIFE ON & INVOF OF ARPT.
A110-20PARL RWYS; STAGGERED APCH ENDS.
A110-9AVOID OTFC OF HIGH SCHOOL; 2 NM SW.
A30-04L/22RRWY 4L CALM WIND RWY.
A30-04R/22LRWY 4R CALM WIND RWY.
A30A-22LSHORT APCH NA.
A30A-22R85 FT ANT 1/4 MI N OF THR.
A81-APTWHEN ATCT CLSD ACTVT PAPI RWY 04L, 04R, 22L & 22R; MIRL RWY 04R/22L & 04L/22R - CTAF. REIL RWY 4R & 22L ON CONSLY.
E147FIXED WING - 2300 FT MSL. ROTORWING - 1900 FT MSL.
CHANDLER MUNI (ICAO: KCHD, IATA: CHD) is a public airport located in CHANDLER, AZ, US.
