KCHS

ICAO KCHSIATA CHSLocal CHS

CHARLESTON AFB/INTL

PublicPUB

9 miles NW of CHARLESTON, SC, US

View on Map

Status

Operational

Coordinates

32° 53' 55"N 80° 02' 26"W

Elevation

46' MSL

Pattern Alt

1046' MSL

Mag Variation

8°W

Declination

7°W

Fuel

JET A-1+, 100

FSS

ANDERSON (AND)

Sectional

CHARLOTTE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

7/9/26-8/6/26

KCHS MVFR

12:24 PM EDT RAW

Thunderstorm

Broken 14,000'
Broken 3,600'
Broken 2,700'

Viz

10sm

Temp

87°F

Dew

76°F

Pres

29.91"Hg

Wind

320° 3kts

RMK

AO2 TSB21 OCNL LTGICCC NE AND S-W TS NE AND S-W MOV SE T03060244

SPECI KCHS 261624Z 32003KT 10SM TS BKN027CB BKN036 BKN140 31/24 A2991 RMK AO2 TSB21 OCNL LTGICCC NE AND S-W TS NE AND S-W MOV SE T03060244

Add Your Business

KCHS FBOs

Atlantic Aviation

UNICOM: 129.375

Phone: (843) 746-7600

0 Reviews (Read | Sign In To Write)

Independent

As of 7/7	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	9.54	9.80

Fuel Notes

Prices include tax

Promote Listing

Signature Aviation

UNICOM: 131.625

Phone: (843) 414-9200

0 Reviews (Read | Sign In To Write)

Titan

As of 7/23	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.82	10.61

Fuel Notes

Prices include tax

KCHS Aircraft Service & Maintenance

Promote Listing

Interstate Turbine Management

Phone: (843) 554-9191

Fax: (843) 554-9190

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

Digital ATIS	124.75
ASOS	(843) 214-2525

Common

UNICOM

122.95

Clearance

Clearance Delivery

127.325

Ground

CHARLESTON GROUND

121.9

Tower

CHARLESTON TOWER

126.0

Arrival

AMYLU STAR	121.275
331-150
BAGGY STAR	120.7
OSPRI STAR	120.7

Approach

CHARLESTON APPROACH	120.7
Initial Contact - 151-330
CHARLESTON APPROACH	121.275
331-150

Departure

CHARLESTON DEPARTURE	120.7
Initial Contact - 151-330
CHARLESTON DEPARTURE	121.275
331-150
LGRHD DP	120.7
MLTRE DP	121.275
331-150
PLMTO DP	121.275
331-150
STUNO DP	120.7
SWPFX DP	121.275
331-150

Operations

Operations	134.1
PALMETTO

Flight Service

Flight Service	122.1
(AND)

Emergency

121.5

Other

CLASS C	120.7
151-330
CLASS C	121.275
331-150

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

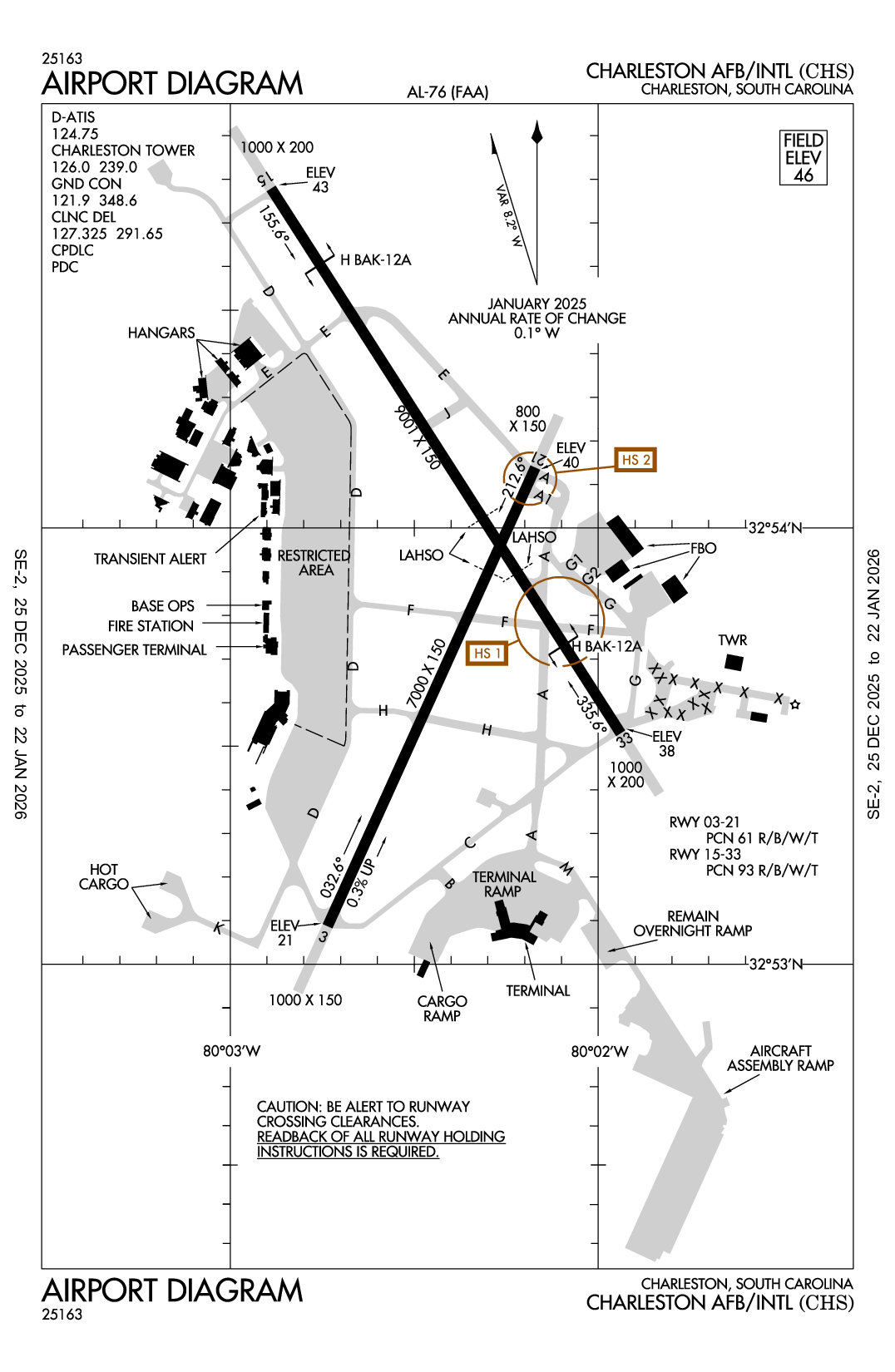

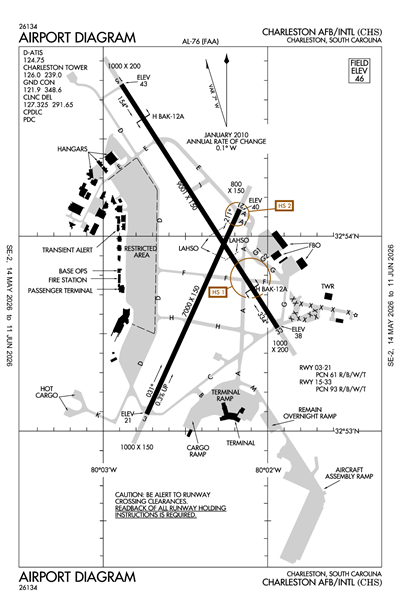

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KCHS

RAW

Reported

Sun, 7/26 11:23 AM EDT

Valid

Sun, 7/26 11:00 AM EDT - Mon, 7/27 8:00 AM EDT

MVFR

11:00 AM EDT - 2:00 PM EDT

Light Showers and Rain and Thunderstorm in vicinity

Broken 10,000'
Broken 2,200'

Viz

6sm

Wind

VRB° 5kts

VFR

2:00 PM EDT - 10:00 PM EDT

Light Showers and Rain and Thunderstorm in vicinity

Broken 5,000'
Scattered 2,500'

Viz

6sm

Wind

130° 8kts

MVFR

Temporary 4:00 PM EDT - 7:00 PM EDT

Light Thunderstorm and Rain and Mist

Broken 5,000'
Scattered 2,500'

Viz

4sm

Wind

Calm

VFR

10:00 PM EDT - 8:00 AM EDT

Broken 4,000'
Scattered 2,000'

Viz

6sm

Wind

VRB° 3kts

TAF KCHS 261523Z 2615/2712 VRB05KT P6SM -SHRA VCTS BKN022CB BKN100
   FM261800 13008KT P6SM -SHRA VCTS SCT025CB BKN050
   TEMPO 2620/2623 4SM -TSRA BR SCT025 BKN050CB
   FM270200 VRB03KT P6SM SCT020 BKN040

KCHS

Effective	Expires	Category	NOTAM
Domestic
7/28/26 1400Z	7/28/26 1900Z		!CHS 07/071 CHS NAV ILS RWY 15 CAT II NA 2607281400-2607281900
7/28/26 1400Z	7/28/26 1900Z	Runway	!CHS 07/069 CHS RWY 15 ALS U/S 2607281400-2607281900
7/27/26 1000Z	8/15/26 0300Z		!CHS 07/068 CHS AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 325949N0795804W (6.3NM NE CHS) SFC-700FT AGL DLY 1000-0300 2607271000-2608150300
7/27/26 0800Z	7/27/26 1600Z		!CHS 07/073 CHS OBST RIG (ASN 2025-ASO-4781-NRA) 325307N0800217W (0.8NM S CHS) 233FT (210FT AGL) FLAGGED AND LGTD 2607270800-2607271600
7/21/26 1721Z	7/31/27 2359Z		!CHS 07/061 CHS OBST TOWER LGT (ASR 1059154) 324808.00N0800124.00W (5.8NM S CHS) 419.0FT (402.2FT AGL) U/S 2607211721-2707312359
7/19/26 2329Z			!CHS 07/056 CHS NAV ILS RWY 15 OM NOT MNT 2607192329-2607312000EST
7/18/26 1103Z		Runway	!CHS 07/054 CHS RWY 33 ALS U/S EXC MEDIUM INTST ON CONS 2607181103-2608282000EST
7/17/26 2042Z	10/15/26 2359Z		!CHS 07/053 CHS OBST TOWER LGT (ASR 1044906) 325803.60N0800247.30W (4.1NM N CHS) 277.9FT (248.0FT AGL) U/S 2607172042-2610152359
7/16/26 1200Z	7/28/26 2000Z		!CHS 07/047 CHS OBST TOWER LGT (ASR UNKNOWN) 325617.00N0795607.46W (5.7NM NE CHS) UNKNOWN (250FT AGL) U/S 2607161200-2607282000
7/16/26 1200Z	7/28/26 2000Z		!CHS 07/046 CHS OBST TOWER LGT (ASR UNKNOWN) 325608.56N0795618.15W (5.7NM NE CHS) UNKNOWN (250FT AGL) U/S 2607161200-2607282000
7/13/26 1140Z	10/13/26 2359Z		!CHS 07/036 CHS OBST TOWER LGT (ASR 1056293) 325207.40N0800309.80W (1.9NM SSW CHS) 152.9FT (140.7FT AGL) U/S 2607131140-2610132359
7/9/26 1458Z	11/5/26 2359Z		!CHS 07/025 CHS OBST TOWER LGT (ASR 1048263) 325419.00N0795518.00W (6.0NM E CHS) 534.8FT (498.7FT AGL) U/S 2607091458-2611052359
7/9/26 0430Z	10/16/26 2300Z		!CHS 07/022 CHS TWY A BTN TERMINAL RAMP AND TWY C CLSD 2607090430-2610162300
7/9/26 0037Z			!CHS 07/023 CHS COM VOR VOICE U/S 2607090037-2607292111EST
7/6/26 1214Z	8/3/26 1100Z		!CHS 07/012 CHS AIRSPACE UAS WI AN AREA DEFINED AS 1.55NM RADIUS OF 325359.67N0800311.80W (1NM SW CHS) SFC-200FT AGL 2607061214-2608031100
6/18/26 0845Z	8/2/26 0845Z		!CHS 06/041 CHS OBST TOWER LGT (ASR 1263009) 324927.30N0800009.60W (4.8NM SSE CHS) 375.0FT (373.0FT AGL) U/S 2606180845-2608020845
6/11/26 2018Z	9/9/26 2359Z		!CHS 06/031 CHS OBST TOWER LGT (ASR 1021789) 330158.20N0800316.20W (8.1NM N CHS) 339.9FT (309.1FT AGL) U/S 2606112018-2609092359
6/8/26 1220Z	9/6/26 2359Z		!CHS 06/017 CHS OBST TOWER LGT (ASR 1038411) 325318.10N0795550.00W (5.6NM E CHS) 285.8FT (259.8FT AGL) U/S 2606081220-2609062359
6/5/26 1114Z	11/30/26 2200Z		!CHS 06/012 CHS APRON CARGO RAMP WIP CONST ADJ 2606051114-2611302200
5/18/26 1241Z			!CHS 05/028 CHS NAV ILS RWY 15 OM U/S 2605181241-2705302111EST
4/8/26 1309Z	7/31/26 2359Z		!CHS 04/013 CHS OBST CRANE (ASN 2026-ASO-580-NRA) 325254N0800201W (1.1NM SSE CHS) 217FT (200FT AGL) FLAGGED AND LGTD 2604081309-2607312359
1/15/26 1504Z	12/31/26 0500Z		!CHS 01/066 CHS OBST CRANE (ASN 2024-ASO-11925-NRA) 325258N0800204W (1.0NM SSE CHS) 322FT (300FT AGL) FLAGGED AND LGTD 2601151504-2612310500
1/15/26 1503Z	12/31/26 0500Z		!CHS 01/065 CHS OBST CRANE (ASN 2024-ASO-11926-NRA) 325249N0800206W (1.1NM SSE CHS) 322FT (300FT AGL) FLAGGED AND LGTD 2601151503-2612310500
1/15/26 1502Z	12/31/26 0500Z		!CHS 01/064 CHS OBST CRANE (ASN 2024-ASO-11927-NRA) 325251N0800217W (1.1NM S CHS) 322FT (300FT AGL) FLAGGED AND LGTD 2601151502-2612310500
1/15/26 1502Z	12/31/26 0500Z		!CHS 01/063 CHS OBST CRANE (ASN 2024-ASO-11924-NRA) 325259N0800215W (0.9NM S CHS) 322FT (300FT AGL) FLAGGED AND LGTD 2601151502-2612310500
1/8/26 1800Z	9/4/26 2300Z		!CHS 01/038 CHS TWY M BTN TERMINAL RAMP AND TWY A CLSD 2601081800-2609042300
1/7/26 2011Z	9/4/26 2200Z		!CHS 01/028 CHS TWY A, M WIP CONST ADJ 2601072011-2609042200
1/7/26 1700Z	12/31/26 2200Z		!CHS 01/018 CHS APRON TERMINAL RAMP WIP CONST ADJ 2601071700-2612312200
FDC
7/14/26 1701Z			!FDC 6/5620 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (RNP) Z RWY 3, AMDT 1... RNP 0.20 DA 327/HAT 292 ALL CATS, VIS ALL CATS 7/8. TEMPORARY CRANES 138 MSL BEGINNING 2537FT E OF RWY 3 (2023-ASO-9053 THRU 9056-NRA). 2607141701-2609201701EST
7/7/26 1653Z	9/12/26 1653Z		!FDC 6/3546 CHS SID CHARLESTON AFB/INTL, CHARLESTON, SC. LGRHD THREE DEPARTURE (RNAV)... DEPARTURE PROCEDURE GPS REQUIRED, SAV VORTAC OUT OF SERVICE. 2607071653-2609121653EST
5/27/26 1911Z			!FDC 6/3382 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (RNP) Z RWY 33, AMDT 1A... RNP 0.30 DA 689/HAT 644 ALL CATS, VIS ALL CATS 1 3/8. TEMPORARY CRANE 411 MSL 5896FT S OF RWY 33 (2025-ASO-11554-NRA). 2605271911-2705091911EST
3/24/26 1428Z			!FDC 6/2971 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (GPS) Y RWY 21, AMDT 3A... LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS. RWY 21 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 NA. TEMPORARY CRANES UP TO 149 MSL 2415FT NE OF RWY 21 (2025-ASO-20853/20854-OE). 2603241428-2705091428EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1697 CHS IAP U.S. DOD CHARLESTON AFB/INTL, CHARLESTON, SC. HI - VOR Z OR TACAN Z RWY 15, AMDT 4B... CIRCLING CAT C MDA 720/HAA 674, VIS CAT C 2. TEMPORARY CRANE 411 MSL 1.4NM SE OF CHS AIRPORT (2025-ASO-11554-NRA). TEMPORARY CRANES, 236 MSL, 4623FT EAST OF KCHS AIRPORT (2025-ASO-3242/3245-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1696 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. ILS OR LOC RWY 15, AMDT 24B... RNAV (GPS) Y RWY 15, AMDT 4A... RNAV (GPS) Y RWY 21, AMDT 3A... VOR Y OR TACAN Y RWY 15, AMDT 14C... VOR/DME OR TACAN RWY 21, AMDT 14B... CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. TEMPORARY CRANE 411 MSL 1.4NM SE OF CHS AIRPORT (2025-ASO-11554-NRA). TEMPORARY CRANES, 236 MSL, 4623FT EAST OF KCHS AIRPORT (2025-ASO-3242/3245-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1695 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. VOR/DME OR TACAN RWY 3, AMDT 14D... S-3 MDA 680/HAT 645 ALL CATS, VIS CATS C/D/E 1 7/8. CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. TEMPORARY CRANE 411 MSL 5004FT SE OF RWY 3 (2025-ASO-11554-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1694 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (GPS) Y RWY 3, AMDT 3A... LNAV/VNAV DA 511/HAT 476 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 500/HAT 465 ALL CATS, VIS CATS C/D 1 3/8. CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. TEMPORARY CRANE 411 MSL 5004FT SE OF RWY 3 (2025-ASO-11554-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1691 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. VOR/DME OR TACAN RWY 33, AMDT 13C... S-33 CAT A/B/C MDA 680/HAT 635, VIS CAT C 1 3/8. CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. VDP AT CHS 2.1 DME; DISTANCE VDP TO THLD 1.8NM. FOR INOP MALSR, INCREASE S-33 CAT C VIS TO 1 3/4. TEMPORARY CRANE 411 MSL 5896FT S OF RWY 33 (2025-ASO-11554-NRA). TEMPORARY CRANES, 236 MSL, 1965FT EAST OF RWY 33 (2025-ASO-3242/3245-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1689 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. ILS OR LOC RWY 33, AMDT 8D... S-LOC 33 MDA 680/HAT 635 ALL CATS, VIS CATS C/D/E 1 3/8. CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. VDP AT CHS 2.1 DME; DISTANCE VDP TO THLD 1.8NM. CHANGE NOTE TO READ: FOR INOP MALSR, INCREASE S-ILS 33 CAT E VISIBILITY TO RVR 4000 AND S-LOC 33 CAT C/D/E VISIBILITY TO 1 3/4. TEMPORARY CRANE 411 MSL 5896FT S OF RWY 33 (2025-ASO-11554-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1688 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (GPS) Y RWY 33, AMDT 4A... LNAV/VNAV DA 572/HAT 527 ALL CATS, VIS ALL CATS RVR 5500. LNAV MDA 680/HAT 635 ALL CATS, VIS CATS C/D 1 3/8. CIRCLING CAT A/B/C MDA 720/HAA 674, VIS CAT C 2. VDP 1.8 NM TO RW33. FOR INOP ALS, INCREASE LNAV CAT C/D VISIBLITY TO 1 3/4 SM. TEMPORARY CRANE 411 MSL 5896FT S OF RWY 33 (2025-ASO-11554-NRA). TEMPORARY CRANES, 236 MSL, 1965FT EAST OF RWY 33 (2025-ASO-3242/3245-NRA). 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1687 CHS SID CHARLESTON AFB/INTL, CHARLESTON, SC. LGRHD THREE DEPARTURE (RNAV)... MLTRE THREE DEPARTURE (RNAV)... PLMTO THREE DEPARTURE (RNAV)... STUNO ONE DEPARTURE (RNAV)... SWPFX THREE DEPARTURE (RNAV)... TAKEOFF MINIMUMS: RWY 15, STANDARD WITH MINIMUM CLIMB OF 480 FEET PER NM TO 540. TEMPORARY CRANE 411 MSL 5896FT S OF DEPT END RWY 15 (2025-ASO-11554-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2603201534-2705091534EST
3/20/26 1534Z	5/9/27 1534Z		!FDC 6/1686 CHS ODP CHARLESTON AFB/INTL, CHARLESTON, SC. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7... TAKEOFF MINIMUMS: RWY 15, STANDARD WITH MINIMUM CLIMB OF 480 FEET PER NM TO 540. TEMPORARY CRANE 411 MSL 5896FT S OF DEPT END RWY 15 (2025-ASO-11554-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2603201534-2705091534EST
10/6/25 1447Z			!FDC 5/6674 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC. RNAV (RNP) Z RWY 21, ORIG-C... RNP 0.21 DA 461/HAT 418. RNP 0.30 DA 496/453 HAT. 2510061447-2710061447EST
Military
7/26/26 0310Z	7/26/26 0943Z	Taxiway	TWY K RESTRICTED TO NO COMBAT OFF LOADS/FARP OPS.
7/25/26 2056Z	7/28/26 2056Z		M0751/26 NOTAMC M0750/26
7/25/26 1843Z	7/28/26 1843Z		M0748/26 NOTAMC M0747/26
7/23/26 1938Z	7/26/26 1938Z		M0743/26 NOTAMC M0742/26
7/23/26 1711Z	7/26/26 1711Z		M0741/26 NOTAMC M0740/26
7/21/26 0457Z	8/31/26 2359Z	Runway	RWY 03 APPROACH END REILS ON EAST SIDE OUT OF SVC
7/21/26 0000Z	8/31/26 2359Z		L0043/26 NOTAMN Q) ZJX/QXXXX/IV/NBO/A/000/999/3253N08002W005 A) KCHS B) 2607210000 C) 2608312359 E) BLDG 578/NOSE DOCK 2 HANGAR ACCESS APRON CLOSED
7/7/26 0000Z	8/31/26 2359Z		ACFT TOWING OPS ON TOWWAY E ADJ TO NOSE DOCK 2 CONST AREA RSTD WITHOUT PRIOR COORDINATION WITH AFLD MANAGEMENT. MIN WINGTIP CLNC: 10FT (95FT FM CL) WITH WINGWALKERS, 25FT (110FT FM CL) WITHOUT WINGWALKERS.
7/5/26 0948Z	10/1/26 2359Z		OBSTACLE LIGHTS ON N32°54'2.16" W80°2'52.08" UNSERVICEABLE
7/2/26 0450Z	7/31/26 2359Z	Runway	M0664/26 NOTAMN Q) ZJX/QXXXX/IV/NBO/A/000/999/3253N08002W005 A) KCHS B) 2607020450 C) 2607312359 E) RWY 15/03 DIRECTIONAL SIGN AT TWY D UNLIT
6/21/26 1420Z	8/1/26 2359Z	Aerodrome	AERODROME OBST (ASN 2025-ASO-20853-OE) 32-54-31.00N 80-02-01.00W (.46NM N CHS RWY 21) 129FT AMSL (97FT AGL)
6/13/26 0000Z	8/30/26 2359Z		M0599/26 NOTAMN Q) ZJX/QXXXX/IV/NBO/A/000/999/3253N08002W005 A) KCHS B) 2606130000 C) 2608302359 E) SPOT 33 LIMITED TO ONE AIRCRAFT AT A TIME AND MUST UTILIZE CENTERLINE
6/13/26 0000Z	8/30/26 2359Z		M0599/26 NOTAMN Q) ZJX/QXXXX/IV/NBO/A/000/999/3253N08002W005 A) KCHS B) 2606130000 C) 2608302359 E) SPOT 33 LIMITED TO ONE AIRCRAFT AT A TIME AND MUST UTILIZE CENTERLINE
6/4/26 0009Z	8/19/26 2359Z	Runway	M0561/26 NOTAMN Q) ZJX/QXXXX/IV/NBO/A/000/999/3253N08002W005 A) KCHS B) 2606040009 C) 2608192359 E) RWY 15 MANDATORY HOLD SIGN ON EAST SIDE OF RWY PRIOR TO INTERSECTION OF RWY 03/21 UNLIT
5/30/26 0751Z	7/29/26 2359Z	Aerodrome	AERODROME OBSTACLE LIGHTS ON N32?53'37.68" W80?2'52.44" UNSERVICEABLE
5/12/26 0001Z	8/1/26 2359Z	Aerodrome	AERODROME DEPARTURE TIMES OF CONTRACTED MILITARY AIRLIFT (AFFORGEN AND SAAM) PASSENGER MISSIONS MUST BE SEPARATED BY A MINIMUM OF 6 HOURS DUE TO LIMITED PASSENGER TERMINAL CAPACITY. THIS ALSO INCLUDES THE ARRIVAL LEG ON THRU-LOAD ITINERARIES. CONTACT 437 APS AIR TERM OPS CTR AT 437APS.TRO.ATOC@US.AF.MIL WITH QUESTIONS OR EXCEPTION REQUESTS. IF URGENT, PLEASE CALL ATOC AT 843-963-3213/3215/3246
5/5/26 1259Z	7/31/26 2359Z	Aerodrome	AERODROME PERSONNEL AND EQUIPMENT AND OPEN TRENCH LOCATED 1,100FT FROM RWY 15 APPROACH

ATC Tower

Yes

Attendance

ALL

Owner

USAF
JOINT BASE CHARLESTON
CHARLESTON AFB, SC 29404
Phone: (843) 963-3028

Manager

ELLIOTT SUMMEY
5500 INTL BLVD
CHARLESTON, SC 29418
Phone: 843-761-7000

FSS

ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF

NOTAM

CHS

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High Pressure

Other Services

Avionics
Charter Service
Aircraft Sales

Runway 03/21

Dimensions

7000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

61/R/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	24°	204°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	32° 53' 05"N	32° 54' 08"N
Longitude	80° 02' 44"W	80° 02' 10"W
Elevation	21'	40'
Threshold Crossing Height	50 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 15/33

Dimensions

9001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

93/R/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	147°	327°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	32° 54' 47"N	32° 53' 32"N
Longitude	80° 02' 53"W	80° 01' 56"W
Elevation	43'	38'
Threshold Crossing Height	50 ft. AGL	59 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights	No	No

A11	THIS IS A SHARED-USE AIRPORT. THE USAF OWNS AND OPERATES ALL RUNWAYS AND THE MAJORITY OF THE TAXIWAYS. THE CHARLESTON COUNTY AVIATION AUTHORITY OPERATES THE CIVILIAN TERMINAL AND ASSOCIATED TAXIWAYS.
A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-19	PARKING ON TERMINAL APRON RESTRICTED TO COMMERCIAL AIR CARRIER AND ACFT FOR CUSTOMS CLEARANCE BY PRIOR ARRANGEMENT ONLY.
A110-2	LIQUID OXYGEN SERVING AVBL TO MILITARY.
A110-22	JASU: 8(MD-3M) 2(MA-1A) (M32A-60) (M32A-60A)
A110-24	FLUID: SOAP - ROUTINE SOAP SAMPLES NOT AVBL; SP PRESAIR LHOX LOX
A110-25	OIL: NON-DETERGENT OIL NOT AVBL FOR PISTON ACFT. O-128-133-148(MIL)
A110-26	SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-28	RSTD: ALL INBD VIP CODE 7 OR HI, PAX, CARGO ACFT MUST CTC PALMETTO OPS NO LATER THAN 30 MIN PRIOR TO LDG.
A110-29	RSTD: AMC ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT ACFT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC PALMETTO OPS FOR CURRENT BIRD WATCH COND.
A110-3	NO STUDENT SOLO TOUCH AND GO LANDING ALLOWED.
A110-30	RSTD: ALL ACFT MUST CTC PALMETTO OPS PRIOR TO ENTERING MIL RAMP FOR PRK ASGN.
A110-31	RSTD: NON-AMC AIRCREWS REQ RON SVC CTC COMD POST (PALMETTO OPS) DSN 673-8400, C843-963-8400 PRIOR ARR. TRML APN RSTD TO COML AIR CARRIER AND ACFT FOR CSTMS CLNC BY PPR.
A110-32	CAUTION: MIGRATORY BIRD SEASON PHASE II 1-15 APR AND 1 AUG-30 NOV. RWY 15-33 RAISED APCH LGT IN OVRN, RY 03-21 OVRN 800FT.
A110-34	TFC PAT: RECTANGULAR 1200 FT, OVERHEAD 1700 FT, LGT ACFT 700 FT, C5A 2000 FT.
A110-35	MISC: AFLD MGMT DSN 673-3024/6, C843-963-3024/6. AFLD MGMT OUT OF OFFICE CTC NR C854-274-8453. IF CIV SIDE OF ARPT IS FINAL DESTN, ACFT COMDR WILL SO INDICATE ON DD 175. DANGEROUS CARGO ACFT CTC PTD PRIM, PALMETTO OPS SECD. ALL AMC MSN ACFT CTC PALMETTO OPS WHEN WITHIN RDO RNG.
A110-36	MISC: PMSV RDO UNAVBL. PMSV/PHONE PATCH AVBL THRU 628 CP DSN 673-8400 C843-963-8400. WX FLT CLOSED WKENDS, HOL AND DOWN DAYS. MIL WX FLD AFLD SUPPORT AVBL 24/7 FOR SVR WX, C843-754-1956. MSN WX SUPPORT HRS 1100-2300Z++ MON-THU AND 1100-2100Z++ FRI, DSN 673-3016/3644, C843-963-3016, CLSD WKEND, HOL, AND DOWN DAYS. MSN WX SUPPORT BRFGS FOR AIRCREW AVBL VIA THE 260WS/BARKSDALE AFB DSN 331-2651/C318-529-2651 DUR MIL WX FLT CLOSURE HRS.
A110-40	SERVICE-LGT: AIRFIELD BEACON NOT VISIBLE FROM NW.
A110-41	MISC: TMPRY STOR OF CLASSIFIED MATERIALS: LTD CLASSIFIED STOR AVBL. 24 HR PN RQR WITH AFLD MGMT. PRIOR COORD RQR. CTC BASE OPS 24 PRIOR TO ARR. NO CLASSIFIED STOR AT COMD POST. FOR TOP SECRET STOR CTC 437 SOS 24 HR PRIOR TO ARR DSN 673-0955, C843-963-0955.
A110-44	SERVICE: KCHS MIL PROVIDES NO SECURITY AND NO ACFT SERVICES AT FBO'S AND COMMERCIAL TERMINAL.
A110-46	RSTD: RWY 03-21 CLSD 2ND TUE EA MONTH 1330-2200Z++. RWY 15-33 CLSD LAST TUE OF EA MONTH 1330-2200Z++.
A110-48	CAUTION: RY 15-33 1000 FT OVERRUNS HAS FRANGIBLE RAISED APCH LIGHTS.
A110-51	CAUTION: MIL RAMP ACFT CONTACT CHS GND CONTROL FOR ENG START & TAXI.
A110-52	RSTD: RVR AVAIL VIA FAA ATCT.
A110-53	MISC: AFLD SFC WX OBS TAKEN IAW FAA CRITERIA, NOT AF CRITERIA.
A110-54	SERVICE FUEL: ALL ACFT RQR FUEL, PLEASE HAVE IN YOUR POSSESSION THE WHITE DD FORM 1896 FUEL CARD, US GOVT AIR CARD OR YOUR BASE BILLING INFO.
A110-55	TRANS ACFT FOR MIL RAMP FOLLOW-ME RQR. MIL ACFT FOR FBO PRK/SVC RQR PPR (843-746-7600).
A110-56	CAUTION: RY 21 - FREQ PRK TRAIN CARS (25 FT AGL), CONSTRUCTION/UTILITY STORAGE YARD (20 FT AGL) 1000 FT FR THLD AND GRAVEL PILES (50 FT AGL) 1500 FT FR THLD.
A110-57	RSTD: PPR, EXC AIREVAC, SAM AND AMC GDSSII MSN, FOR NUMBER AND LCL TRNG FLT TRAN ALERT SUPPORT CTC AFLD MGMT DSN 673-3024/6, C843-963-3024/6.
A110-58	CAUTION: REDUCED FIRE SUPPORT FOR C-5 AND AN-124 ACFT, DEGRADATION OF FIRE FIGHTING CAPABILITY. C-5/AN-124 WITH EMERGENCY MUST CLOSELY COORDINATE RQR WITH PALMETTO OPS.
A110-59	CAUTION: MIL SIDE WG TIP CLNC LINES: TWY D 161 FT FR TWY CNTRLN AND RAMP INTER-TXY 115 FT FR CNTRLN.
A110-61	RSTD: C5, B747, AND AN-124 ACFT TAXI WITH OUTBOARD ENG AT IDLE.
A110-62	FUEL: A++(MIL), A+(ATLANTIC AVN, C843-746-7600) (NC-100, A1+).
A110-63	CAUTION: FUEL PIT/SWITCH OBST 36 IN HIGH LCTD 75 FT LEFT OF TWY D CNTLN N OF TWY E.
A110-64	CAUTION: RY 15-33 1 FT RAISED THLD LGT.
A110-65	MISC: PAX TRML OPR 0930-0330Z++ DLY. AFTER HRS CTC DSN 673-7005/7006 OR C843-963-7005/7006. C-17 ENG RUNNING ONLOADS/OFFLOADS AVBL 24 HR PN. CTC 437 APS DSN 673-3193/4 C843-963-3193/4 FOR COORD/APVL. PASS PAX/CARGO INFO TO PALMETTO OPS 3 HRS PRIOR TO ARR.
A110-66	SERVICE-LGT: RWY 15 ALSF-2 ALSO OPR AS SSALR DUR VMC.
A110-67	ALL AIRCRAFT USE UPPER ANTENNA UNTIL AIRBORNE.
A110-68	RWY COND CODE (RWYCC) NOT RPTD.
A110-69	AFLD GRASS CUTTING OPS CONDUCTED IN CTL MOVEMENT AREA YR ROUND; CTC AFLD MGMT FOR DLY LCTN.
A110-7	PPR FOR PARKING OF GENERAL AVIATION ACFT ON TERMINAL RAMP CTC 843-767-1100.
A110-71	MISC: COMBAT OFF-LOAD OPS ON N END OF TWY D MUST ENSURE THAT PALLETS LAND PRIOR TO LEAD-IN LINE TO RWY 15 APCH END; CTC GND IF PALLET LANDS BYD LEAD-IN LINE.
A110-73	RSTD: EXP RWY 15/33 OPS SUSPD 1230-1300Z++DLY FOR A-G INSPECTION.
A110-74	MISC: RWY 15/33 AND 3/21 GROOVED.
A110-9	INTENSIVE HEAVY MIL JETS & OTHER MISC ACFT EXECUTING NUMEROUS CARGO & PERSONNEL DROPS, HIGH SPEED LOW-LEVEL FORMATION FLTS & MISC AIR-TO-GROUND OPNS.
A14	ELLIOTT SUMMEY IS THE DIR OF ARPTS FOR THE CHARLESTON REGIONAL AVN AUTH. THE AIR FORCE AIRFIELD MGR CAN BE CTCD AT 843-963-3024.
A40-03/21	LGTS FOR BOTH RWYS ARE AF SPEC TYPE.
E147	TPA: RECTANGULAR 1154 FT AGL/1200 FT MSL, OVHD 1654 FT AGL/1700 FT MSL, LGT ACFT 654 FT AGL/700 FT MSL, C5A 1954 FT AGL/ 2000 FT MSL.
E60-15_BAK-12	TYPE-H BAK-12A(B) (1260')
E60-33_BAK-12	TYPE-H BAK-12A(B) (1460')

CHARLESTON AFB/INTL (ICAO: KCHS, IATA: CHS) is a public airport located in CHARLESTON, SC, US.

iFlightPlanner
