KCKZ
ICAO KCKZLocal CKZ
PENNRIDGE
PublicPUB

1 miles N of PERKASIE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 23' 21"N 75° 17' 26"W
Elevation
568' MSL
Pattern Alt
1568' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
WILLIAMSPORT (IPT)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
10/29/26-11/26/26
KCKZ VFR
7:55 AM EST
Overcast 3,500'
10sm
52°F
52°F
29.62"Hg
060° 6kts
AO2
METAR KCKZ 121255Z AUTO 06006KT 10SM OVC035 11/11 A2962 RMK AO2
+ Add Your Business

KCKZ FBOs

Promote Listing
Pennridge Airport
UNICOM: 123.0
Phone: (215) 257-0166
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 11/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.39
Full Serve 7.49 8.12
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 126.325
(215) 257-7291

Common

CTAF 123.0
ACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 118.55

Approach

PHILADELPHIA APPROACH 123.8

Departure

PHILADELPHIA DEPARTURE 123.8

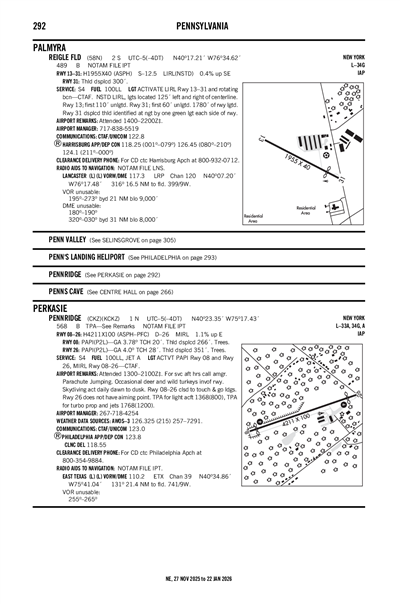

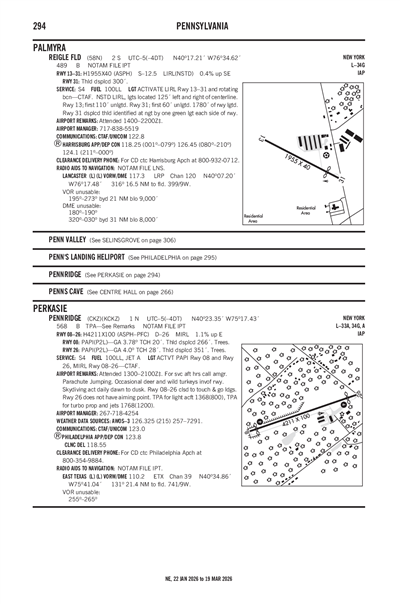

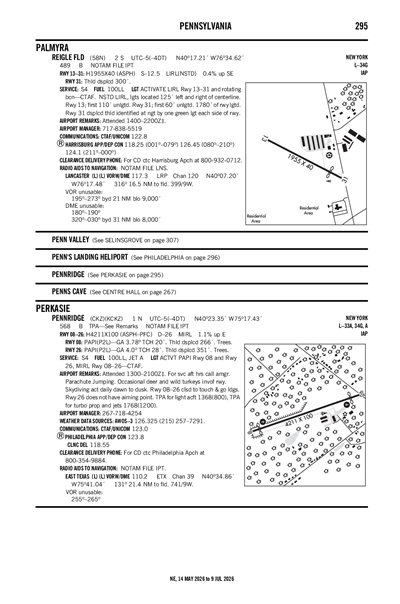

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KABE (17nm)
Thu, 11/12 6:20 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Showers in vicinity
Overcast 6,000'
Scattered 5,000'
6sm
VRB° 4kts
MVFR
10:00 AM EST - 12:00 PM EST
Light Showers and Rain
Overcast 1,900'
4sm
090° 6kts
MVFR
12:00 PM EST - 5:00 PM EST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 1,300'
3sm
360° 5kts
MVFR
5:00 PM EST - 7:00 PM EST
Light Showers and Rain
Overcast 1,500'
3sm
340° 6kts
MVFR
7:00 PM EST - 7:00 AM EST
Light Showers and Rain
Overcast 1,000'
Scattered 900'
4sm
010° 9kts
TAF KABE 121120Z 1212/1312 VRB04KT P6SM VCSH SCT050 OVC060
   FM121500 09006KT 4SM -SHRA OVC019
   FM121700 36005KT 3SM -SHRA VCTS OVC013CB
   FM122200 34006KT 3SM -SHRA OVC015
   FM130000 01009KT 4SM -SHRA SCT009 OVC010
KCKZ
EffectiveExpiresCategoryNOTAM
FDC
4/29/26
1723Z
!FDC 6/6880 CKZ IAP PENNRIDGE, PERKASIE, PA.
RNAV (GPS) RWY 8, AMDT 1D...
PROCEDURE NA AT NIGHT.
2604291723-2805011723EST
No
0800-1600
PENNRIDGE DEVELOPMENT LLC
1100 RIDGE RD
PERKASIE, PA 18944
Phone: 215-257-0166
JEAN CURRY
1100 N RIDGE RD
PERKASIE, PA 18944
Phone: 267-718-4254
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
IPT
--
ACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Parachute Jump Activity

Runway 08/26

4211 ft. x 100 ft.
ASPH
Good
PFC
MED

--
26,000lbs
--
--
  Runway 08 Runway 26
True Heading 70°250°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 23' 14"N 40° 23' 28"N
Longitude 75° 17' 51"W 75° 17' 00"W
Elevation 520' 568'
Threshold Crossing Height 20 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3.78° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1OCCASIONAL DEER AND WILD TURKEYS INVOF RWY.
A110-2SKYDIVING ACT DLY DAWN TO DUSK.
A110-4FOR CD CTC PHILADELPHIA APCH AT 800-354-9884.
A110-5FOR SVC AFT HRS CALL AMGR.
A110-6LDG FEES PER 1000 LB; PKG FEE - SEE WEBSITE.
A30-08/26CLSD TO TOUCH & GO LDGS.
A42-26_MARKRWY DOES NOT HAVE AIMING POINT.
A57-08APCH RATIO 13:1 TO DTHR.
A57-26APCH RATIO 13:1 TO DTHR.
A58-088 FT TREES, 120 FT FM RWY END, 125 FT RIGHT.
A58-2610 FT BLAST FENCE AT RWY END. 47 FT TREES, 22FT FM RWY END, 210 FT RIGHT.
A76-PAJASKYDIVING INSTRUCTION.
A81-APTACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
E147TPA FOR LIGHT ACFT 800 FT AGL; TPA FOR TURBO PROP & JETS 1200 FT AGL.
PENNRIDGE (ICAO: KCKZ, IATA: CKZ) is a public airport located in PERKASIE, PA, US.
