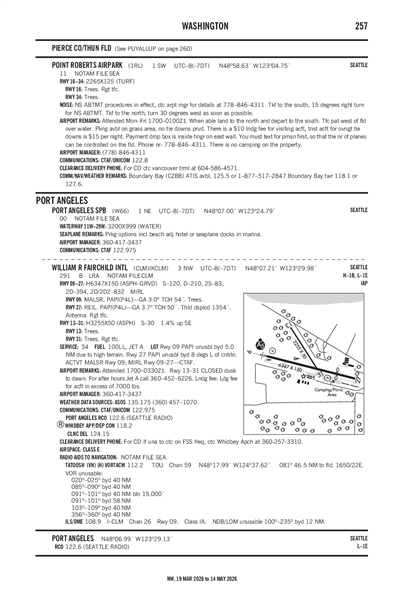

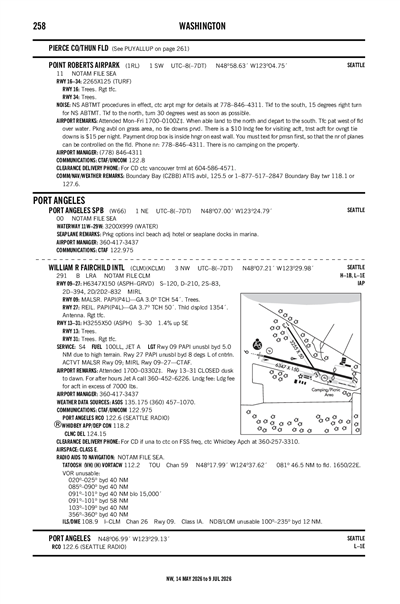

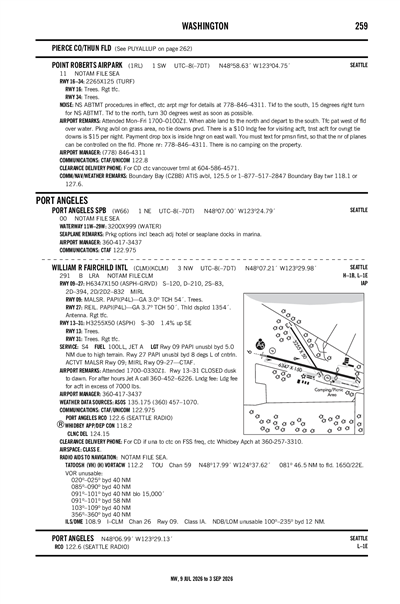

WILLIAM R FAIRCHILD INTL - Airport Diagram

KCLM

ICAO KCLMIATA CLMLocal CLM

WILLIAM R FAIRCHILD INTL

PublicPUB

3 miles NW of PORT ANGELES, WA, US

View on Map

Status

Operational

Coordinates

48° 07' 13"N 123° 29' 59"W

Elevation

291' MSL

Pattern Alt

1291' MSL

Mag Variation

16°E

Declination

16°E

Fuel

JET A, 100LL

FSS

SEATTLE (SEA)

Sectional

SEATTLE

ARTCC

SEATTLE (ZSE)

Data Effective

4/16/26-5/14/26

KCLM VFR

10:53 PM PDT RAW

Clear

Viz

10sm

Temp

46°F

Dew

43°F

Pres

30.15"Hg

Wind

260° 7kts

RMK

AO2 SLP212 T00780061 10122 20072 50008

METAR KCLM 240553Z AUTO 26007KT 10SM CLR 08/06 A3015 RMK AO2 SLP212 T00780061 10122 20072 50008

Add Your Business

KCLM FBOs

Promote Listing

Citizen Air (fka, Rite Bros. Aviation)

UNICOM: 122.975

Phone: (360) 452-6226

0 Reviews (Read | Sign In To Write)

Titan

As of 4/14	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.81
Full Serve	7.79	7.49	7.61

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	135.175
(360) 457-1070

Common

CTAF	122.975
ACTVT MALSR RWY 09; MIRL RWY 09/27 - CTAF.
UNICOM	122.975

Clearance

Clearance Delivery

124.15

Approach

WHIDBEY APPROACH

118.2

Departure

WHIDBEY DEPARTURE

118.2

Flight Service

Flight Service	122.6
(SEA), COMMUNICATIONS PRVDD BY SEATTLE RADIO ON FREQ 122.6 (PORT ANGELES RCO).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

WATTR ONE (OBSTACLE) (RNAV)

Instrument Approach

Terminal Area Forecast

KCLM

RAW

Reported

Thu, 4/23 10:26 PM PDT

Valid

Thu, 4/23 11:00 PM PDT - Fri, 4/24 11:00 PM PDT

VFR

11:00 PM PDT - 11:00 AM PDT

Sky Clear

Viz

6sm

Wind

270° 7kts

VFR

11:00 AM PDT - 6:00 PM PDT

Sky Clear

Viz

6sm

Wind

090° 8kts

VFR

6:00 PM PDT - 11:00 PM PDT

Sky Clear

Viz

6sm

Wind

250° 6kts

TAF KCLM 240526Z 2406/2506 27007KT P6SM SKC
FM241800 09008KT P6SM SKC
FM250100 25006KT P6SM SKC

KCLM

Effective	Expires	Category	NOTAM
FDC
1/23/26 1859Z			!FDC 6/6502 CLM IAP WILLIAM R FAIRCHILD INTL, PORT ANGELES, WA. RNAV (GPS) RWY 9, AMDT 1B... LPV DA 516/HAT 231, LNAV/VNAV DA 860/HAT 575, VISIBILITY 1 1/4. FOR INOPERATIVE ALS INCREASE LNAV/VNAV VISIBILITY TO 1 5/8 AND LNAV CATS C/D VISIBILITY TO 1 7/8. 2601231859-2801221859EST

ATC Tower

Attendance

0900-1930

Owner

PORT OF PORT ANGELES
PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-457-8527

Manager

JAMES ALTON
338 WEST FIRST STREET PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-417-3437

FSS

SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF

NOTAM

CLM

Light Schedule

Lights

ACTVT MALSR RWY 09; MIRL RWY 09/27 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

Dimensions

6347 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

120,000lbs

Double Wheel

210,000lbs

Double Tandem

394,000lbs

Dual Dbl Tand

832,000lbs

	Runway 09	Runway 27
True Heading	105°	285°
Traffic Pattern	Left	Right
Markings	PIR	NPI
Markings Condition	GOOD	GOOD
Latitude	48° 07' 16"N	48° 06' 60"N
Longitude	123° 30' 41"W	123° 29' 11"W
Elevation	284'	291'
Threshold Crossing Height	54 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3.7°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

Runway 13/31

Dimensions

3255 ft. x 50 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

30,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	148°	328°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	48° 07' 36"N	48° 07' 09"N
Longitude	123° 30' 17"W	123° 29' 51"W
Elevation	227'	271'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-4	RWY 13/31 CLSD DUSK TO DAWN.
A110-5	FOR CD IF UNA TO CTC ON FSS FREQ, CTC WHIDBEY APCH AT 360-257-3310.
A24	LDG FEE FOR ACFT IN EXCESS OF 7000 LBS.
A43-09	UNUSBL BYD 5.0 NM DUE TO HIGH TERRAIN
A43-27	UNUSBL BYD 8 DEGS L OF CNTRLN.
A57-27	+35' BLDG; DIST 520'; 500' LEFT; 15:1 BASED ON DSPLCD THR.
A70-100LL	FOR AFT HRS JET A CALL 360-452-6226.
A81-APT	ACTVT MALSR RWY 09; MIRL RWY 09/27 - CTAF.

WILLIAM R FAIRCHILD INTL (ICAO: KCLM, IATA: CLM) is a public airport located in PORT ANGELES, WA, US.
