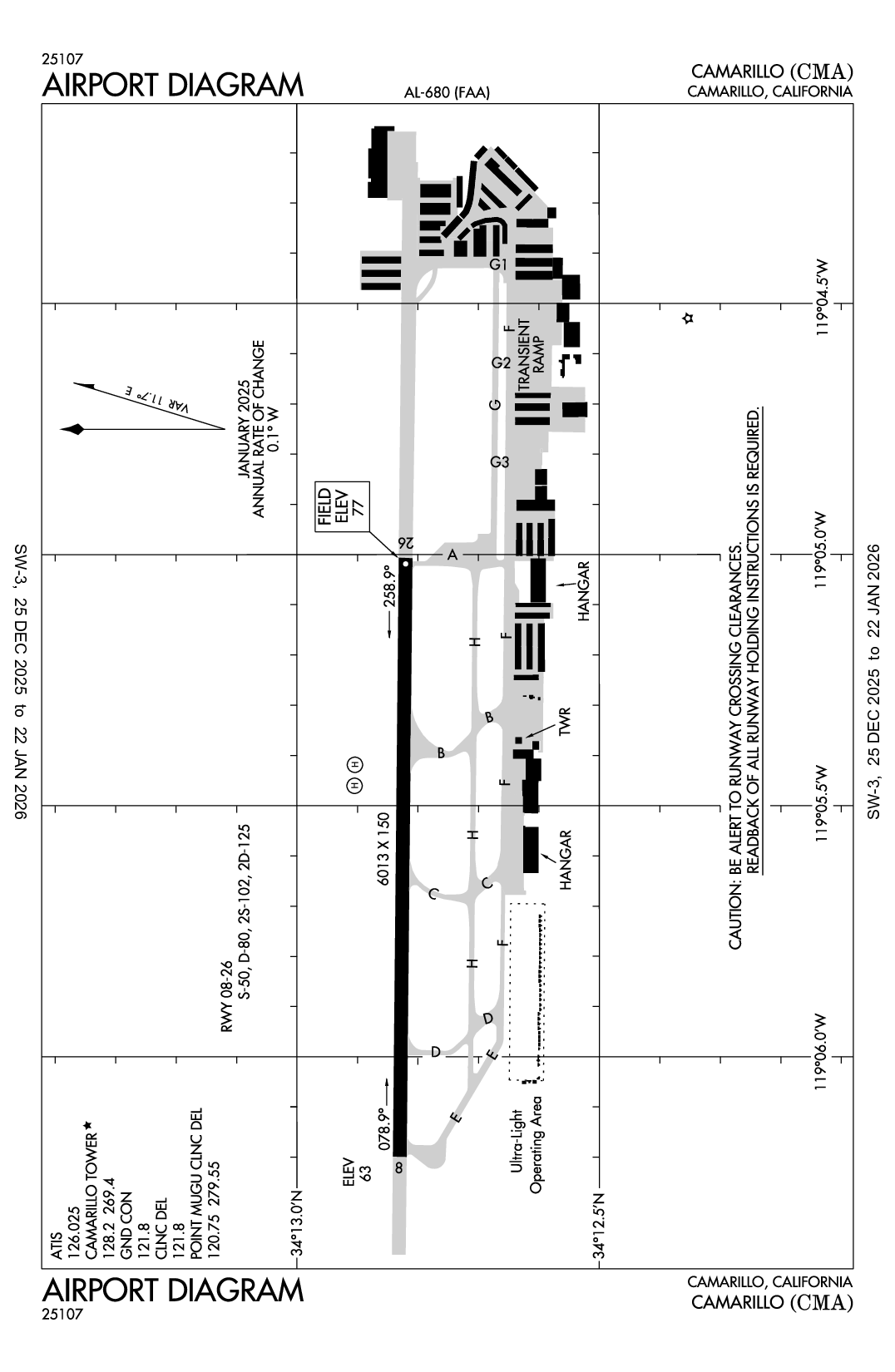

CAMARILLO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCMA
ICAO KCMALocal CMA
CAMARILLO
PublicPUB

3 miles W of CAMARILLO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 12' 50"N 119° 05' 40"W
Elevation
77' MSL
Pattern Alt
877' MSL
Mag Variation
12°E
Declination
14°E
Fuel
JET A, 100LL
FSS
HAWTHORNE (HHR)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
6/11/26-7/9/26
KCMA MVFR
12:55 PM PDT
Broken 1,800'
10sm
69°F
59°F
30.01"Hg
230° 11kts
Gusts 19kts
AO2 SLP170 T02060150
METAR KCMA 241955Z 23011G19KT 10SM BKN018 21/15 A3001 RMK AO2 SLP170 T02060150
+ Add Your Business

KCMA FBOs

Promote Listing
AIR 7
UNICOM: 130.8
Phone: (805) 383-1100
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 6/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.84 5.99 6.05
Fuel Notes
Prices include tax
Promote Listing
Sun Air Jets
ASRI: 130.75
Phone: (805) 389-9301
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.50 6.35 6.45
Fuel Notes
Prices include tax
Promote Listing
AVEX Aviation
UNICOM: 123.5
Phone: (805) 389-1188
Fax: (805) 389-3323
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Channel Islands Aviation
UNICOM: 129.1
Phone: (805) 987-1301
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.59
Full Serve 7.75 6.65 6.70
Fuel Notes
Prices include tax

KCMA Other Aviation Services

Promote Listing
EA Panels Inc.
Phone: (805) 395-4311
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.025
(805) 484-3351
ASOS 126.025
(805) 384-9294

Common

CTAF 128.2
WHEN ATCT CLSD ACTVT MIRL RY 08/26, REIL RYS 08 AND 26 AND PAPI RYS 8 AND 26 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 120.75
Clearance Delivery 120.75
2100-2300, POINT MUGU NAS
Clearance Delivery 121.8
0700-2100

Ground

CAMARILLO GROUND 121.8
0700-2100

Tower

CAMARILLO TOWER 128.2
0700-2100

Arrival

GUERA STAR 120.4

Approach

POINT MUGU APPROACH 124.7

Departure

POINT MUGU DEPARTURE 124.7

Center

POINT MUGU CENTER 135.5
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 135.5/327.1 (SANTA BARBARA RCAG) WHEN POINT MUGU APCH CTL (NTD) CLSD.

Terminal Area Forecast

KCMA
Wed, 6/24 10:46 AM PDT
Wed, 6/24 11:00 AM PDT - Thu, 6/25 11:00 AM PDT
MVFR
11:00 AM PDT - 2:00 PM PDT
Broken 1,200'
6sm
VRB° 4kts
VFR
2:00 PM PDT - 9:00 PM PDT
Scattered 15,000'
6sm
VRB° 4kts
IFR
9:00 PM PDT - 3:00 AM PDT
Overcast 800'
6sm
VRB° 3kts
LIFR
3:00 AM PDT - 11:00 AM PDT
Mist
Overcast 400'
4sm
VRB° 3kts
TAF KCMA 241746Z 2418/2518 VRB04KT P6SM BKN012
   FM242100 VRB04KT P6SM SCT150
   FM250400 VRB03KT P6SM OVC008
   FM251000 VRB03KT 4SM BR OVC004
KCMA
EffectiveExpiresCategoryNOTAM
Domestic
6/29/26
0530Z
7/10/26
1115Z
!CMA 06/023 CMA OBST CRANE (ASN UNKNOWN) 341147N1190830W (2.6NM SW CMA) 200FT (150FT AGL) FLAGGED AND LGTD DLY 0530-1115 2606290530-2607101115
5/29/26
1422Z
!CMA 05/060 CMA NAV VOR BEYOND 40NM UNUSABLE 2605291422-PERM
5/29/26
1214Z
!CMA 05/059 CMA NAV DME 150-157 BEYOND 16NM SFC-13900FT UNUSABLE 2605291214-PERM
5/29/26
1213Z
!CMA 05/058 CMA NAV DME 170-178 BEYOND 32NM SFC-5900FT UNUSABLE 2605291213-PERM
5/29/26
1212Z
!CMA 05/057 CMA NAV DME 083-150 BEYOND 19NM SFC-12900FT UNUSABLE 2605291212-PERM
5/29/26
1211Z
!CMA 05/056 CMA NAV DME 341-021 BEYOND 34NM SFC-14900FT UNUSABLE 2605291211-PERM
5/29/26
1209Z
!CMA 05/055 CMA NAV DME 321-340 BEYOND 34NM SFC-12900FT UNUSABLE 2605291209-PERM
5/29/26
1208Z
!CMA 05/054 CMA NAV VOR 221-235 BEYOND 20NM SFC-5900FT UNUSABLE 2605291208-PERM
5/29/26
1207Z
!CMA 05/053 CMA NAV VOR 205-220 BEYOND 16NM SFC-13900FT UNUSABLE 2605291207-PERM
5/29/26
1206Z
!CMA 05/052 CMA NAV VOR 185-284 BEYOND 16NM UNUSABLE 2605291206-PERM
5/29/26
1204Z
!CMA 05/051 CMA NAV VOR 150-184 BEYOND 16NM SFC-13900FT UNUSABLE 2605291204-PERM
5/29/26
1203Z
!CMA 05/050 CMA NAV VOR 278-059 BEYOND 10NM UNUSABLE 2605291203-PERM
5/29/26
1201Z
!CMA 05/049 CMA NAV VOR 278-059 SFC-8400FT UNUSABLE 2605291201-PERM
2/12/26
2133Z
8/12/26
2359Z
!CMA 02/021 CMA AIRSPACE SEE OXR 02/015 UAS 2602122133-2608122359
FDC
6/12/26
1559Z
!FDC 6/7945 CMA IAP CAMARILLO, CAMARILLO, CA.
VOR RWY 26, AMDT 5B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VORTAC UNMONITORED. 2606121559-2609011559EST
3/11/26
1439Z
!FDC 6/6657 CMA IAP CAMARILLO, CAMARILLO, CA.
RNAV (GPS) Y RWY 26, ORIG-A...
LNAV CAT C VISIBILITY 1 5/8. CIRCLING CAT C VISIBILITY 1 5/8.
DELETE NOTE DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH
GPS. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE OXR ALTIMETER SETTING AND INCREASE ALL MDAS 20
FEET. CHANGE VDP NA NOTE TO READ: VDP NA WHEN USING OXR ALTIMETER
SETTING. CHANGE *1720 WHEN USING OXNARD ALTIMETER SETTING TO *1720
WHEN USING OXR ALTIMETER SETTING. CHART PLANVIEW NOTE: FINAL
APPROACH COURSE OFFSET 5.01 DEGREES.
THIS IS RNAV (GPS) Y RWY 26, ORIG-B. 2603111439-PERM
1/22/26
1332Z
!FDC 6/6177 CMA IAP CAMARILLO, CAMARILLO, CA.
VOR RWY 26, AMDT 5B...
PROCEDURE NA.
2601221332-2801221331EST
12/26/24
1500Z
!FDC 4/1119 CMA ODP CAMARILLO, CAMARILLO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
AIRCRAFT DEPARTING CMA VOR/DME R-315 CW R-010, CROSS CMA VOR/DME AT OR ABOVE 5500.
ALL OTHER DATA REMAINS AS PUBLISHED.. 2412261500-2612261500EST
Yes
0700-2300
COUNTY OF VENTURA
555 AIRPORT WAY
CAMARILLO, CA 93010
Phone: 805-388-4372
KEITH FREITAS
555 AIRPORT WAY SUITE B
CAMARILLO, CA 93010
Phone: 805-388-4372
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
CMA
--
WHEN ATCT CLSD ACTVT MIRL RY 08/26, REIL RYS 08 AND 26 AND PAPI RYS 8 AND 26 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6013 ft. x 150 ft.
ASPH CONC
Good
RFSC
MED

50,000lbs
80,000lbs
125,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 12' 50"N 34° 12' 49"N
Longitude 119° 06' 15"W 119° 05' 04"W
Elevation 63' 77'
Threshold Crossing Height 48 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

34 ft. x 34 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 34° 12' 54"N N/A
Longitude 119° 05' 29"W N/A
Elevation 71' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

34 ft. x 34 ft.

CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 34° 12' 54"N N/A
Longitude 119° 05' 31"W N/A
Elevation 72' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNLGTD MTN 1173 FT MSL; BEGINNING 5 MILES FM EAST END RY 26. UNLGTD MTN 1814 FT MSL 5 MILES TO ESE OF APCH END RY 26.
A110-10NO FORMATION TKOFS OR LDGS.
A110-15HEL TRNG PADS TO THE N OF TWY B AND RY 8/26.
A110-16UPON ARR CTC FBO OR ARPT OPS 805-947-6803 FOR ASSISTANCE.
A110-17NOISE ORDINANCE CURFEW: ALL ACFT NO TKOFS BTN 0000 AND 0500 EXCP MIL, GOVT, MERCY FLTS & EMERG RESP.
A110-18NOISE: AVOID OVERFLIGHT OF RESIDENTIAL COMMUNITIES EAST AND NORTH OF ARPT WHEN POSS.
A110-19NOISE: ALL JET/TURBINE ACFT AVOID FLTS BTN 10PM AND 6AM LOCAL TO RDC NOISE OVER COMMUNITY.
A110-2WILDLIFE ON AND INVOF ARPT.
A110-20NOISE: ARR USE RWY 8, IF ABLE, WHEN ATCT CLSD.
A110-21NOISE: FLY FRIENDLY PROCEDURES IN EFFECT. VISIT VENTURA COUNTY AIRPORTS WEBSITE FOR DETAILS.
A110-22WT RSTRD TO ACFT WITH MAX TKOF WT BLW 115OOO LBS DUAL WHEEL GEAR.
A110-3NO LDGS/TAXIING/TKOFS ON CHEVERONED AREA EAST OF RY 26 THR.
A110-4NOISE: EXTREME NOISE SENSITIVE AREA.
A110-6BE ALERT TO HIGH PERFORMANCE MIL ACFT OPNS INVOF ARPT.
A14KEITH.FREITAS@VENTURA.ORG
A24<LNDG FEE FOR ACFT OVER 12,500 LBS.
A70-100LLFUEL AVBL 24 HRS SELF SERVE.
A81-APTWHEN ATCT CLSD ACTVT MIRL RY 08/26, REIL RYS 08 AND 26 AND PAPI RYS 8 AND 26 - CTAF.
A96ULTRALIGHT ACTIVITY SW QUAD OF ARPT.
E147TPA SINGLE ENGINE 800 FT AGL; MULTI ENGINE AND JETS 1000 FT AGL.
CAMARILLO (ICAO: KCMA, IATA: CMA) is a public airport located in CAMARILLO, CA, US.
