KCNM

ICAO KCNMIATA CNMLocal CNM

CAVERN CITY AIR TRML

PublicPUB

5 miles SW of CARLSBAD, NM, US

View on Map

Status

Operational

Coordinates

32° 20' 15"N 104° 15' 48"W

Elevation

3295' MSL

Pattern Alt

4295' MSL

Mag Variation

7°E

Declination

10°E

Fuel

JET A-1+, 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

ALBUQUERQUE

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

2/19/26-3/19/26

KCNM VFR

8:53 AM MDT RAW

Clear

Viz

10sm

Temp

74°F

Dew

19°F

Pres

29.79"Hg

Wind

260° 23kts

Gusts 29kts

RMK

AO2 PK WND 27034/1428 SLP032 T02331072 51022

METAR KCNM 151453Z AUTO 26023G29KT 10SM CLR 23/M07 A2979 RMK AO2 PK WND 27034/1428 SLP032 T02331072 51022

Add Your Business

KCNM FBOs

Promote Listing

Chandler Aviation

UNICOM: 123.0

Phone: (575) 887-1500

0 Reviews (Read | Sign In To Write)

Avfuel

As of 2/27	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.79		6.25
Full Serve	6.99		6.45

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	118.375
(575) 887-6858

Common

CTAF	123.0
ACTVT MALSR RWY 03; MIRL RWY 03/21, 08/26 & 14R/32L - CTAF. MALSR RWY 03 & MIRL RWY 03/21, 08/26, 14R/32L PRESET LOW INTST; INCR INTST - CTAF.
UNICOM	123.0

Center

ALBUQUERQUE CENTER	135.875
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON FREQS 135.875/292.15 (CARLSBAD RCAG).

Flight Service

Flight Service	122.4
(ABQ)

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

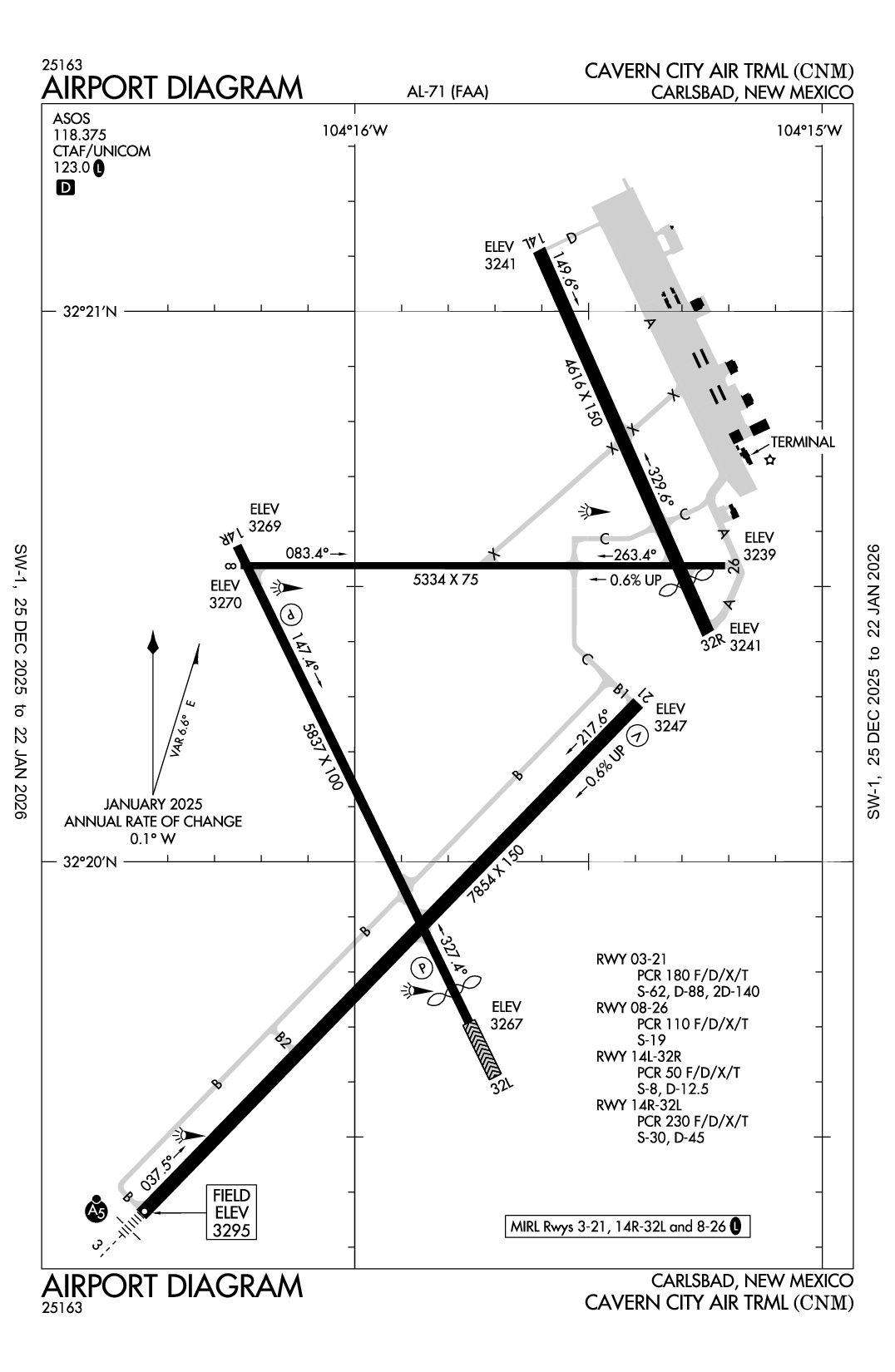

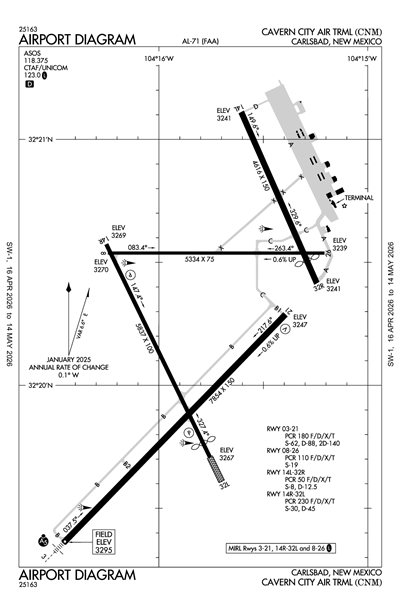

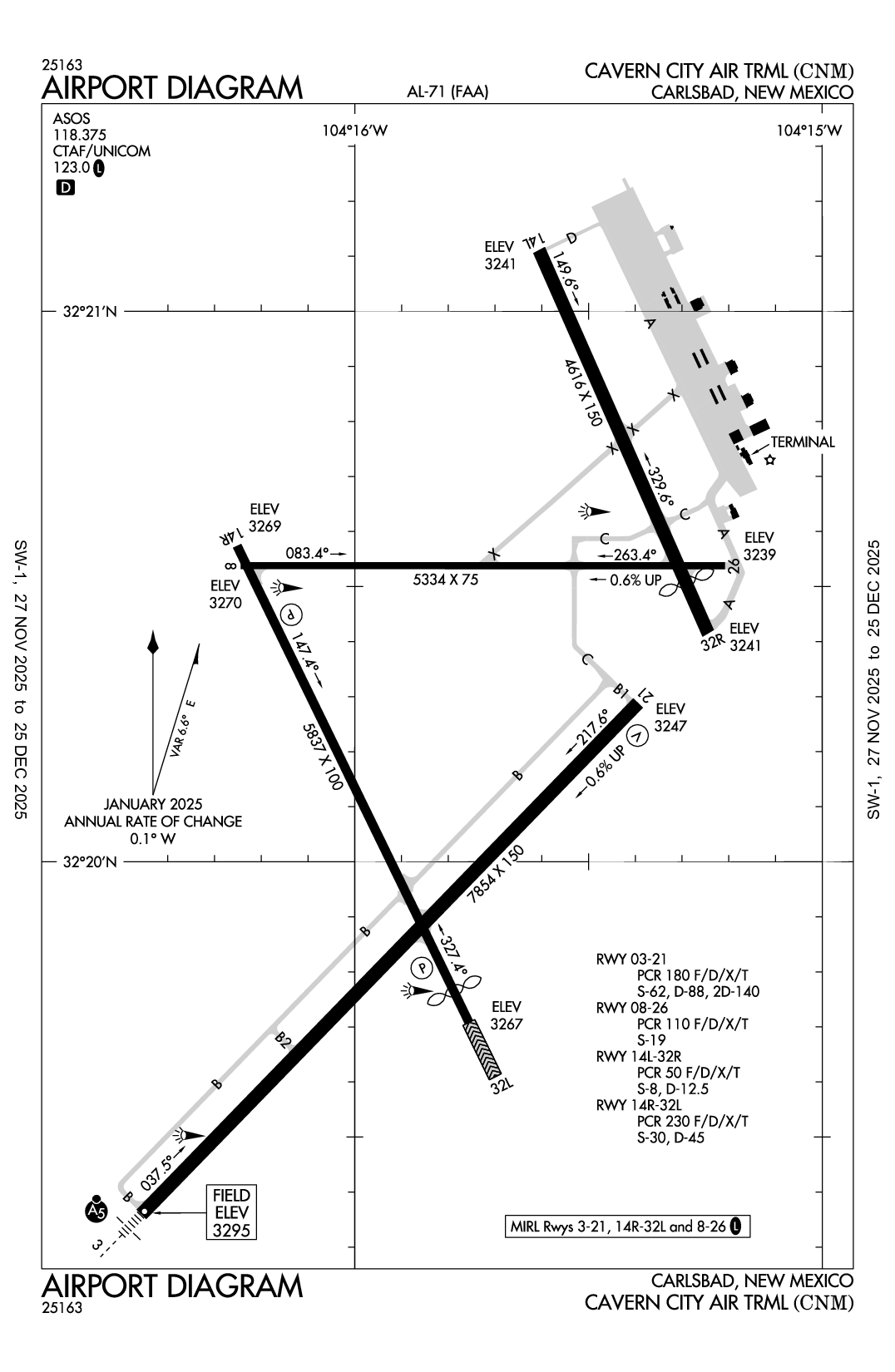

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCNM

RAW

Reported

Sun, 3/15 5:22 AM MDT

Valid

Sun, 3/15 6:00 AM MDT - Mon, 3/16 6:00 AM MDT

VFR

6:00 AM MDT - 11:00 AM MDT

Sky Clear

Viz

6sm

Wind

270° 22kts

Gusts 31kts

VFR

11:00 AM MDT - 7:00 PM MDT

Blowing Dust

Few 25,000'

Viz

6sm

Wind

340° 20kts

Gusts 28kts

VFR

7:00 PM MDT - 10:00 PM MDT

Few 25,000'

Viz

6sm

Wind

040° 13kts

Gusts 22kts

VFR

10:00 PM MDT - 6:00 AM MDT

Few 25,000'

Viz

6sm

Wind

070° 10kts

TAF KCNM 151122Z 1512/1612 27022G31KT P6SM SKC
   FM151700 34020G28KT 6SM BLDU FEW250
   FM160100 04013G22KT P6SM FEW250
   FM160400 07010KT P6SM FEW250

KCNM

Effective	Expires	Category	NOTAM
Domestic
3/17/26 1530Z	3/17/26 2030Z		!CNM 03/014 CNM NAV VORTAC U/S 2603171530-2603172030
3/12/26 1709Z	4/13/26 2359Z		!CNM 03/019 CNM OBST TOWER LGT (ASR 1296850) 315521.10N1040125.00W (27.59NM SE CNM) 3229FT (255FT AGL) U/S 2603121709-2604132359
3/9/26 2217Z	4/15/26 2359Z		!CNM 03/013 CNM AD AP SELF SERVE FUEL NOT AVBL 2603092217-2604152359
3/9/26 2216Z	4/15/26 2359Z		!CNM 03/012 CNM TWY A 200FT NORTHEAST CLSD 2603092216-2604152359
3/9/26 2211Z	4/15/26 2359Z		!CNM 03/011 CNM APRON TERMINAL RAMP CLSD 2603092211-2604152359
3/9/26 1507Z	4/9/26 2359Z		!CNM 03/008 CNM OBST TOWER LGT (ASR 1306266) 315458.50N1040123.00W (27.94NM SE CNM) 3202FT (207FT AGL) U/S 2603091507-2604092359
3/8/26 1634Z	4/22/26 1633Z		!CNM 03/007 CNM OBST TOWER LGT (ASR 1006444) 321318.00N1041832.00W (7.3NM SSW CNM) 3763.1FT (318.2FT AGL) U/S 2603081634-2604221633
2/16/26 2231Z	3/19/26 0659Z	Runway	!CNM 02/016 CNM RWY 14L/32R CLSD EXC TAX 2602162231-2603190659
2/16/26 2229Z	3/19/26 2359Z		!CNM 02/014 CNM APRON BTN FIXED BASE OPR AND TWY A WIP CONST 2602162229-2603192359
2/16/26 0800Z	4/19/26 2359Z		!CNM 02/013 CNM OBST RIG (ASN UNKNOWN) 322132N1041306W (2.433NM NE APCH END RWY 26) UNKNOWN (180FT AGL) FLAGGED AND LGTD 2602160800-2604192359
1/22/26 2239Z	4/22/26 2359Z		!CNM 01/011 CNM OBST TOWER LGT (ASR 1259394) 322832.20N1041144.00W (8.9NM NNE CNM) 3730.6FT (485.9FT AGL) U/S 2601222239-2604222359
12/27/25 1722Z	3/26/26 2359Z		!CNM 12/020 CNM OBST TOWER LGT (ASR 1050882) 323422.00N1040534.00W (16.5NM NNE CNM) 4032.2FT (715.2FT AGL) U/S 2512271722-2603262359
9/19/25 1833Z	9/19/26 2359Z		!CNM 09/009 CNM OBST BLDG (ASN UNKNOWN) 322042N1041509W (0.7NM NE CNM) 3247FT (14FT AGL) NOT FLAGGED OR LGTD 2509191833-2609192359
12/22/23 1430Z			!CNM 12/011 CNM TWY E CLSD 2312221430-PERM
12/13/23 2149Z		Runway	!CNM 12/007 CNM RWY 03/21 SAFETY AREA REDUCED WIDTH TO 400FT 2312132149-PERM
FDC
3/12/26 0155Z	4/12/26 0155Z		!FDC 6/7143 CNM IAP CAVERN CITY AIR TRML, CARLSBAD, NM. ILS RWY 3, AMDT 4D... VOR RWY 32L, AMDT 6B... ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CNM VORTAC UNMONITORED. 2603120155-2604120155EST
3/4/26 1315Z			!FDC 6/3362 CNM IAP CAVERN CITY AIR TRML, CARLSBAD, NM. ILS RWY 3, AMDT 4D... S-LOC 3 CAT C VISIBILITY 1 3/8. CIRCLING CAT C VISIBILITY 1 7/8. CHANGE ALTERNATE MINIMUMS TO: ILS: STANDARD NA WHEN LOCAL WEATHER NOT AVAILABLE; LOC: STANDARD CAT D 1000-3, NA WHEN LOCAL WEATHER NOT AVAILABLE. DELETE *LOC ONLY. CHANGE MIN ALT AT CARLZ TO: CARLZ LOM/INT 5000. THIS IS ILS RWY 3, AMDT 4E. 2603041315-PERM
12/26/24 1156Z			!FDC 4/0878 CNM IAP CAVERN CITY AIR TRML, CARLSBAD, NM. ILS RWY 3, AMDT 4D... RNAV (GPS) RWY 14R, AMDT 1A... RNAV (GPS) RWY 21, AMDT 1B... RNAV (GPS) RWY 32L, AMDT 1D... VOR RWY 32L, AMDT 6B... CIRCLING CAT C VISIBILITY 1 7/8. 2412261156-2612261156EST

ATC Tower

Attendance

MON-FRI 0600-2000
SAT-SUN 0700-1700
SFC COND UNMTD MON-FRI 2200-1200 UTC (1500-0500 LOCAL) AND SAT-SUN 2030-1200 UTC (1330-0500 LOCAL).

Owner

CITY OF CARLSBAD
101 NORTH HALAGUENO ST
CARLSBAD, NM 88220
Phone: 575-887-1191

Manager

ROBERT ESPINOZA
101 NORTH HALAGUENO ST
CARLSBAD, NM 88220
Phone: 575-887-3060

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

CNM

Light Schedule

Lights

ACTVT MALSR RWY 03; MIRL RWY 03/21, 08/26 & 14R/32L - CTAF. MALSR RWY 03 & MIRL RWY 03/21, 08/26, 14R/32L PRESET LOW INTST; INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance

Runway 03/21

Dimensions

7854 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

PFC

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

62,000lbs

Double Wheel

88,000lbs

Double Tandem

140,000lbs

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	44°	224°
Traffic Pattern	Left	Left
Markings	PIR	NPI
Markings Condition	POOR	POOR
Latitude	32° 19' 22"N	32° 20' 17"N
Longitude	104° 16' 27"W	104° 15' 24"W
Elevation	3,294'	3,247'
Threshold Crossing Height	--	58 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	V4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights	No

Runway 08/26

Dimensions

5334 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

19,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	32° 20' 32"N	32° 20' 32"N
Longitude	104° 16' 15"W	104° 15' 12"W
Elevation	3,270'	3,239'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14L/32R

Dimensions

4616 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

8,000lbs

Double Wheel

12,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14L	Runway 32R
True Heading	156°	336°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	32° 21' 07"N	32° 20' 25"N
Longitude	104° 15' 36"W	104° 15' 15"W
Elevation	3,241'	3,241'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14R/32L

Dimensions

5837 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14R	Runway 32L
True Heading	154°	334°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	32° 20' 34"N	32° 19' 42"N
Longitude	104° 16' 15"W	104° 15' 45"W
Elevation	3,269'	3,267'
Threshold Crossing Height	56 ft. AGL	59 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-3	OIL DERRICKS INVOF ARPT.
A110-4	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A17-H1	SFC COND UNMTD MON-FRI 2200-1200 UTC (1500-0500 LOCAL) AND SAT-SUN 2030-1200 UTC (1330-0500 LOCAL).
A26	ACR OPS MORE THAN 30 PAX SEATS 24 HR PPR - AMGR.
A30-14L/32R	RWY 14L/32R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-03/21	PCR VALUE: 180/F/D/X/T
A39-08/26	PCR VALUE: 110/F/D/X/T
A39-14L/32R	PCR VALUE: 50/F/D/X/T
A39-14R/32L	PCR VALUE: 230/F/D/X/T
A57-32L	APCH SLOPE 50:1 FM DTHR.
A57-32R	APCH SLOPE 38:1 FM DTHR.
A70-100LL	FUEL AFT HR & WKEND - 575-887-1500.
A81-APT	ACTVT MALSR RWY 03; MIRL RWY 03/21, 08/26 & 14R/32L - CTAF. MALSR RWY 03 & MIRL RWY 03/21, 08/26, 14R/32L PRESET LOW INTST; INCR INTST - CTAF.

CAVERN CITY AIR TRML (ICAO: KCNM, IATA: CNM) is a public airport located in CARLSBAD, NM, US.
