iFlightPlanner



...

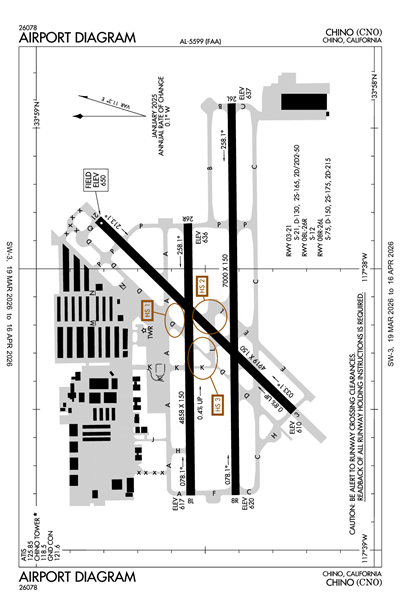

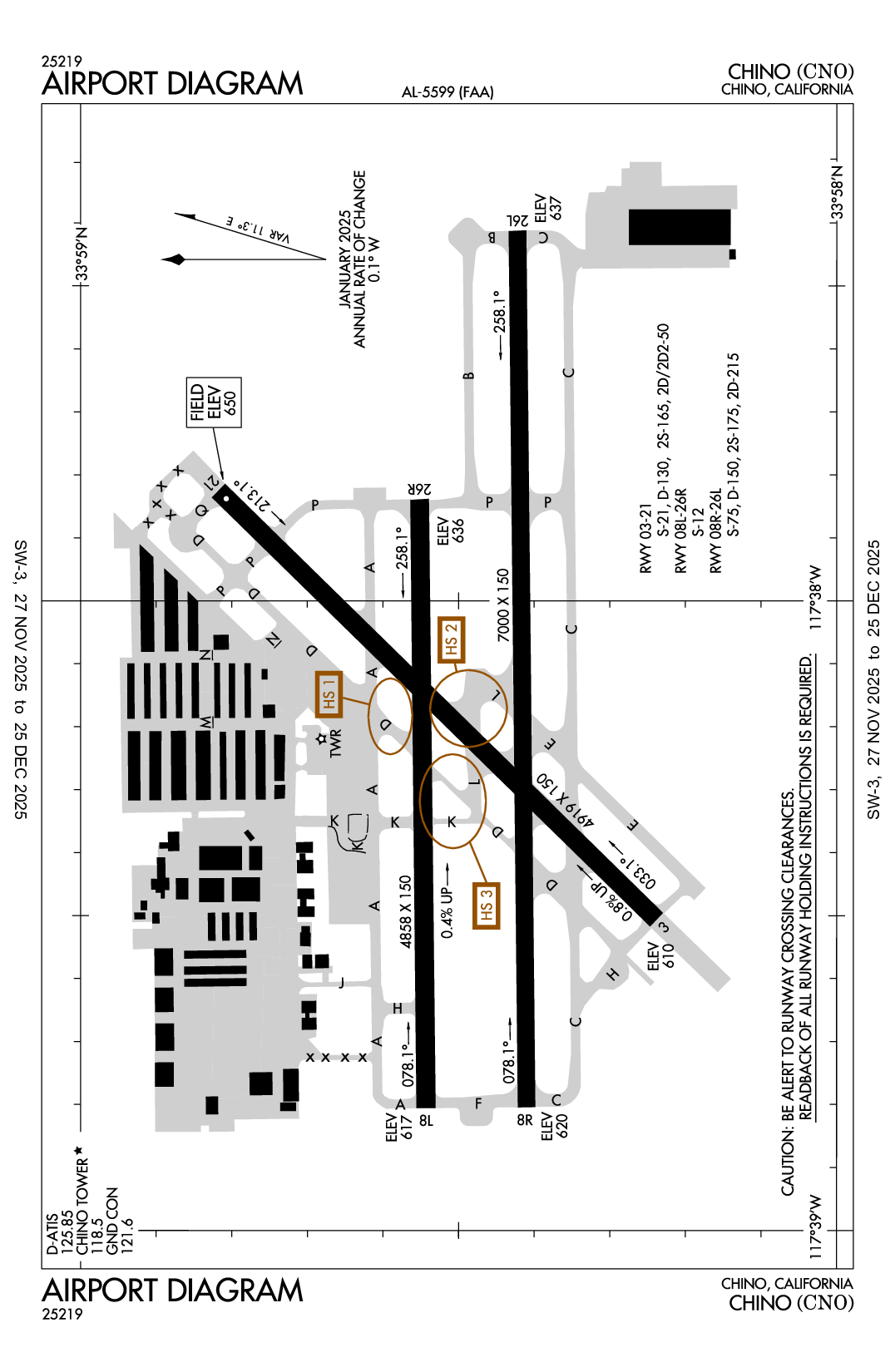

CHINO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCNO
CHINO
PublicPUB

3 miles SE of CHINO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 58' 29"N 117° 38' 11"W
650' MSL
1400' MSL
14E
Jet A, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
4/18/24-5/16/24
KCNO MVFR
5:53 AM PDT
Overcast 3,300'
Broken 1,000'
10sm
57°F
31°F
29.96"Hg
270° 6kts
AO2 SLP141 T01391006
KCNO 231253Z AUTO 27006KT 10SM BKN010 OVC033 14/M01 A2996 RMK AO2 SLP141 T01391006
List Your Business

KCNO FBOs, Flight Schools and Ground Support

Promote Listing
Chino Fuel Services
Freq: 129.775
Phone: (909) 597-6566
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.01
Full Serve 6.21 5.42 5.47
Promote Listing
Flying Tigers Aviation
Freq: 122.95
Phone: (909) 606-3300
Other: (909) 606-0100
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.11
Full Serve 6.31 5.41 5.53
Promote Listing
Threshold Aviation
Freq: 128.925
Phone: (909) 606-6164
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.49 5.52 5.60

KCNO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCNO Hotels

No hotels are listed for this airport.

KCNO Restaurants

No restaurants are listed for this airport.

KCNO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
(909) 393-5365
 125.85

Ground

GND/P
 121.6

Tower

LCL/P
 118.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KONT (6nm)
Tue, 4/23 5:14 AM PDT
Tue, 4/23 5:00 AM PDT - Wed, 4/24 11:00 AM PDT
MVFR
5:00 AM PDT - 12:00 PM PDT
Overcast 2,500'
Scattered 1,000'
6sm
250° 7kts
MVFR
Temporary 6:00 AM PDT - 9:00 AM PDT
Mist
Broken 1,000'
5sm
Calm
VFR
12:00 PM PDT - 10:00 PM PDT
Few 2,500'
6sm
250° 11kts
MVFR
10:00 PM PDT - 11:00 AM PDT
Overcast 2,000'
6sm
250° 6kts
KONT 231214Z 2312/2418 25007KT P6SM SCT010 OVC025
   TEMPO 2313/2316 5SM BR BKN010
   FM231900 25011KT P6SM FEW025
   FM240500 25006KT P6SM OVC020
KCNO
Domestic
4/25/241430Z !CNO 04/025 CNO RWY 26R CLSD TO LDG 2404251430-2404251830
4/24/241430Z !CNO 04/024 CNO RWY 26L CLSD TO LDG 2404241430-2404241830
4/19/241530Z !CNO 04/023 CNO OBST TOWER LGT (ASN 2011-AWP-7807-OE) 335959N1173816W (1.5NM N CNO) 880FT (180FT AGL) U/S 2404191530-2405041530
4/19/241515Z !CNO 04/022 CNO OBST POWER LINE LGT (ASN 2020-AWP-4445-OE) 335738N1173744W (0.9NM SSE CNO) 797FT (201FT AGL) U/S 2404191515-2405041515
4/15/242118Z !CNO 04/021 CNO OBST POWER LINE LGT (ASN 2011-AWP-2062-OE) 335954N1174005W (2.1NM NW CNO) 834FT (151FT AGL) U/S 2404152118-2404302118
4/15/242115Z !CNO 04/020 CNO OBST POWER LINE LGT (ASN 2020-AWP-4764-OE) 335949N1174049W (2.6NM WNW CNO) 870FT (201FT AGL) U/S 2404152115-2404302115
4/14/242031Z !CNO 04/019 CNO OBST POWER LINE LGT (ASN 2011-AWP-2039-OE) 335953N1173951W (2.0NM NW CNO) 809FT (127FT AGL) U/S 2404142031-2404292031
4/14/242026Z !CNO 04/018 CNO OBST POWER LINE LGT (ASN 2011-AWP-2077-OE) 335956N1173941W (1.9NM NW CNO) 817FT (129FT AGL) U/S 2404142026-2404292026
4/13/242135Z !CNO 04/017 CNO OBST POWER LINE LGT (ASN 2020-AWP-4439-OE) 335637N1174032W (2.7NM SW CNO) 919FT (216FT AGL) U/S 2404132135-2404282135
4/13/242134Z !CNO 04/016 CNO OBST TOWER LGT (ASN 2011-AWP-7816-OE) 340002N1173634W (2.0NM NE CNO) 876FT (164FT AGL) U/S 2404132134-2404282134
4/12/241803Z !CNO 04/011 CNO OBST TOWER LGT (ASN 2011-AWP-7806-OE) 335959N1173830W (1.5NM N CNO) 879FT (179FT AGL) U/S 2404121803-2404271803
4/11/241239Z !CNO 04/010 CNO OBST POWER LINE LGT (ASN 2012-AWP-399-OE) 340025N1173740W (2.0NM NNE CNO) 881FT (153FT AGL) U/S 2404111239-2404261239
3/27/242016Z !CNO 03/021 CNO OBST TOWER LGT (ASR UNKNOWN) 335353.35N1174448.77W (8.3NM SW CNO) 1300FT (100FT AGL) U/S 2403272016-2406282300
FDC
3/15/241556Z !FDC 4/7755 CNO IAP CHINO, CHINO, CA.
ILS OR LOC RWY 26R, AMDT 8B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
HDF VOR OUT OF SERVICE AND RAL VOR R-255 THRU 265 UNUSABLE.
2403151556-2506181556EST
2/27/241843Z !FDC 4/0246 CNO IAP CHINO, CHINO, CA.
VOR RWY 26R, ORIG-A...
PROCEDURE NA.
RAL VOR R-264 UNUSABLE.
2402271843-2602261842EST
Yes
ALL
COUNTY OF SAN BERNARDINO
7000 MERRILL AVENUE BOX 1
CHINO, CA 91710-9091
Phone: 909-597-3910
MAUREEN SNELGROVE
777 EAST RIALTO AVE.
SAN BERNARDINO, CA 92415-0831
Phone: 909-387-8810
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
CNO
--
WHEN ATCT CLSD MIRL RY 03/21, HIRL RY 08L/26R, MIRL 08R/26L ARE TURNED ON. PAPI RYS 26R, 08R, 26L, 03, 21 AND REIL RYS 03 & 21 OPER CONTINUOUSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
495
96
67
25
0
0
Major
Major
None
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 03/21

4919 ft. x 150 ft.
ASPH
Good
NONE
MED

21,000lbs
130,000lbs
--
50,000lbs
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 58' 14"N 33° 58' 49"N
Longitude 117° 38' 30"W 117° 37' 50"W
Elevation 610' 650'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 08L/26R

4858 ft. x 150 ft.
ASPH
Good
NONE
HIGH

12,000lbs
--
--
--
  Runway 08L Runway 26R
True Heading 89°269°
Traffic Pattern Right Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 33° 58' 33"N 33° 58' 33"N
Longitude 117° 38' 48"W 117° 37' 51"W
Elevation 617' 636'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08R/26L

7000 ft. x 150 ft.
ASPH
Good
GRVD
MED

75,000lbs
150,000lbs
215,000lbs
--
  Runway 08R Runway 26L
True Heading 89°269°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 58' 25"N 33° 58' 25"N
Longitude 117° 38' 48"W 117° 37' 25"W
Elevation 620' 636'
Threshold Crossing Height 52 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RADIO CONTROLLED AIRCRAFT ACTIVITY BELOW 400 FT AGL 2.5 NM SOUTH OF AIRPORT
A110-11BIRDS AND WILDLIFE ON AND INVOF ARPT.
A110-12FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
CHINO (ICAO: KCNO, IATA: CNO) is a public airport located in CHINO, CA.
