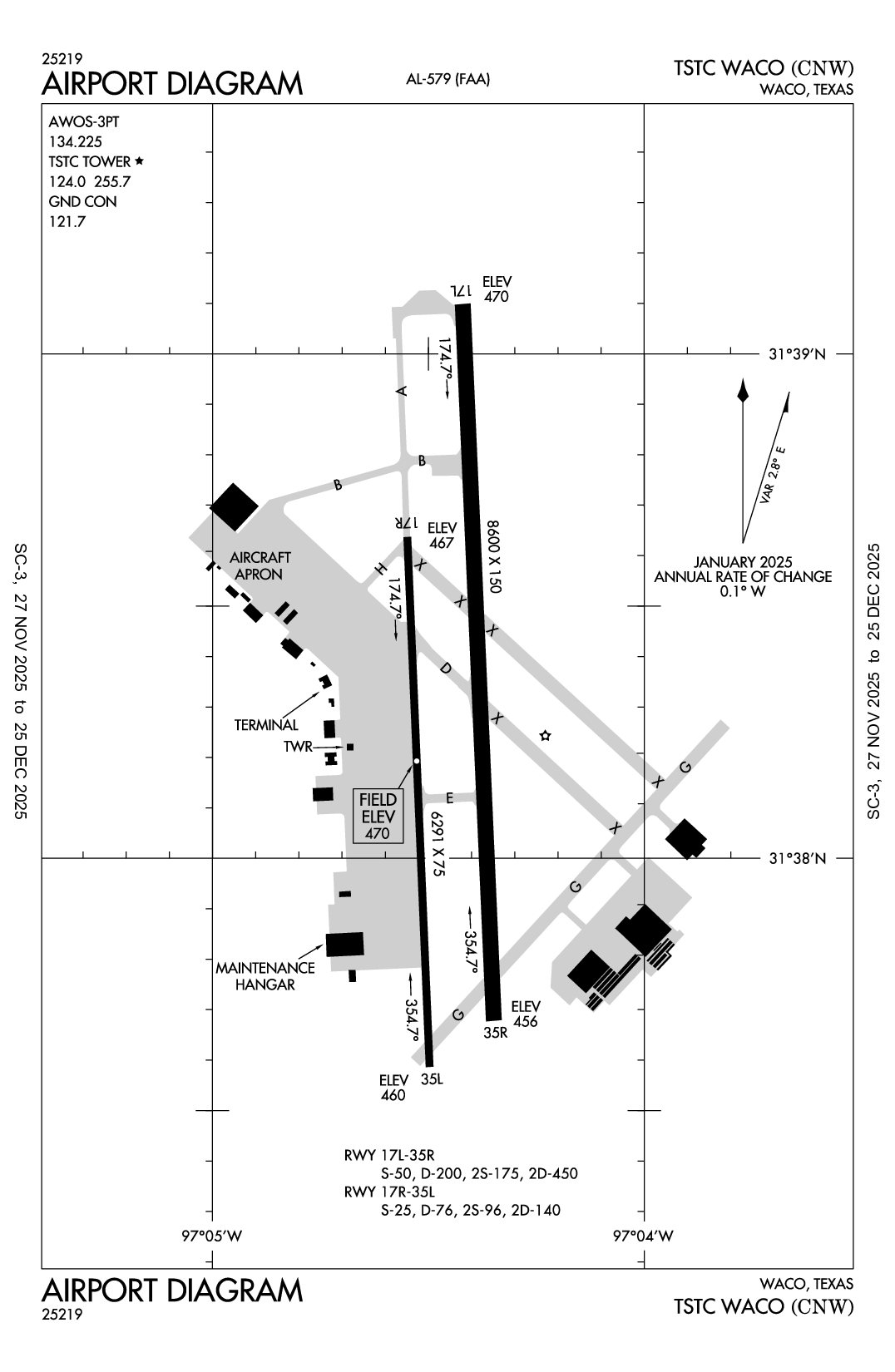

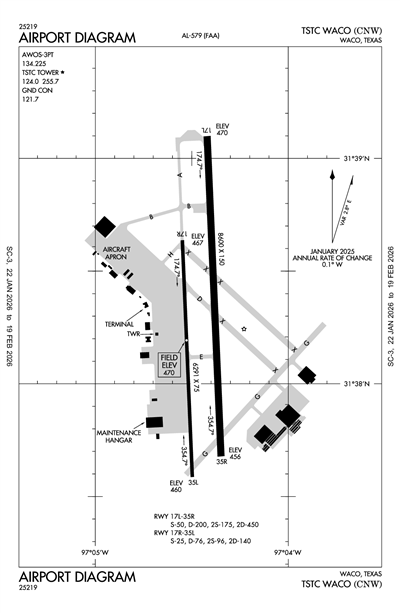

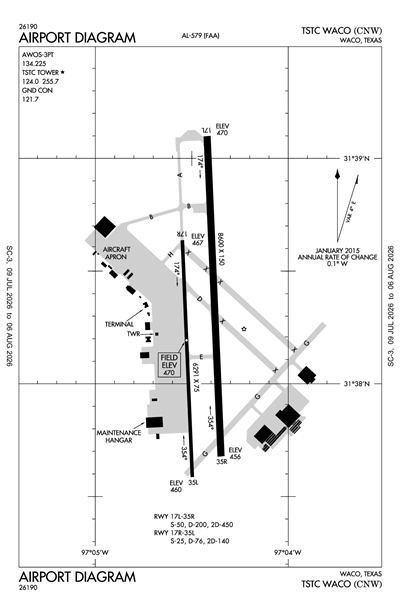

TSTC WACO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCNW
ICAO KCNWIATA CNWLocal CNW
TSTC WACO
PublicPUB

8 miles NE of WACO, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 38' 16"N 97° 04' 27"W
Elevation
470' MSL
Pattern Alt
1470' MSL
Mag Variation
3°E
Declination
4°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
7/9/26-8/6/26
KCNW VFR
10:55 AM CDT
Haze
Clear
7sm
90°F
64°F
30.06"Hg
210° 8kts
METAR KCNW 261555Z 21008KT 7SM HZ CLR 32/18 A3006
+ Add Your Business

KCNW FBOs

Promote Listing
Servion of Waco
UNICOM: 122.95
Phone: (254) 799-5513
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.77 6.07
Fuel Notes
Prices include tax

KCNW Flight Schools & Aircraft Rental

Promote Listing
Texas State Technical College
Phone: (325) 430-7027
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 134.225
(254) 867-3880

Common

CTAF 124.0
UNICOM 122.95

Ground

TSTC GROUND 121.7
0700-2300

Tower

TSTC TOWER 124.0
0700-2300

Approach

WACO APPROACH 127.65

Departure

WACO DEPARTURE 126.125

RADAR

Airport Surveillance RADAR (ASR) 132.525

Center

WACO CENTER 133.3
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.3/269.5 (WACO RCAG) WHEN WACO APCH CTL (ACT) CLSD.

Terminal Area Forecast

KACT (8nm)
Sun, 7/26 9:52 AM CDT
Sun, 7/26 10:00 AM CDT - Mon, 7/27 7:00 AM CDT
VFR
10:00 AM CDT - 7:00 AM CDT
Few 25,000'
6sm
190° 11kts
TAF KACT 261452Z 2615/2712 19011KT P6SM FEW250
KCNW
EffectiveExpiresCategoryNOTAM
Domestic
7/27/26
1300Z
7/30/26
2300Z
!FTW 07/781 CNW SVC AUTOMATED WX BCST SYSTEM U/S 2607271300-2607302300
7/27/26
1300Z
7/31/26
2200Z
!FTW 07/709 CNW SVC AUTOMATED WX BCST SYSTEM U/S 2607271300-2607312200
7/25/26
1501Z
10/24/26
0400Z
!FTW 07/758 CNW OBST TOWER LGT (ASR 1232686) 314706.70N0970627.20W (9.0NM N CNW) 995.7FT (381.9FT AGL) U/S 2607251501-2610240400
6/1/26
1635Z
9/29/26
1635Z
!FTW 06/018 CNW OBST TOWER LGT (ASR 1052618) 314545.70N0970834.70W (8.2NM NNW CNW) 999.7FT (409.8FT AGL) U/S 2606011635-2609291635
FDC
7/27/26
1300Z
!FDC 6/8615 CNW IAP TSTC WACO, WACO, TX. RNAV (GPS) RWY 35R, AMDT 2A... NOTE: FOR CONTINGENCY PURPOSES: USE WACO RGNL ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET. INCREASE LNAV CAT C/D VISIBILITY 1/8 SM. VDP NA. CNW AWOS OUT OF SERVICE. 2607271300-2607312200EST
7/27/26
1300Z
!FDC 6/8614 CNW IAP TSTC WACO, WACO, TX.
RNAV (GPS) RWY 17L, AMDT 2...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WACO RGNL ALTIMETER SETTING AND INCREASE LPV DA TO 696 FEET, LNAV/VNAV DA TO 746 FEET AND ALL MDAS 40 FEET, INCREASE LNAV/VNAV ALL CATS AND LNAV CATS C/D VISIBILITY 1/8 SM AND CIRCLING CATS C/D VISIBILITY 1/4 SM. NOTE: BARO-VNAV AND VDP NA WHEN USING WACO RGNL ALTIMETER SETTING. NOTE: FOR INOPERATIVE ALS, WHEN USING WACO RGNL ALTIMETER SETTING, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 7/8 SM AND LNAV CATS C/D VISIBILITY TO 1 1/8 SM. CNW AWOS OUT OF SERVICE.
2607271300-2607312200EST
7/27/26
1300Z
!FDC 6/8613 CNW IAP TSTC WACO, WACO, TX.
ILS OR LOC RWY 17L, AMDT 14...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE ACT ALTIMETER SETTING AND INCREASE S-ILS 17L DA TO 696 FEET; INCREASE ALL MDAS 40 FEET AND S-LOC 17L VISIBILITY CATS C AND D 1/8 SM, AND CIRCLING VISIBILITY CATS C AND D 1/4 SM. CNW AWOS OUT OF SERVICE.
2607271300-2607312200EST
5/20/26
1509Z
!FDC 6/1950 CNW IAP TSTC WACO, WACO, TX.
ILS OR LOC RWY 17L, AMDT 14...
TERMINAL ROUTE: FOXOR (IAF) TO CUKAV (IF) MINIMUM ALTITUDE 2400, CHANGE NOTE TO READ: 2400 NOPT 174 DEGREES (7.8). CHANGE ALTITUDE AT CUKAV FROM 2300 TO 2400. WIND TURBINES, UP TO 1349 MSL, BEGINNING 17.42 NM NORTH OF RWY 17L (2024-WTW-5580/5582/5598 THRU 5601/5605/5624-OE).
2605201509-2805201509EST
10/5/25
1954Z
!FDC 5/6403 CNW IAP TSTC WACO, WACO, TX.
RNAV (GPS) RWY 35R, AMDT 2A...
CHANGE MISSED APPROACH TO: CLIMB TO 2400 DIRECT CUKAV AND HOLD.
WIND TURBINES, UP TO 1349 MSL, BEGINNING 18.82 NM NORTH OF RWY 35L (2024-WTW-5580/5582/5598 THRU 5601/5605/5624-OE).
2510051954-2710051954EST
10/5/25
1954Z
!FDC 5/6400 CNW IAP TSTC WACO, WACO, TX.
RNAV (GPS) RWY 17L, AMDT 2...
TERMINAL ROUTE: FEEDER SEGMENT WACO (ACT) VORTAC TO CUKAV (IAF) MINIMUM ALTIUDE 2400.
TERMINAL ROUTE: FEEDER SEGMENT CEDAR CREEK (CQY) VORTAC TO TOURS (IAF) MINIMUM ALTITUDE 2400.
TOURS IAF ALTITUDE 2400, CHANGE NOTE TO READ: 2400 NOPT 174 DEGREES (4.8).
CHANGE NOTE AT CUKAV H-I-L TO READ, HOLD: BLOCK ALTITUDE 2400 TO 6000.
WIND TURBINES, UP TO 1349 MSL, BEGINNING 17.42 NM NORTH OF RWY 17L (2024-WTW-5580/5582/5598 THRU 5601/5605/5624-OE).
2510051954-2710051954EST
Yes
MON-FRI 0600-1800
TEXAS STATE TECH COLLEGE
3801 CAMPUS DRIVE
WACO, TX 76705
Phone: 254-799-3611
JOSEPH CAMPBELL
3801 CAMPUS DRIVE
WACO, TX 76705
Phone: 254-867-2286
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
WHEN ATCT CLSD MIRL RWY 17L/35R PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 17L & PAPI RWY 17L & 35R - 121.7.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Ambulance
Pilot Instruction

Runway 17L/35R

8600 ft. x 150 ft.
ASPH
Excellent
NONE
MED

50,000lbs
200,000lbs
450,000lbs
--
  Runway 17L Runway 35R
True Heading 178°358°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 39' 06"N 31° 37' 41"N
Longitude 97° 04' 26"W 97° 04' 21"W
Elevation 470' 456'
Threshold Crossing Height 52 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

6291 ft. x 75 ft.
CONC
Good
NONE


25,000lbs
76,000lbs
140,000lbs
--
  Runway 17R Runway 35L
True Heading 178°358°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 38' 38"N 31° 37' 35"N
Longitude 97° 04' 33"W 97° 04' 30"W
Elevation 467' 460'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1EXTSV FLT TRNG IN CLASS D AIRSPACE SFC TO 3000 FT AGL.
A110-3APU AVBL FOR JET ACFT.
A110-6RWY 17R-35L NOT LGTD. MAY BE USED FOR TAXI AND HEL OPNS.
A110-7AMGR CELL 910-578-8509.
A46-17R17R/35L GREEN CNTRLN REFLECTORS ALONG FULL LENGTH OF RWY.
A46-35LGREEN CNTRLN REFLECTORS ALONG FULL LENGTH OF RWY.
A81-APTWHEN ATCT CLSD MIRL RWY 17L/35R PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 17L & PAPI RWY 17L & 35R - 121.7.
TSTC WACO (ICAO: KCNW, IATA: CNW) is a public airport located in WACO, TX, US.
