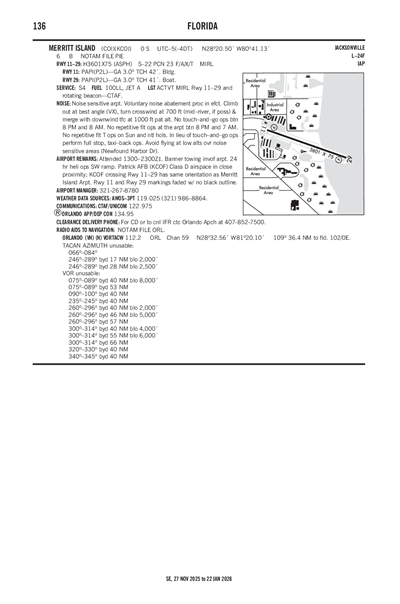

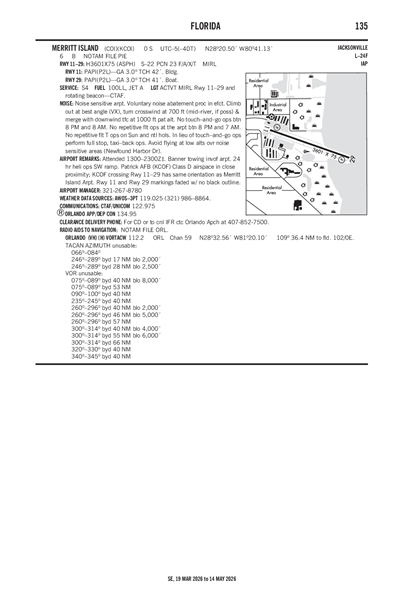

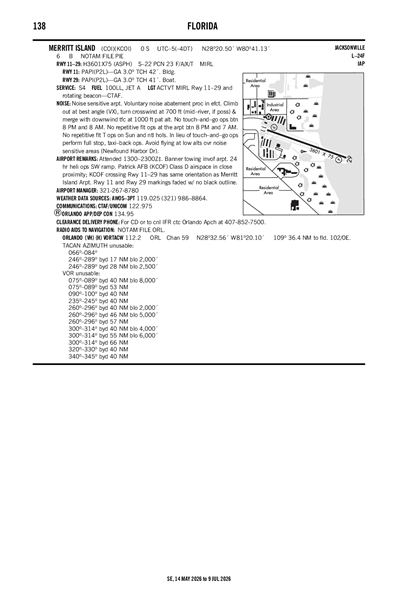

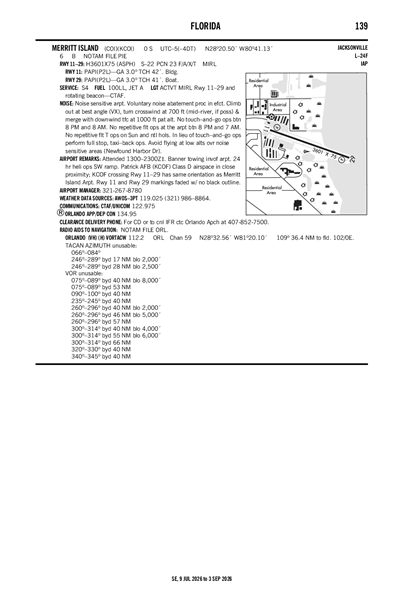

MERRITT ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCOI
ICAO KCOIIATA COILocal COI
MERRITT ISLAND
PublicPUB

0 miles S of MERRITT ISLAND, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 20' 30"N 80° 41' 08"W
Elevation
6' MSL
Pattern Alt
1006' MSL
Mag Variation
7°W
Declination
5°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
MIAMI (ZMA)
Data Effective
7/9/26-8/6/26
KCOI VFR
11:15 PM EDT
Clear
10sm
77°F
77°F
29.95"Hg
130° 4kts
AO2
METAR KCOI 030315Z AUTO 13004KT 10SM CLR 25/25 A2995 RMK AO2
+ Add Your Business

KCOI FBOs

Promote Listing
Space Coast Aviation
UNICOM: 122.975
Phone: (321) 453-2222
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.96
Full Serve 7.86 7.80

KCOI Aircraft Service & Maintenance

Promote Listing
Sebastian Communication Inc.
Phone: (321) 453-6894
Fax: (321) 452-5650
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.025
(321) 986-8864

Common

CTAF 122.975
ACTVT ROTG BCN - CTAF.; ACTVT MIRL RWY 11/29 - CTAF.
UNICOM 122.975

Arrival

BITHO STAR 128.375
MINEE STAR 134.05

Approach

ORLANDO APPROACH 134.95

Departure

ORLANDO DEPARTURE 134.95

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCOF (7nm)
Sun, 8/2 2:00 PM EDT
Sun, 8/2 2:00 PM EDT - Mon, 8/3 3:00 PM EDT
IFR
Temporary 2:00 PM EDT - 7:00 PM EDT
Thunderstorm and Rain
Overcast 5,000'
Broken 2,000'
2.98sm
220° 15kts
Gusts 25kts
VFR
2:00 PM EDT - 11:00 PM EDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
Scattered 2,000'
5.59sm
29.88"Hg
220° 12kts
Gusts 18kts
VFR
Becoming 11:00 PM EDT - 1:00 PM EDT
Broken 12,000'
Scattered 5,000'
6sm
29.88"Hg
240° 12kts
VFR
Becoming 1:00 PM EDT - 3:00 PM EDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
Scattered 2,000'
5.59sm
29.91"Hg
160° 12kts
Gusts 18kts
IFR
Temporary 2:00 PM EDT - 3:00 PM EDT
Thunderstorm and Rain
Overcast 5,000'
Broken 2,000'
2.98sm
160° 15kts
Gusts 20kts
TAF AMD KCOF 021800Z 0218/0319 22012G18KT 9000 -SHRA VCTS SCT020 BKN050CB QNH2987INS
   TEMPO 0218/0223 22015G25KT 4800 TSRA BKN020CB OVC050
   BECMG 0303/0304 24012KT 9999 NSW SCT050 BKN120 QNH2989INS
   BECMG 0317/0318 16012G18KT 9000 -SHRA VCTS SCT020 BKN050CB QNH2990INS
   TEMPO 0318/0319 16015G20KT 4800 TSRA BKN020CB OVC050 TX32/0219Z TN26/0310Z LAST NO AMDS AFT 0218 NEXT 0310
KCOI
EffectiveExpiresCategoryNOTAM
Domestic
8/3/26
1225Z
8/3/26
2019Z
!PIE 08/019 COI AIRSPACE UAS WI AN AREA DEFINED AS 282212N0803648.20W (4.2NM ENE COI) TO 282208.30N0803653.90W (4.1NM ENE COI) TO 282202.90N0803657.50W (4.0NM ENE COI) TO 282156.80N0803658.20W (3.9NM ENE COI) TO 282150.80N0803656W (3.9NM ENE COI) TO 282146.20N0803651.30W (4.0NM ENE COI) TO 282143.70N0803644.80W (4.1NM ENE COI) TO 282143.70N0803637.80W (4.2NM ENE COI) TO 282146.20N0803631.30W (4.3NM ENE COI) TO 282150.80N0803626.60W (4.3NM ENE COI) TO 282156.80N0803624.40W (4.4NM ENE COI) TO 282202.90N0803625.20W (4.4NM ENE COI) TO 282208.30N0803628.70W (4.4NM ENE COI) TO 282212N0803634.40W (4.4NM ENE COI) TO POINT OF ORIGIN SFC-150FT AGL 2608031225-2608032019
8/3/26
1200Z
8/3/26
2000Z
!PIE 08/018 COI AIRSPACE UAS WI AN AREA DEFINED AS 282247.70N0804008.20W (2.5NM NNE COI) TO 282244.20N0804013.60W (2.4NM NNE COI) TO 282239N0804017W (2.3NM NNE COI) TO 282233.10N0804017.70W (2.2NM NNE COI) TO 282227.50N0804015.60W (2.1NM NNE COI) TO 282223.10N0804011.10W (2.1NM NNE COI) TO 282220.70N0804005W (2.1NM NNE COI) TO 282220.70N0803958.20W (2.1NM NE COI) TO 282223.10N0803952.10W (2.2NM NE COI) TO 282227.50N0803947.50W (2.3NM NE COI) TO 282233.10N0803945.50W (2.4NM NE COI) TO 282239N0803946.10W (2.5NM NE COI) TO 282244.20N0803949.50W (2.5NM NNE COI) TO 282247.70N0803955W (2.5NM NNE COI) TO POINT OF ORIGIN SFC-150FT AGL 2608031200-2608032000
8/3/26
1200Z
8/3/26
2031Z
!PIE 08/017 COI AIRSPACE UAS WI AN AREA DEFINED AS 282147.10N0804013W (1.5NM NE COI) TO 282142.80N0804019.70W (1.4NM NE COI) TO 282136.50N0804023.90W (1.3NM NE COI) TO 282129.20N0804024.80W (1.2NM NE COI) TO 282122.30N0804022.20W (1.1NM NE COI) TO 282116.90N0804016.60W (1.1NM NE COI) TO 282113.90N0804009.10W (1.1NM NE COI) TO 282113.90N0804000.80W (1.2NM ENE COI) TO 282116.90N0803953.20W (1.3NM ENE COI) TO 282122.30N0803947.60W (1.5NM ENE COI) TO 282129.20N0803945W (1.6NM NE COI) TO 282136.50N0803945.90W (1.6NM NE COI) TO 282142.80N0803950.10W (1.7NM NE COI) TO 282147.10N0803956.80W (1.7NM NE COI) TO POINT OF ORIGIN SFC-150FT AGL 2608031200-2608032031
8/3/26
1200Z
8/3/26
2000Z
!PIE 08/016 COI AIRSPACE UAS WI AN AREA DEFINED AS 282303.40N0804042.30W (2.6NM NNE COI) TO 282258.90N0804049.30W (2.5NM N COI) TO 282252.30N0804053.70W (2.4NM N COI) TO 282244.80N0804054.60W (2.3NM N COI) TO 282237.60N0804051.90W (2.1NM NNE COI) TO 282231.90N0804046.10W (2.1NM NNE COI) TO 282228.80N0804038.20W (2.0NM NNE COI) TO 282228.80N0804029.60W (2.1NM NNE COI) TO 282231.90N0804021.70W (2.1NM NNE COI) TO 282237.60N0804015.90W (2.3NM NNE COI) TO 282244.80N0804013.20W (2.4NM NNE COI) TO 282252.30N0804014.10W (2.5NM NNE COI) TO 282258.90N0804018.40W (2.6NM NNE COI) TO 282303.40N0804025.50W (2.6NM NNE COI) TO POINT OF ORIGIN SFC-150FT AGL 2608031200-2608032000
8/1/26
1754Z
11/29/26
1754Z
!PIE 08/005 COI OBST TOWER LGT (ASR 1231565) 281555.30N0804145.70W (4.6NM S COI) 383.5FT (350.7FT AGL) U/S 2608011754-2611291754
7/21/26
1108Z
10/19/26
1108Z
!PIE 07/294 COI OBST TOWER LGT (ASR 1029725) 282405.90N0804242.90W (3.8NM NNW COI) 285.4FT (277.2FT AGL) U/S 2607211108-2610191108
7/11/26
0814Z
8/25/26
0813Z
!PIE 07/157 COI OBST TOWER LGT (ASR 1036219) 282115.00N0804856.00W (6.9NM W COI) 433.1FT (417.0FT AGL) U/S 2607110814-2608250813
7/6/26
1723Z
11/3/26
1723Z
!PIE 07/086 COI OBST TOWER LGT (ASR 1030922) 282100.60N0804627.80W (4.7NM W COI) 460.6FT (442.9FT AGL) U/S 2607061723-2611031723
2/27/26
1800Z
5/31/27
2359Z
!PIE 02/390 COI OBST TOWER LGT (ASR 1037208) 281823.00N0805444.00W (12.3NM W COI) 1044.9FT (1004.9FT AGL) U/S 2602271800-2705312359
No
0800-1800
TITUSVILLE-COCOA AIRPORT DISTRICT
355 GOLDEN KNIGHTS BLVD
TITUSVILLE, FL 32780
Phone: 321-267-8780
KEVIN DAUGHERTY
355 GOLDEN KNIGHTS BLVD
TITUSVILLE, FL 32780
Phone: 321-267-8780
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT MIRL RWY 11/29 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 11/29

3601 ft. x 75 ft.
ASPH
Fair
NONE
MED
23/F/A/X/T
22,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 109°289°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 28° 20' 36"N 28° 20' 24"N
Longitude 80° 41' 27"W 80° 40' 49"W
Elevation 6' 3'
Threshold Crossing Height 42 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11CTC PERSON: KEVIN DAUGHERTY, AAE
A110-1BANNER TOWING.
A110-224 HR HELI OPS SW RAMP.
A110-3PATRICK AFB (KCOF) CLASS D AIRSPACE IN CLOSE PROXIMITY; KCOF CROSSING RWY 11/29 HAS SAME ORIENTATION AS MERRITT ISLAND ARPT.
A110-4FOR CD OR TO CNL IFR CTC ORLANDO APCH AT 407-852-7500.
A110-5NOISE SENSITIVE ARPT. VOLUNTARY NOISE ABATEMENT PROC IN EFCT. CLIMB OUT AT BEST ANGLE (VX), TURN CROSSWIND AT 700 FT (MID-RIVER, IF POSS) & MERGE WITH DOWNWIND TFC AT 1000 FT PAT ALT. NO TOUCH-AND-GO OPS BTN 8 PM AND 8 AM. NO REPETITIVE FLT OPS AT THE ARPT BTN 8 PM AND 7 AM. NO REPETITIVE FLT T OPS ON SUN AND NTL HOLS. IN LIEU OF TOUCH-AND-GO OPS PERFORM FULL STOP, TAXI-BACK OPS. AVOID FLYING AT LOW ALTS OVR NOISE SENSITIVE AREAS (NEWFOUND HARBOR DR).
A16321-453-2222.
A42-11_CONDRWY 11 MARKINGS FADED W/ NO BLACK OUTLINE.
A42-29_CONDRWY 29 MARKINGS FADED W/ NO BLACK OUTLINE.
A57-11APCH SLOPE 20:1 TO THE DSPLCD THLD.
A58-11UNLGT OBS IN APCH; 20 FT BLDG 122 FT FM RWY 250 FT L.
A81-APTACTVT MIRL RWY 11/29 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
E111VFR OPS ONLY.
MERRITT ISLAND (ICAO: KCOI, IATA: COI) is a public airport located in MERRITT ISLAND, FL, US.
