iFlightPlanner



...

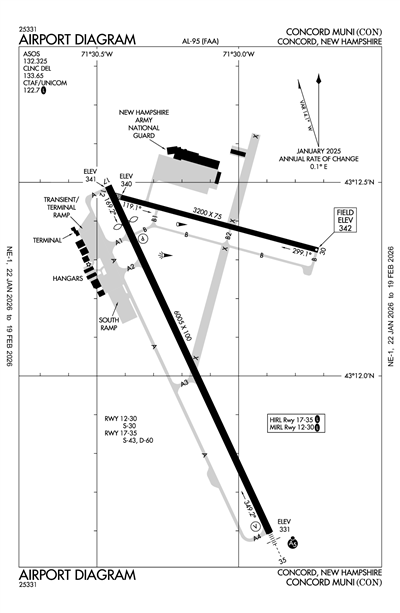

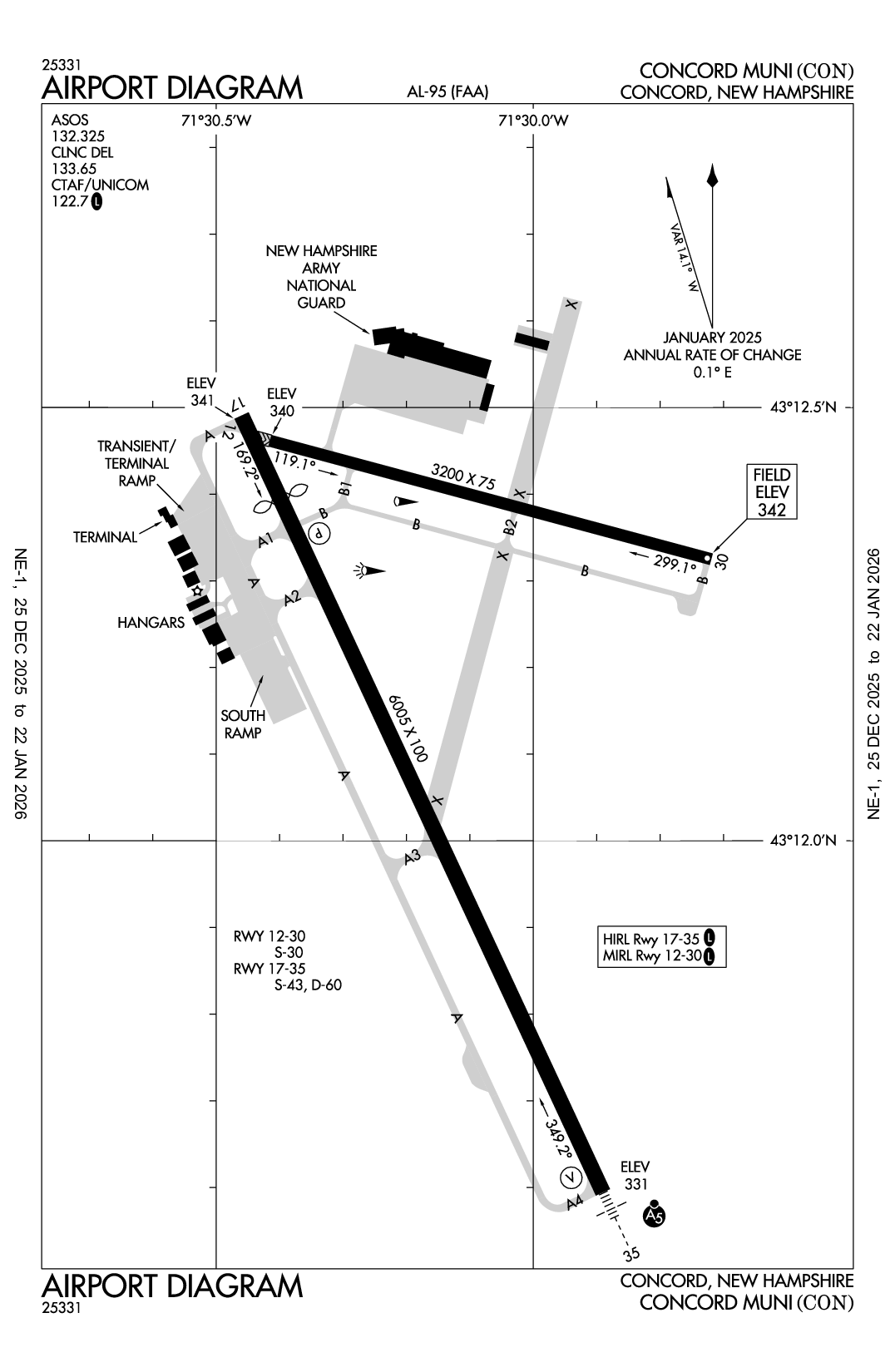

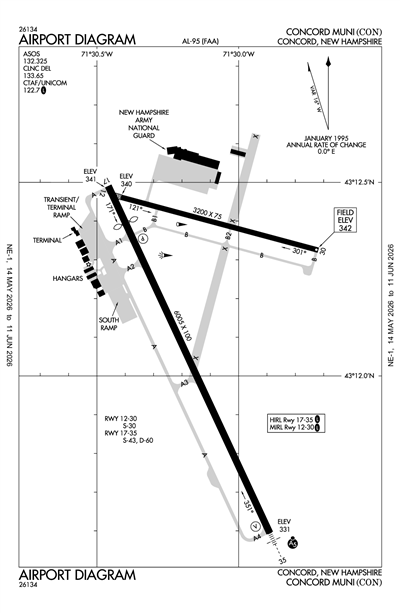

CONCORD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCON
CONCORD MUNI
PublicPUB

2 miles E of CONCORD, NH
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 12' 10"N 71° 30' 08"W
342' MSL
1342' MSL
16° W (1995)
Jet A, 100LL
BANGOR (BGR)
NEW YORK
BOSTON (ZBW)
10/8/20-11/5/20
KCON IFR
7:04 AM EDT
Light Rain
Overcast 8,500'
Broken 700'
10sm
51°F
48°F
30.24"Hg
170° 5kts
AO2 RAB04 P0000 T01060089
KCON 201104Z AUTO 17005KT 10SM -RA BKN007 OVC085 11/09 A3024 RMK AO2 RAB04 P0000 T01060089

KCON FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KCON Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCON Hotels

No hotels are listed for this airport.

KCON Restaurants

No restaurants are listed for this airport.

KCON Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.700 122.7

ASOS

ASOS
603-224-6558
132.325

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCON
Tue, 10/20 7:20 AM EDT
Tue, 10/20 8:00 AM EDT - Wed, 10/21 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Broken 11,000'
> 6sm
N/A
150° 5kts
MVFR
10:00 AM EDT - 8:00 AM EDT
Showers in vicinity
Overcast 1,500'
> 6sm
N/A
VRB° 3kts
KCON 201120Z 2012/2112 15005KT P6SM BKN110
   FM201400 VRB03KT P6SM VCSH OVC015
KCON NOTAMs
Domestic
10/19/201738Z !CON 10/013 CON OBST POWER LINE LGT (ASN 2011-ANE-858-OE) 431119N0712808W (1.7NM ESE CON) 650FT (75FT AGL) U/S 2010191738-2011031738
10/17/202021Z !CON 10/012 CON OBST POWER LINE LGT (ASN 2011-ANE-867-OE) 431108N0712705W (2.4NM ESE CON) 611FT (79FT AGL) U/S 2010172021-2011012021
10/11/201241Z !CON 10/010 CON OBST POWER LINE LGT (ASN 2011-ANE-859-OE) 431119N0712801W (1.7NM ESE CON) 648FT (75FT AGL) U/S 2010111241-2010261241
10/3/201554Z !CON 10/003 CON AD AP ABN U/S 2010031554-2010312000
FDC
8/28/201133Z !FDC 0/9270 CON IAP CONCORD MUNI, CONCORD, NH.
ILS OR LOC RWY 35, AMDT 1D...
PROCEDURE TURN ENTRY AREA ALTITUDE 2800. FEEDER SEGMENT CON VOR/DME
TO EPSOM LOM 2800. FEEDER SEGMENT RAYMY INT TO EPSOM LOM 2800. CO
LOM MSA SECTOR 046 CW 226 3100. CO LOM MSA SECTOR 226 CW 316 3900.
2008281133-2208281133EST
4/14/201819Z !FDC 0/4639 CON IAP CONCORD MUNI, CONCORD, NH.
ILS OR LOC RWY 35, AMDT 1D...
PLANVIEW NOTE: ADD (NOPT) TO TERMINAL ROUTE FROM MHT VOR/DME TO
LOCALIZER COURSE.
2004141819-2204141819EST
No
0700-1700
EXC THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY.
CITY OF CONCORD
41 GREEN ST
CONCORD, NH 03301
Phone: 603-225-8570
DAVID ROLLA
71 AIRPORT ROAD
CONCORD, NH 03301
Phone: 603-228-2267
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
CON
--
ACTVT MALSR RWY 35; HIRL RWY 17/35; MIRL RWY 12/30 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
66
3
0
3
10
1
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

3200 ft. x 75 ft.
ASPH
Good

MED

30000 lbs
0 lbs
0 lbs
0 lbs
  Runway 12 Runway 30
Runway Heading 105° 285°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 12' 28"N 43° 12' 19"N
Longitude 71° 30' 25"W 71° 29' 43"W
Elevation 339.8 ft. 341.7 ft.
Threshold Crossing Height 52 ft. AGL 0 ft. AGL
Visual Glide Path Angle 3.32°
Visual Slope Indicator P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

6005 ft. x 100 ft.
ASPH
Fair

HIGH

43000 lbs
60000 lbs
0 lbs
0 lbs
  Runway 17 Runway 35
Runway Heading 155° 335°
Traffic Pattern
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 12' 29"N 43° 11' 36"N
Longitude 71° 30' 28"W 71° 29' 53"W
Elevation 340.6 ft. 331.4 ft.
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-10COMPASS ROSE CALIBRATED 2014.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859 .
A110-2OPNS ON NG TWY & RAMP PROHIBITED WO PRIOR CDN DUE TO SCTY.
A110-3DAY & NIGHT VFR HEL OPNS TO & FM NEW HAMPSHIRE STATE POLICE HNGR.
A110-6OPNS OFF PAVED SFCS PROHIBITED DUE TO CONSERVATION MGMT ACTS.
A110-7RWY 35 DSGND CALM WIND RWY.
A110-8MIL TWY AND RAMP PCN R/A/W/T.
A110-9HVY HEL ACT 1 NM ESE OF ARPT 800 FT AND BLW.

View hangar and property listings at KCON, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

CONCORD MUNI (ICAO: KCON, IATA: CON) is a public airport located in CONCORD, NH.
