KCPM
ICAO KCPMIATA CPMLocal CPM
COMPTON/WOODLEY
PublicPUB

2 miles SW of COMPTON, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 53' 24"N 118° 14' 38"W
Elevation
99' MSL
Pattern Alt
999' MSL
Mag Variation
12°E
Declination
14°E
Fuel
100LL
FSS
HAWTHORNE (HHR)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/1/26-10/29/26
KHHR (5nm) VFR
8:53 PM PDT
Broken 7,500'
Broken 5,000'
10sm
64°F
59°F
29.99"Hg
110° 4kts
AO2 RAB05E20 SLP154 P0000 T01780150
METAR KHHR 230353Z 11004KT 10SM BKN050 BKN075 18/15 A2999 RMK AO2 RAB05E20 SLP154 P0000 T01780150
+ Add Your Business

KCPM FBOs

Promote Listing
Compton-Woodley Airport
UNICOM: 123.05
Phone: (310) 631-8140
No Rating Available
1 Review (Read | Sign In To Write)
0 out of 1 Recommend
Independent
As of 9/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.15
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 127.15
(310) 631-3022

Common

CTAF 123.05
ACTVT REIL & PAPI RWY 25L; MIRL RWY 07R/25L; N AND S PARL TWYS - CTAF.
UNICOM 123.05

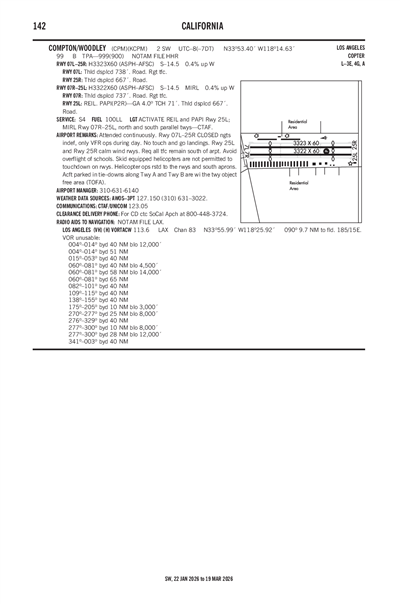

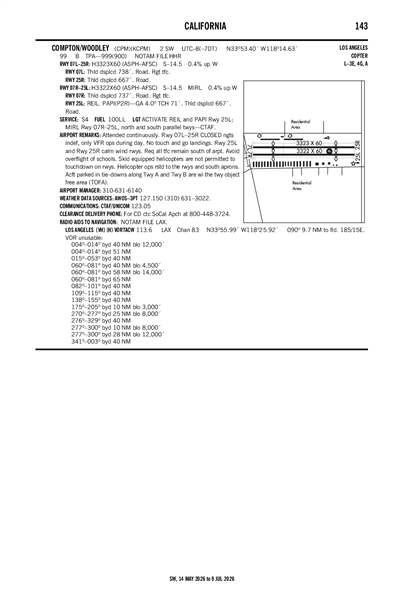

FAA A/FD Pages

Terminal Area Forecast

KLGB (7nm)
Thu, 10/22 5:54 PM PDT
Thu, 10/22 6:00 PM PDT - Fri, 10/23 5:00 PM PDT
VFR
6:00 PM PDT - 11:00 PM PDT
Broken 6,000'
6sm
240° 10kts
Gusts 18kts
VFR
11:00 PM PDT - 4:00 AM PDT
Light Showers and Rain
Overcast 4,000'
6sm
260° 4kts
VFR
4:00 AM PDT - 7:00 AM PDT
Overcast 4,000'
6sm
VRB° 3kts
VFR
7:00 AM PDT - 12:00 PM PDT
Light Showers and Rain
Broken 4,000'
6sm
VRB° 3kts
VFR
12:00 PM PDT - 3:00 PM PDT
Broken 4,000'
6sm
250° 5kts
VFR
3:00 PM PDT - 5:00 PM PDT
Broken 4,000'
6sm
260° 9kts
TAF KLGB 230054Z 2301/2324 24010G18KT P6SM BKN060
   FM230600 26004KT P6SM -SHRA OVC040
   FM231100 VRB03KT P6SM OVC040
   FM231400 VRB03KT P6SM -SHRA BKN040
   FM231900 25005KT P6SM BKN040
   FM232200 26009KT P6SM BKN040
KCPM
EffectiveExpiresCategoryNOTAM
Domestic
10/24/26
1830Z
10/24/26
2030Z
!HHR 10/129 CPM AD AP CLSD 2610241830-2610242030
10/24/26
1700Z
10/24/26
2300Z
Runway!HHR 10/128 CPM RWY 07R/25L CLSD 2610241700-2610242300
10/23/26
2359Z
10/24/26
2359Z
!HHR 10/127 CPM TWY A BTN TWY C AND TWY E CLSD 2610232359-2610242359
10/17/26
0250Z
10/31/26
0250Z
!HHR 10/088 CPM OBST TOWER LGT (ASN 2018-AWP-13411-OE) 335328N1181444W (0.1NM NW CPM) 131FT (39FT AGL) U/S 2610170250-2610310250
10/3/26
2007Z
11/3/26
2359Z
!HHR 10/018 CPM SVC AUTOMATED WX BCST SYSTEM U/S 2610032007-2611032359
No
ALL
COUNTY OF LOS ANGELES
900 S. FREMONT AVE
ALHAMBRA, CA 92803
Phone: 626-300-4600
LATANYA COLLIER
901 W ALONDRA BLVD
COMPTON, CA 90220
Phone: 310-631-6140
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
HHR
--
ACTVT REIL & PAPI RWY 25L; MIRL RWY 07R/25L; N AND S PARL TWYS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07L/25R

3323 ft. x 60 ft.
ASPH
Fair
AFSC


14,000lbs
--
--
--
  Runway 07L Runway 25R
True Heading 89°269°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 53' 25"N 33° 53' 25"N
Longitude 118° 14' 57"W 118° 14' 18"W
Elevation 99' 85'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07R/25L

3322 ft. x 60 ft.
ASPH
Good
AFSC
MED

14,000lbs
--
--
--
  Runway 07R Runway 25L
True Heading 89°269°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 53' 23"N 33° 53' 23"N
Longitude 118° 14' 57"W 118° 14' 18"W
Elevation 99' 86'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1PLANES PARKED 145 FT NORTH OF CENTERLINE 07L/25R AND 158 FT SOUTH OF CENTERLINE 07R/25L.
A110-2REQ ALL TRAFFIC REMAIN SOUTH OF AIRPORT. AVOID OVERFLIGHT OF SCHOOLS 2900 FT EAST.
A110-3ONLY SOUTH SIDE OF NORTH PARALLEL TAXIWAY LIGHTED; ONLY NORTH SIDE OF SOUTH PARALLEL TAXIWAY LIGHTED.
A110-4RY 25L/25R CALM WIND RUNWAY.
A110-6NO TOUCH AND GO LANDINGS
A110-7SKID EQUIPPED HELICOPTERS ARE NOT PERMITTED TO TOUCH DOWN ON RUNWAYS. HELICOPTER OPERATIONS RESTRICTED TO THE RUNWAYS AND SOUTH APRONS.
A110-8FOR CD CTC SOCAL APCH AT 800-448-3724.
A110-9ACFT PARKED IN TIE-DOWNS ALONG TWY A AND TWY B ARE WI THE TWY OBJECT FREE AREA (TOFA).
A13LA COUNTY CTC: PAUL MASELBAS, 626-300-4600 X4615.
A30-07L/25RCLSD NIGHTS INDEFLY; ONLY VFR OPNS DURG DAY.
A57-07LAPCH RATIO TO DSPLCD THLD OVER +40 FT TREE 1195 FT FM DSPLCD THLD 29:1.
A57-07RAPCH RATIO TO DSPLCD THLD OVER +35 FT POLE 1145 FT FM DSPLCD THLD 130 FT RIGHT 32:1.
A57-25LAPCH RATIO 50:1 TO DSPLCD THLD.
A57-25RAPCH RATIO 50:1 TO DSPLCD THLD.
A58-07L6 FT FENCE 70 FT FM THLD PERPENDICULAR TO CNTRLN +8 FT WALL 90 FT FM THLD PERPENDICULAR TO CNTRLN; +30 FT PLINE 200 FT FM RY END 125 FT R TO 125 FT L.
A58-07R6 FT FENCE 70 FT FM THLD PERPENDICULAR TO CNTRLN +8 FT WALL 90 FT FM THLD PERPENDICULAR TO CNTRLN; +30 FT PLINE 125 FT FM RY END 125 FT R TO 125 FT L.
A58-25L+6 FT FENCE 45 FT TO 70 FT FROM THRESHOLD, +8 FT WALL 70 FT TO 90 FT FROM THRESHOLD, +15 FT STREET 125 FT R 120 FT TO 200 FT FROM THRESHOLD THROUGH 125 FT L 120 FT TO 200 FT FROM THR.
A58-25R+6 FT FENCE 60 FT TO 70 FT FROM THRESHOLD, +8 FT WALL 75 FT TO 85 FT FROM THRESHOLD, +15 FT STREET 125 FT R 105 FT TO 200 FT FROM THRESHOLD THROUGH 125 FT L 120 FT TO 200 FT FROM THR.
A81-APTACTVT REIL & PAPI RWY 25L; MIRL RWY 07R/25L; N AND S PARL TWYS - CTAF.
COMPTON/WOODLEY (ICAO: KCPM, IATA: CPM) is a public airport located in COMPTON, CA, US.
