CASPER/NATRONA COUNTY INTL - Airport Diagram

KCPR

CASPER/NATRONA COUNTY INTL

PublicPUB

7 miles NW of CASPER, WY, US

View on Map

Status

Operational

Coordinates

42° 54' 21"N 106° 27' 49"W

Elevation

5344' MSL

Pattern Alt

6344' MSL

Mag Variation

09E

Fuel

JET A, 100LL

FSS

CASPER (CPR)

Sectional

CHEYENNE

ARTCC

DENVER (ZDV)

Data Effective

1/22/26-2/19/26

KCPR VFR

1:53 AM MST RAW

Clear

Viz

10sm

Temp

31°F

Dew

14°F

Pres

30.19"Hg

Wind

220° 14kts

RMK

AO2 SLP216 T10061100 58003

METAR KCPR 010853Z AUTO 22014KT 10SM CLR M01/M10 A3019 RMK AO2 SLP216 T10061100 58003

Add Your Business

KCPR FBOs

Promote Listing

Aero Center

ASRI: 128.85

Phone: (307) 233-8420

0 Reviews (Read | Sign In To Write)

Avfuel

As of 1/27	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.50
Full Serve	6.73	6.98	7.13

Fuel Notes

Prices include tax

Promote Listing

Atlantic Aviation

UNICOM: 122.95

Phone: (307) 472-3400

0 Reviews (Read | Sign In To Write)

Independent

As of 1/14	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.75
Full Serve	6.75	7.74

Fuel Notes

Prices include tax

KCPR Aircraft Service & Maintenance

Promote Listing

Natrona Avionics

Phone: (307) 577-0770

Fax: (307) 577-0772

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	126.15
ASOS	(307) 452-0316

Common

CTAF	118.3
ATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 03 & 08; REIL RWY 21; PAPI RWY 03 & 26; HIRL RWY 03/21 & 08/26; TWY LGTS - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

121.9

Ground

CASPER GROUND	121.9
0500-2100

Tower

CASPER TOWER	118.3
0500-2100

Approach

CASPER APPROACH	120.65
Initial Contact
CASPER APPROACH	119.0
Secondary

Departure

CASPER DEPARTURE	120.65
Initial Contact
CASPER DEPARTURE	119.0
Secondary

Center

CASPER CENTER	135.6
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 135.6/363.025 (CASPER RCAG) WHEN CASPER APCH CTL (CPR) CLSD.

Flight Service

Flight Service	122.6
COMMUNICATIONS PRVDD BY CASPER RADIO ON FREQS 122.6 (CASPER RCO).

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

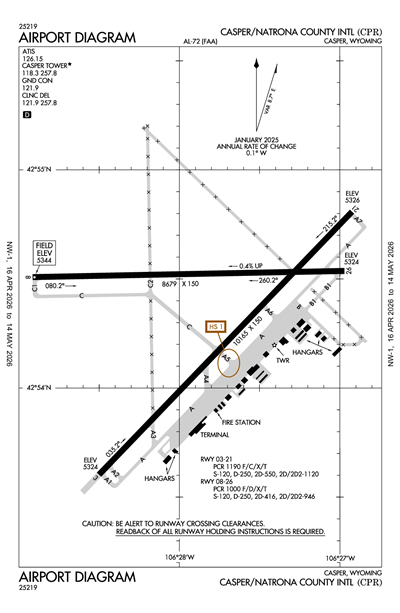

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KCPR

RAW

Reported

Sat, 1/31 10:23 PM MST

Valid

Sat, 1/31 11:00 PM MST - Sun, 2/1 11:00 PM MST

VFR

11:00 PM MST - 4:00 AM MST

Sky Clear

Viz

6sm

Wind

220° 11kts

VFR

4:00 AM MST - 10:00 AM MST

Scattered 20,000'

Viz

6sm

Wind

230° 13kts

VFR

10:00 AM MST - 6:00 PM MST

Few 20,000'

Viz

6sm

Wind

230° 14kts

Gusts 22kts

VFR

6:00 PM MST - 11:00 PM MST

Broken 15,000'

Viz

6sm

Wind

210° 12kts

Gusts 18kts

TAF KCPR 010523Z 0106/0206 22011KT P6SM SKC
   FM011100 23013KT P6SM SCT200
   FM011700 23014G22KT P6SM FEW200
   FM020100 21012G18KT P6SM BKN150

KCPR

Effective	Expires	NOTAM
Domestic
2/2/26 1800Z	2/2/26 1830Z	!CPR 01/137 CPR AD AP RVR ALL U/S 2602021800-2602021830
2/1/26 0228Z	2/7/26 1300Z	!CPR 02/001 CPR COM GND COM OUTLET 121.5, 243.0 NOT AVBL 2602010228-2602071300

ATC Tower

Yes

Attendance

ALL

Owner

COUNTY BOARD OF COMMISSIONERS
8500 AIRPORT PARKWAY SUITE 208
CASPER, WY 82604
Phone: 307-472-6688

Manager

GLENN JANUSKA
8500 AIRPORT PARKWAY SUITE 208
CASPER, WY 82604
Phone: 307-472-6688

FSS

CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF

NOTAM

CPR

Light Schedule

Lights

ATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 03 & 08; REIL RWY 21; PAPI RWY 03 & 26; HIRL RWY 03/21 & 08/26; TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

Dimensions

10165 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 03	Runway 21
True Heading	44°	224°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 53' 36"N	42° 54' 49"N
Longitude	106° 28' 30"W	106° 26' 55"W
Elevation	5,324'	5,326'
Threshold Crossing Height	50 ft. AGL	56 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

Runway 08/26

Dimensions

8679 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

416,000lbs

Dual Dbl Tand

946,000lbs

	Runway 08	Runway 26
True Heading	89°	269°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 54' 31"N	42° 54' 32"N
Longitude	106° 28' 55"W	106° 26' 58"W
Elevation	5,344'	5,324'
Threshold Crossing Height	52 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	EMERG PWR AVBL RWY 08/26 & 03/21.
A110-2	RWY 08/26 & 03/21 HAVE LGTD DIST RMNG SIGNS.
A110-3	225 FT CRANE 1 NM NE OF ARPT.
A110-4	RWYS CLSD TO FSL, TGL, AND PLA ACFT MORE THAN 250000 LBS EXC FOR 4 HRS PPR 307-995-3949.
A110-6	FOR CD CTC CASPER APCH AT 307-472-8940, WHEN APCH CLSD CTC DENVER ARTCC AT 303-651-4257.
A39-03/21	PCR VALUE: 1190/F/C/X/T
A39-08/26	PCR VALUE: 1000/F/D/X/T
A81-APT	ATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 03 & 08; REIL RWY 21; PAPI RWY 03 & 26; HIRL RWY 03/21 & 08/26; TWY LGTS - CTAF.

CASPER/NATRONA COUNTY INTL (ICAO: KCPR, IATA: CPR) is a public airport located in CASPER, WY, US.
