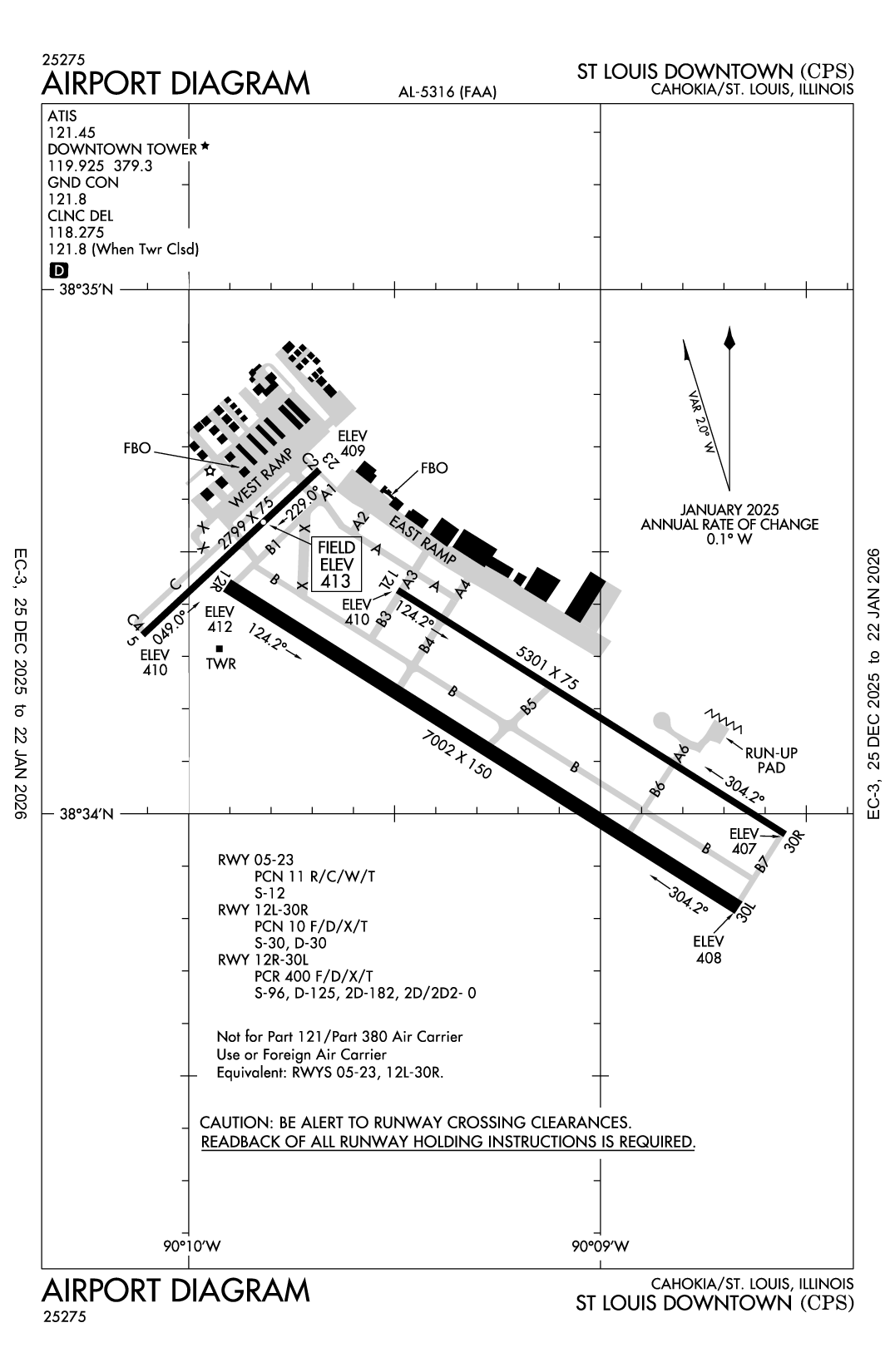

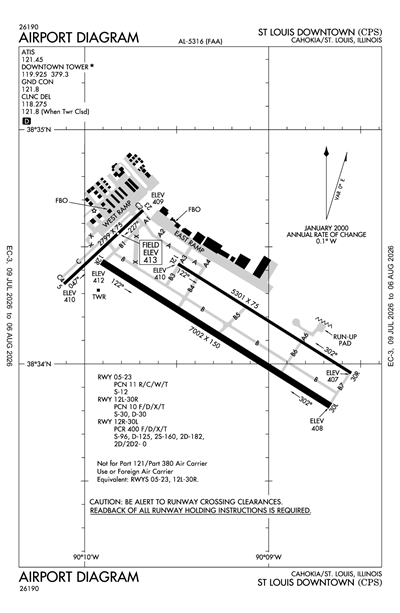

ST LOUIS DOWNTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCPS
ST LOUIS DOWNTOWN
PublicPUB

1 miles E of CAHOKIA/ST LOUIS, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 34' 13"N 90° 09' 18"W
413' MSL
1413' MSL
00E
Jet A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
5/19/22-6/16/22
KCPS VFR
8:53 AM CDT
Overcast 7,000'
10sm
55°F
45°F
30.31"Hg
360° 9kts
AO2 SLP262 T01280072
KCPS 221353Z 36009KT 10SM OVC070 13/07 A3031 RMK AO2 SLP262 T01280072
List Your Business

KCPS FBOs, Flight Schools and Ground Support

KCPS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCPS Hotels

No hotels are listed for this airport.

KCPS Restaurants

No restaurants are listed for this airport.

KCPS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.925

ATIS

ATIS
 121.45

Clearance Delivery

CD/P
 118.275

Ground

GND/P
 121.8

Tower

LCL/P
 119.925

Terminal Area Forecast

KCPS
Sun, 5/22 6:20 AM CDT
Sun, 5/22 7:00 AM CDT - Mon, 5/23 7:00 AM CDT
VFR
7:00 AM CDT - 7:00 AM CDT
Broken 25,000'
> 6sm
330° 8kts
KCPS 221120Z 2212/2312 33008KT P6SM BKN250
KCPS
Domestic
5/24/220500Z !CPS 05/014 CPS COM CLR DELIVERY 121.8 U/S 2205240500-2205241000
5/21/221030Z !CPS 05/015 CPS OBST TOWER LGT (ASR 1063165) 382906.80N0900326.40W (6.8NM SE CPS) 862.2FT (284.1FT AGL) U/S 2205211030-2208190400
5/2/221716Z !CPS 05/001 CPS OBST TOWER LGT (ASR 1226787) 383326.40N0900056.40W (6.6NM E CPS) 946.2FT (411.4FT AGL) U/S 2205021716-2206022359
3/29/221613Z !CPS 03/005 CPS OBST TOWER LGT (ASR UNKNOWN) 384115.64N0901127.99W (6.9NM NNW CPS) UNKNOWN (262FT AGL) U/S 2203291613-2208312359
1/19/220501Z !CPS 01/012 CPS AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13

2201190501-2401190501
12/22/212113Z !CPS 12/008 CPS AD AP WINDCONE FOR RWY 12R SEGMENTED CIRCLE U/S 2112222113-2206302300
FDC
5/9/221812Z !FDC 2/1278 CPS SID ST LOUIS DOWNTOWN, Cahokia/St Louis, IL.
PLESS FIVE DEPARTURE...
NASHVILLE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BNA VOR OUT OF SERVICE. 2205091812-2212191812EST
5/2/221200Z !FDC 2/6963 CPS SID ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
GATEWAY ONE DEPARTURE...
ROSEWOOD, CREEP TRANSITIONS: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SHB VOR/DME OUT OF SERVICE. 2205021200-2205261359EST
7/6/211318Z !FDC 1/4384 CPS IAP ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
ILS OR LOC RWY 30L, AMDT 9D...
S-ILS 30L DA 661/HAT 250.
2107061318-2307061316EST
7/6/211310Z !FDC 1/4382 CPS IAP ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
RNAV (GPS) RWY 30L, ORIG-D...
LPV DA NA.
2107061310-2307061309EST
6/7/211254Z !FDC 1/8217 CPS IAP ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
RNAV (GPS) RWY 12R, ORIG-D...
FEEDER SEGMENT FROM DELMA TO ZINKI (IAF) MINIMUM ALTITUDE 3000.
2106071254-2306071254EST
Yes
ALL
BI-STATE DEVELOPMENT AGENCY
6100 ARCHVIEW DRIVE
CAHOKIA, IL 62206-1445
Phone: 618-337-6060
SANDRA SHORE
6100 ARCHVIEW DRIVE
CAHOKIA, IL 62206-1445
Phone: 618-337-6060
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
CPS
--
ACTVT MALSR RWY 30L WHEN ATCT CLSD; REIL RWY 30R - CTAF. HIRL RWY 12R/30L PRESET MED INTST WHEN ATCT CLSD. MIRL RWY 12L & 30R NOT AVBL WHEN ATCT CLSD. PAPI RWY 12R & 30L OPR CONSLY.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
77
14
6
13
0
0
Major
Major
None
High Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

2799 ft. x 75 ft.
ASPH
Fair

MED
11 /R/C/W/T
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 34' 20"N 38° 34' 39"N
Longitude 90° 10' 07"W 90° 09' 41"W
Elevation 410' 409'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12L/30R

5301 ft. x 75 ft.
CONC
Fair

MED
10 /F/D/X/T
30,000lbs
30,000lbs
--
--
  Runway 12L Runway 30R
True Heading 122°302°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 34' 26"N 38° 33' 58"N
Longitude 90° 09' 30"W 90° 08' 33"W
Elevation 410' 406'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

7002 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
48 /F/D/X/T
65,000lbs
95,000lbs
175,000lbs
--
  Runway 12R Runway 30L
True Heading 122°302°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 34' 26"N 38° 33' 50"N
Longitude 90° 09' 54"W 90° 08' 40"W
Elevation 412' 408'
Threshold Crossing Height 49 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1WATERFOWL ON & INVOF ARPT.
A110-3BE ALERT FOR STUDENT TRNG & HEL OPS.
A110-5ALL TWYS EXCP TWY A4 & B4 PPR ACFT OVER 120000 LBS.
A110-6TWY B2 S 400 FT CLSD BTN TWY B & B1.
ST LOUIS DOWNTOWN (ICAO: KCPS, IATA: CPS) is a public airport located in CAHOKIA/ST LOUIS, IL.
