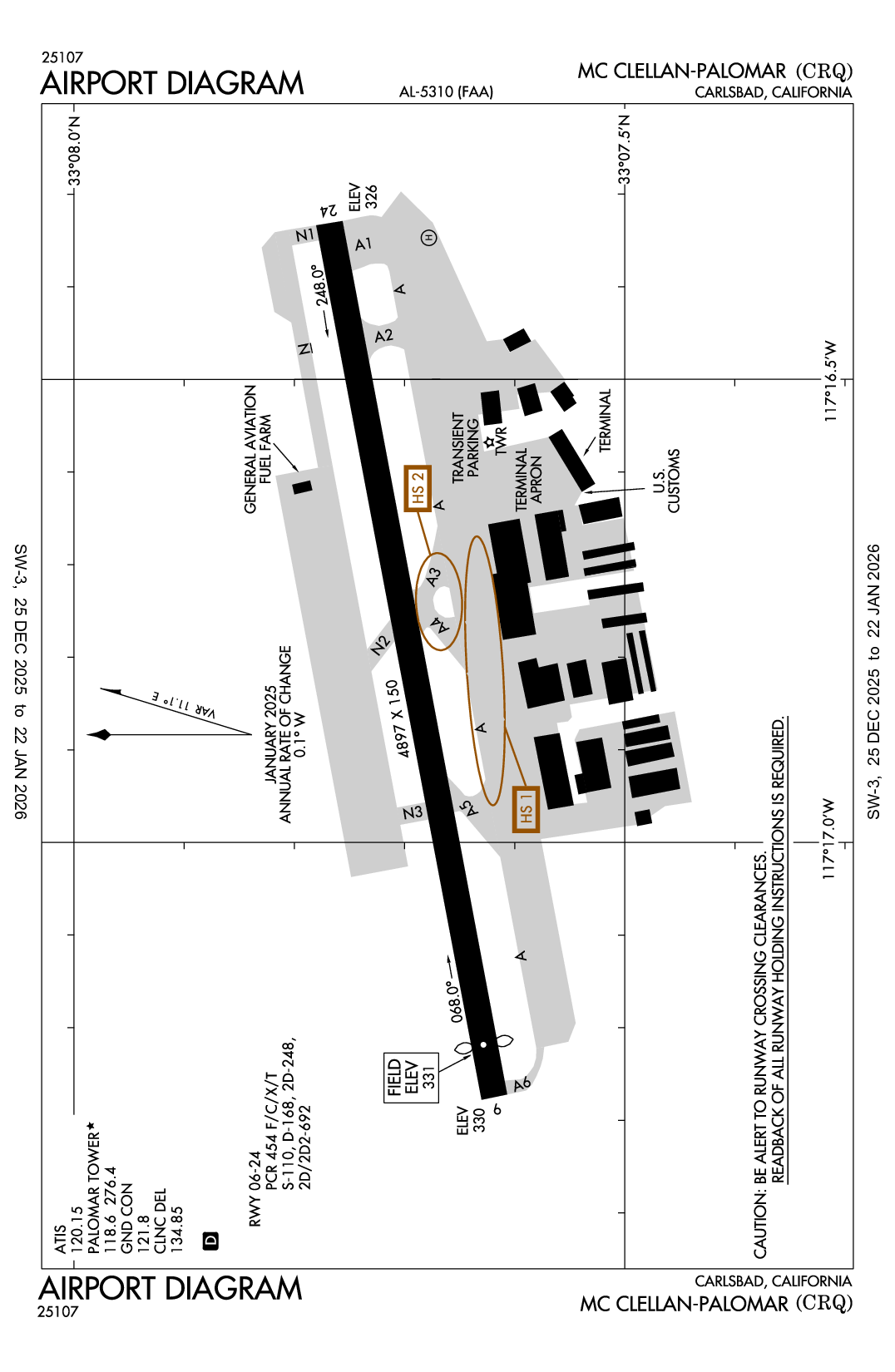

MC CLELLAN-PALOMAR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCRQ
MC CLELLAN-PALOMAR
PublicPUB

3 miles SE of CARLSBAD, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 07' 42"N 117° 16' 48"W
330' MSL
1330' MSL
14E
Jet A, 100LL
SAN DIEGO (SAN)
LOS ANGELES
LOS ANGELES (ZLA)
4/18/24-5/16/24
KCRQ MVFR
3:53 PM PDT
Overcast 2,400'
10sm
60°F
51°F
30.01"Hg
VRB° 5kts
AO2 SLP161 T01560106
KCRQ 232253Z VRB05KT 10SM OVC024 16/11 A3001 RMK AO2 SLP161 T01560106
List Your Business

KCRQ FBOs, Flight Schools and Ground Support

Promote Listing
Atlantic Aviation
Freq: 131.175
Phone: (760) 930-0123
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.44 8.70
Promote Listing
Western Flight Services
Freq: 130.0
Phone: (760) 438-6800
No Rating Available
1 Review (Read | Sign In To Write)
0 out of 1 Recommend
Titan
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.68 6.41 6.66
Promote Listing
Carlsbad Jet Center
Freq: 131.3
Phone: (760) 891-2800
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.35 8.99 9.15

KCRQ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCRQ Hotels

No hotels are listed for this airport.

KCRQ Restaurants

No restaurants are listed for this airport.

KCRQ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.6

ATIS

ATIS
(760-438-2117)
 120.15

Clearance Delivery

CD/P
 134.85

Ground

GND/P
 121.8

Tower

LCL/P
 118.6

Terminal Area Forecast

KCRQ
Tue, 4/23 4:23 PM PDT
Tue, 4/23 5:00 PM PDT - Wed, 4/24 5:00 PM PDT
MVFR
5:00 PM PDT - 8:00 PM PDT
Overcast 2,400'
6sm
260° 6kts
MVFR
8:00 PM PDT - 3:00 AM PDT
Overcast 2,200'
6sm
VRB° 4kts
MVFR
3:00 AM PDT - 2:00 PM PDT
Overcast 2,500'
6sm
VRB° 4kts
MVFR
2:00 PM PDT - 5:00 PM PDT
Overcast 3,500'
Broken 2,500'
6sm
250° 11kts
Gusts 17kts
VFR
Temporary 2:00 PM PDT - 4:00 PM PDT
Broken 3,500'
Scattered 2,500'
N/A
Calm
KCRQ 232323Z 2400/2424 26006KT P6SM OVC024
   FM240300 VRB04KT P6SM OVC022
   FM241000 VRB04KT P6SM OVC025
   FM242100 25011G17KT P6SM BKN025 OVC035
   TEMPO 2421/2423 SCT025 BKN035
KCRQ
Domestic
2/23/241958Z !CRQ 02/017 CRQ RWY 24 RWY END ID LGT U/S 2402231958-PERM
FDC
4/4/241329Z !FDC 4/6743 CRQ SID MC CLELLAN-PALOMAR, Carlsbad, CA.
PADRZ TWO DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
OCN VORTAC OUT OF SERVICE. 2404041329-2406121329EST
4/4/241329Z !FDC 4/6736 CRQ IAP MC CLELLAN-PALOMAR, Carlsbad, CA.
ILS OR LOC RWY 24, AMDT 9D...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OCN VORTAC OUT OF SERVICE. 2404041329-2406121329EST
3/28/241335Z !FDC 4/3395 CRQ IAP MC CLELLAN-PALOMAR, CARLSBAD, CA.
ILS OR LOC RWY 24, AMDT 9D...
VOR-A, AMDT 8A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OCN VORTAC UNMONITORED. 2403281335-2406191335EST
Yes
0700-2200
COUNTY OF SAN DIEGO
1960 JOE CROSSON DRIVE
EL CAJON, CA 92020-1235
Phone: 619-956-4800
JOHN OTTO
2192 PALOMAR AIRPORT ROAD
CARLSBAD, CA 92011-4409
Phone: 760-431-4646
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
CRQ
--
WHEN ATCT CLSD ACTVT HIRL RY 06/24, PAPI RYS 06 & 24 , REIL RY 24, MALSR RY 24 - CTAF.
N/A
No
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
173
24
75
6
0
0
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

4897 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
33 /F/D/X/T
60,000lbs
80,000lbs
110,000lbs
--
  Runway 06 Runway 24
True Heading 79°259°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 33° 07' 37"N 33° 07' 46"N
Longitude 117° 17' 17"W 117° 16' 20"W
Elevation 330' 326'
Threshold Crossing Height 35 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway H1

40 ft. x 50 ft.
CONC
Good
NONE
HIGH

--
--
--
--
  Runway H1 Runway
True Heading 74°254°
Traffic Pattern
Markings
Markings Condition GOOD
Latitude 33° 07' 41"N N/A
Longitude 117° 16' 21"W N/A
Elevation 316' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT HAS NOISE ABATEMENT PROCEDURES CONTACT AMGR 760-431-4646.
A110-10VOLUNTARY CURFEW: JETS 2200-0700 LCL, PROPS 0000-0600 LCL, EMERG, LIFEGUARD, AND LAW ENFORCEMENT EXCEPTED.
A110-11REQUEST JETS FLY THE ILS APPROACH.
A110-12LTD TRANSIENT TIE DOWN SPACE ON PUBLIC RAMP.
A110-13PPR FOR ALL MILITARY ACFT CALL AMGR (760) 431-4646.
A110-15RWY 24 HARD TO SEE 2 HRS PRIOR TO SS; DO NOT MISTAKE TWY A AS THE RWY.
A110-16NORTH SIDE RAMP LIMITED TO 12,500 LBS .
A110-17ALL ACFT MULT PRACTICE APCHS AND LNDGS DISCOURAGED 2200-0700 LCL.
A110-18RY 6/24 SOUTH VFR TFC PATTERN CLSD 2200-0700 LCL.
A110-19WHEN TWR CLSD ACFT MUST SELF-ANNOUNCE ON CTAF PRIOR TO LDG OR TKOF.
A110-2MULTIPLE APCHS BY LARGE ACFT (INCLUDING LARGE HEL) NOT AUTHORIZED.
A110-20TSNT PRKG LTD TO SML SNGL AND TWIN ENG ACFT WITH WINGSPANS UNDER 38 FT.
A110-21USE CAUTION REG THERMAL PLUMES IN THE VCNTY OF POWER PLANT APRXLY 2.7 NM WNW OF ARPT.
A110-22NO JET ACFT PRKG ALLOWED IN TSNT PRKG.
A110-23FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-3NO JET ACFT TRNG DUE TO NOISE ABATEMENT AND TFC CONGESTION.
A110-4EXTENSIVE BIRD ACTIVITY IN VICINITY ESPECIALLY IN SPRING.
A110-7RWY 24 IS CALM WIND RWY.
A110-9POWER LINES 2 MILES W & SW.
MC CLELLAN-PALOMAR (ICAO: KCRQ, IATA: CRQ) is a public airport located in CARLSBAD, CA.
