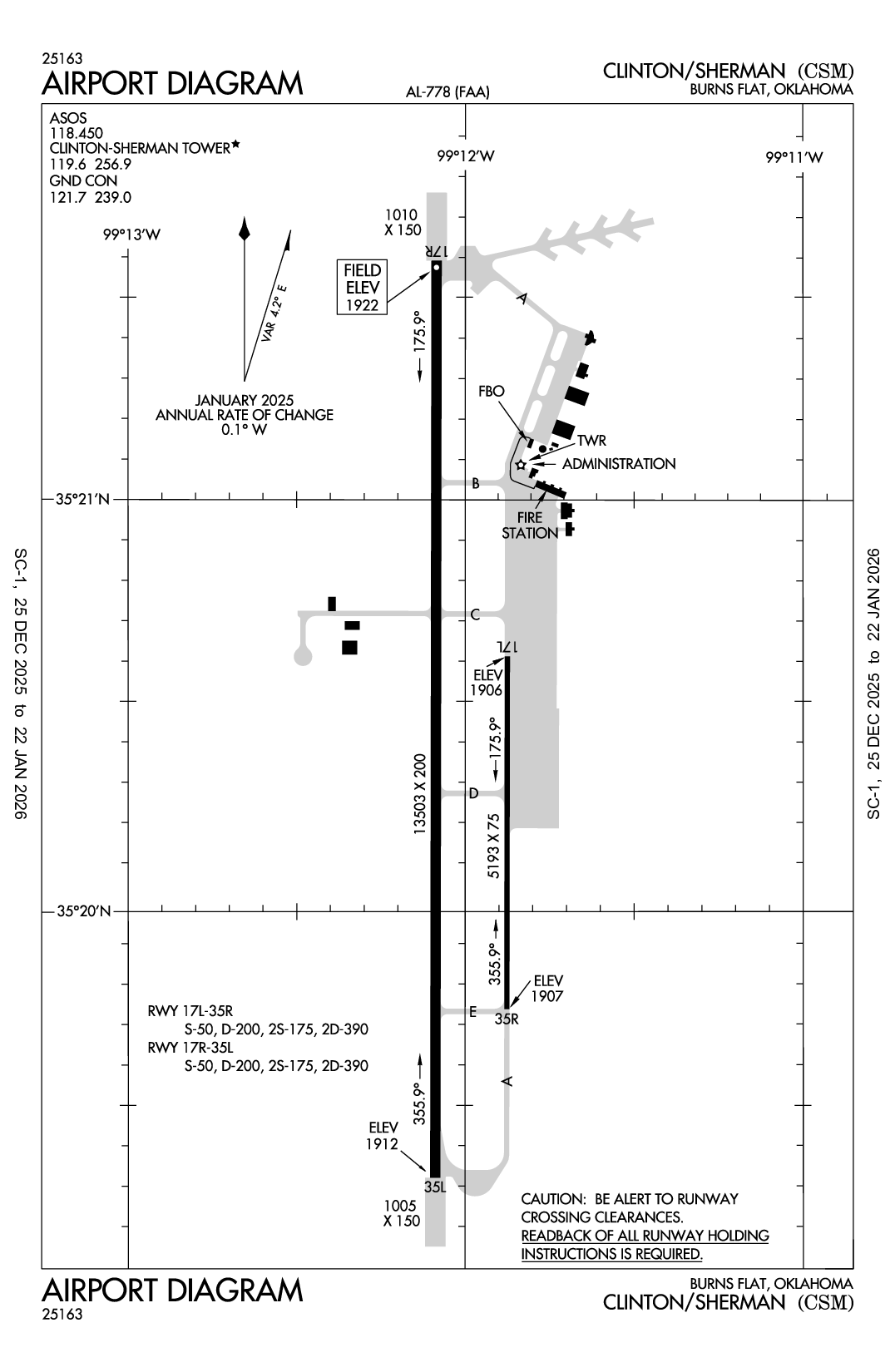

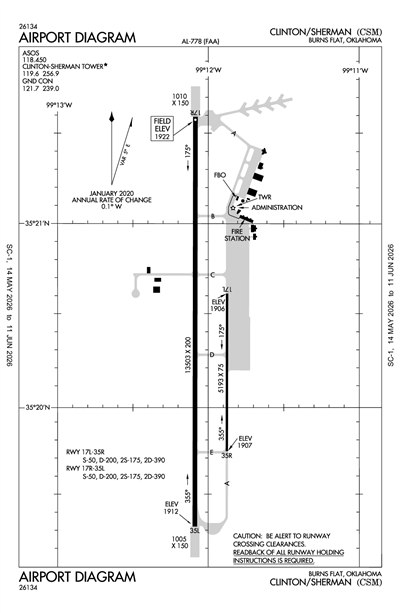

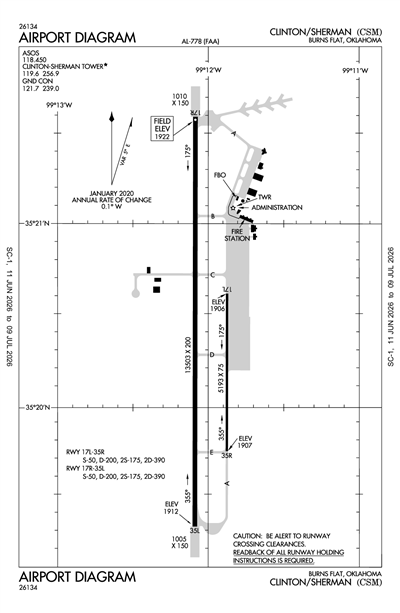

CLINTON/SHERMAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCSM
CLINTON/SHERMAN
PublicPUB

2 miles SW of BURNS FLAT, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 20' 23"N 99° 12' 02"W
1922' MSL
2922' MSL
05E
Jet A
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/18/24-5/16/24
KCSM MVFR
6:53 PM CDT
Overcast 2,500'
Scattered 1,900'
10sm
72°F
64°F
29.69"Hg
160° 20kts
Gusts 30kts
AO2 PK WND 16036/2325 RAB28E37 SLP033 P0000 60000 T02220178 10256 20222 56023
KCSM 252353Z 16020G30KT 10SM SCT019 OVC025 22/18 A2969 RMK AO2 PK WND 16036/2325 RAB28E37 SLP033 P0000 60000 T02220178 10256 20222 56023
List Your Business

KCSM FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KCSM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCSM Hotels

No hotels are listed for this airport.

KCSM Restaurants

No restaurants are listed for this airport.

KCSM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.6

ASOS

ASOS
580-562-4811
 118.45

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 119.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCSM
Thu, 4/25 6:22 PM CDT
Thu, 4/25 7:00 PM CDT - Fri, 4/26 7:00 PM CDT
MVFR
7:00 PM CDT - 5:00 AM CDT
Overcast 3,500'
Broken 2,500'
6sm
180° 18kts
Gusts 27kts
IFR
Temporary 1:00 AM CDT - 4:00 AM CDT
Heavy Thunderstorm and Rain and Mist
Overcast 800'
4sm
Calm
VFR
5:00 AM CDT - 9:00 AM CDT
Broken 25,000'
Scattered 3,000'
6sm
170° 16kts
VFR
9:00 AM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
210° 18kts
Gusts 25kts
KCSM 252322Z 2600/2624 18018G27KT P6SM BKN025 OVC035
   TEMPO 2606/2609 4SM +TSRA BR OVC008CB
   FM261000 17016KT P6SM SCT030 BKN250
   FM261400 21018G25KT P6SM SCT250
KCSM
Domestic
4/18/241240Z !CSM 04/010 CSM OBST TOWER LGT (ASN 2022-WTW-6326-OE) 351640N0990625W (5.9NM SE CSM) 2081FT (296FT AGL) U/S 2404181240-2407182359
4/10/241521Z !CSM 04/008 CSM OBST TOWER LGT (ASN 2021-ASW-3758-OE) 350935N0992133W (13.3NM SW CSM) 2082FT (295FT AGL) U/S 2404101521-2405251515
4/8/241427Z !CSM 04/006 CSM OBST TOWER LGT (ASR 1293602) 352701.40N0991220.40W (6.6NM N CSM) 2002.6FT (259.8FT AGL) U/S 2404081427-2405081700EST
3/21/241315Z !CSM 03/013 CSM OBST TOWER LGT (ASR 1253195) 352853.00N0990705.70W (9.4NM NNE CSM) 1918.0FT (355.0FT AGL) U/S 2403211315-2405212359
Yes
MON-FRI 0900-0100
ATCT CLSD FED HOL.
OSIDA/STATE OF OKLAHOMA
BOX 689
BURNS FLAT, OK 73624
Phone: 580-562-3500
CRAIG J. SMITH
121 1ST STREET
BURNS FLAT, OK 73624
Phone: 580-309-3223
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
CSM
--
ACTVT REIL RWY 17R & 35L; HIRL RWY 17R/35L; TWY LGT; WDI LGT - CTAF. PAPI RWY 17R & 35L ON CONSLY.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
0
0
0
0
0
Major
Major
High Pressure
None
None

Runway 17L/35R

5193 ft. x 75 ft.
CONC
Good
NONE


50,000lbs
200,000lbs
390,000lbs
--
  Runway 17L Runway 35R
True Heading 180°0°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 20' 37"N 35° 19' 46"N
Longitude 99° 11' 53"W 99° 11' 53"W
Elevation 1,906' 1,907'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

13503 ft. x 200 ft.
CONC
Good
NONE
HIGH

50,000lbs
200,000lbs
390,000lbs
--
  Runway 17R Runway 35L
True Heading 180°0°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 21' 35"N 35° 19' 21"N
Longitude 99° 12' 05"W 99° 12' 05"W
Elevation 1,922' 1,912'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1MIL JET TRNG: HVY JETS SFC TO 5000 FT WI 25 NMR. EXTSV STUDENT PILOT TRNG FM SFC TO 5000 FT WI 10 NMR BTN 0900-1200.
A110-3RWY 17L/35R LAID OUT & MRKD ON RWY 17L/35R PARL TWY.
A110-4MIL JET NGT VISION TRNG: CTC ATCT 10 MINS PRIOR TO LDG AFT SS TO ADJUST ARPT LGTS.
A110-5VFR ACFT ADZD TO CTC ATC 15 NM OUT FOR SEQG.
A110-624 HR JET-A FUEL & OTR SVC AVBL - CTC 405-267-4010.
A110-7LDG FEE FOR ACFT GTR THAN 50,000 LBS.
CLINTON/SHERMAN (ICAO: KCSM, IATA: CSM) is a public airport located in BURNS FLAT, OK.
