iFlightPlanner



...

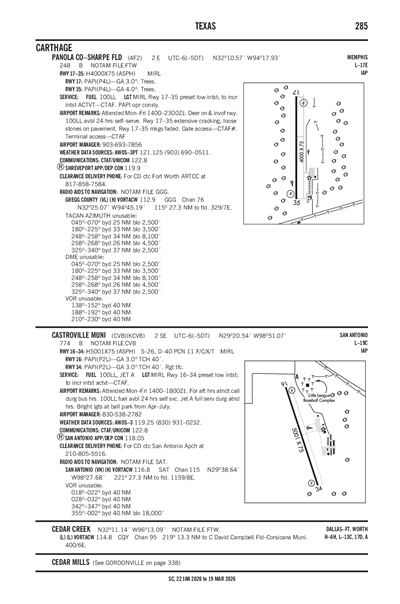

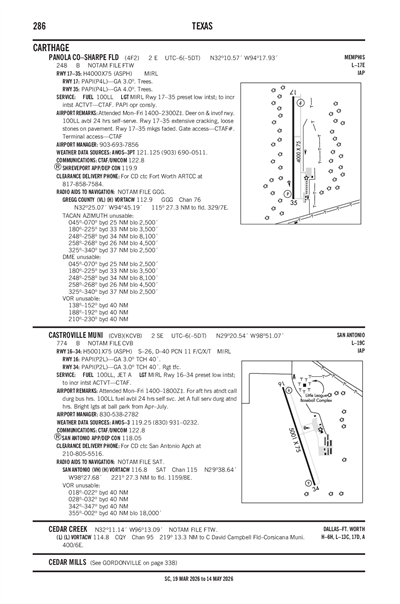

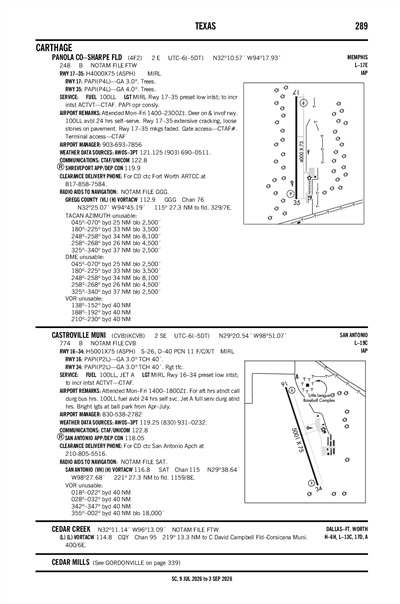

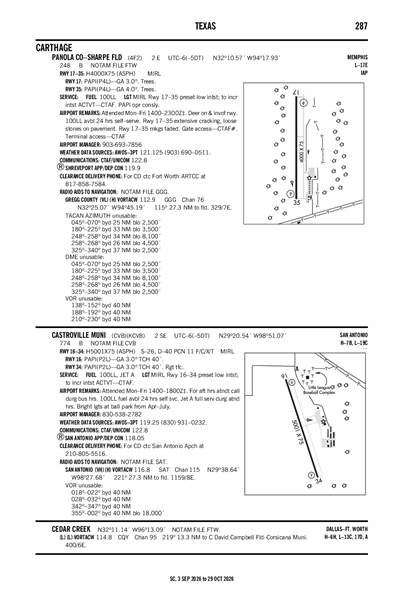

CASTROVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVB
ICAO KCVBLocal CVB
CASTROVILLE MUNI
PublicPUB

2 miles SE of CASTROVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 20' 33"N 98° 51' 04"W
Elevation
774' MSL
Pattern Alt
1774' MSL
Mag Variation
4°E
Declination
4°E
Fuel
JET A, 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
9/3/26-10/1/26
KCVB VFR
2:55 PM CDT
Few 6,000'
10sm
99°F
72°F
29.87"Hg
160° 8kts
AO2
METAR KCVB 121955Z AUTO 16008KT 10SM FEW060 37/22 A2987 RMK AO2
+ Add Your Business

KCVB FBOs

Promote Listing
Castroville Municipal Airport
UNICOM: 122.8
Phone: (830) 931-0234
Other: (830) 538-4260
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 8/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.85 5.50
Full Serve 5.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.25
(830) 931-0232

Common

CTAF 122.8
SS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
UNICOM 122.8

Arrival

CRVZA RNAV STAR 125.7
DNKIN RNAV STAR 125.1
POPPO RNAV STAR 125.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.
QERVO RNAV STAR 127.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.

Approach

SAN ANTONIO APPROACH 118.05

Departure

SAN ANTONIO DEPARTURE 118.05

Terminal Area Forecast

KSKF (14nm)
Sat, 9/12 1:00 PM CDT
Sat, 9/12 1:00 PM CDT - Sun, 9/13 7:00 PM CDT
VFR
1:00 PM CDT - 6:00 PM CDT
Scattered 14,000'
Few 4,000'
6sm
29.82"Hg
160° 12kts
VFR
Becoming 6:00 PM CDT - 9:00 PM CDT
Thunderstorm in vicinity
Broken 6,000'
6sm
29.79"Hg
140° 10kts
Gusts 15kts
VFR
Temporary 7:00 PM CDT - 10:00 PM CDT
No Clouds
N/A
130° 15kts
Gusts 25kts
VFR
Becoming 9:00 PM CDT - 2:00 AM CDT
Few 7,000'
6sm
29.82"Hg
130° 12kts
Gusts 18kts
MVFR
Becoming 2:00 AM CDT - 9:00 AM CDT
Broken 1,000'
6sm
29.88"Hg
160° 9kts
VFR
Temporary 7:00 AM CDT - 10:00 AM CDT
Scattered 1,200'
N/A
Calm
VFR
Becoming 9:00 AM CDT - 3:00 PM CDT
Scattered 4,000'
6sm
29.91"Hg
160° 10kts
VFR
Becoming 3:00 PM CDT - 7:00 PM CDT
Scattered 7,000'
6sm
29.88"Hg
160° 12kts
Gusts 20kts
TAF KSKF 121800Z 1218/1324 16012KT 9999 FEW040 SCT140 QNH2981INS
   BECMG 1223/1224 14010G15KT 9999 VCTS BKN060CB QNH2978INS
   TEMPO 1300/1303 13015G25KT
   BECMG 1302/1303 13012G18KT 9999 NSW FEW070 QNH2983INS
   BECMG 1307/1308 16009KT 9999 BKN010 QNH2987INS
   TEMPO 1312/1315 SCT012
   BECMG 1314/1315 16010KT 9999 SCT040 QNH2990INS
   BECMG 1320/1321 16012G20KT 9999 SCT070 QNH2987INS TX39/1221Z TN26/1312Z
KCVB
EffectiveExpiresCategoryNOTAM
Domestic
9/10/26
0532Z
10/10/26
2359Z
!CVB 09/001 CVB OBST TOWER LGT (ASR 1041476) 291440.00N0984428.00W (8.2NM SE CVB) 1211.0FT (500.0FT AGL) U/S 2609100532-2610102359
8/29/26
0859Z
11/27/26
0959Z
!CVB 08/006 CVB OBST TOWER LGT (ASR 1202548) 292045.00N0985356.00W (2.5NM W CVB) 1261.2FT (310.0FT AGL) U/S 2608290859-2611270959
8/26/26
1952Z
8/26/27
2200Z
!CVB 08/002 CVB AIRSPACE PJE WI AN AREA DEFINED AS 1NM RADIUS OF CVB SFC-10000FT 2608261952-2708262200
8/4/26
1700Z
12/2/26
1700Z
!CVB 08/001 CVB OBST TOWER LGT (ASR 1061696) 291444.60N0984600.40W (7.3NM SE CVB) 1015.4FT (311.7FT AGL) U/S 2608041700-2612021700
7/25/26
1456Z
10/24/26
0400Z
!CVB 07/005 CVB OBST TOWER LGT (ASR 1219778) 292116.40N0984820.60W (2.5NM ENE CVB) 1086.9FT (349.1FT AGL) U/S 2607251456-2610240400
7/11/26
1934Z
11/8/26
1934Z
!CVB 07/004 CVB OBST TOWER LGT (ASR 1043216) 291440.00N0984314.00W (9.0NM SE CVB) 965.9FT (299.9FT AGL) U/S 2607111934-2611081934
FDC
7/9/26
0000Z
!FDC 6/3866 CVB IAP CASTROVILLE MUNI, CASTROVILLE, TX.
RNAV (GPS) RWY 16, AMDT 1A...
PROCEDURE NA AT NIGHT.
2607090000-2807121214EST
No
MON-FRI 0800-1200
FOR AFT HRS ATNDT CALL DURG BUS HRS.
CITY OF CASTROVILLE
1209 FIORELLA ST
CASTROVILLE, TX 78009
Phone: 830-931-4070
MICHAEL HALEY
10500 AIRPORT ROAD
CASTROVILLE, TX 78009
Phone: 830-538-2782
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
CVB
--
SS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 16/34

5001 ft. x 75 ft.
ASPH
Excellent
NONE
MED
11/F/C/X/T
26,000lbs
40,000lbs
--
--
  Runway 16 Runway 34
True Heading 161°341°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 20' 56"N 29° 20' 09"N
Longitude 98° 51' 14"W 98° 50' 55"W
Elevation 774' 762'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2BRIGHT LGTS AT BALL PARK FM APR-JULY.
A110-3FOR CD CTC SAN ANTONIO APCH AT 210-805-5516.
A14COMMUNITY DEV. DIR/AMGR.
A17-H1FOR AFT HRS ATNDT CALL DURG BUS HRS.
A35-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A36-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A39-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A70-100LLFUEL AVBL 24 HRS SELF SVC. JET A FULL SERV DURG ATND HRS.
A76-PAJAPAJA BLW 10000 FT MSL FRI-SUN 0800-1600.
A81-APTSS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
E111PRE DATES THE ACT.
CASTROVILLE MUNI (ICAO: KCVB, IATA: CVB) is a public airport located in CASTROVILLE, TX, US.
