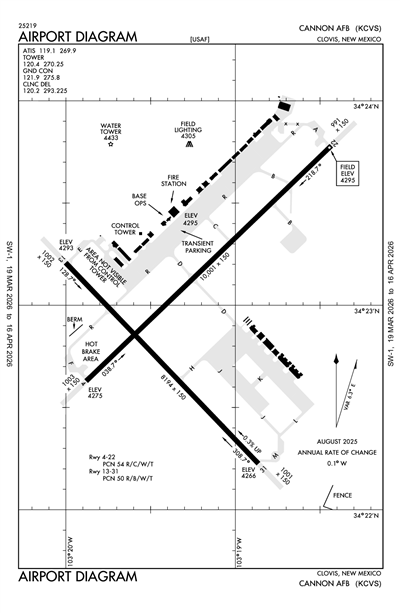

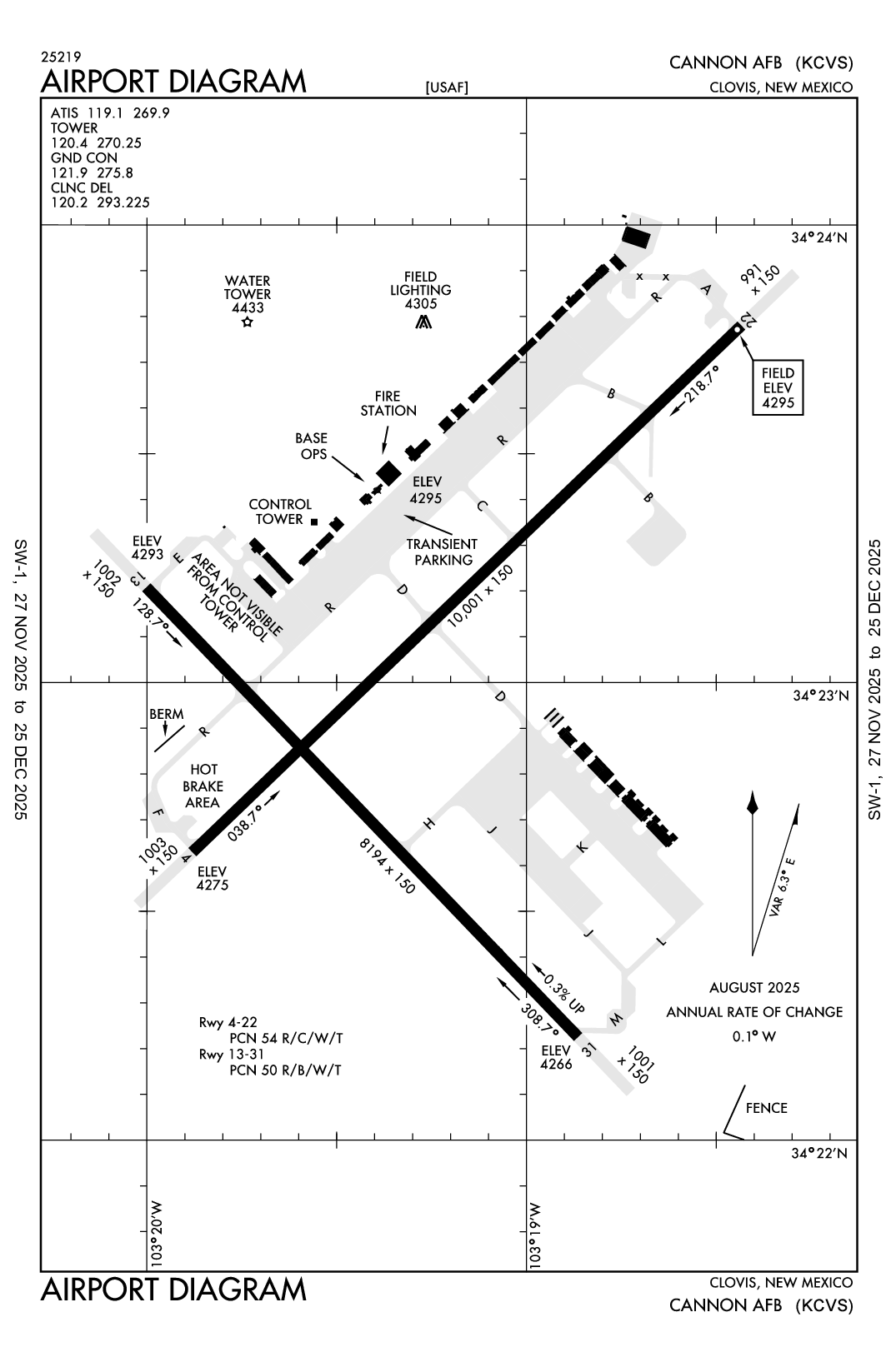

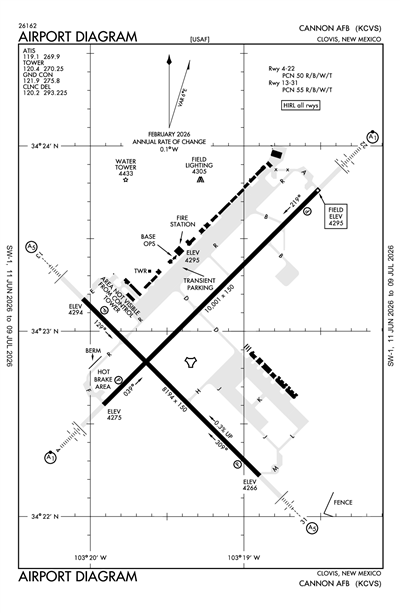

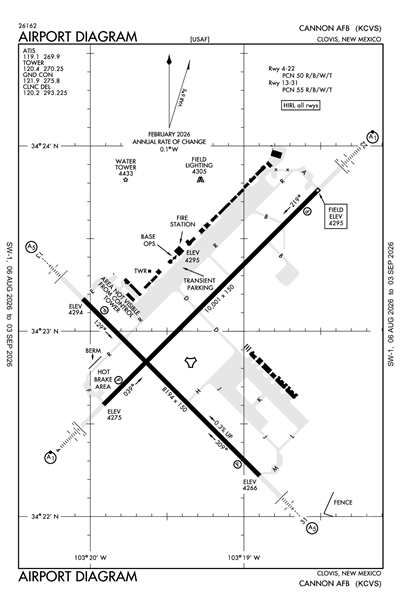

CANNON AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVS
CANNON AFB
PrivatePVT

5 miles W of CLOVIS, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 22' 58"N 103° 19' 20"W
4295' MSL
5295' MSL
07E
JET A, JET A+, CILI
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
12/25/25-1/22/26
KCVS VFR
12:55 PM MST
Clear
10sm
59°F
25°F
29.68"Hg
280° 23kts
Gusts 32kts
AO2 PK WND 25037/23 SLP020 T01491039 $
METAR KCVS 081955Z AUTO 28023G32KT 10SM CLR 15/M04 A2968 RMK AO2 PK WND 25037/23 SLP020 T01491039 $
+ Add Your Business

KCVS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: SAME AS ATCT HRS
 119.1

Approach/Departure

APCH/P DEP/P
 118.425

Clearance Delivery

CD/P
 120.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.4

Other

SFA
 139.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCVS
Thu, 1/8 12:07 AM MST
Thu, 1/8 12:00 AM MST - Fri, 1/9 1:00 AM MST
MVFR
Temporary 7:00 PM MST - 11:00 PM MST
Light Showers and Rain
Broken 4,000'
Broken 1,000'
4.97sm
210° 20kts
Gusts 35kts
Light Turbulence: 6,000 - 9,000'
MVFR
Becoming 9:00 PM MST - 12:00 AM MST
Light Showers and Rain
Broken 4,000'
Broken 1,000'
5.59sm
29.62"Hg
240° 15kts
Gusts 25kts
VFR
Becoming 12:00 AM MST - 6:00 AM MST
Scattered 5,000'
Few 2,000'
6sm
29.59"Hg
240° 20kts
Gusts 35kts
Light Turbulence: 6,000 - 9,000'
VFR
12:00 AM MST - 1:00 AM MST
Broken 6,000'
Broken 4,000'
6sm
29.76"Hg
210° 15kts
Gusts 25kts
MVFR
Temporary 2:00 AM MST - 4:00 AM MST
Light Showers and Rain
Broken 5,000'
Broken 1,000'
4.97sm
240° 20kts
Gusts 35kts
Light Turbulence: 6,000 - 9,000'
VFR
Becoming 6:00 AM MST - 10:00 AM MST
Scattered 5,000'
Few 2,000'
6sm
29.65"Hg
270° 30kts
Gusts 40kts
Moderate, Clear Air, Occasional: 6,000 - 3,000'
VFR
Becoming 10:00 AM MST - 4:00 PM MST
Scattered 4,000'
6sm
29.70"Hg
270° 20kts
Gusts 35kts
Light Turbulence: 6,000 - 9,000'
VFR
Becoming 4:00 PM MST - 1:00 AM MST
Broken 8,000'
Scattered 5,000'
6sm
29.73"Hg
270° 10kts
Gusts 15kts
TAF COR KCVS 080707Z 0807/0908 21015G25KT 9999 BKN040 BKN060 QNH2975INS
   TEMPO 0802/0806 21020G35KT 8000 -SHRA BKN010 BKN040 510009
   BECMG 0804/0806 24015G25KT 9000 -SHRA BKN010 BKN040 QNH2961INS
   BECMG 0807/0809 24020G35KT 9999 NSW FEW020 SCT050 510009 QNH2958INS
   TEMPO 0809/0811 24020G35KT 8000 -SHRA BKN010 BKN050 510009
   BECMG 0813/0814 27030G40KT 9999 FEW020 SCT050 520003 QNH2966INS
   BECMG 0817/0818 27020G35KT 9999 SCT040 510009 QNH2970INS
   BECMG 0823/0824 27010G15KT 9999 SCT050 BKN080 QNH2972INS T
KCVS
EffectiveExpiresCategoryNOTAM
Military
1/8/26
0900Z
1/31/26
1300Z
THU FRI MON TUE WED 0900-1300 E) AERODROME CLSD AND TERMINAL AERODROME FORECASTS AMENDMENTS UNAVAILABLE
1/8/26
0900Z
1/30/26
1300Z
RADAR CONTROL NOT AVAILABLE CONTACT ABQ CENTER ON FREQUENCY 126.85 OR 285.6
1/8/26
0650Z
2/25/26
0001Z
TaxiwayTWY M MANDATORY HOLD SIGN UNLIT.
1/8/26
0648Z
2/25/26
0001Z
RunwayRWY 13/31 - RDR 3/5 NORTHSIDE UNLIT
1/8/26
0646Z
3/25/26
0001Z
GUN BERM LEFT OB LIGHT UNLIT.
1/8/26
0644Z
1/11/26
0644Z
M0058/26 NOTAMC M1824/25
1/8/26
0641Z
1/8/26
1300Z
RADAR CONTROL NOT AVAILABLE CONTACT ABQ CENTER ON FREQUENCY 126.85 OR 285.6
1/8/26
0640Z
1/8/26
1300Z
AerodromeAERODROME CLSD AND TERMINAL AERODROME FORECASTS AMENDMENTS UNAVAILABLE
1/8/26
0634Z
1/11/26
0634Z
M0053/26 NOTAMC M0044/26
1/8/26
0633Z
1/11/26
0633Z
M0052/26 NOTAMC M0045/26
1/8/26
0620Z
1/11/26
0620Z
M0051/26 NOTAMC M0042/26
1/8/26
0617Z
2/25/26
0001Z
RunwayRUNWAY 04/22 - RDR 3/8 EASTSIDE UNLIT.
1/8/26
0615Z
2/25/26
0001Z
RunwayRUNWAY 04/22 - RDR 6/4 EASTSIDE UNSERVICEABLE.
1/8/26
0614Z
2/25/26
0001Z
RunwayRUNWAY 04/22 - RDR 7/3 EASTSIDE UNSERVICEABLE.
1/8/26
0612Z
1/11/26
0612Z
M0047/26 NOTAMC M0046/26
1/8/26
0552Z
1/11/26
0552Z
M0043/26 NOTAMC M0041/26
1/8/26
0543Z
1/8/26
1300Z
AerodromeAERODROME CLOSED
1/8/26
0540Z
1/11/26
0540Z
M0039/26 NOTAMC M0035/26
1/7/26
1408Z
1/10/26
1408Z
M0038/26 NOTAMC M0034/26
1/7/26
1408Z
1/10/26
1408Z
M0037/26 NOTAMC M0033/26
1/6/26
0151Z
1/9/26
0151Z
M0030/26 NOTAMC M0022/26
1/6/26
0151Z
1/9/26
0151Z
M0029/26 NOTAMC M0021/26
1/5/26
1748Z
1/8/26
1748Z
M0028/26 NOTAMC M0027/26
1/5/26
1246Z
4/1/26
2359Z
TaxiwayTWY G CLSD
1/5/26
1245Z
4/1/26
2359Z
AIRCRAFT RESCUE AND FIREFIGHTING (ARFF) LEVEL OF SERVICE HAS CHANGED TO BLACK (INADEQUATE) FOR CATEGORY 8-10 MISSION ASSIGNED AIRCRAFT. 4,500 GALLONS OF FIREFIGHTING AGENT IS AVAILABLE. AMC MISSIONS REFER TO AMCI 11-208. DIRECT ALL INQUIRIES TO THE FIRE CHIEF, DEPUTY FIRE CHIEF, OR ON-DUTY ASSISTANT CHIEF OF OPERATIONS AT DSN 681-2578 OR COMMERCIAL 575-784-2578.
1/1/26
1747Z
1/30/26
2359Z
AerodromeAERODROME OFFICAL BUSINESS ONLY. ALL PPR REQUESTS WILL BE VALIDATED. CONTACT AIRFIELD MANAGEMENT AT COMM 575-784-2801.
1/1/26
1737Z
1/30/26
2359Z
Apron!KCVS M0005/26 CVS APRON VADER RAMP CLSD 2601011737-2601302359
1/1/26
1736Z
3/1/26
2359Z
TaxiwayTWY A NAVAID CK POINT SIGN DAMAGED
1/1/26
1735Z
3/1/26
2359Z
TaxiwayTWY E NAVAID CK POINT SIGN DAMAGED.
1/1/26
1734Z
3/1/26
2359Z
TaxiwayTWY F NAVAID CK POINT SIGN DAMAGED
12/16/25
0443Z
3/6/26
2359Z
RunwayRWY 04 WINDCONE ADJACENT TO TWY F INFIELD INTERIOR LIGHT UNLIT
12/6/25
1802Z
2/6/26
2359Z
RunwayRWY 22 WINDCONE ADJACENT TO TWY G OB LIGHT UNLIT
12/6/25
1757Z
2/6/26
2359Z
RunwayRWY 13 WINDCONE ADJACENT TO TWY E INFIELD OB LIGHT UNLIT
12/6/25
1748Z
2/6/26
2359Z
RunwayRWY 22 WINDCONE ADJACENT TO TWY GOLF UNSERVICEABLE
12/2/25
0715Z
2/25/26
2359Z
RunwayRWY 13/31 - RDR 3/5 NORTHEAST SIDE UNLIT
11/25/25
1600Z
1/25/26
2359Z
TaxiwayTWY E INFORMATIONAL SIGN ADJACENT TO RWY 13 APPROACH UNSERVICEABLE
11/25/25
1559Z
1/25/26
2359Z
Runway!KCVS M1907/25 CVS RWY 04 SEQUENCED FLG LGT NOT MNT AND MUST BE MANUALLY TURNED ON/OFF. 2511251559-2601252359
11/25/25
1557Z
1/25/26
2359Z
RunwayRWY 13/31 APPROACH LIGHTING SYSTEM IS INCORRECTLY CLASSIFIED IN THE IFR SUPPLEMENT. THE SYSTEM INSTALLED IS A MALSR NOT A SSALR. A CORRECTION TO THE IFR SUPPLEMENT WILL BE MADE. CONTACT AIRFIELD MANAGEMENT AT 575-784-2801 FOR MORE INFORMATION.
11/25/25
1556Z
1/25/26
2359Z
TaxiwayTWY F INFORMATIONAL SIGN ADJACENT TO RWY 04 APPROACH UNSERVICEABLE. SIGN LETTERING MISSING.
11/25/25
1555Z
1/25/26
2359Z
TaxiwayTWY H LOCATION SIGN COLLOCATED WITH TWY J DIRECTIONAL SIGN UNLIT.
11/25/25
1554Z
1/25/26
2359Z
TaxiwayTWY D LOCATION SIGN COLLOCATED WITH TWY H DIRECTIONAL SIGN UNLIT.
11/25/25
1553Z
1/20/26
2359Z
AIR COMMANDO RAMP SPOTS R13, R14, & R15 CLSD.
11/15/25
0412Z
2/7/26
2359Z
HANGAR 4605 OB LIGHTS UNLIT
11/15/25
0358Z
2/7/26
2359Z
NORTH2 APRON PARKING ROWS L1-2, M1-2, N1-2, O1-2, P1-2 & Q1-4 ALL MARKED INCORRECTLY. PARKING SPOTS NUMBERED IN REVERSED NUMERICAL ORDER.
11/14/25
0453Z
1/15/26
2359Z
RunwayRWY 04/22 - RDR 5/5 NORTHWEST SIDE UNLIT
11/14/25
0451Z
1/15/26
2359Z
TaxiwayTWY DIRECTION AND LOCATION SIGN ON TWY L FOR M/L/J UNLIT
11/14/25
0447Z
1/15/26
2359Z
TaxiwayTWY M LOCATION SIGN & RWY 31 HOLDING POSITION SIGN UNLIT
11/14/25
0442Z
1/15/26
2359Z
HANGAR 4608 OB LIGHTS UNLIT
11/14/25
0427Z
1/15/26
2359Z
DASR OB LIGHT UNLIT
11/14/25
0425Z
1/15/26
2359Z
TaxiwayTWY F HOLDING POSITION SIGN FOR ILS UNLIT
11/14/25
0416Z
1/15/26
2359Z
RunwayRWY 22 GLIDESLOPE OB LIGHT UNLIT
11/14/25
0414Z
1/15/26
2359Z
RunwayRWY 04 FMQ-19 OB LIGHT UNLIT
11/14/25
0413Z
1/15/26
2359Z
RunwayRWY 04 GLIDESLOPE OB LIGHT UNLIT
11/14/25
0412Z
1/15/26
2359Z
RunwayRWY 22 LOCALIZER OB LIGHT UNLIT
11/14/25
0411Z
1/15/26
2359Z
RunwayRWY 13 LOCALIZER OB LIGHT UNLIT
11/14/25
0410Z
1/15/26
2359Z
HANGAR 4610 OB LIGHTS UNLIT
11/14/25
0356Z
1/15/26
2359Z
RunwayRWY 13/31 - RDR 7/1 NORTHEAST & SOUTHWEST SIDES UNLIT
11/14/25
0355Z
1/15/26
2359Z
RunwayRWY 13/31 - RDR 2/6 NORTHEAST SIDE UNLIT
11/12/25
2055Z
2/3/26
0001Z
F-35 ACFT NOT APPROVED VTOL OPS.
Yes
ALL
MAPRUSAF
27TH CS GP TAC/OTM CANNON AFB
CLOVIS, NM 88101
Phone: 575-784-2801
BASE OPERATIONS
27TH CS GP TAC/OTB CANNON AFB
CANNON AFB, NM 88101
Phone: 575-784-2801
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
CVS
Sunset to Sunrise
--
N/A
ABN UNSVC UFN.
N/A
No
No
None
No
Major
Major
None
None
None

Runway 04/22

10003 ft. x 150 ft.

CONC
NONE
HIGH
54 /R/C/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 22' 36"N 34° 23' 46"N
Longitude 103° 19' 55"W 103° 18' 30"W
Elevation 4,275' 4,295'
Threshold Crossing Height 41 ft. AGL 38 ft. AGL
Visual Glide Path Angle 2.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

8196 ft. x 150 ft.

PEM
NONE
HIGH
50 /R/B/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 23' 11"N 34° 22' 13"N
Longitude 103° 20' 03"W 103° 18' 54"W
Elevation 4,293' 4,266'
Threshold Crossing Height 37 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR SSALR
Centerline Lights No No
Runway End Identifier Lights No No
A110-11DEP RSTD TO 5300 FT TIL DER.
A110-13SVC: GATED THR LGT ON RWY 04/22.
A110-18CTN: CLOVIS RGNL 13 NM NE; PORTALES MUNI 14 NM SSW.
A110-19CTN: BASH PHASE II IN EFCT 1 OCT-31 JAN; OTR TIMES BASH PHASE I.
A110-22SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-24FUEL: J8.
A110-25FLUID: SP PRESAIR LPOX LOX.
A110-27SVC: TRANS ALERT: 1400-0600Z++ MON-FRI; 1300-2100Z++ SAT-SUN.
A110-32RSTD: 24 HR - 15 DAY PPR - D681-2801/C575-784-2801; ACFT ADHERE +/-30 MIN OR PPR INVALID.
A110-33MISC: TSNT WX BRIEFING AFT HR - 25 OWS DAVIS-MONTHAN AFB D228-6598/6599/6588, C520-228-6598/6599.
A110-34MISC: WX OBS SENT BY AN/FMQ19; AUGMENTED BY HUMAN OBS DURG SVR WX & EQUIP OUTAGE; OBS SITE LTD 240-020 DEG DUE TO BLDG; NGT OBS LTD DUE HI INTS RAMP LGT.
A110-35MISC: FIRE FIGHTING CPBLS LTD TO CAT 8-10 ACFT; VERIFY CPBLTY DURG PPR.
A110-37AD OFFL BUS ONLY FIRST FRI OF MONTH.
A110-41ALL HLDG APRON TAXI-LINES RSTD TO WHEELBASE MORE THAN 14 FT.
A110-44CTN: NVD OPS MAY BE CONDUCTED INVOF OF AIRFIELD BTN SS - SR.
A110-45CSTMS/AG/IMG: CUSTOMS SVC UNAVBL.
A110-46MISC: DV 0-6 & ABOVE OR CIV EQUIVALENT & ROTATORS - AIRFIELD MGMT PTD 372.2 & COMD POST UHF WHEN 100 NM OUT WITH ETA & REQS.
A110-49RSTD: TWY B RSTD TO C130 147000 LBS OR LESS.
A110-53CTN: TWY EDGE LGT 15 FT FM MRKD, STRESSED PAVEMENT ON TWY D AT INT OF TWY R.
A110-54CTN: WINGTIP CLNC FOR C130 ACFT IN PRKG ROW DELTA-INDIA 24 FT; ROW LIMA-PAPA 15 FT.
A110-55CTN: LOADED ACFT PRKD IN PROXIMITY OF RWY 31 APCH END.
A110-57SERVICE-OIL: OIL SVC UNAVBL FOR MIL-7808 OIL.
A110-58MISC: TSNT CLASSIFIED STORAGE - COMD POST.
A110-60JASU: (A/M32A-86).
A110-62SERVICE-OIL: JOAP
A110-63WX OPS H24; PSBL SDBY HR WKENDS BASED ON LCL FLYING.
A110-65CTN: UAS ACT WI 6 NM 9000 FT & BLW; WI CLASS D ASP & BTN CLASS D ASP & R5104.
A110-66CAUTION: AFLD BLACKOUT OPS EVERY MON 0200Z-0400Z++. NORTH-2 APRON RSTD TO NVD PERS/VEH ONLY. ALL NON-PARTICIPATING ACFT EXP DELAYS.
A110-71CTN: ALL SIGNS FADED; ALL MARKINGS FADED & CHIPPED; SHOULDER MARKINGS NOT ACCURATELY PAINTED ON COMMANDO RAMP BTN HANGARS & TAXILANE DELTA.
A110-73TWY F & D BTN RWY 04/22 & TWY R RSTD TO ACFT WITH ACN 31 OR GREATER.
A110-74ALL ARR/DEP MUST BE ABLE TO PERFORM 180 DEG TURN ON RWYS.
A110-9CTN: BIRD HAZ; SEWAGE LAGOON & LAKE 1/2 NM SE OF RWY 22.
CANNON AFB (ICAO: KCVS, IATA: CVS) is a private airport located in CLOVIS, NM.
