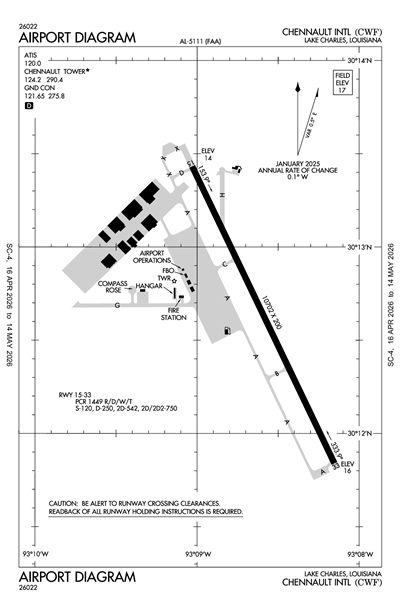

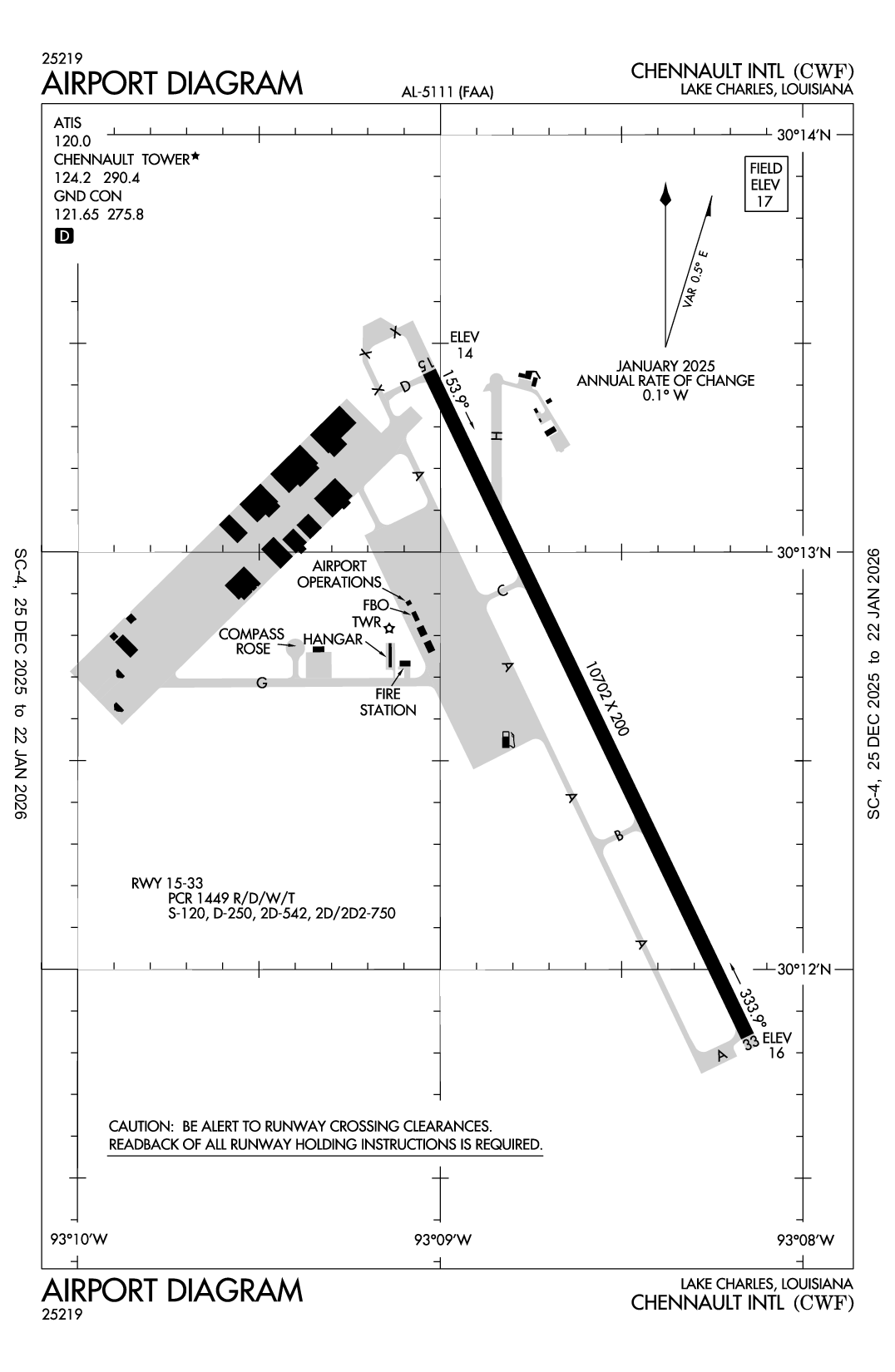

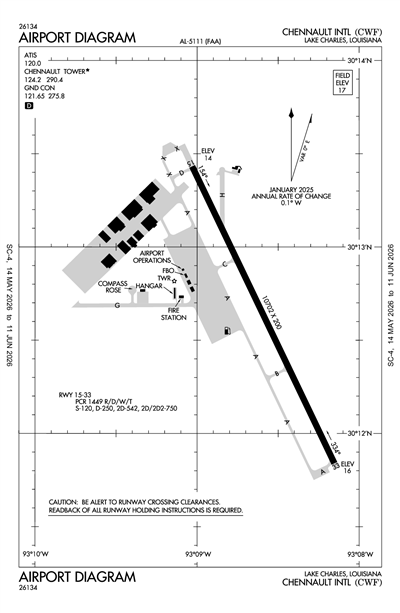

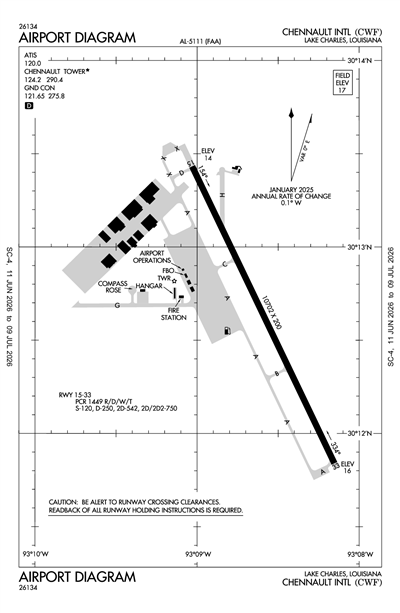

CHENNAULT INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCWF
ICAO KCWFIATA CWFLocal CWF
CHENNAULT INTL
PublicPUB

4 miles E of LAKE CHARLES, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 12' 38"N 93° 08' 35"W
Elevation
17' MSL
Pattern Alt
1500' MSL
Mag Variation
1°E
Declination
0°
Fuel
JET A-1+, 100LL
FSS
DE RIDDER (DRI)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
5/14/26-6/11/26
KCWF VFR
12:55 AM CDT
Clear
10sm
70°F
68°F
29.98"Hg
150° 7kts
AO2 T02120199 10268 20211
METAR KCWF 160555Z AUTO 15007KT 10SM CLR 21/20 A2998 RMK AO2 T02120199 10268 20211
+ Add Your Business

KCWF FBOs

Promote Listing
Million Air Lake Charles
UNICOM: 122.95
Phone: (337) 436-4877
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Avfuel
As of 5/5
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.14
Full Serve 8.69 7.93
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.0
AWOS-3 120.0
(337) 214-2134

Common

CTAF 124.2
WHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
UNICOM 122.95

Ground

CHENNAULT GROUND 121.65
0600-2200

Tower

CHENNAULT TOWER 124.2
0600-2200

Approach

LAKE CHARLES APPROACH 119.8

Departure

LAKE CHARLES DEPARTURE 119.8

Center

LAKE CHARLES CENTER 124.7
LOW, APCH/DEP SVC PRVDD BY HOUSTON ARTCC (ZHU) ON FREQS 124.7/317.4 (LAKE CHARLES RCAG) WHEN LAKE CHARLES APCH CTL (LCH) CLSD.

Terminal Area Forecast

KLCH (7nm)
Sat, 5/16 12:20 AM CDT
Sat, 5/16 1:00 AM CDT - Sun, 5/17 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Broken 25,000'
6sm
150° 5kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 10,000'
6sm
170° 12kts
Gusts 20kts
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
150° 9kts
TAF KLCH 160520Z 1606/1706 15005KT P6SM BKN250
   FM161500 17012G20KT P6SM SCT100
   FM170000 15009KT P6SM SCT250
KCWF
EffectiveExpiresCategoryNOTAM
Domestic
5/15/26
0146Z
9/12/26
0146Z
!CWF 05/006 CWF OBST TOWER LGT (ASR 1045316) 303158.90N0930258.10W (19.9NM NNE CWF) 362.9FT (313.0FT AGL) U/S 2605150146-2609120146
5/12/26
1101Z
8/10/26
2257Z
!CWF 05/005 CWF OBST CRANE (ASN UNKNOWN) 301153N0930846W (0.88NM SSW CWF)
UNKNOWN (160FT AGL) FLAGGED AND LGTD DLY SR-SS 2605121101-2608102257
5/11/26
0359Z
9/8/26
0359Z
!CWF 05/002 CWF OBST TOWER LGT (ASR 1022607) 301646.30N0931445.40W (6.7NM NW CWF) 442.9FT (421.9FT AGL) U/S 2605110359-2609080359
4/27/26
1150Z
7/27/26
0400Z
!CWF 04/012 CWF OBST TOWER LGT (ASR 1021744) 301420.80N0930443.50W (3.8NM ENE CWF) 541.0FT (525.9FT AGL) U/S 2604271150-2607270400
4/16/26
2344Z
5/31/26
2343Z
!CWF 04/011 CWF OBST TOWER LGT (ASR 1300471) 301754.90N0930637.10W (5.5NM NNE CWF) 311.0FT (299.9FT AGL) U/S 2604162344-2605312343
4/16/26
1251Z
12/31/26
2300Z
!CWF 04/010 CWF APRON COMPASS ROSE RAMP CLSD 2604161251-2612312300
4/7/26
1430Z
7/6/26
0400Z
!CWF 04/007 CWF OBST TOWER LGT (ASR 1038257) 301431.40N0930803.00W (1.9NM NNE CWF) 200.8FT (192.9FT AGL) U/S 2604071430-2607060400
6/6/25
1401Z
6/6/26
2359Z
!CWF 06/002 CWF OBST TOWER LGT (ASR 1022539) 300828.00N0930352.00W (5.8NM SE CWF) 322.8FT (316.9FT AGL) U/S 2506061401-2606062359
FDC
3/5/26
1248Z
!FDC 6/3931 CWF IAP CHENNAULT INTL, LAKE CHARLES, LA.
RNAV (GPS) RWY 15, AMDT 1A...
LNAV CATS C/D VISIBILITY 7/8. CHANGE ALTIMETER NOTE TO READ: WHEN
LOCAL ALTIMETER SETTING NOT RECEIVED, USE LCH ALTIMETER SETTING:
INCREASE LPV DA TO 233 FEET; INCREASE LNAV/VNAV DA TO 524 FEET;
INCREASE ALL MDAS 20 FEET AND LNAV VISIBILITY CATS C/D 1/8 SM AND
CIRCLING VISIBILITY CAT D 1/4 SM. CHANGE BARO-VNAV AND VDP NA NOTE
TO READ: BARO-VNAV AND VDP NA WHEN USING LCH ALTIMETER SETTING.
DELETE NOTE: FOR INOPERATIVE ALS WHEN USING LAKE CHARLES RGNL
ALTIMETER SETTING INCREASE LNAV/VNAV VISIBILITY ALL CATS TO 1 3/8
SM.
THIS IS RNAV (GPS) RWY 15, AMDT 1B. 2603051248-PERM
10/15/25
1300Z
!FDC 5/1061 CWF IAP CHENNAULT INTL, LAKE CHARLES, LA.
RADAR 1, AMDT 1B...
PROCEDURE NA.
2510151300-2710151300EST
Yes
0600-2200
AFT HRS CALL 337-433-7766.
CHENNAULT INTL ARPT AUTHORITY
3650 SEN. J. BENNETT JOHNSTON AVE
LAKE CHARLES, LA 70615
Phone: 337-491-9961
W. KEVIN MELTON
3650 SEN. J. BENNETT JOHNSTON AVE
LAKE CHARLES, LA 70615
Phone: 337-491-9961
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
CWF
--
WHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
Low Pressure
None
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 15/33

10702 ft. x 200 ft.
CONC
Fair
NONE
HIGH

120,000lbs
250,000lbs
542,000lbs
750,000lbs
  Runway 15 Runway 33
True Heading 154°334°
Traffic Pattern Right
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 30° 13' 26"N 30° 11' 50"N
Longitude 93° 09' 02"W 93° 08' 09"W
Elevation 14' 16'
Threshold Crossing Height 53 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1INDEX E AVBL WITH 24 HRS NOTICE CALL AMGR 337-491-9961.
A110-2BIRDS ON & INVOF OF ARPT
A110-3WHEN ATCT CLSD, FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
A110-4PPR REQD FOR ACFT / HELO OPS IN THE INDUSTRIAL AREA
A110-5FOR PORT OF ENTRY REQ, CONTACT THE DIR OF OPS VIA CIAA@CHENNAULT.ORG AT LEAST 3 BUS DAYS (M-F) PRIOR TO PLANNED ARR.
A110-6CTC APRT MGR FOR DSGND RAMP SPACE FOR PUB USE.
A17-M1AFT HRS CALL 337-433-7766.
A266 HRS PPR FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 337-491-9961. ARFF INDEX E AVAILABLE 24/7
A39-15/33PCR VALUE: 1449/R/D/W/T
A70-100LLFOR FUEL CALL 337-436-4877. SELF SVC AVBL 24 HRS WITH CREDIT CARD.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
E111PRVDD ATCT OPNL TO PRVD ATC SVCS PRIOR TO ACFT OPNS.
CHENNAULT INTL (ICAO: KCWF, IATA: CWF) is a public airport located in LAKE CHARLES, LA, US.
