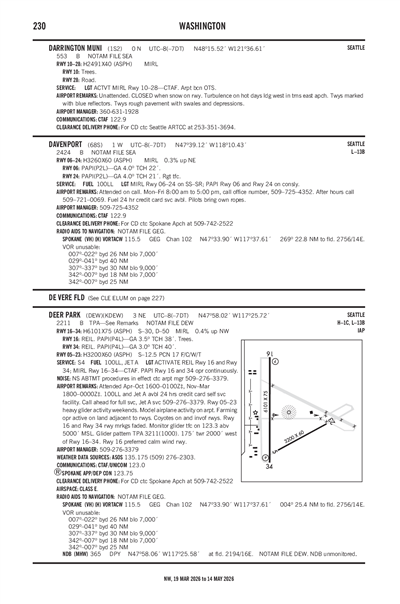

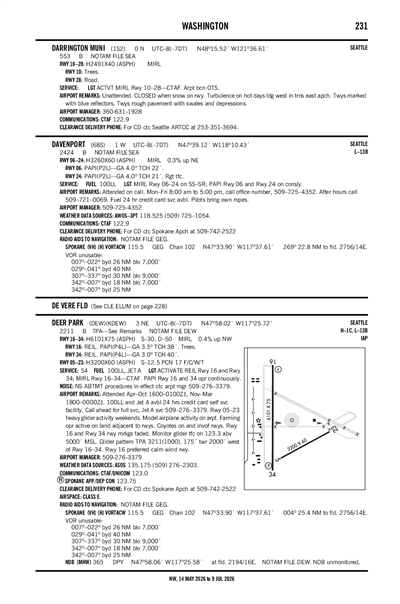

DEER PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDEW
ICAO KDEWIATA DEWLocal DEW
DEER PARK
PublicPUB

3 miles NE of DEER PARK, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 58' 01"N 117° 25' 43"W
Elevation
2211' MSL
Pattern Alt
3211' MSL
Mag Variation
14°E
Declination
16°E
Fuel
JET A, 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KDEW VFR
6:53 AM PDT
Clear
10sm
14°F
12°F
30.42"Hg
Calm
AO2 SLP330 I1000 T11001111 $
METAR KDEW 151353Z AUTO 00000KT 10SM CLR M10/M11 A3042 RMK AO2 SLP330 I1000 T11001111 $
+ Add Your Business

KDEW FBOs

Promote Listing
Deer Park Airport
UNICOM: 123.0
Phone: (509) 276-3379
Other: (509) 993-1620
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 2/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.80 5.55
Full Serve 6.06 5.81
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.175
(509) 276-2303

Common

CTAF 123.0
ACTVT REIL RWY 16 AND RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.
UNICOM 123.0

Approach

SPOKANE APPROACH 123.75

Departure

SPOKANE DEPARTURE 123.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSFF (17nm)
Sun, 3/15 4:36 AM PDT
Sun, 3/15 5:00 AM PDT - Mon, 3/16 5:00 AM PDT
VFR
5:00 AM PDT - 5:00 PM PDT
Overcast 20,000'
Scattered 15,000'
6sm
VRB° 3kts
VFR
5:00 PM PDT - 11:00 PM PDT
Light Snow
Overcast 3,500'
N/A
Calm
VFR
5:00 PM PDT - 11:00 PM PDT
Broken 10,000'
6sm
130° 3kts
VFR
11:00 PM PDT - 5:00 AM PDT
Overcast 5,000'
6sm
140° 3kts
MVFR
11:00 PM PDT - 5:00 AM PDT
Light Snow
Overcast 3,500'
5sm
Calm
TAF KSFF 151136Z 1512/1612 VRB03KT P6SM SCT150 OVC200
   FM160000 13003KT P6SM BKN100
   PROB30 1600/1606 -SN OVC035
   FM160600 14003KT P6SM OVC050
   PROB30 1606/1612 5SM -SN OVC035
KDEW
EffectiveExpiresCategoryNOTAM
FDC
3/5/26
1250Z
!FDC 6/3934 DEW IAP DEER PARK, DEER PARK, WA.
RNAV (GPS) RWY 34, ORIG-B...
LNAV CAT C VISIBILITY 1 1/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. DELETE *LNAV ONLY. CHANGE CHART
VDP TO READ: CHART VDP AT 1.18 NM TO RW34. GS ALT AT HOKAS 3800.
CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT
RECEIVED, USE GEG ALTIMETER SETTING: INCREASE LPV DA TO 2536 FEET;
INCREASE LNAV/VNAV DA TO 2621 FEET; INCREASE ALL MDAS 80 FEET AND
LNAV VISIBILITY CAT C 1/4 SM, LNAV VISIBILITY CAT D 1/8 SM, AND
CIRCLING VISIBILITY CAT D 1/4 SM. CHANGE VDP AND BARO-VNAV NOTE TO
READ: BARO-VNAV AND VDP NA WHEN USING GEG ALTIMETER SETTING. CHANGE
FOR UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED
BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -19C OR ABOVE 54C.
THIS IS RNAV (GPS) RWY 34, ORIG-C. 2603051250-PERM
2/13/26
2123Z
!FDC 6/4219 DEW ODP DEER PARK, DEER PARK, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
GEG VOR 001 CW 090 UNUSABLE. 2602132123-2609252123EST
7/29/25
1440Z
!FDC 5/6349 DEW ODP DEER PARK, DEER PARK, WA.
DIVERSE VECTOR AREA (RADAR VECTORS), AMDT 1 ...
RWY 34: HEADING AS ASSIGNED BY ATC, REQUIRES MINIMUM CLIMB OF 260 FT/NM TO 2600. DO NOT EXCEED 240 KTS UNTIL ON ASSIGNED HEADING.
ALL OTHER DATA REMAINS AS PUBLISHED. 2507291440-2707291440EST
No
APR-OCT 0800-1700
NOV-MAR 1000-1600
CITY OF DEER PARK
316 E. CRAWFORD
DEER PARK, WA 99006
Phone: 509-276-8802
DAROLD SCHULTZ
PO BOX F
DEER PARK, WA 99006
Phone: 509-276-3379
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
DEW
--
ACTVT REIL RWY 16 AND RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 05/23

3200 ft. x 60 ft.
ASPH
Good
NONE

17/F/C/W/T
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 61°241°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 47° 57' 43"N 47° 57' 59"N
Longitude 117° 25' 46"W 117° 25' 05"W
Elevation 2,188' 2,183'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

6101 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 47° 58' 37"N 47° 57' 37"N
Longitude 117° 25' 52"W 117° 25' 52"W
Elevation 2,211' 2,186'
Threshold Crossing Height 38 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10MONITOR GLIDER TRAFFIC ON 123.3 ABOVE 5,000 FT MSL.
A110-11FOR CD CTC SPOKANE APCH AT 509-742-2522
A110-2MODEL AIRPLANE ACTIVITY ON ARPT.
A110-3COYOTES ON AND INVOF RUNWAYS.
A110-5RY 05/23 HEAVY GLIDER ACTIVITY ON WEEKENDS.
A110-6FARMING OPN ACTIVE ON LAND ADJACENT TO RYS.
A110-7NOISE ABATEMENT PROCEDURES IN EFFECT CTC AMGR 509-276-3379.
A110-8RY 16 PREFERRED CALM WIND RY.
A110-9175 FT TOWER 2000 FT W OF RY 16/34.
A14EMAIL: DEERPARKAIRPORT@GMAIL.COM
A16CELL 509-999-5835.
A42-16_CONDRWY MRKGS FADED.
A42-34_CONDRWY MRKGS FADED.
A70-100LL100LL AND JET A AVBL 24 HRS CREDIT CARD SELF SVC FACILITY. CALL AHEAD FOR FULL SVC, JET A SVC 509-276-3379.
A75-TPILOTS BRING OWN ROPES.
A81-APTACTVT REIL RWY 16 AND RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.
E111ESTABD PRIOR TO 1959.
E147GLIDER PATTERN TPA 1000 FT.
DEER PARK (ICAO: KDEW, IATA: DEW) is a public airport located in DEER PARK, WA, US.
