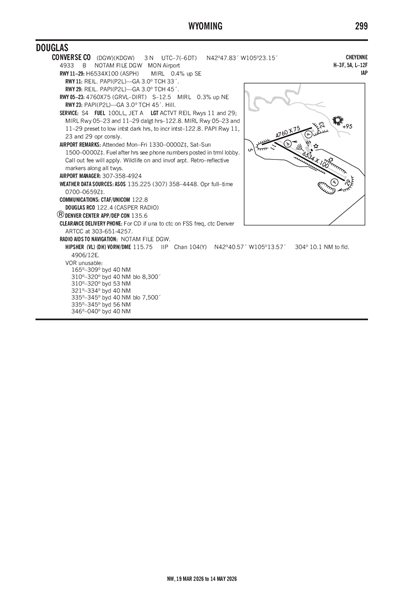

CONVERSE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDGW
CONVERSE COUNTY
PublicPUB

3 miles N of DOUGLAS, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 47' 50"N 105° 23' 09"W
4933' MSL
5933' MSL
11E
Jet A, 100LL
CASPER (CPR)
CHEYENNE
DENVER (ZDV)
6/16/22-7/14/22
KDGW VFR
3:11 PM MDT
Clear
10sm
92°F
42°F
29.98"Hg
040° 4kts
AO2 LTG DSNT E AND SE AND NW T03330056
KDGW 052111Z AUTO 04004KT 10SM CLR 33/06 A2998 RMK AO2 LTG DSNT E AND SE AND NW T03330056
List Your Business

KDGW FBOs, Flight Schools and Ground Support

Promote Listing
R&G Aircraft Service
Freq: 122.8
Phone: (307) 358-3527
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/29
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.60 7.25

KDGW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDGW Hotels

No hotels are listed for this airport.

KDGW Restaurants

No restaurants are listed for this airport.

KDGW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
307-358-4448
 135.225

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUR (44nm)
Tue, 7/5 3:00 PM MDT
Tue, 7/5 3:00 PM MDT - Wed, 7/6 9:00 PM MDT
VFR
3:00 PM MDT - 8:00 PM MDT
Broken 13,000'
Few 11,000'
> 6sm
29.94"Hg
VRB° 6kts
MVFR
Temporary 3:00 PM MDT - 7:00 PM MDT
Light Thunderstorm and Rain
Broken 10,000'
4.97sm
VRB° 25kts
Gusts 35kts
VFR
Becoming 8:00 PM MDT - 9:00 PM MDT
Scattered 17,000'
Few 12,000'
> 6sm
29.94"Hg
VRB° 6kts
TAF KGUR 052100Z 0521/0703 VRB06KT 9999 FEW110 BKN130 QNH2993INS
   TEMPO 0521/0601 VRB25G35KT 8000 -TSRA BKN100CB
   BECMG 0602/0603 VRB06KT 9999 FEW120 SCT170 QNH2993INS TX32/0620Z TN20/0612Z
KDGW
Domestic
5/28/221006Z !DGW 05/008 DGW OBST TOWER LGT (ASR 1273052) 425709.70N1051600.60W (10.7NM NNE DGW) 5492.1FT (348.1FT AGL) U/S 2205281006-2207121006
FDC
5/19/221919Z !FDC 2/7035 DGW IAP CONVERSE COUNTY, DOUGLAS, WY.
VOR RWY 29, AMDT 1A...
CHART PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 44.5).
THIS IS VOR RWY 29, AMDT 1B. 2205191919-PERM
5/2/221134Z !FDC 2/7204 DGW IAP CONVERSE COUNTY, DOUGLAS, WY.
RNAV (GPS) RWY 29, AMDT 1...
DELETE NOTE: DME/DME RNP-0.3 NA. CHART PBN REQUIREMENTS NOTE: RNP
APCH - GPS. CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT
COINCIDENT (VGSI ANGLE 3.00/TCH 44.5). DELETE NOTE: FOR
UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -24C (-11°F) OR
ABOVE 39C (102°F). CHART NOTE: FOR UNCOMPENSATED BARO-VNAV SYSTEMS,
LNAV/VNAV NA BELOW -24C OR ABOVE 39C.
THIS IS RNAV (GPS) RWY 29, AMDT 1A. 2205021134-PERM
No
MON-FRI 0630-1700
SAT-SUN 0800-1700
CONVERSE COUNTY
PO BOX 774
DOUGLAS, WY 82633
Phone: 307-358-4924
STEVE GOOD
P O BOX 774
DOUGLAS, WY 82633
Phone: 307-358-4924
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
DGW
--
ACTVT REIL RWYS 11 AND 29; MIRL RWY 05/23 &11/29 DALGT HRS - 122.8. MIRL RWY 05/23 & 11/29 PRESET TO LOW INTST DARK HRS, TO INCR INTST - 122.8. PAPI RWY 11, 23 & 29 OPR CONSLY.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
28
2
0
0
0
0
Major
Major
None
None
None

Runway 05/23

4760 ft. x 75 ft.
GRVL DIRT
Good

MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 67°247°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 47' 53"N 42° 48' 12"N
Longitude 105° 23' 55"W 105° 22' 56"W
Elevation 4,902' 4,914'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

6534 ft. x 100 ft.
ASPH
Good

MED

--
--
--
--
  Runway 11 Runway 29
True Heading 118°298°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 47' 56"N 42° 47' 26"N
Longitude 105° 23' 36"W 105° 22' 18"W
Elevation 4,910' 4,933'
Threshold Crossing Height 33 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE ON & INVOF ARPT.
A110-2RETRO-REFLECTIVE MKRS ALG ALL TWYS.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
CONVERSE COUNTY (ICAO: KDGW, IATA: DGW) is a public airport located in DOUGLAS, WY.
