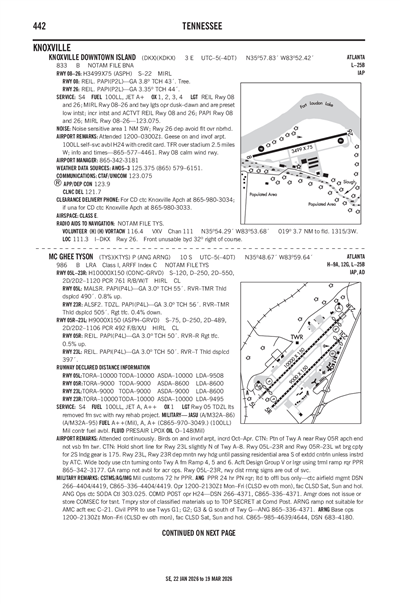

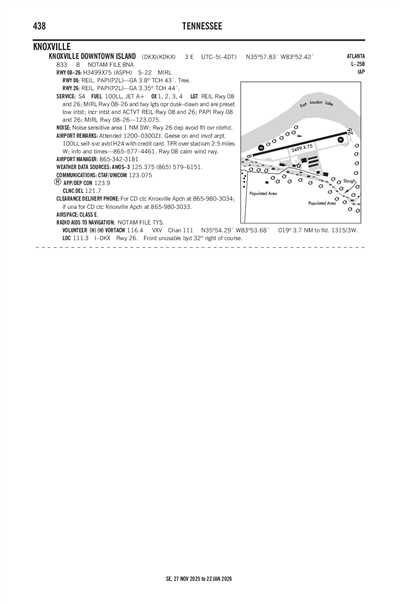

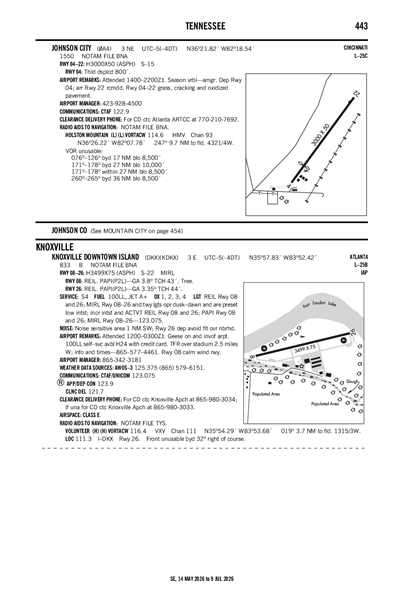

KNOXVILLE DOWNTOWN ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDKX
ICAO KDKXLocal DKX
KNOXVILLE DOWNTOWN ISLAND
PublicPUB

3 miles E of KNOXVILLE, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 57' 50"N 83° 52' 25"W
Elevation
833' MSL
Pattern Alt
1833' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A (FSII), 100LL
FSS
NASHVILLE (BNA)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
7/9/26-8/6/26
KDKX VFR
1:30 AM EDT
Broken 11,000'
Scattered 5,000'
Few 4,400'
10sm
75°F
75°F
29.93"Hg
Calm
A01
METAR KDKX 270530Z AUTO 00000KT 10SM FEW044 SCT050 BKN110 24/24 A2993 RMK A01
+ Add Your Business

KDKX FBOs

Promote Listing
Knoxville Downtown Island Airport
UNICOM: 123.075
Phone: (865) 577-4461
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.53
Full Serve 7.93 7.20
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 125.375
(865) 579-6151

Common

CTAF 123.075
UNICOM 123.075

Clearance

Clearance Delivery 121.7

Approach

KNOXVILLE APPROACH 123.9

Departure

KNOXVILLE DEPARTURE 123.9

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KTYS (10nm)
Mon, 7/27 1:38 AM EDT
Mon, 7/27 2:00 AM EDT - Tue, 7/28 2:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Broken 25,000'
Scattered 5,000'
6sm
VRB° 4kts
MVFR
Temporary 3:00 AM EDT - 5:00 AM EDT
Light Thunderstorm and Rain and Mist
Broken 5,000'
5sm
Calm
VFR
10:00 AM EDT - 12:00 PM EDT
Scattered 25,000'
Scattered 3,500'
6sm
300° 5kts
VFR
12:00 PM EDT - 2:00 AM EDT
Broken 25,000'
6sm
350° 5kts
TAF KTYS 270538Z 2706/2806 VRB04KT P6SM SCT050 BKN250
   TEMPO 2707/2709 5SM -TSRA BR BKN050CB
   FM271400 30005KT P6SM SCT035 SCT250
   FM271600 35005KT P6SM BKN250
KDKX
EffectiveExpiresCategoryNOTAM
Domestic
7/26/26
0842Z
7/26/26
1600Z
!BNA 07/729 DKX OBST TOWER LGT (ASR 1002311) 360418.60N0840118.50W (9.6NM NW DKX) 1734.9FT (397.0FT AGL) U/S 2607260842-2607261600
7/23/26
0504Z
10/21/26
0504Z
!BNA 07/650 DKX OBST TOWER LGT (ASR 1040380) 360649.10N0835814.70W (10.1NM NNW DKX) 1638.1FT (284.1FT AGL) U/S 2607230504-2610210504
7/22/26
0501Z
8/6/26
0401Z
!BNA 07/633 DKX OBST TOWER LGT (ASR 1059322) 361206.00N0835316.00W (14.3NM N DKX) 1573.2FT (290.0FT AGL) U/S 2607220501-2608060401
7/20/26
0648Z
10/18/26
0648Z
!BNA 07/577 DKX OBST TOWER LGT (ASR 1226718) 355939.20N0840747.40W (12.5NM W DKX) 1494.8FT (259.8FT AGL) U/S 2607200648-2610180648
7/17/26
1944Z
9/17/26
2359Z
!BNA 07/512 DKX OBST TOWER LGT (ASR 1041419) 360041.00N0835545.00W (3.9NM NW DKX) 1474.1FT (333.0FT AGL) U/S 2607171944-2609172359
7/13/26
0202Z
10/11/26
0202Z
!BNA 07/403 DKX OBST TOWER LGT (ASR 1010124) 355853.40N0835101.90W (1.6NM NE DKX) 1065.9FT (131.9FT AGL) U/S 2607130202-2610110202
7/13/26
0014Z
10/11/26
0014Z
!BNA 07/399 DKX OBST TOWER LGT (ASR 1035655) 355920.00N0835745.00W (4.5NM WNW DKX) 2129.9FT (1029.9FT AGL) U/S 2607130014-2610110014
7/12/26
1548Z
11/9/26
1548Z
!BNA 07/381 DKX OBST TOWER LGT (ASR 1065605) 360132.70N0840419.60W (10.3NM WNW DKX) 1433.1FT (258.9FT AGL) U/S 2607121548-2611091548
7/11/26
0307Z
10/9/26
0307Z
!BNA 07/335 DKX OBST TOWER LGT (ASR 1010130) 355800.80N0835353.20W (1.2NM W DKX) 1021.0FT (127.0FT AGL) U/S 2607110307-2610090307
7/9/26
1430Z
10/7/26
1430Z
!BNA 07/275 DKX OBST TOWER LGT (ASR 1033773) 360251.00N0834812.00W (6.1NM NE DKX) 1245.1FT (254.9FT AGL) U/S 2607091430-2610071430
7/7/26
1546Z
9/7/26
2222Z
!BNA 07/188 DKX OBST TOWER LGT (ASR 1215961) 360833.20N0834133.60W (14.0NM NE DKX) 1542.0FT (325.1FT AGL) U/S 2607071546-2609072222
6/30/26
0143Z
9/28/26
0143Z
!BNA 06/739 DKX OBST TOWER LGT (ASR 1037152) 360554.10N0840317.00W (11.8NM NW DKX) 1547.9FT (297.9FT AGL) U/S 2606300143-2609280143
6/27/26
1643Z
9/25/26
1643Z
!BNA 06/644 DKX OBST TOWER LGT (ASR 1043659) 360000.40N0834437.00W (6.7NM ENE DKX) 1523.0FT (297.9FT AGL) U/S 2606271643-2609251643
6/26/26
1808Z
8/26/26
2359Z
!BNA 06/629 DKX OBST TOWER LGT (ASR 1264589) 355539.60N0835358.60W (2.5NM SSW DKX) 1303.5FT (123.7FT AGL) U/S 2606261808-2608262359
6/26/26
1506Z
9/24/26
1506Z
!BNA 06/618 DKX OBST TOWER LGT (ASR 1213196) 355428.10N0835305.60W (3.4NM S DKX) 1293.0FT (274.9FT AGL) U/S 2606261506-2609241506
6/23/26
1636Z
9/21/26
1636Z
!BNA 06/548 DKX OBST TOWER LGT (ASR 1277112) 360119.50N0835421.90W (3.8NM NNW DKX) 1373.0FT (250.0FT AGL) U/S 2606231636-2609211636
6/22/26
2140Z
12/22/26
2359Z
!BNA 06/504 DKX OBST TOWER LGT (ASN 2002-ASO-1511-OE) 360539N0840644W (13.9NM NW DKX) 1096FT (250FT AGL) U/S 2606222140-2612222359
6/15/26
0553Z
9/13/26
0553Z
!BNA 06/338 DKX OBST TOWER LGT (ASR 1043658) 360425.00N0833931.00W (12.4NM ENE DKX) 1332.7FT (280.8FT AGL) U/S 2606150553-2609130553
6/14/26
1509Z
9/12/26
1509Z
!BNA 06/319 DKX OBST TOWER LGT (ASR 1037163) 355616.10N0835249.30W (1.6NM SSW DKX) 1418.0FT (182.1FT AGL) U/S 2606141509-2609121509
6/14/26
1504Z
9/12/26
1504Z
!BNA 06/318 DKX OBST TOWER LGT (ASR 1211776) 355616.50N0835248.80W (1.6NM SSW DKX) 1359.9FT (125.0FT AGL) U/S 2606141504-2609121504
6/14/26
1248Z
9/12/26
1248Z
!BNA 06/307 DKX OBST TOWER LGT (ASR 1214056) 355734.10N0834726.10W (4.0NM E DKX) 1345.8FT (259.8FT AGL) U/S 2606141248-2609121248
6/14/26
0631Z
9/12/26
0631Z
!BNA 06/300 DKX OBST TOWER LGT (ASR 1214433) 360723.90N0835007.40W (9.8NM NE DKX) 1493.1FT (283.1FT AGL) U/S 2606140631-2609120631
6/9/26
1520Z
9/7/26
1520Z
!BNA 06/175 DKX OBST TOWER LGT (ASR 1058043) 360803.80N0835518.80W (10.5NM NNW DKX) 1795.3FT (345.1FT AGL) U/S 2606091520-2609071520
6/5/26
2330Z
9/3/26
2330Z
!BNA 06/110 DKX OBST TOWER LGT (ASR 1043665) 360545.50N0840128.00W (10.7NM NW DKX) 1451.8FT (281.8FT AGL) U/S 2606052330-2609032330
6/5/26
1443Z
9/3/26
1443Z
!BNA 06/104 DKX OBST TOWER LGT (ASR 1236124) 360459.50N0835003.70W (7.5NM NNE DKX) 1377.3FT (261.2FT AGL) U/S 2606051443-2609031443
5/4/26
1202Z
8/3/26
0400Z
!BNA 05/052 DKX OBST TOWER LGT (ASR 1296221) 355600.50N0835648.30W (4.0NM WSW DKX) 1269.0FT (195.9FT AGL) U/S 2605041202-2608030400
3/12/26
1024Z
!BNA 03/223 DKX NAV ILS RWY 26 U/S 2603121024-2608072000EST
No
0700-2200
KNOXVILLE METRO ARPT AUTH
PO BOX 15600
KNOXVILLE, TN 37901
Phone: 865-342-3000
ROB VOYLES
2701 SPENCE PLACE
KNOXVILLE, TN 37920
Phone: 865-342-3181
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
REIL RWY 08 & 26; MIRL RWY 08/26 & TWY LGTS OPR DUSK-DAWN & PRESET LOW INTST; INCR INTST & ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - 123.075.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 08/26

3499 ft. x 75 ft.
ASPH
Good
NONE
MED

22,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 75°255°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 35° 57' 45"N 35° 57' 54"N
Longitude 83° 52' 46"W 83° 52' 05"W
Elevation 833' 831'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.8° 3.35°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1GEESE ON & INVOF ARPT.
A110-6TFR OVR STADIUM 2.5 MI W; INFO & TIMES - 865-577-4461.
A110-7FOR CD CTC KNOXVILLE APCH AT 865-980-3034; IF UNA FOR CD CTC KNOXVILLE APCH AT 865-980-3033.
A30A-08CALM WIND RWY.
A30A-26NOISE SENSITIVE AREA 1 NM SW; DEP AVOID FLT OVR NBRHD.
A70-100LL100LL SELF SERV H24 WITH CREDIT CARD.
A81-APTREIL RWY 08 & 26; MIRL RWY 08/26 & TWY LGTS OPR DUSK-DAWN & PRESET LOW INTST; INCR INTST & ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - 123.075.
KNOXVILLE DOWNTOWN ISLAND (ICAO: KDKX, IATA: DKX) is a public airport located in KNOXVILLE, TN, US.
