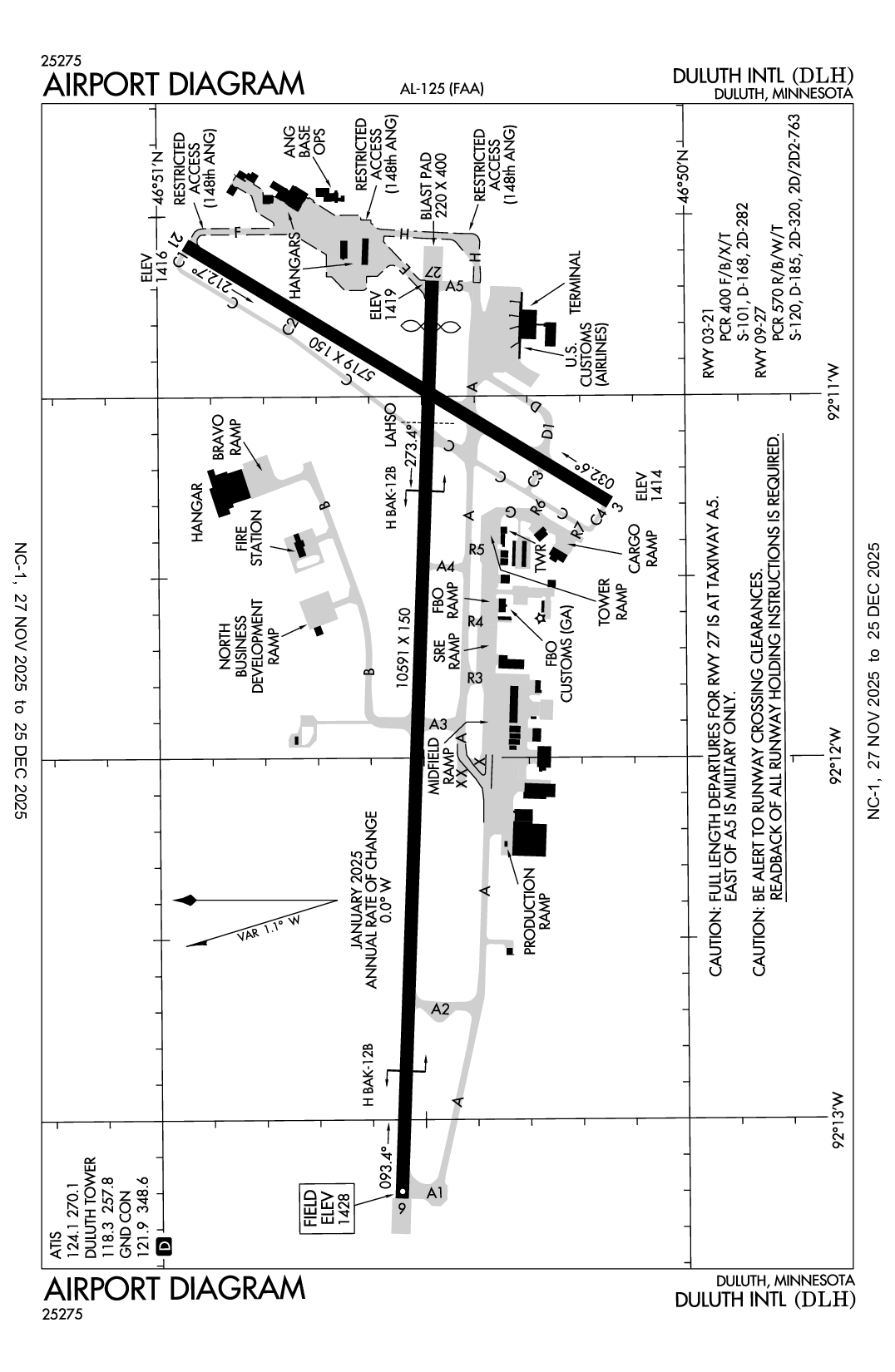

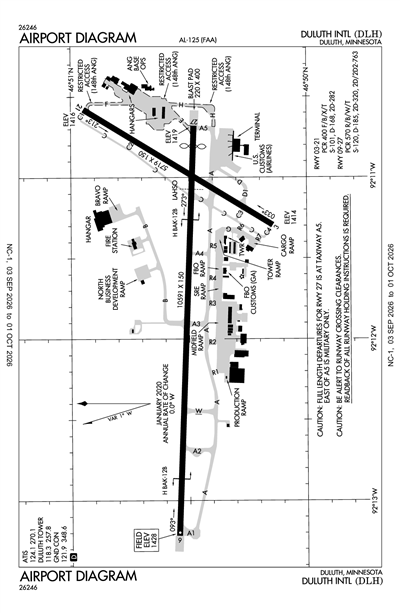

DULUTH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLH
DULUTH INTL
PublicPUB

5 miles NW of DULUTH, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 50' 31"N 92° 11' 36"W
1428' MSL
2428' MSL
01W
Jet A, 100LL, JP-8
PRINCETON (PNM)
GREEN BAY
MINNEAPOLIS (ZMP)
5/18/23-6/15/23
KDLH VFR
10:55 PM CDT
Few 12,000'
10sm
63°F
58°F
30.13"Hg
110° 7kts
AO2 SLP203 T01720144
KDLH 030355Z 11007KT 10SM FEW120 17/14 A3013 RMK AO2 SLP203 T01720144
List Your Business

KDLH FBOs, Flight Schools and Ground Support

Promote Listing
Monaco Air Duluth
Freq: 122.95
Phone: (218) 727-2911
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/31
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.44
Full Serve 6.94 6.59 6.64

KDLH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDLH Hotels

No hotels are listed for this airport.

KDLH Restaurants

No restaurants are listed for this airport.

KDLH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 124.1

Approach/Departure

APCH/P DEP/P
 125.45
APCH/P DEP/P IC
 125.45

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Other

ANG COMD POST
 139.9

Terminal Area Forecast

KDLH
Fri, 6/2 11:01 PM CDT
Fri, 6/2 11:00 PM CDT - Sat, 6/3 7:00 PM CDT
VFR
11:00 PM CDT - 2:00 AM CDT
Mist
Scattered 500'
6sm
080° 8kts
MVFR
2:00 AM CDT - 4:00 AM CDT
Mist
Scattered 500'
4sm
080° 7kts
LIFR
4:00 AM CDT - 9:00 AM CDT
Mist
Broken 500'
0.75sm
080° 7kts
VFR
9:00 AM CDT - 7:00 PM CDT
Scattered 5,000'
> 6sm
100° 8kts
KDLH 030401Z 0304/0324 08008KT 6SM BR SCT005
   FM030700 08007KT 4SM BR SCT005
   FM030900 08007KT 3/4SM BR BKN005
   FM031400 10008KT P6SM SCT050
KDLH
Domestic
6/2/231919Z !DLH 06/007 DLH TWY B LGT U/S 2306021919-2306162300
5/15/231239Z !DLH 05/021 DLH TWY A BTN TWY A3 AND TWY A4 WIP CONST ADJ SOUTH SHOULDER BARRICADED 2305151239-2307132200
5/10/231244Z !DLH 05/018 DLH APRON MONACO RAMP WIP CONST ADJ W EDGE LGTD AND BARRICADED 2305101244-2307142200
5/10/231243Z !DLH 05/017 DLH APRON MIDFIELD RAMP NW 300FT WIP CONST LGTD AND BARRICADED 2305101243-2307142200
5/4/231830Z !DLH 05/012 DLH APRON MIDFIELD RAMP NORTH ACCESS CLSD 2305041830-2307312200
5/2/231453Z !DLH 05/005 DLH OBST TOWER LGT (ASR 1024268) 464721.10N0920651.40W (4.5NM SE DLH) 2048.9FT (803.8FT AGL) U/S 2305021453-2311022359
4/30/231118Z !DLH 04/160 DLH OBST TOWER LGT (ASR 1023509) 464741.00N0920706.00W (4.2NM SE DLH) 1777.9FT (503.0FT AGL) U/S 2304301118-2306141117
4/24/230704Z !DLH 04/139 DLH OBST TOWER LGT (ASR 1203847) 464737.00N0920704.00W (4.3NM SE DLH) 2025.9FT (789.0FT AGL) U/S 2304240704-2306080703
10/1/220401Z !DLH 09/043 DLH AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2210010401-2410010401
FDC
5/9/231100Z !FDC 3/2349 DLH ODP DULUTH INTL, DULUTH, MN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
ADD TAKEOFF OBSTACLE NOTE: RWY 21, CONST EQUIP BEGINNING 2197FT FROM DER, 67FT RIGHT OF CENTERLINE, UP TO 95FT AGL/1509FT MSL (2021-AGL-9883 THRU 9897-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2305091100-2311151100EST
12/27/221712Z !FDC 2/9064 DLH IAP U.S. DOD DULUTH INTL, DULUTH, MN.
HI-TACAN Z RWY 9, AMDT 3A...
ILS OR LOC RWY 27, AMDT 11...
RADAR-1, ORIG-A...
RNAV (GPS) RWY 3, ORIG-B...
RNAV (GPS) RWY 9, AMDT 1D...
TACAN Y RWY 9, AMDT 3A...
VOR OR TACAN RWY 3, AMDT 21B...
VOR/DME OR TACAN RWY 21, AMDT 15A...
CIRCLING CATS A/B/C MDA 1960/HAA 532.
TEMPORARY CRANE 1596 MSL 2799FT NE OF DLH AIRPORT (2022-AGL-12549-NRA THRU 12563-NRA).
2212271712-2308081712EST
12/27/221712Z !FDC 2/9061 DLH IAP DULUTH INTL, DULUTH, MN.
RNAV (GPS) RWY 27, AMDT 1...
LNAV MDA 1900/HAT 480 ALL CATS, VIS CATS C/D 1 3/8.
CIRCLING CATS A/B/C MDA 1960/HAA 532.
TEMPORARY CRANE 1596 MSL 3265FT NW OF RWY 27 (2022-AGL-12549-NRA THRU 12563-NRA).
2212271712-2308081712EST
12/27/221712Z !FDC 2/9059 DLH IAP DULUTH INTL, DULUTH, MN.
RNAV (GPS) RWY 21, ORIG-B...
LNAV MDA 1900/HAT 480 ALL CATS, VIS CATS C/D 1 3/8.
CIRCLING CATS A/B/C MDA 1960/HAA 532.
TEMPORARY CRANE 1596 MSL 2552FT SW OF RWY 21 (2022-AGL-12549-NRA THRU 12563-NRA).
2212271712-2308081712EST
10/1/220401Z !FDC 2/2566 DLH IAP DULUTH INTL, DULUTH, MN.
ILS RWY 09 (SA CAT I), AMDT 22B ...
ILS RWY 09 (CAT II), AMDT 22B ...
PROCEDURE NA EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2210010401-2410010402EST
Military
6/2/232023Z !KDLH M0023/23 DLH TWY H CLSD 2306022023-2306051200
5/1/232244Z AERODROME OBST LGT UNSVC LKI TACAN BLDG COORDINATES (46.84, -92.19)
4/27/231635Z AERODROME LKI TACAN UNSVC (FREQ 135.40 CH 11X)
Yes
ALL
CITY OF DULUTH, MINNESOTA
4701 GRINDEN DR
DULUTH, MN 55811-1578
Phone: 218-625-7766
MARK PAPKO, DIRECTOR OF OPERATIONS
4701 GRINDEN DR
DULUTH, MN 55811-1578
Phone: 218-625-7767
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
DLH
--
--
N/A
Yes
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
49
10
4
4
22
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5719 ft. x 150 ft.
ASPH
Good
GRVD
MED
45 /F/B/X/T
52,000lbs
100,000lbs
361,000lbs
--
  Runway 03 Runway 21
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 50' 09"N 46° 50' 57"N
Longitude 92° 11' 18"W 92° 10' 35"W
Elevation 1,414' 1,416'
Threshold Crossing Height 39 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 09/27

10591 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
75 /R/C/W/U
94,000lbs
180,000lbs
650,000lbs
--
  Runway 09 Runway 27
True Heading 92°272°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 46° 50' 33"N 46° 50' 29"N
Longitude 92° 13' 13"W 92° 10' 41"W
Elevation 1,428' 1,419'
Threshold Crossing Height 70 ft. AGL 91 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11JASU: 9(AM32A-60) 2(A/M32A-86) 2(MC-11) 6(MC-2A) (MIL).
A110-13SP DE-ICE LHOX LHNIT.
A110-14OIL: O-148(MIL). JOAP.
A110-20CAUTION: BIRD HAZ. (PHASE II CONDITIONS) EXISTS DUR 1 SEP THRU 31 OCT. CTC SOF/AFLD MGR/COMD POST FOR INFO.
A110-25FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-30TAXI LANE G MAY BE USED AS ALTERNATE TAXI ROUTE.
A110-32FUEL: A+, J8 (MONACO AIR DULUTH, C218-727-2911.) (NC-100LL, A). A++(MIL) (ANG, C218-788-7340).
A110-33PPR ALL ACFT. OPR 1200-2130Z++ MON-FRI, EXC HOL AND FLEX DAYS. LTD OPR HR AND TRAN SVC AVBL. CTC AFLD MGT DSN 825-7252, C218-788-7252, OPS DESK DSN 825-7399, C218-788-7399, COMD POST DSN 825-7370/7371, C218-788-7370/7371. FTR ACFT AND C12/C21 CARGO ACFT MAY ENTER ANG RAMP VIA TWY E OR H. ALL OTHER NON-FTR ACFT USE TWY F TO ENTER ANG RAMP. PER GIANT REPORT, TWY F CURRENTLY RSTD TO ONLY C17/C130 ACFT. ALL OTHER CARGO AMC ACFT MUST PARK AT MIDFIELD RAMP. ALL TRAN ACFT WILL CTC COMD POST 15 MIN PRIOR TO LDG. TRAN ACFT WILL CTC COMD POST BEFORE ENGINE STARTUP AND BEFORE TAXI. NO SVC AVAILABLE WHEN WIND CHILL EXCEEDS OR IS FCST TO EXCEED -30-F. FOR RCR INFO, AFLD STATUS AND CRASH RESCUE CAPABILITY CTC COMD POST OR TWR. NONSTD MRK FOR ALERT/MAINT VEH, ACFT GND EQPT PRK SPOTS.
A110-34TWY C BTWN TWY A & D CLSD 1 OCT THRU 30 APR.
A110-35ACFT DEICE TYPE 1 & 4 FLUID AVBL - CTC FBO C218-727-2911.
A110-36US CUST INTL AOE (NO FEES) AVBL H24 C218-720-5203 THEN PRESS 0. CUST CLEARING LCTD AT FBO.
A110-37FOR MIL TSNT ACFT PRKG, RFLG, & SER OFF ANG CTC FBO C218-727-2977 H24.
A110-4HIGH SPEED MIL JET TFC AT 3000 FT TO 3300 FT MSL IN AREA.
A110-6WHEN RWY 03/21 IN USE; TWY C NORTH OF RWY 09/27 MAY BE RESTRICTED BY ATC TO ACFT WITH WINGSPANS LESS THAN 49 FT.
DULUTH INTL (ICAO: KDLH, IATA: DLH) is a public airport located in DULUTH, MN.
