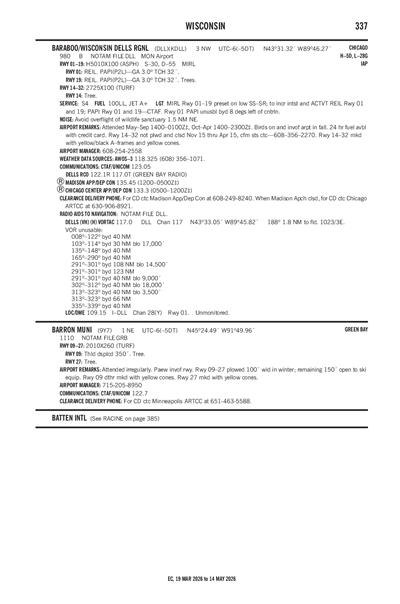

BARABOO/WISCONSIN DELLS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLL
ICAO KDLLLocal DLL
BARABOO/WISCONSIN DELLS RGNL
PublicPUB

3 miles NW of BARABOO, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 31' 19"N 89° 46' 16"W
Elevation
980' MSL
Pattern Alt
1980' MSL
Mag Variation
3°W
Declination
1°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
9/3/26-10/1/26
KDLL VFR
2:15 PM CDT
Scattered 3,200'
Scattered 2,300'
10sm
74°F
62°F
29.89"Hg
320° 6kts
AO2 T02360166
METAR KDLL 121915Z AUTO 32006KT 10SM SCT023 SCT032 24/17 A2989 RMK AO2 T02360166
+ Add Your Business

KDLL FBOs

Promote Listing
Spring City Aviation
UNICOM: 123.05
Phone: (608) 356-2270
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.89 7.86
Full Serve 7.09 7.86
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.325
(608) 356-1071

Common

CTAF 123.05
MIRL RWY 01/19 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19 - CTAF.
UNICOM 123.05

Approach

MADISON APPROACH 135.45

Departure

MADISON DEPARTURE 135.45

Center

MADISON CENTER 133.3
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 133.3/257.925 (LONE ROCK RCAG) WHEN MADISON APCH CTL CLSD.

Flight Service

Flight Service 122.1
(GRB)

Terminal Area Forecast

KMSN (30nm)
Sat, 9/12 12:52 PM CDT
Sat, 9/12 1:00 PM CDT - Sun, 9/13 1:00 PM CDT
MVFR
1:00 PM CDT - 4:00 PM CDT
Broken 2,500'
6sm
290° 7kts
VFR
4:00 PM CDT - 6:00 PM CDT
Scattered 2,800'
6sm
300° 8kts
VFR
6:00 PM CDT - 12:00 AM CDT
Few 3,500'
6sm
310° 6kts
VFR
12:00 AM CDT - 9:00 AM CDT
Few 15,000'
6sm
VRB° 3kts
VFR
9:00 AM CDT - 12:00 PM CDT
Scattered 12,000'
6sm
VRB° 4kts
VFR
12:00 PM CDT - 1:00 PM CDT
Broken 8,000'
6sm
330° 6kts
TAF KMSN 121752Z 1218/1318 29007KT P6SM BKN025
   FM122100 30008KT P6SM SCT028
   FM122300 31006KT P6SM FEW035
   FM130500 VRB03KT P6SM FEW150
   FM131400 VRB04KT P6SM SCT120
   FM131700 33006KT P6SM BKN080
KDLL
EffectiveExpiresCategoryNOTAM
Domestic
9/13/26
1300Z
9/18/26
2359Z
Runway!DLL 09/009 DLL RWY 14/32 CLSD TO GA 2609131300-2609182359
9/3/26
1459Z
10/18/26
1459Z
!DLL 09/004 DLL OBST TOWER LGT (ASR 1033894) 433917.20N0894826.90W (8.1NM N DLL) 1182.7FT (254.9FT AGL) U/S 2609031459-2610181459
7/21/26
1212Z
10/20/26
0400Z
!DLL 07/044 DLL OBST TOWER LGT (ASR 1203477) 432540.20N0893906.90W (7.7NM SE DLL) 2063.0FT (505.9FT AGL) U/S 2607211212-2610200400
FDC
8/31/26
1230Z
!FDC 6/9316 DLL IAP BARABOO/WISCONSIN DELLS RGNL, BARABOO, WI.
VOR-A, AMDT 13A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE LONE ROCK ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET AND VISIBILITY CAT C 1/4 SM. DLL AWOS OUT OF SERVICE.
2608311230-2609291230EST
8/31/26
1230Z
!FDC 6/9315 DLL IAP BARABOO/WISCONSIN DELLS RGNL, BARABOO, WI. RNAV (GPS) RWY 19, AMDT 3... BARO-VNAV AND VDP NA WHEN USING LONE ROCK ALTIMETER SETTING. WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE LONE ROCK ALTIMETER SETTING; INCREASE LPV DA TO 1438 FEET AND ALL VISIBILITIES 3/8 SM, INCREASE LNAV/VNAV DA TO 1399 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 100 FEET AND LNAV/CIRCLING VISIBILITIES CAT C 1/4 SM. DLL AWOS OUT OF SERVICE. 2608311230-2609291230EST
8/31/26
1230Z
!FDC 6/9313 DLL IAP BARABOO/WISCONSIN DELLS RGNL, BARABOO, WI.
LOC RWY 1, AMDT 3...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE LONE ROCK ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET AND VISIBILITY CAT C 1/4 SM. VDP NA WITH LONE ROCK ALTIMETER SETTING. DLL AWOS OUT OF SERVICE.
2608311230-2609291230EST
No
MAY-SEP 0800-1900
OCT-APR 0800-1700
VILLAGE OF LAKE DELTON
PO BOX 50
LAKE DELTON, WI 53940
Phone: 608-254-2558
TIM MCCUMBER
PO BOX 50
LAKE DELTON, WI 53940
Phone: 608-254-2558
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
DLL
--
MIRL RWY 01/19 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 01/19

5010 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
55,000lbs
--
--
  Runway 01 Runway 19
True Heading 9°189°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 30' 56"N 43° 31' 45"N
Longitude 89° 46' 18"W 89° 46' 08"W
Elevation 977' 968'
Threshold Crossing Height 32 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

2725 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 43° 31' 26"N 43° 31' 08"N
Longitude 89° 46' 36"W 89° 46' 09"W
Elevation 972' 977'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2BIRDS ON & INVOF ARPT IN FALL.
A110-3FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-4RWY 14/32 NOT PLWD & CLSD NOV 15 THRU APR 15; CFM STS CTC - 608-356-2270.
A110-5NOISE ABATEMENT: AVOID OVERFLIGHT OF WILDLIFE SANCTUARY 1.5 NM NE.
A16EXTENSION 227
A42-14_MARKMKD WITH YELLOW/BLACK A-FRAMES AND YELLOW CONES.
A42-32_MARKMKD WITH YELLOW/BLACK A-FRAMES AND YELLOW CONES.
A43-01PAPI UNUSBL BYD 8 DEGS LEFT OF CNTRLN.
A70-100LL24 HR FUEL AVBL WITH CREDIT CARD.
A81-APTMIRL RWY 01/19 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19 - CTAF.
BARABOO/WISCONSIN DELLS RGNL (ICAO: KDLL, IATA: DLL) is a public airport located in BARABOO, WI, US.
