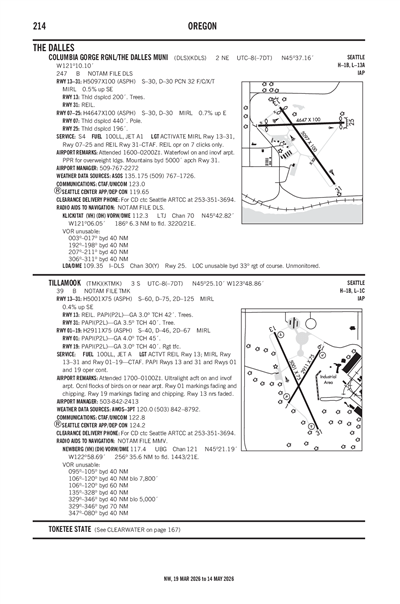

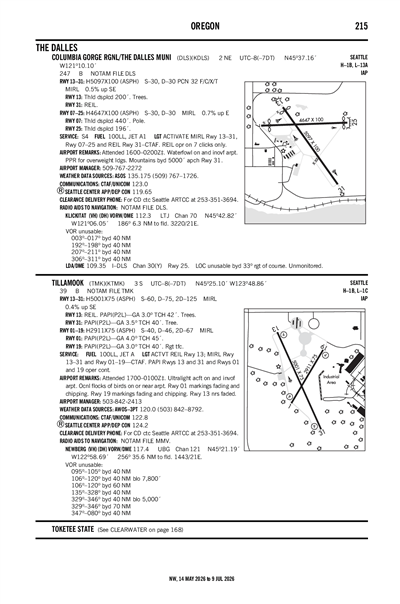

COLUMBIA GORGE RGNL/THE DALLES MUNI - Airport Diagram

KDLS

COLUMBIA GORGE RGNL/THE DALLES MUNI

PublicPUB

2 miles NE of THE DALLES, OR

View on Map

Status

Operational

Coordinates

45° 37' 10"N 121° 10' 06"W

Elevation

246' MSL

Pattern Alt

1246' MSL

Mag Variation

15E

Fuel

Jet A-1, 100LL

FSS

SEATTLE (SEA)

Sectional

SEATTLE

ARTCC

SEATTLE (ZSE)

Data Effective

4/18/24-5/16/24

KDLS VFR

3:53 PM PDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

27°F

Pres

30.09"Hg

Wind

090° 12kts

Gusts 19kts

RMK

AO2 SLP191 T02001028

KDLS 192253Z AUTO 09012G19KT 10SM CLR 20/M03 A3009 RMK AO2 SLP191 T02001028

List Your Business

KDLS FBOs, Flight Schools and Ground Support

Promote Listing

TacAero

Freq: 123.0

Phone: (509) 767-0005

Other: (541) 993-6269

0 Reviews (Read | Sign In To Write)

Titan

As of 3/31	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	7.00	7.00	7.15
Full Serve	7.50	7.25	7.40

KDLS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDLS Hotels

No hotels are listed for this airport.

KDLS Restaurants

No restaurants are listed for this airport.

KDLS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

509-767-1726

135.175

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

DALLES ONE (OBSTACLE)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KDLS

RAW

Reported

Fri, 4/19 4:20 PM PDT

Valid

Fri, 4/19 5:00 PM PDT - Sat, 4/20 5:00 PM PDT

VFR

5:00 PM PDT - 8:00 PM PDT

Sky Clear

Viz

6sm

Wind

100° 10kts

Gusts 18kts

VFR

8:00 PM PDT - 5:00 AM PDT

Scattered 25,000'

Viz

6sm

Wind

120° 5kts

VFR

5:00 AM PDT - 5:00 PM PDT

Broken 25,000'

Viz

6sm

Wind

VRB° 5kts

KDLS 192320Z 2000/2024 10010G18KT P6SM SKC
FM200300 12005KT P6SM SCT250
FM201200 VRB05KT P6SM BKN250

KDLS

Domestic
4/16/241624Z	!DLS 04/014 DLS TWY A BTN TWY C AND FUEL APN CLSD LGTD AND BARRICADED 2404161624-2404262359
4/16/241623Z	!DLS 04/013 DLS APRON SOUTH APN CLSD LGTD AND BARRICADED 2404161623-2404262359
4/16/241623Z	!DLS 04/012 DLS TWY C BTN TWY D AND TWY E CLSD LGTD AND BARRICADED 2404161623-2404262359
2/28/240740Z	!DLS 02/016 DLS OBST TOWER LGT (ASR 1237390) 453701.40N1211024.10W (0.3NM WSW DLS) 344.2FT (115.2FT AGL) U/S 2402280740-2406012359

ATC Tower

Attendance

0800-1700

Owner

CITY OF THE DALLES/KLICKITAT COUNTY
PO BOX 285
DALLES PORT, WA 98617
Phone: 509-767-2272

Manager

JEFF RENARD
PO BOX 285
DALLES PORT, WA 98617
Phone: 509-767-2272

FSS

SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF

NOTAM

DLS

Light Schedule

Lights

ACTVT MIRL RYS 13/31 & 07/25, & REIL RY 31 - CTAF. REIL OPERATES ON 7 CLICKS ONLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 07/25

Dimensions

4647 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

30,000lbs

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	88°	268°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	45° 37' 15"N	45° 37' 16"N
Longitude	121° 10' 41"W	121° 09' 36"W
Elevation	211'	243'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

5097 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

32 /F/C/X/T

Single Wheel

30,000lbs

Double Wheel

30,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	145°	325°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	45° 37' 25"N	45° 36' 44"N
Longitude	121° 10' 24"W	121° 09' 43"W
Elevation	211'	239'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	MTNS BYD 5000' APCH RY 31.
A110-2	ALL TWYS MARKED WITH REFLECTORS.
A110-3	WATERFOWL ON AND INVOF ARPT.
A110-4	PRIOR PERMISSION REQUIRED FOR OVERWEIGHT LNDGS.
A110-5	FOR CD CTC SEATTLE ARTCC AT 253-351-3694.

COLUMBIA GORGE RGNL/THE DALLES MUNI (ICAO: KDLS, IATA: DLS) is a public airport located in THE DALLES, OR.
