DELAWARE MUNI/JIM MOORE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLZ
ICAO KDLZLocal DLZ
DELAWARE MUNI/JIM MOORE FLD
PublicPUB

3 miles SW of DELAWARE, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 16' 46"N 83° 06' 48"W
Elevation
945' MSL
Pattern Alt
1945' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, JET A (FSII), 100LL
FSS
DAYTON (DAY)
Sectional
DETROIT
ARTCC
INDIANAPOLIS (ZID)
Data Effective
4/16/26-5/14/26
KDLZ VFR
5:35 PM EDT
Broken 9,500'
Scattered 7,000'
10sm
81°F
54°F
29.70"Hg
230° 11kts
AO2
METAR KDLZ 242135Z AUTO 23011KT 10SM SCT070 BKN095 27/12 A2970 RMK AO2
+ Add Your Business

KDLZ FBOs

Promote Listing
Delaware Municipal Airport
UNICOM: 122.7
Phone: (740) 203-1870
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.04 7.20 7.25
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.025
(740) 203-1878

Common

CTAF 122.7
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM 122.7

Approach

COLUMBUS APPROACH 125.95
Initial Contact

Departure

COLUMBUS DEPARTURE 125.95
Initial Contact

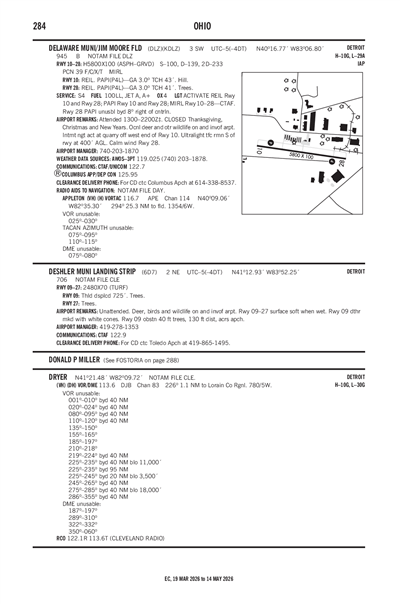

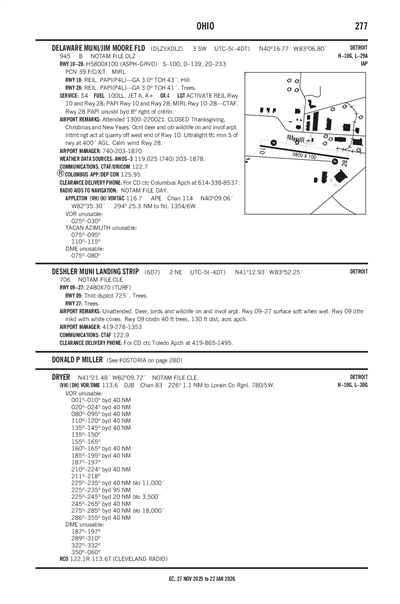

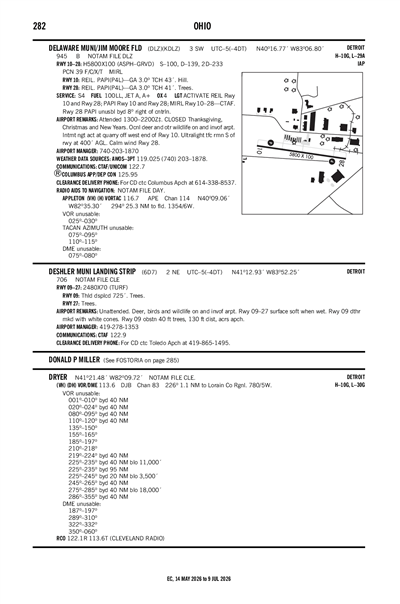

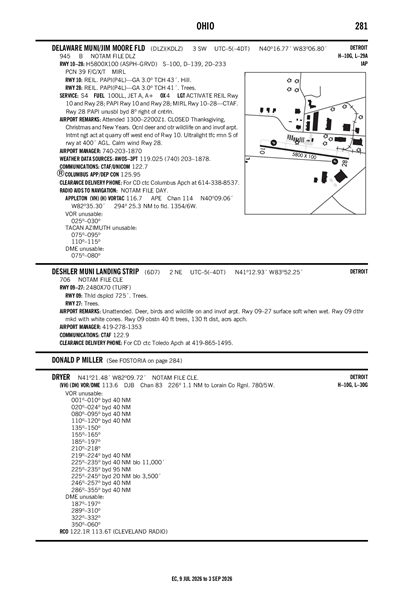

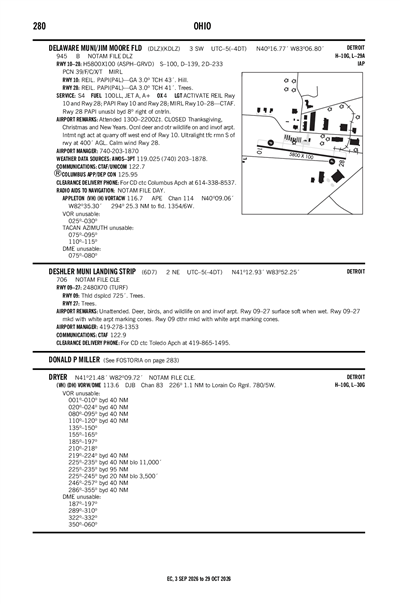

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCMH (20nm)
Fri, 4/24 1:36 PM EDT
Fri, 4/24 2:00 PM EDT - Sat, 4/25 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Broken 25,000'
Scattered 7,000'
6sm
220° 12kts
Gusts 20kts
VFR
6:00 PM EDT - 11:00 PM EDT
Broken 10,000'
Scattered 5,000'
6sm
230° 9kts
VFR
11:00 PM EDT - 2:00 AM EDT
Light Showers and Rain
Broken 10,000'
Scattered 5,000'
6sm
240° 6kts
IFR
Temporary 12:00 AM EDT - 2:00 AM EDT
Light Thunderstorm and Rain
Broken 10,000'
Scattered 2,500'
2sm
Calm
MVFR
2:00 AM EDT - 7:00 AM EDT
Broken 2,500'
6sm
290° 5kts
MVFR
7:00 AM EDT - 11:00 AM EDT
Overcast 2,000'
6sm
310° 5kts
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 2,500'
6sm
340° 10kts
TAF KCMH 241736Z 2418/2518 22012G20KT P6SM SCT070 BKN250
   FM242200 23009KT P6SM SCT050 BKN100
   FM250300 24006KT P6SM -SHRA SCT050 BKN100
   TEMPO 2504/2506 2SM -TSRA SCT025CB BKN100
   FM250600 29005KT P6SM BKN025
   FM251100 31005KT P6SM OVC020
   FM251500 34010KT P6SM SCT025
KDLZ
EffectiveExpiresCategoryNOTAM
Domestic
4/23/26
2024Z
5/29/26
1400Z
!DLZ 04/006 DLZ OBST TOWER LGT (ASR 1015803) 401256.40N0830544.40W (3.9NM SSE DLZ) 1177.8FT (240.8FT AGL) U/S 2604232024-2605291400
4/15/26
0123Z
8/13/26
0123Z
!DLZ 04/003 DLZ OBST TOWER LGT (ASR 1223773) 402254.20N0830445.10W (6.4NM NNE DLZ) 1202.8FT (255.9FT AGL) U/S 2604150123-2608130123
FDC
3/11/26
1441Z
!FDC 6/6662 DLZ IAP DELAWARE MUNI/JIM MOORE FLD,
DELAWARE, OH.
RNAV (GPS) RWY 10, AMDT 1B...
LNAV CATS C/D VISIBILITY 1 1/8 SM. ALTERNATE MINIMUMS: STANDARD
NA WHEN LOCAL WEATHER NOT AVAILABLE.
THIS IS RNAV (GPS) RWY 10, AMDT 1C. 2603111441-PERM
2/3/26
2103Z
!FDC 6/9990 DLZ IAP DELAWARE MUNI/JIM MOORE FLD, DELAWARE, OH.
RNAV (GPS) RWY 10, AMDT 1B...
LPV MINIMUMS NA.
2602032103-2802042103EST
12/21/25
0112Z
!FDC 5/2279 DLZ ODP DELAWARE MUNI/JIM MOORE FLD, DELAWARE, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLE NOTES: NOTE: RWY 10: BUILDING 191 FT FROM DER, 537 FT RIGHT OF CENTERLINE, 21 FT AGL/963 FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2512210112-2712220112EST
10/23/25
1619Z
!FDC 5/5398 DLZ IAP DELAWARE MUNI/JIM MOORE FLD, DELAWARE, OH.
VOR RWY 28, AMDT 1...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BUD VOR OUT OF SERVICE. 2510231619-2710261619EST
5/17/24
1304Z
!FDC 4/5787 DLZ IAP DELAWARE MUNI/JIM MOORE FLD, DELAWARE, OH.
VOR RWY 28, AMDT 1...
PROCEDURE NA.
2405171304-2605171304EST
No
0800-1700
CLSD THANKSGIVING, CHRISTMAS, & NEW YEARS.
CITY OF DELAWARE
1 S SANDUSKY ST
DELAWARE, OH 43015
Phone: 740-203-1800
KEVIN PIATT
1075 PITTSBURGH DR
DELAWARE, OH 43015
Phone: 740-203-1870
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
DLZ
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental

Runway 10/28

5800 ft. x 100 ft.
ASPH
Good
GRVD
MED
39/F/C/X/T
100,000lbs
139,000lbs
233,000lbs
--
  Runway 10 Runway 28
True Heading 98°278°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 16' 51"N 40° 16' 42"N
Longitude 83° 07' 25"W 83° 06' 11"W
Elevation 944' 945'
Threshold Crossing Height 43 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1OCNL DEER & OTR WILDLIFE ON & INVOF ARPT.
A110-2INTMT NGT ACT AT QUARRY OFF WEST END OF RWY 10.
A110-3ULTRALIGHT TFC RMN S OF RWY AT 400 FT AGL.
A110-4FOR CD CTC COLUMBUS APCH AT 614-338-8537.
A16AFT HRS 740-203-1870, OPTION 9.
A17-D2CLSD THANKSGIVING, CHRISTMAS, & NEW YEARS.
A30A-28CALM WIND RWY.
A43-28PAPI UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
A75-HPRIOR CDN RQRD.
A81-APTACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
E111VFR ONLY.
DELAWARE MUNI/JIM MOORE FLD (ICAO: KDLZ, IATA: DLZ) is a public airport located in DELAWARE, OH, US.
