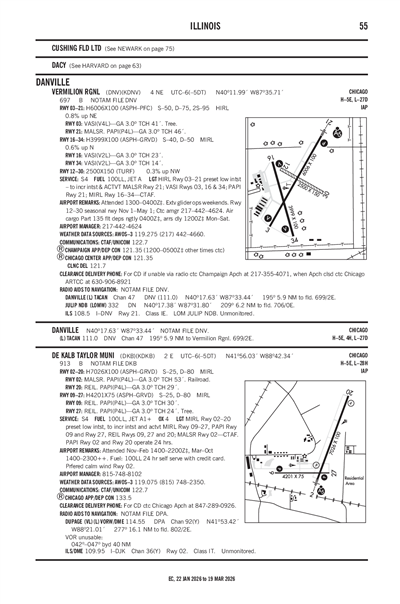

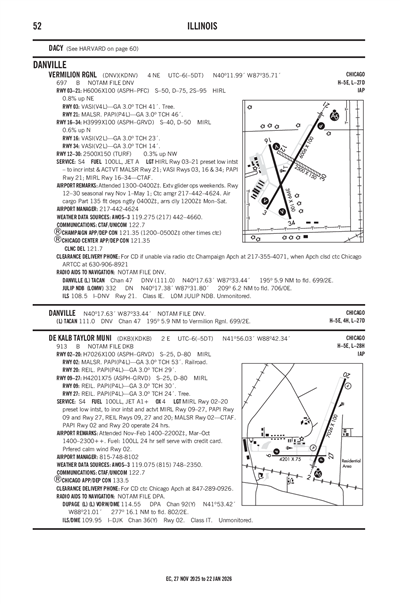

VERMILION RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDNV
ICAO KDNVIATA DNVLocal DNV
VERMILION RGNL
PublicPUB

4 miles NE of DANVILLE, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 11' 59"N 87° 35' 43"W
Elevation
697' MSL
Pattern Alt
1697' MSL
Mag Variation
4°W
Declination
1°W
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
8/6/26-9/3/26
KTIP (26nm) VFR
8:55 AM CDT
Clear
10sm
65°F
59°F
30.06"Hg
330° 7kts
AO2 T01850150 TSNO
METAR KTIP 231355Z AUTO 33007KT 10SM CLR 19/15 A3006 RMK AO2 T01850150 TSNO
+ Add Your Business

KDNV FBOs

Promote Listing
Midwest Aero Restorations
UNICOM: 122.7
Phone: (217) 431-1998
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 8/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.39
Full Serve 7.55 7.44
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).
Fuel Hours
After hours fuel from truck is available with a call out. Please call ahead.
Self Serve fuel is available at south end of ramp 24/7. After hours pilots lounge available at terminal building on south end of ramp. Access through the gate and the pilots lounge door is available using the KDNV AWOS frequency code.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.275
(217) 442-4660

Common

CTAF 122.7
HIRL RWY 03/21 PRESET LOW INTST - TO INCR INTST & ACTVT MALSR RWY 21; VASI RWYS 03, 16 & 34; PAPI RWY 21; MIRL RWY 16/34 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 121.7

Approach

CHAMPAIGN APPROACH 121.35

Departure

CHAMPAIGN DEPARTURE 121.35

Terminal Area Forecast

KLAF (32nm)
Sun, 8/23 8:10 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
MVFR
8:00 AM EDT - 8:30 AM EDT
Mist
Few 25,000'
4sm
310° 3kts
VFR
8:30 AM EDT - 1:00 PM EDT
Few 25,000'
6sm
310° 3kts
VFR
1:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
Few 5,000'
6sm
320° 8kts
VFR
8:00 PM EDT - 8:00 AM EDT
Few 25,000'
6sm
310° 3kts
MVFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Mist
No Clouds
3sm
Calm
TAF KLAF 231210Z 2312/2412 31003KT 4SM BR FEW250
   FM231230 31003KT P6SM FEW250
   FM231700 32008KT P6SM FEW050 SCT250
   FM240000 31003KT P6SM FEW250
   TEMPO 2408/2412 00000KT 3SM BR
KDNV
EffectiveExpiresCategoryNOTAM
Domestic
8/26/26
1200Z
8/26/26
2030Z
!DNV 08/015 DNV NAV ILS RWY 21 U/S 2608261200-2608262030
8/25/26
1200Z
8/25/26
2030Z
!DNV 08/013 DNV NAV ILS RWY 21 U/S 2608251200-2608252030
8/19/26
0103Z
9/19/26
2300Z
!DNV 08/014 DNV OBST TOWER LGT (ASN 2025-AGL-10379-OE) 401140N0873136W (3.2NM E DNV) 1034FT (315FT AGL) U/S 2608190103-2609192300
8/15/26
0935Z
11/13/26
1035Z
!DNV 08/009 DNV OBST TOWER LGT (ASR 1244697) 401756.70N0874001.90W (6.8NM NNW DNV) 940.0FT (258.9FT AGL) U/S 2608150935-2611131035
8/15/26
0432Z
9/29/26
0432Z
!DNV 08/008 DNV OBST TOWER LGT (ASR 1273769) 401817.30N0874854.90W (11.8NM WNW DNV) 961.6FT (290.0FT AGL) U/S 2608150432-2609290432
8/14/26
1416Z
!DNV 08/007 DNV SVC AUTOMATED WX BCST SYSTEM U/S 2608141416-2608272359EST
8/11/26
0054Z
8/26/26
0054Z
!DNV 08/005 DNV OBST TOWER LGT (ASR 1289230) 401820.10N0871712.80W (15.5NM ENE DNV) 967.8FT (299.9FT AGL) U/S 2608110054-2608260054
8/5/26
1414Z
9/2/26
2000Z
!DNV 08/003 DNV SVC AUTOMATED WX BCST SYSTEM VIS U/S 2608051414-2609022000
7/27/26
2343Z
9/10/26
2343Z
!DNV 07/020 DNV OBST TOWER LGT (ASR 1001070) 402847.00N0873829.00W (17.0NM N DNV) 1328.1FT (603.0FT AGL) U/S 2607272343-2609102343
7/19/26
1410Z
10/18/26
0400Z
!DNV 07/013 DNV OBST TOWER LGT (ASR 1008846) 400723.00N0873956.00W (5.7NM SW DNV) 926.2FT (290.0FT AGL) U/S 2607191410-2610180400
6/26/26
1126Z
9/25/26
2359Z
!DNV 06/031 DNV OBST TOWER LGT (ASR 1031320) 400908.00N0872758.00W (6.5NM ESE DNV) 907.2FT (269.0FT AGL) U/S 2606261126-2609252359
6/9/26
1713Z
10/7/26
1713Z
!DNV 06/007 DNV OBST TOWER LGT (ASR 1236224) 400732.50N0872249.80W (10.8NM ESE DNV) 866.1FT (260.2FT AGL) U/S 2606091713-2610071713
6/9/26
1236Z
8/31/26
2359Z
!DNV 06/006 DNV SVC AUTOMATED WX BCST SYSTEM U/S 2606091236-2608312359
6/3/26
1323Z
11/9/26
2300Z
!DNV 06/002 DNV TWY A BTN TWY A1 AND TWY A2 CLSD 2606031323-2611092300
10/23/25
1330Z
11/30/26
1400Z
Runway!DNV 10/028 DNV RWY 12/30 CLSD 2510231330-2611301400
FDC
8/7/26
1334Z
9/8/26
1334Z
!FDC 6/2821 DNV IAP VERMILION RGNL, DANVILLE, IL.
RNAV (GPS) RWY 34, ORIG-C...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE UNIVERSITY OF ILLINOIS-WILLARD ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET; INCREASE CIRCLING CAT C VISIBILITY 1/4 SM AND CAT D VISIBILITY 1/2 SM.
AWOS OUT OF SERVICE.
2608071334-2609081334EST
8/7/26
1334Z
9/8/26
1334Z
!FDC 6/2819 DNV IAP VERMILION RGNL, DANVILLE, IL.
RNAV (GPS) RWY 21, ORIG-C...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE UNIVERSITY OF ILLINOIS/WILLARD ALTIMETER SETTING AND INCREASE LPV DA TO 1074 FEET AND LNAV/VNAV DA TO 1153 FEET; INCREASE ALL MDAS 100 FEET CIRCLING CAT C VISIBILITY 1/4 SM AND CAT D VISIBILITY 1/2 SM.
NOTE: BARO-VNAV AND VDP NA WHEN USING UNIVERSITY OF ILLINOIS/WILLARD ALTIMETER SETTING.
AWOS OUT OF SERVICE.
2608071334-2609081334EST
8/7/26
1334Z
!FDC 6/2818 DNV IAP VERMILION RGNL, DANVILLE, IL. RNAV (GPS) RWY 3, ORIG-C... NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE UNIVERSITY OF ILLINOIS-WILLARD ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET; INCREASE CIRCLING CAT C VISIBILITY 1/4 SM AND CAT D VISIBILITY 1/2 SM. AWOS OUT OF SERVICE. 2608071334-2609081334EST
8/7/26
1334Z
!FDC 6/2817 DNV IAP VERMILION RGNL, DANVILLE, IL. ILS OR LOC RWY 21, AMDT 8... NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE UNIVERSITY OF ILLINOIS-WILLARD ALTIMETER SETTING AND INCREASE S-ILS 21 DA TO 980 FEET; INCREASE ALL MDAS 100 FEET AND S-LOC 21 VISIBILITY CAT C/D 3/8 SM, AND CIRCLING VISIBILITY CAT C/D 1/2 SM. FOR INOPERATIVE ALS WHEN USING UNIVERSITY OF ILLINOIS-WILLARD ALTIMETER SETTING, INCREASE S-ILS 21 ALL CATS VISIBILITY TO 7/8 SM; INCREASE S-LOC 21 CAT C/D VISIBILITY TO 1 3/8 SM. AWOS OUT OF SERVICE. 2608071334-2609081334EST
3/11/26
1451Z
!FDC 6/6674 DNV IAP VERMILION RGNL, DANVILLE, IL.
RNAV (GPS) RWY 21, ORIG-C...
LNAV CAT C VISIBILITY 5/8. CHANGE FOR INOPERATIVE ALS NOTE TO READ:
FOR INOPERATIVE ALS, INCREASE LPV ALL CATS VISIBILITY TO 7/8 SM,
LNAV/VNAV ALL CATS VISIBILITY TO 1 SM, AND LNAV CATS C/D VISIBILITY
TO 1 1/8 SM.
THIS IS RNAV (GPS) RWY 21, ORIG-D. 2603111451-PERM
3/11/26
1450Z
!FDC 6/6673 DNV IAP VERMILION RGNL, DANVILLE, IL.
RNAV (GPS) RWY 3, ORIG-C...
LNAV CAT C VISIBILITY 1 3/8.
THIS IS RNAV (GPS) RWY 3, ORIG-D. 2603111450-PERM
No
0700-2200
VERMILION REGIONAL ARPT AUTH
22633 N. BOWMAN AVE. SUITE 1
DANVILLE, IL 61834
Phone: 217-442-4624
TESS COOK
22633 N. BOWMAN AVE. SUITE 1
DANVILLE, IL 61834
Phone: 217-442-4624
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
DNV
--
HIRL RWY 03/21 PRESET LOW INTST - TO INCR INTST & ACTVT MALSR RWY 21; VASI RWYS 03, 16 & 34; PAPI RWY 21; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Crop Dusting
Avionics
Cargo Handling
Charter Service
Glider Service
Pilot Instruction
Glider Towing

Runway 03/21

6006 ft. x 100 ft.
ASPH
Good
PFC
HIGH

50,000lbs
75,000lbs
--
--
  Runway 03 Runway 21
True Heading 29°209°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 11' 38"N 40° 12' 29"N
Longitude 87° 35' 59"W 87° 35' 21"W
Elevation 651' 697'
Threshold Crossing Height 41 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

2500 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 119°299°
Traffic Pattern
Markings NONE NONE
Markings Condition
Latitude 40° 12' 07"N 40° 11' 55"N
Longitude 87° 35' 52"W 87° 35' 23"W
Elevation 678' 671'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

3999 ft. x 100 ft.
ASPH
Good
GRVD
MED

40,000lbs
50,000lbs
--
--
  Runway 16 Runway 34
True Heading 164°344°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 40° 12' 11"N 40° 11' 33"N
Longitude 87° 35' 57"W 87° 35' 43"W
Elevation 682' 656'
Threshold Crossing Height 23 ft. AGL 14 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1EXTSV GLDR OPS WKENDS.
A110-2FOR CD IF UNABLE VIA RADIO CTC CHAMPAIGN APCH AT 217-355-4071, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921
A110-3AIR CARGO PART 135 FLT DEPS NGTLY 2200, ARRS DLY 0600 MON THRU SAT.
A14ROD HIGHTOWER
A15EMAIL ADDRESS: MANAGER@VRAIRPORT.COM
A30-12/30SEASONAL RWY NOV 1 - MAY 1; CTC AMGR 217-442-4624.
A81-APTHIRL RWY 03/21 PRESET LOW INTST - TO INCR INTST & ACTVT MALSR RWY 21; VASI RWYS 03, 16 & 34; PAPI RWY 21; MIRL RWY 16/34 - CTAF.
VERMILION RGNL (ICAO: KDNV, IATA: DNV) is a public airport located in DANVILLE, IL, US.
