iFlightPlanner



...
DEL RIO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDRT
ICAO KDRTIATA DRTLocal DRT
DEL RIO INTL
PublicPUB

2 miles NW of DEL RIO, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 22' 27"N 100° 55' 38"W
Elevation
1002' MSL
Pattern Alt
2002' MSL
Mag Variation
5°E
Declination
8°E
Fuel
JET A (FSII), 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
6/11/26-7/9/26
KDRT VFR
4:53 PM CDT
Clear
10sm
97°F
64°F
29.86"Hg
130° 17kts
Gusts 27kts
AO1 PK WND 15028/2103 SLP099 T03610178
METAR KDRT 252153Z AUTO 13017G27KT 10SM CLR 36/18 A2986 RMK AO1 PK WND 15028/2103 SLP099 T03610178
+ Add Your Business

KDRT FBOs

Promote Listing
Pico Aviation
UNICOM: 122.8
Phone: (830) 768-0898
Other: (830) 734-3379
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 6/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.03
Full Serve 7.63 6.41
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.525
(830) 282-0257

Common

CTAF 122.8
ACTVT MALS RWY 13; REIL RWY 31; MIRL RWY 13/31; TWY - CTAF
UNICOM 122.8

Clearance

Clearance Delivery 120.5

Approach

DEL RIO APPROACH 119.6

Departure

DEL RIO DEPARTURE 119.6

Center

DEL RIO CENTER 125.75
LOW, APCH/DEP CTL SVC PRVDD BY HOUSTON ARTCC (ZHU) ON FREQS 125.75/346.4 (ROCK SPRINGS RCAG) WHEN DEL RIO APCH CTL (DLF) CLSD.

Flight Service

Flight Service 122.3
(SJT)

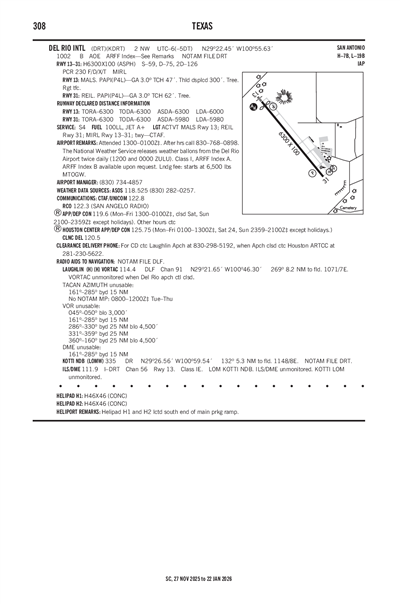

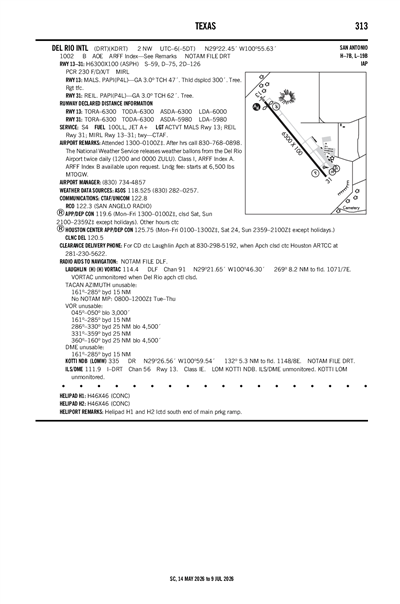

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDRT
Thu, 6/25 12:30 PM CDT
Thu, 6/25 1:00 PM CDT - Fri, 6/26 1:00 PM CDT
VFR
1:00 PM CDT - 10:00 PM CDT
Few 5,000'
6sm
140° 16kts
Gusts 26kts
VFR
10:00 PM CDT - 6:00 AM CDT
Scattered 25,000'
6sm
120° 10kts
MVFR
6:00 AM CDT - 12:00 PM CDT
Overcast 2,000'
6sm
120° 11kts
VFR
12:00 PM CDT - 1:00 PM CDT
Scattered 5,000'
6sm
140° 15kts
Gusts 25kts
TAF KDRT 251730Z 2518/2618 14016G26KT P6SM FEW050
   FM260300 12010KT P6SM SCT250
   FM261100 12011KT P6SM OVC020
   FM261700 14015G25KT P6SM SCT050
KDRT
EffectiveExpiresCategoryNOTAM
Domestic
6/8/26
1132Z
!DRT 06/008 DRT COM REMOTE COM OUTLET 122.3 U/S 2606081132-2606302000EST
6/6/26
0219Z
7/9/26
2200Z
!DRT 06/002 DRT OBST TOWER LGT (ASN 2019-ASW-3085-OE) 291852N1004801W (7.6NM ESE DRT) 1209FT (206FT AGL) U/S 2606060219-2607092200
6/3/26
1742Z
9/1/26
1742Z
!DRT 06/001 DRT OBST TOWER LGT (ASR 1051243) 292041.50N1005159.20W (3.7NM ESE DRT) 1283.8FT (237.9FT AGL) U/S 2606031742-2609011742
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/021 DRT TWY B EDGE LGT BTN GA RAMP AND TWY A U/S 2605261300-2606302300
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/017 DRT APRON GA RAMP SE 600FT CLSD CONST LGTD AND BARRICADED 2605261300-2606302300
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/016 DRT APRON GA RAMP NW 600FT WIP CONST LGTD AND BARRICADED 2605261300-2606302300
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/015 DRT TWY A BTN TWY C AND TWY E CLSD 2605261300-2606302300
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/014 DRT TWY A BTN TWY B AND TWY C CLSD 2605261300-2606302300
5/26/26
1300Z
6/30/26
2300Z
!DRT 05/013 DRT TWY D CLSD 2605261300-2606302300
5/23/26
1836Z
7/7/26
1835Z
!DRT 05/024 DRT OBST TOWER LGT (ASR 1058270) 292044.00N1005212.00W (3.5NM ESE DRT) 1422.9FT (373.0FT AGL) U/S 2605231836-2607071835
4/5/26
0320Z
!DRT 04/001 DRT NAV ILS RWY 13 KOTTI LOM U/S 2604050320-2704022000EST
2/19/26
1251Z
!DRT 02/012 DRT NAV ILS RWY 13 OM U/S 2602191251-2709302111EST
5/21/24
2005Z
!DRT 05/012 DRT SVC CLR DELIVERY 120.5 UNREL USE LAUGHLIN APP 830-298-5192 2405212005-PERM
FDC
5/6/26
1538Z
!FDC 6/8374 DRT IAP DEL RIO INTL, DEL RIO, TX.
ILS OR LOC RWY 13, ORIG-B...
S-LOC 13 CATS A/B VIS 3/4 AND CATS C/D 1. CIRCLING CAT A MDA/HAA 1460/458. WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE LAUGHLIN AFB ALTIMETER SETTING: INCREASE S-ILS 13 DA TO 1232 FEET; INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CATS C/D 1/4 SM.
2605061538-2812161538EST
3/11/26
1456Z
!FDC 6/6676 DRT IAP DEL RIO INTL, DEL RIO, TX.
RNAV (GPS) RWY 13, AMDT 2B...
LNAV CATS A/B VISIBILITY 3/4, CATS C/D 1 1/8. CHANGE PBN
REQUIREMENTS NOTE TO READ: RNP APCH - GPS. DELETE *LNAV ONLY.
CHANGE MIN ALT AT HIBUD TO READ: HIBUD/1.90 NM TO RW13 1640. CHART
NOTE: INOPERATIVE TABLE DOES NOT APPLY TO LPV ALL CATS. CHART NOTE:
FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1
1/8 SM. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE DLF ALTIMETER SETTING: INCREASE LPV DA TO 1282
FEET; INCREASE LNAV/VNAV DA TO 1431 FEET; INCREASE ALL MDAS 40 FEET
AND LNAV VISIBILITY CATS C/D 1/8 SM AND CIRCLING VISIBILITY CATS
C/D 1/4 SM. CHANGE BARO-VNAV NA NOTE TO READ: BARO-VNAV NA WHEN
USING DLF ALTIMETER SETTING. CHANGE FOR UNCOMPENSATED BARO-VNAV
NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -17C OR ABOVE 54C. DELETE VGSI AND RNAV GLIDEPATH NOT
COINCIDENT NOTE.
THIS IS RNAV (GPS) RWY 13, AMDT 2C. 2603111456-PERM
No
0700-1900
AFT HRS CALL 830-768-0898.
DEL RIO/VAL VERDE CO
109 W BROADWAY STREET
DEL RIO, TX 78840
Phone: (830) 774-8610
JUAN ONOFRE
1104 WEST 10TH STREET
DEL RIO, TX 78840
Phone: (830) 734-4857
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
DRT
--
ACTVT MALS RWY 13; REIL RWY 31; MIRL RWY 13/31; TWY - CTAF
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Cargo Handling
Aircraft Sales

Runway 13/31

6300 ft. x 100 ft.
ASPH
Good
NONE
MED

59,000lbs
75,000lbs
126,000lbs
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 29° 22' 51"N 29° 22' 03"N
Longitude 100° 56' 01"W 100° 55' 15"W
Elevation 1,002' 995'
Threshold Crossing Height 47 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

46 ft. x 46 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 29° 22' 07"N N/A
Longitude 100° 55' 09"W N/A
Elevation 1,002' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

46 ft. x 46 ft.
CONC
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 29° 22' 08"N N/A
Longitude 100° 55' 08"W N/A
Elevation 1,002' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HELIPAD H1 & H2 LCTD SOUTH END OF MAIN PRKG RAMP.
A110-2FOR CD CTC LAUGHLIN APCH AT 830-298-5192, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A110-3THE NATIONAL WEATHER SERVICE RELEASES WEATHER BALLOONS FROM THE DEL RIO AIRPORT TWICE DAILY (1200 AND 0000 ZULU).
A110-4ARFF INDEX B AVAILABLE UPON REQUEST
A17-H2AFT HRS CALL 830-768-0898.
A24STARTS AT 6,500 LBS MTOGW
A39-13/31PCR VALUE: 230/F/D/X/T
A57-1350:1 SLOPE TO THE DSPLCD THR.
A81-APTACTVT MALS RWY 13; REIL RWY 31; MIRL RWY 13/31; TWY - CTAF
DEL RIO INTL (ICAO: KDRT, IATA: DRT) is a public airport located in DEL RIO, TX, US.
