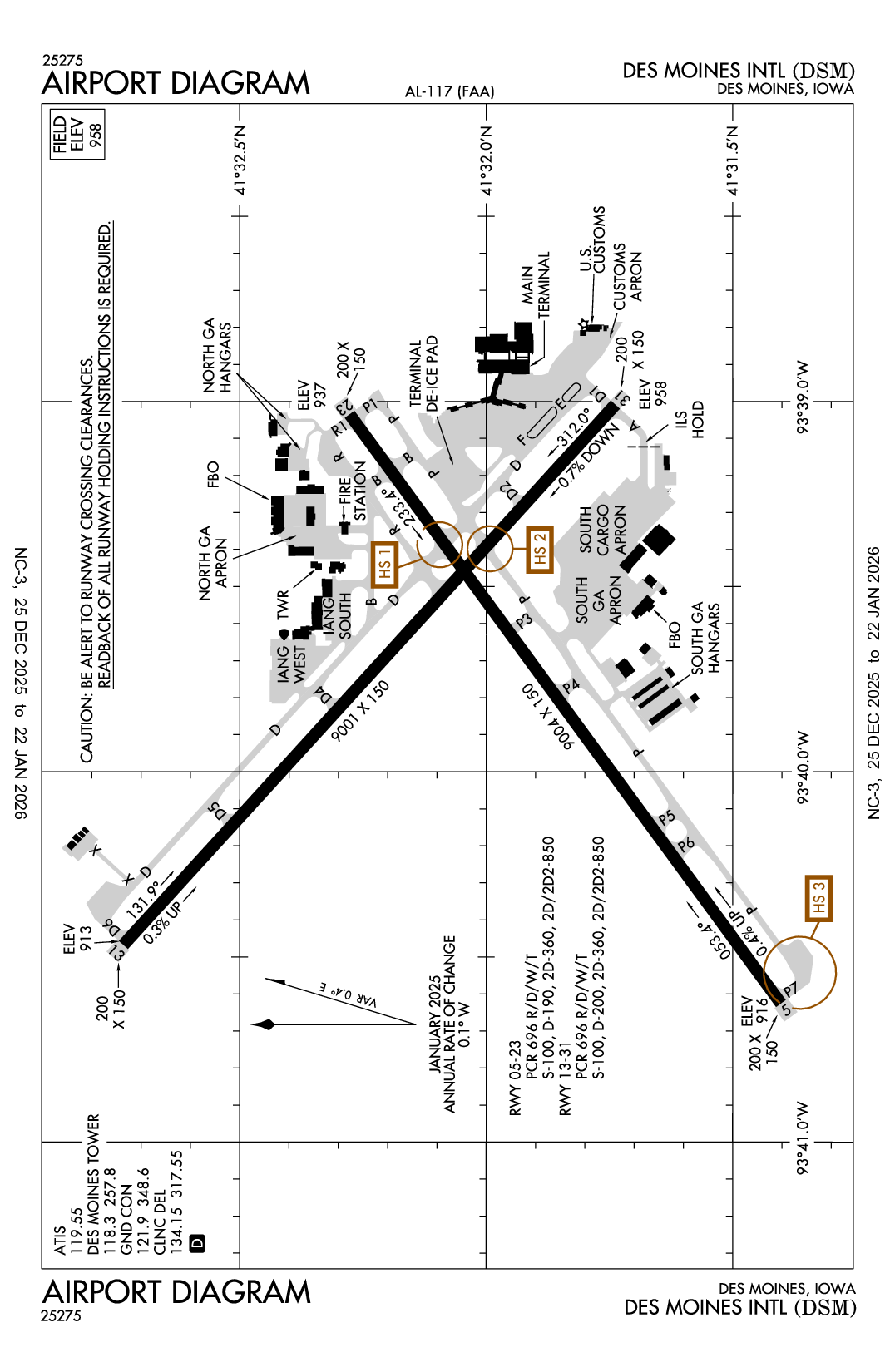

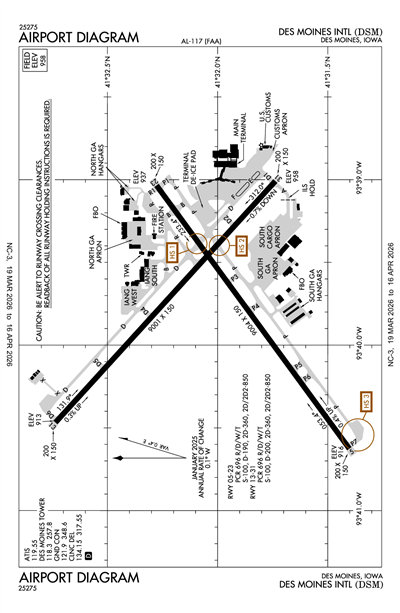

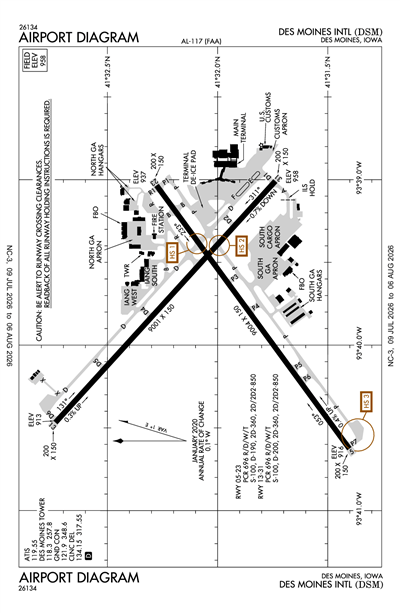

DES MOINES INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDSM
DES MOINES INTL
PublicPUB

3 miles SW of DES MOINES, IA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 32' 02"N 93° 39' 47"W
958' MSL
1958' MSL
01E
Jet A, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
6/16/22-7/14/22
KDSM VFR
11:54 AM CDT
Scattered 3,200'
10sm
82°F
67°F
30.07"Hg
150° 7kts
AO2 SLP175 T02780194
KDSM 031654Z 15007KT 10SM SCT032 28/19 A3007 RMK AO2 SLP175 T02780194

KDSM FBOs, Flight Schools and Ground Support

Signature Flight Support
Freq: 130.0
Phone: (515) 256-5330
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/30
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.10 8.30
Elliott Aviation
Freq: 130.57
Phone: (515) 285-6551
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/7
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.20 8.36 8.36

KDSM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDSM Hotels

No hotels are listed for this airport.

KDSM Restaurants

No restaurants are listed for this airport.

KDSM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
515-974-8046
119.55

ASOS

ASOS
515-974-8013
119.55

Approach

APCH/S
135.2

Approach/Departure

APCH/P DEP/P IC
123.9
APCH/S DEP/S
120.45

Clearance Delivery

CD/P
134.15

Emergency

EMERG
121.5

Ground

GND/P IC
121.9

Tower

LCL/P IC
118.3

Other

CLASS C
123.9
CLASS C/S
120.45
CLASS C/S
135.2

Terminal Area Forecast

KDSM
Sun, 7/3 12:33 PM CDT
Sun, 7/3 1:00 PM CDT - Mon, 7/4 1:00 PM CDT
VFR
1:00 PM CDT - 6:00 AM CDT
Scattered 3,000'
> 6sm
160° 11kts
MVFR
6:00 AM CDT - 11:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 2,500'
> 6sm
170° 7kts
VFR
11:00 AM CDT - 1:00 PM CDT
Broken 8,000'
> 6sm
170° 10kts
KDSM 031733Z 0318/0418 16011KT P6SM SCT030
   FM041100 17007KT P6SM -SHRA VCTS BKN025CB
   FM041600 17010KT P6SM BKN080
KDSM
Domestic
6/30/220428Z !DSM 06/110 DSM TWY D6 HLDG PSN MARKINGS NOT STD 2206300428-2207312200
6/30/220427Z !DSM 06/109 DSM TWY A EDGE MARKINGS NOT STD 2206300427-2207312300
6/30/220426Z !DSM 06/108 DSM TWY D CL MARKINGS BTN TWY D1 AND TWY D6 NOT STD 2206300426-2207312300
6/30/220425Z !DSM 06/107 DSM TWY P CL MARKINGS BTN TWY D AND SOUTH T HANGARS APN ACCESS NOT STD 2206300425-2207312200
6/30/220425Z !DSM 06/106 DSM TWY A CL MARKINGS NOT STD 2206300425-2207312200
6/30/220424Z !DSM 06/104 DSM TWY B CL MARKINGS BTN TWY D AND TWY R NOT STD 2206300424-2207312200
6/30/220424Z !DSM 06/103 DSM RWY 13 LEAD ON CL MARKINGS AT TWY D5 OBSC 2206300424-2207312200
6/30/220423Z !DSM 06/102 DSM RWY 13/31 CL MARKINGS NOT STD 2206300423-2207312200
6/30/220423Z !DSM 06/101 DSM TWY R CL MARKINGS FOR RWY 13/31 NOT STD 2206300423-2207312200
6/30/220422Z !DSM 06/099 DSM TWY E EDGE MARKINGS NORTH SIDE NOT STD 2206300422-2207312200
6/30/220421Z !DSM 06/098 DSM RWY 31 LEAD OFF CL MARKINGS AT TWY D5 OBSC 2206300421-2207312200
6/30/220419Z !DSM 06/100 DSM TWY D INTERMEDIATE BDRY LINE AT TWY B NOT STD 2206300419-2207312200
6/25/220816Z !DSM 06/086 DSM RWY 13 LEAD OFF CL MARKINGS AT TWY D1 NOT MARKED 2206250816-2207112200
6/1/220401Z !DSM 05/090 DSM AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2206010401-2406010401
4/21/221837Z !DSM 04/057 DSM NAV VOT SW OF TWY P4 UNUSABLE 2204211837-2212302111EST
4/6/221322Z !DSM 04/026 DSM TWY P SOUTHWEST OF SOUTH HANGARS APN CLSD 2204061322-2210272300
3/28/222031Z !DSM 03/194 DSM AD AP TWY SFC MOV GUIDANCE AND CTL SYSTEM (SMGCS) U/S
2203282031-2211102359
3/24/221520Z !DSM 03/184 DSM APRON TEMPO TXL BTN TWY R1 AND TWY B 2203241520-2211272300
3/24/221512Z !DSM 03/182 DSM TWY P BTN TWY D AND TWY G CLSD 2203241512-2210270459
3/24/221511Z !DSM 03/181 DSM TWY R BTN TWY D AND TWY R1 CLSD 2203241511-2210270459
3/24/221509Z !DSM 03/180 DSM TWY B BTN TWY R AND TERMINAL TXL CLSD 2203241509-2210270459
3/24/221508Z !DSM 03/179 DSM TWY P7 RUNUP PAD CLSD 2203241508-2210270459
3/24/221507Z !DSM 03/178 DSM TWY P7 CLSD 2203241507-2210270459
3/24/221506Z !DSM 03/177 DSM TWY P6 CLSD 2203241506-2210270459
3/24/221506Z !DSM 03/176 DSM TWY P5 CLSD 2203241506-2210270459
3/24/221505Z !DSM 03/175 DSM TWY P4 CLSD 2203241505-2210270459
3/24/221505Z !DSM 03/174 DSM TWY P3 CLSD 2203241505-2210270459
3/24/221504Z !DSM 03/173 DSM TWY P1 CLSD 2203241504-2210270459
3/24/221503Z !DSM 03/172 DSM TWY R1 RUNUP PAD CLSD 2203241503-2210270459
3/24/221503Z !DSM 03/171 DSM TWY R1 CLSD 2203241503-2210270459
3/24/221501Z !DSM 03/170 DSM TWY G CLSD 2203241501-2210270459
3/21/221100Z !DSM 03/097 DSM RWY 05 PAPI U/S 2203211100-2210262000
3/21/221100Z !DSM 03/096 DSM RWY 23 PAPI U/S 2203211100-2210262000
3/21/221100Z !DSM 03/095 DSM RWY 05 ALS U/S 2203211100-2210262000
3/21/221100Z !DSM 03/094 DSM RWY 23 RWY END ID LGT U/S 2203211100-2210262000
3/21/221100Z !DSM 03/093 DSM NAV ILS RWY 05 U/S 2203211100-2210262000
3/21/220100Z !DSM 03/130 DSM RWY 05/23 CLSD 2203210100-2210270459
FDC
6/1/220401Z !FDC 2/9749 DSM IAP DES MOINES INTL, DES MOINES, IA.
ILS RWY 31 (SA CAT I), AMDT 24 ...
ILS RWY 31 (CAT II - III), AMDT 24 ...
PROCEDURE NA EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2206010401-2406010403EST
4/27/221155Z !FDC 2/4424 DSM IAP DES MOINES INTL, DES MOINES, IA.
RNAV (GPS) RWY 31, AMDT 2...
DELETE NOTE: DME/DME RNP-0.3 NA.
DELETE PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING ANKENY RGNL ALTIMETER
SETTING.
CHANGE BARO-VNAV SYSTEMS NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV
SYSTEMS, LNAV/VNAV NA BELOW -20° OR ABOVE 54°.
THIS IS RNAV (GPS) RWY 31, AMDT 2A. 2204271155-PERM
4/27/221154Z !FDC 2/4423 DSM IAP DES MOINES INTL, DES MOINES, IA.
ILS OR LOC RWY 31, AMDT 24...
DELETE PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT.
THIS IS ILS OR LOC RWY 31, AMDT 24A. 2204271154-PERM
1/26/221407Z !FDC 2/7841 DSM IAP DES MOINES INTL, DES MOINES, IA.
RNAV (GPS) RWY 13, AMDT 2A...
LNAV MDA 1280/HAT 358. VISIBILITY CAT C/D RVR 3000.
2201261407-2401261407EST
1/19/221956Z !FDC 2/6002 DSM IAP DES MOINES INTL, DES MOINES, IA.
RNAV (GPS) RWY 23, AMDT 1...
LNAV/VNAV DA 1313/HAT 374 ALL CATS. VISIBILITY 1 SM ALL CATS.
2201191956-2401191956EST
Yes
ALL
DES MOINES AIRPORT AUTHORITY
5800 FLEUR DRIVE, SUITE 207, ROOM 201
DES MOINES, IA 50321
Phone: 515-256-5100
MR. KEVIN FOLEY
5800 FLEUR DRIVE, SUITE 207
DES MOINES, IA 50321-2854
Phone: 515-256-5100
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
DSM
--
--
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
63
16
23
3
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Sales
Annual Surveying

Runway 05/23

9004 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH
67 /R/B/W/U
100,000lbs
190,000lbs
450,000lbs
850,000lbs
  Runway 05 Runway 23
True Heading 54°234°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 31' 24"N 41° 32' 17"N
Longitude 93° 40' 38"W 93° 39' 02"W
Elevation 916' 937'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights No Yes

Runway 13/31

9002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
67 /R/B/W/U
133,000lbs
180,000lbs
340,000lbs
--
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 32' 44"N 41° 31' 44"N
Longitude 93° 40' 28"W 93° 39' 01"W
Elevation 912' 958'
Threshold Crossing Height 54 ft. AGL 56 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-11CONTRACT FUEL AVBL; CTC SIGNATURE FLIGHT SUPPORT 515-256-5330.
A110-13BIRDS ON & INVOF ARPT.
A110-14INFORMAL NOISE ABATEMENT PROCEDURES IN EFFECT. EXPECT ATC TO ASSIGN PREFERRED RY.
A110-16IANG SOUTH RAMP PCN 78 R/B/W/T. IANG WEST RAMP PCN 87 R/B/W/T.
A110-19MAX ACFT WT SOUTH GA APRN 170,000 LBS ALL OTHER FBO RAMPS 80,000 LBS
A110-21TWR HAS LIMITED VISIBILITY ON TWY P AT TWY P-7 AND AER 05.
A110-23CROSS BLEED ENGINE STARTS ON AIR CARRIER RAMP PROHIBITED.
A110-25PAVEMENT COND IS FAIR ON 1000 ASPH PTN OF RWY 5/23.
A110-26USE CAUTION WHEN LNDG OVER RAISED LIGHTS IN THE OVERRUNS AND RWY THLDS AT DSM.
A110-27ARNG RAMP AVBL FOR MIL AND MIL-CONTRACTED ACFT FOR OFFL BUS ONLY WITH LTD SUPPORT. PPR RQR; CTC IAARNG C-12 FIXED WING DETACHMENT. DSN 431-4993, C515-252-4993 OR DSN 261-8360, C515-261-8360. FBOS WILL PRVFD TRANSIT SVCS. MIL CREWS CAN CTC HAWKI ON 252.9
DES MOINES INTL (ICAO: KDSM, IATA: DSM) is a public airport located in DES MOINES, IA.
